0054 - TOOL KIT

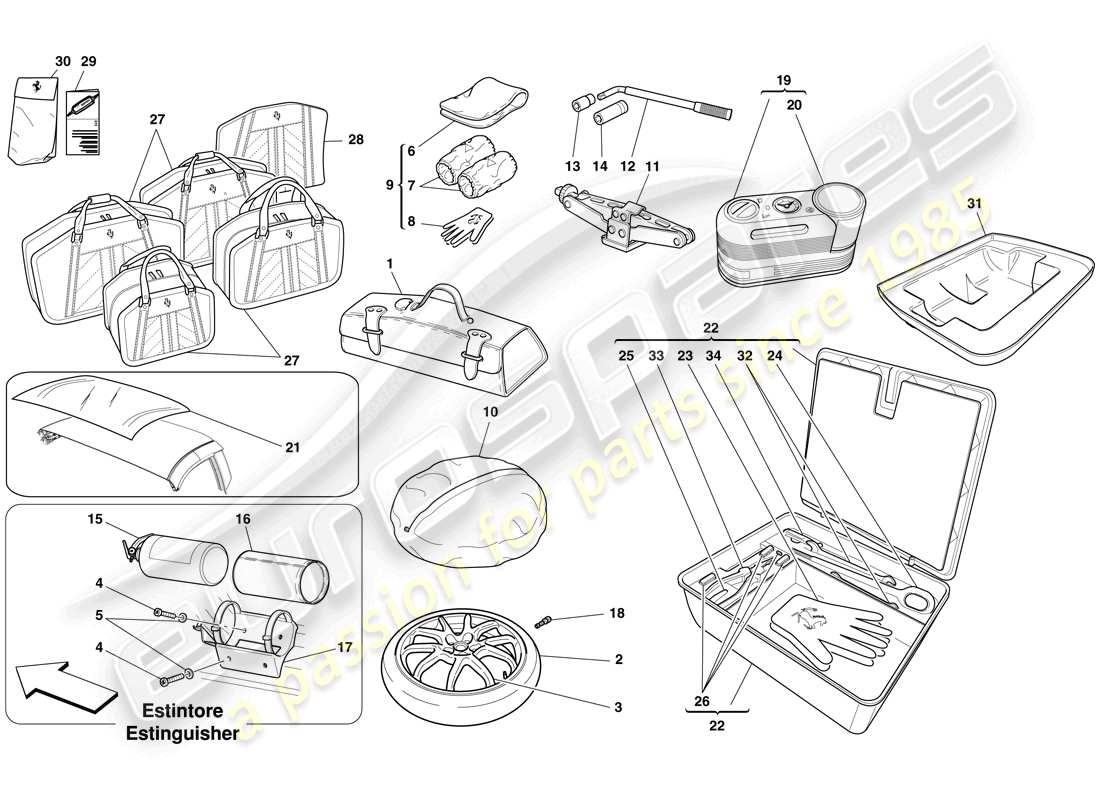

Ferrari 599 SA Aperta (USA) TOOL KIT Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 273192
COMPLETE EMERGENCY TOOL BAG
from £733.55
from £733.55
# 001
MPN: 247677
EMPTY TOOL BAG
from £437.16
from £437.16
# 002
-
TYRE
# 003
MPN: 240241
SPARE WHEEL RIM
-4.5J X 20-
from £1,027.16
from £1,027.16
# 004
MPN: 62940900
SCREW
from £0.73
from £0.73
This part replaces part number 67352400
# 005
MPN: 12646678
WASHER
from £0.47
from £0.47
# 006
MPN: 65253100
ACCESSORY HOLDER WALLET
from £25.20
from £25.20
# 007
MPN: 65253200
SLEEVE PROTECTORS
from £4.31
from £4.31
# 008
MPN: 65253300
GLOVES
from £18.84
from £18.84
# 009
MPN: 65253000
COMPLETE ACCESSORY HOLDER WALLET
from £62.79
from £62.79
# 010
MPN: 65252900
SPACE SAVER SPARE WHEEL COVER
from £36.36
from £36.36
# 011
MPN: 247678
VEHICLE LIFT JACK
-Applicable until depletion-
Supersession
Supersession
# 011
MPN: 325161
VEHICLE LIFT JACK
-Applicable after depletion of 247678-
from £197.54
from £197.54
This part replaces part number 247678
# 012
MPN: 171490
WRENCH HANDLE
from £59.75
from £59.75
# 013
MPN: 171491
17/19 SOCKET HEAD
-Applicable until depletion-
from £24.04
from £24.04
# 014
MPN: 171492
SOCKET HEAD FOR WHEEL SCREWS
from £45.25
from £45.25
# 015
MPN: 69327500
EXTINGUISHER
from £229.97
from £229.97
# 016
MPN: 69327600
FIRE EXTINGUISHER SLEEVE
-Leather- -STC1- -STC2-
Supersession
Supersession
This part replaces part number 693276..
# 017
MPN: 697001..
COMPLETE TRIMMED BRACKET
-Leather- -STC1- -STC2- -Not for GD-
Supersession
Supersession
# 017
MPN: 698587..
COMPLETE TRIMMED BRACKET
-Leather- -STC1- -STC2- -Applicable for GD-
Supersession
Supersession
# 018
MPN: 317250104
VALVE
from £5.57
from £5.57
# 019
MPN: 244702
COMPLETE TYRE REPAIR KIT
-Supplied with tool kit 254636-
from £208.55
from £208.55
# 020
MPN: 253894
REPAIR KIT REFILL BOTTLE
from £77.95
from £77.95
# 021
MPN: 84408900
ROOF COVER
from £319.23
from £319.23
# 022
MPN: 254636
COMPLETE INTEGRATED TOOL KIT
from £571.80
from £571.80
This part replaces part number 247946
# 023
MPN: 65253300
GLOVES
from £18.84
from £18.84
# 024
MPN: 169395
TOW HOOK
from £109.22
from £109.22
# 025
MPN: 178659
FUSE REMOVAL CLIP
from £1.71
from £1.71
# 026
MPN: 166835
40A MAXI FUSE
from £5.93
from £5.93
# 026
MPN: 169438
20A MAXI FUSE
from £7.83
from £7.83
# 026
MPN: 170093
30A MAXI FUSE
from £7.22
from £7.22
# 026
MPN: 172871
60 A MAXI FUSE
from £8.53
from £8.53
# 026
MPN: 172875
5A MAXI FUSE
from £5.70
from £5.70
# 027
MPN: 842349..
LUGGAGE SET
-STIC-
Supersession
Supersession
# 028
MPN: 843006..
SUIT BAG
-STIC-
Supersession
Supersession
# 029
MPN: 83222500
BATTERY CONDITIONER GUIDE
-Not for J-
from £6.74
from £6.74
This part replaces part number 80560600
# 029
MPN: 83222600
BATTERY CONDITIONER GUIDE
-Applicable for J-
from £6.74
from £6.74
# 030
MPN: 80565700
BAG FOR BATTERY CONDITIONER AND MANUAL
from £38.76
from £38.76
This part replaces part number 88795500
# 031
MPN: 81150100
FIX AND GO CONTAINER
from £123.35
from £123.35
This part replaces part number 69002700
# 032
-
8/17 FIXED WRENCH SET
# 033
-
160 MM UNIVERSAL PLIERS
# 034
-
CROSS-HEAD SCREWDRIVER
