0111 - LUGGAGE COMPARTMENT INSULATION

Ferrari 599 SA Aperta (USA) LUGGAGE COMPARTMENT INSULATION Parts Diagram

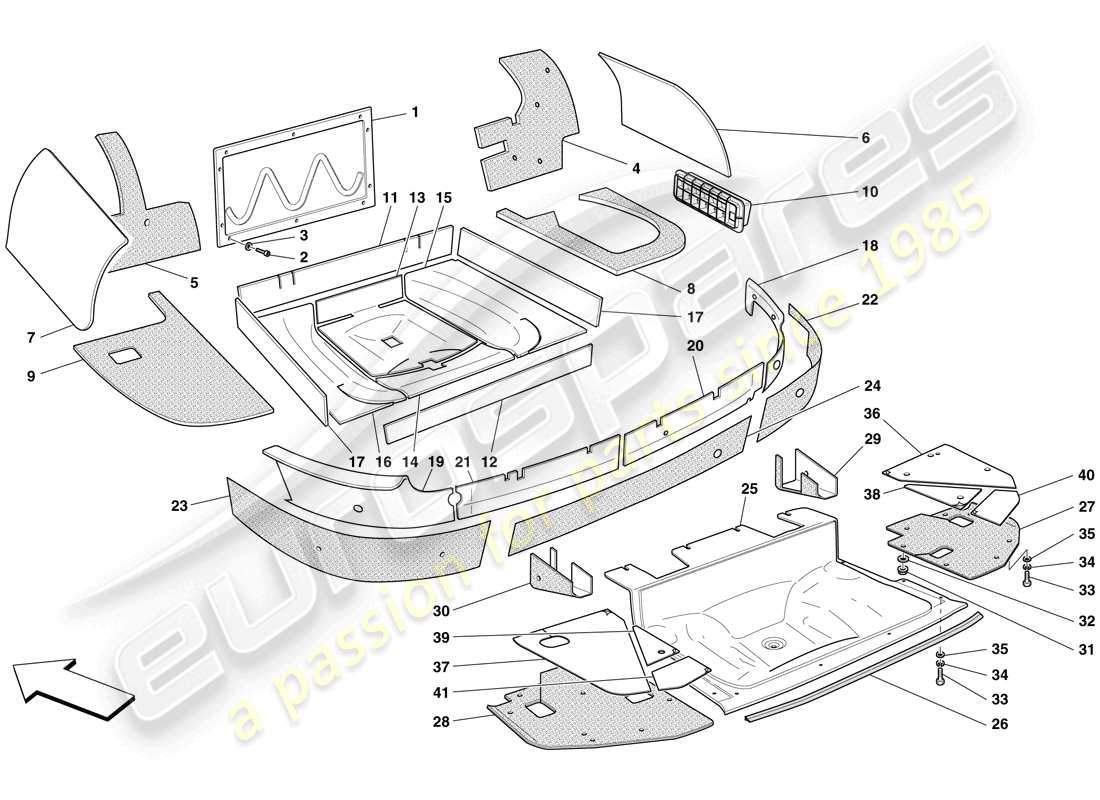

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                  #
                                                                                  Part number
                                                                                  Description
                                                                                  Price
                                                                                  # 001
                                                                                  MPN: 68570600
                                                                                  SHIELD
                                                                                  -Version without spare wheel-
                                                                                  from £32.03
                                                                                  from £32.03
                                                                                  # 001
                                                                                  MPN: 69356700
                                                                                  SHIELD
                                                                                  -Version with spare wheel-
                                                                                  from £71.61
                                                                                  from £71.61
                                                                                  # 002
                                                                                  MPN: 13272011
                                                                                  SCREW
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  # 003
                                                                                  MPN: 12642801
                                                                                  WASHER
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 12642824
                                                                                  # 004
                                                                                  MPN: 80210200
                                                                                  RH WHEELHOUSE INSULATION
                                                                                  from £55.19
                                                                                  from £55.19
                                                                                  This part replaces part number 68570400
                                                                                  # 005
                                                                                  MPN: 80210300
                                                                                  LH WHEELHOUSE INSULATION
                                                                                  from £69.92
                                                                                  from £69.92
                                                                                  This part replaces part number 68570500
                                                                                  # 006
                                                                                  MPN: 80210400
                                                                                  RH FENDER INSULATION
                                                                                  from £62.57
                                                                                  from £62.57
                                                                                  This part replaces part number 68569300
                                                                                  # 007
                                                                                  MPN: 80210500
                                                                                  LH FENDER INSULATION
                                                                                  from £62.57
                                                                                  from £62.57
                                                                                  This part replaces part number 68569400
                                                                                  # 008
                                                                                  MPN: 80210600
                                                                                  RH LATERAL INSULATION
                                                                                  from £88.32
                                                                                  from £88.32
                                                                                  This part replaces part number 68569900
                                                                                  # 009
                                                                                  MPN: 80210700
                                                                                  LH LATERAL INSULATION
                                                                                  from £176.64
                                                                                  from £176.64
                                                                                  This part replaces part number 68570000
                                                                                  # 011
                                                                                  MPN: 80210800
                                                                                  FRONT SPARE WHEEL INSULATION
                                                                                  from £88.32
                                                                                  from £88.32
                                                                                  This part replaces part number 68569000
                                                                                  # 012
                                                                                  MPN: 80210900
                                                                                  Insulation
                                                                                  from £22.51
                                                                                  from £22.51
                                                                                  This part replaces part number 68569500
                                                                                  # 013
                                                                                  MPN: 80211000
                                                                                  SPARE WHEEL INSULATION
                                                                                  from £128.81
                                                                                  from £128.81
                                                                                  This part replaces part number 68568700
                                                                                  # 014
                                                                                  MPN: 80211100
                                                                                  REAR INSULATION
                                                                                  from £128.81
                                                                                  from £128.81
                                                                                  This part replaces part number 68570100
                                                                                  # 015
                                                                                  MPN: 80211200
                                                                                  RH LATERAL INSULATION
                                                                                  from £22.51
                                                                                  from £22.51
                                                                                  This part replaces part number 68568500
                                                                                  # 016
                                                                                  MPN: 80211300
                                                                                  LH LATERAL INSULATION
                                                                                  from £22.51
                                                                                  from £22.51
                                                                                  This part replaces part number 68568600
                                                                                  # 017
                                                                                  MPN: 80211400
                                                                                  LATERAL SPARE WHEEL INSULATION
                                                                                  from £36.79
                                                                                  from £36.79
                                                                                  This part replaces part number 68569100
                                                                                  # 018
                                                                                  MPN: 80211500
                                                                                  RH REAR INSULATION
                                                                                  from £62.57
                                                                                  from £62.57
                                                                                  This part replaces part number 68570200
                                                                                  # 019
                                                                                  MPN: 80211600
                                                                                  LH REAR INSULATION
                                                                                  from £55.19
                                                                                  from £55.19
                                                                                  This part replaces part number 68570300
                                                                                  # 020
                                                                                  MPN: 80211700
                                                                                  RH VERTICAL INSULATION
                                                                                  from £110.42
                                                                                  from £110.42
                                                                                  This part replaces part number 68569200
                                                                                  # 021
                                                                                  MPN: 80211800
                                                                                  LH VERTICAL INSULATION
                                                                                  from £110.42
                                                                                  from £110.42
                                                                                  This part replaces part number 69367800
                                                                                  # 022
                                                                                  MPN: 80211900
                                                                                  RH INSULATION
                                                                                  from £24.03
                                                                                  from £24.03
                                                                                  This part replaces part number 68572700
                                                                                  # 023
                                                                                  MPN: 80212000
                                                                                  LH INSULATION
                                                                                  from £28.21
                                                                                  from £28.21
                                                                                  This part replaces part number 68572800
                                                                                  # 024
                                                                                  MPN: 80212100
                                                                                  Insulation
                                                                                  from £29.40
                                                                                  from £29.40
                                                                                  This part replaces part number 68572900
                                                                                  # 025
                                                                                  MPN: 69715700
                                                                                  COMPLETE SPARE WHEEL HEAT SHIELD
                                                                                  from £544.05
                                                                                  from £544.05
                                                                                  This part replaces part number 68572300 - and 1 more. Click to view details
                                                                                  # 026
                                                                                  MPN: 68315100
                                                                                  GASKET
                                                                                  from £5.19
                                                                                  from £5.19
                                                                                  This part replaces part number 68572600
                                                                                  # 027
                                                                                  MPN: 80212400
                                                                                  RH SHELF INSULATION
                                                                                  from £124.90
                                                                                  from £124.90
                                                                                  This part replaces part number 68572400
                                                                                  # 028
                                                                                  MPN: 80212500
                                                                                  LH SHELF INSULATION
                                                                                  from £122.44
                                                                                  from £122.44
                                                                                  This part replaces part number 68572500
                                                                                  # 029
                                                                                  MPN: 80212600
                                                                                  RH INSULATION
                                                                                  from £17.78
                                                                                  from £17.78
                                                                                  This part replaces part number 69701500
                                                                                  # 030
                                                                                  MPN: 80212700
                                                                                  LH INSULATION
                                                                                  from £19.39
                                                                                  from £19.39
                                                                                  This part replaces part number 69701600
                                                                                  # 031
                                                                                  MPN: 14059214
                                                                                  NUT
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  # 032
                                                                                  MPN: 12643770
                                                                                  WASHER
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 033
                                                                                  MPN: 10902380
                                                                                  SCREW
                                                                                  from £1.15
                                                                                  from £1.15
                                                                                  # 034
                                                                                  MPN: 127494
                                                                                  WASHER
                                                                                  from £0.49
                                                                                  from £0.49
                                                                                  This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                  # 035
                                                                                  MPN: 12643770
                                                                                  WASHER
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 036
                                                                                  MPN: 80212800
                                                                                  LOWER RH SHIELD
                                                                                  from £220.80
                                                                                  from £220.80
                                                                                  This part replaces part number 69716500
                                                                                  # 037
                                                                                  MPN: 80212900
                                                                                  LOWER LH SHIELD
                                                                                  from £220.80
                                                                                  from £220.80
                                                                                  This part replaces part number 69716600
                                                                                  # 038
                                                                                  MPN: 80213000
                                                                                  LOWER RH INNER SHIELD
                                                                                  from £66.25
                                                                                  from £66.25
                                                                                  This part replaces part number 69833400
                                                                                  # 039
                                                                                  MPN: 80213100
                                                                                  LOWER LH INNER SHIELD
                                                                                  from £66.25
                                                                                  from £66.25
                                                                                  This part replaces part number 69833600
                                                                                  # 040
                                                                                  MPN: 80213200
                                                                                  LOWER RH REAR SHIELD
                                                                                  from £13.35
                                                                                  from £13.35
                                                                                  This part replaces part number 69833500
                                                                                  # 041
                                                                                  MPN: 80213300
                                                                                  LOWER LH REAR SHIELD
                                                                                  from £9.54
                                                                                  from £9.54
                                                                                  This part replaces part number 69833700
