ferrari 599 sa aperta (usa) screens, windows and seals parts diagram

0121 - SCREENS, WINDOWS AND SEALS

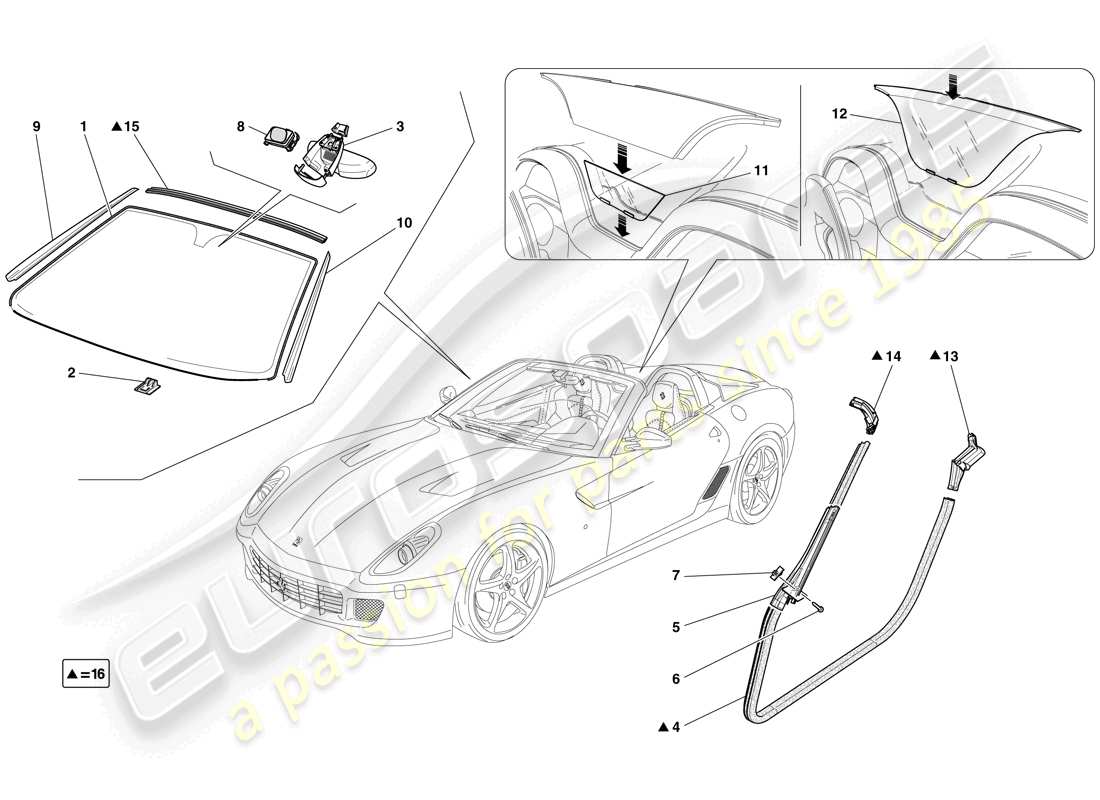

Ferrari 599 SA Aperta (USA) SCREENS, WINDOWS AND SEALS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Price
                      # 001
                      MPN: 68269300
                      WINDSCREEN
                      -Standard-
                      from £1,781.95
                      from £1,781.95
                      # 001
                      MPN: 81716600
                      WINDSCREEN
                      -Optional- -Thermal absorption-
                      from £2,268.69
                      from £2,268.69
                      # 002
                      MPN: 67163300
                      SPACER BLOCK
                      from £0.70
                      from £0.70
                      # 003
                      MPN: 68976700
                      INTERNAL REAR VIEW MIRROR
                      -Electrochromic-
                      from £247.06
                      from £247.06
                      # 004
                      MPN: 83322700
                      LH DOOR PERIMETER SEAL
                      -No longer supplied- -Replaced by 83485300-
                      # 004
                      MPN: 83323100
                      RH DOOR PERIMETER SEAL
                      -No longer supplied- -Replaced by 83485300-
                      # 005
                      MPN: 83567700
                      RH BEADING
                      from £210.07
                      from £210.07
                      # 005
                      MPN: 83567800
                      LH BEADING
                      from £210.07
                      from £210.07
                      # 006
                      MPN: 16083501
                      SCREW
                      from £0.47
                      from £0.47
                      # 007
                      MPN: 64569500
                      CLIP
                      from £2.07
                      from £2.07
                      # 008
                      MPN: 60684944
                      RAIN AND TWILIGHT SENSOR ECU
                      from £130.29
                      from £130.29
                      This part replaces part number 190935
                      # 009
                      MPN: 69966400
                      RH MOULDING
                      from £211.21
                      from £211.21
                      # 010
                      MPN: 69966500
                      LH MOULDING
                      from £211.21
                      from £211.21
                      # 011
                      MPN: 83023400
                      COMPL. CENTRAL WINDSTOP
                      from £576.58
                      from £576.58
                      # 012
                      MPN: 84346600
                      COMPL. LARGE CENTRAL WINDSTOP
                      from £1,579.03
                      from £1,579.03
                      # 013
                      MPN: 83335000
                      LH ROLLBAR SEAL
                      -No longer supplied- -Replaced by 83485300-
                      # 013
                      MPN: 83464300
                      RH ROLLBAR SEAL
                      -No longer supplied- -Replaced by 83485300-
                      # 014
                      MPN: 83249000
                      LH WINDSCREEN CORNER JOINT SEAL
                      -No longer supplied- -Replaced by 83485300-
                      # 014
                      MPN: 83464400
                      RH WINDSCREEN CORNER JOINT SEAL
                      -No longer supplied- -Replaced by 83485300-
                      # 015
                      MPN: 83335100
                      FRONT CROSS MEMBER SEAL
                      -No longer supplied- -Replaced by 83485300-
                      # 016
                      MPN: 83485300
                      SEAL KIT
                      from £3,776.24
                      from £3,776.24
