0017 - LUBRICATION SYSTEM: TANK
Ferrari 812 GTS LUBRICATION SYSTEM: TANK Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 813291

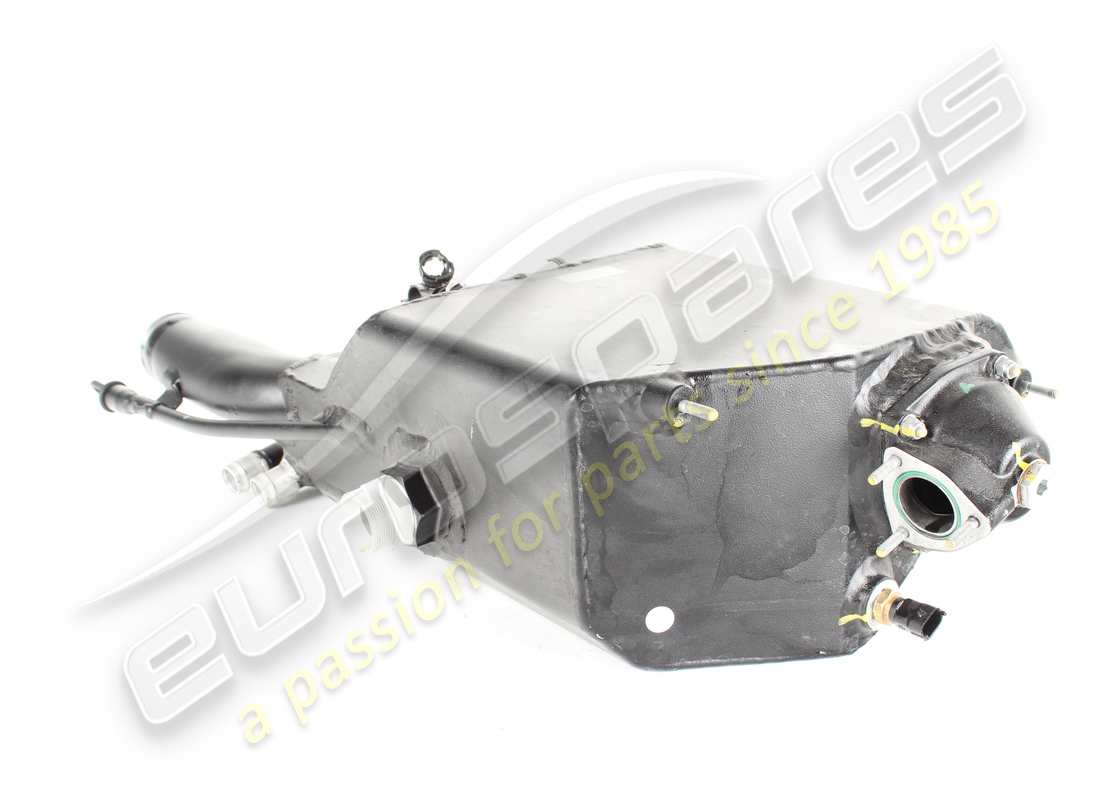

COMPL. ENGINE OIL TANK
| Not applicable for: USA, CDN, USA LIGHT |
from £1,374.49
from £1,374.49
# 001
MPN: 895881
COMPL. ENGINE OIL TANK
| Applicable for: USA, CDN, USA LIGHT |
from £1,377.46
from £1,377.46
# 002
MPN: 210914
OIL TANK PICKUP
from £298.37
from £298.37
# 003
MPN: 11500524
STUD BOLT
from £0.47
from £0.47
This part replaces part number 11500521
# 004
MPN: 102948
NUT
from £0.47
from £0.47
This part replaces part number 12574211 - and 4 more. Click to view details
# 005
MPN: 12601274
WASHER
from £0.47
from £0.47
This part replaces part number 12601221 - and 5 more. Click to view details
# 006
MPN: 293107
THREADED PLUG
from £45.51
from £45.51
# 007
MPN: 10261460
GASKET
from £0.47
from £0.47
# 008
MPN: 13541124
STUD BOLT
from £12.30
from £12.30
This part replaces part number 13541121
# 009
MPN: 100332

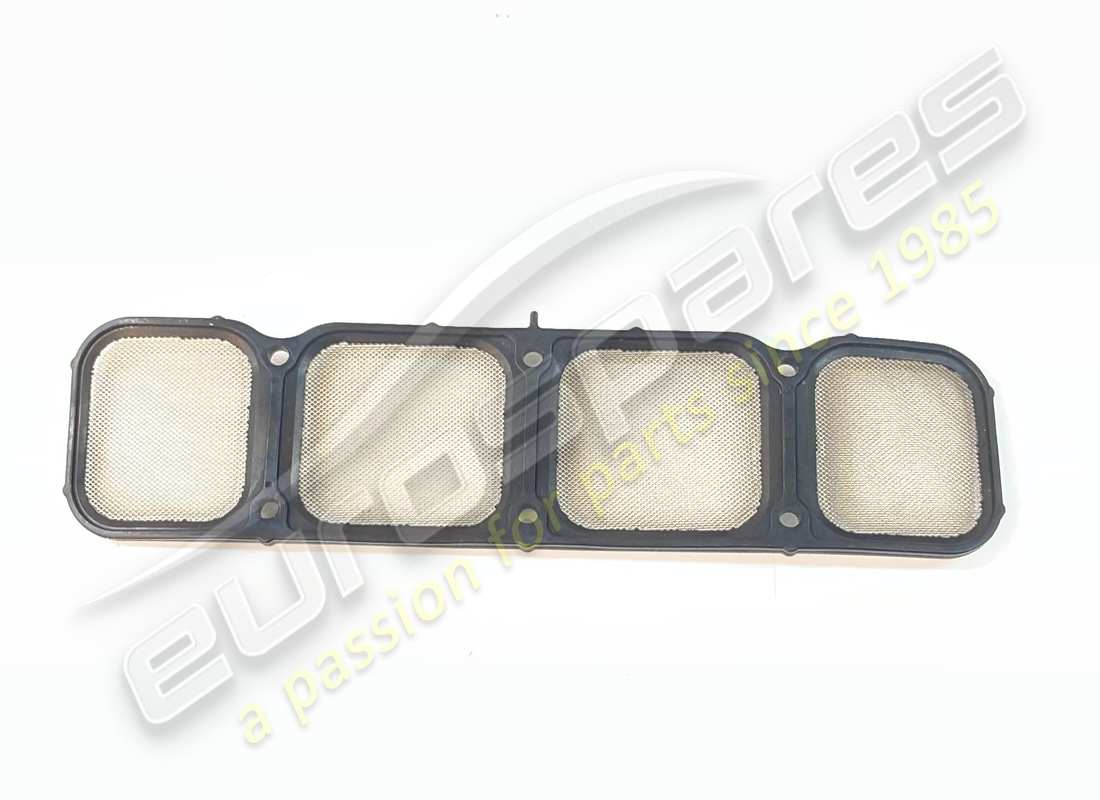

OIL PICKUP FILTER
from £9.31
from £9.31
This part replaces part number 240387 - and 9 more. Click to view details
# 010
MPN: 125521
GASKET
from £5.65
from £5.65
# 011
MPN: 180137
TEMPERATURE SENSOR
from £8.12
from £8.12
# 012
MPN: 794125
OIL PUMP GASKET KIT
from £33.72
from £33.72
# 013
MPN: 175708
COMPL. PLUG
from £91.88
from £91.88
This part replaces part number 142790 which we have in stock - and 3 more. Click to view details
# 014
MPN: 315649
FLANGED BUSHING
from £2.29
from £2.29
# 015
MPN: 341672
SPACER
from £2.92
from £2.92
# 016
MPN: 341649
PIN
from £21.16
from £21.16
# 017
MPN: 333851
OIL VAPOUR PIPE FROM RESERVOIR TO DISCONNECTOR UNION
| Applicable for: USA, CINA, CDN, USA LIGHT |
from £49.04
from £49.04
# 017
MPN: 333853
OIL VAPOUR PIPE FROM RESERVOIR TO DISCONNECTOR UNION
| Not applicable for: USA, CINA, CDN, USA LIGHT |
from £42.39
from £42.39
# 018
MPN: 341699
BRACKET
from £6.74
from £6.74
# 019
MPN: 342579
COMPL. OIL DIPSTICK
from £61.42
from £61.42
# 020
MPN: 269835
FASTENER BRACKET
from £9.39
from £9.39
# 021
MPN: 10902124
SCREW
from £0.53
from £0.53
This part replaces part number 10902111 - and 1 more. Click to view details
# 021
MPN: 10902424
SCREW
from £0.53
from £0.53
This part replaces part number 10902324 - and 3 more. Click to view details
# 022
MPN: 12643724
WASHER
from £0.47
from £0.47
This part replaces part number 109684 - and 4 more. Click to view details
# 023
MPN: 939276
COMPL. FLANGE ON OIL PIPE
from £30.27
from £30.27
# 024
MPN: 939275
BRACKET FASTENING OIL PIPE TO CHASSIS
from £10.81
from £10.81
# 025
MPN: 153628
GASKET
| Also comes with engine gasket set | | No longer supplied - Replaced by 862084 |
from £0.47
from £0.47
# 025
MPN: 862084
GASKET
| Also comes with engine gasket set |
from £2.99
from £2.99
# 026
MPN: 330592
VAPOUR PIPE FROM DISCONNECTOR UNION TO PCV
| Applicable for: USA, CINA, CDN, USA LIGHT |
from £264.37
from £264.37
# 026
MPN: 333854
VAPOUR PIPE FROM DISCONNECTOR UNION TO PCV
| Not applicable for: USA, CINA, CDN, USA LIGHT |
from £222.71
from £222.71
# 027
MPN: 341700
BRACKET
from £7.02
from £7.02
# 028
MPN: 104212
GASKET
from £0.47
from £0.47
# 029
MPN: 330910
CLIP
from £1.15
from £1.15
# 030
MPN: 183898
FLANGED BUSHING
from £1.51
from £1.51
# 031
MPN: 327152

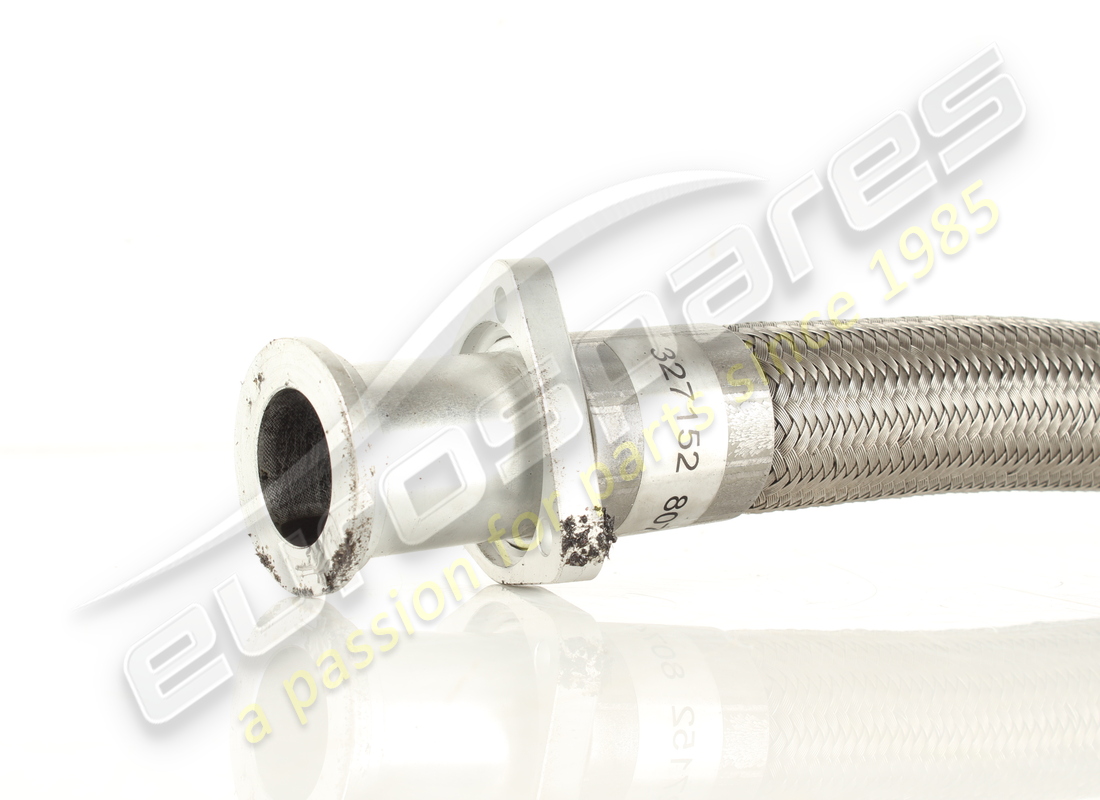

OIL PIPE FROM RESERVOIR TO DISCONNECTOR UNION
from £482.91
from £482.91
# 032
MPN: 104212
GASKET
from £0.47
from £0.47
# 033
MPN: 14040611
NUT
from £0.53
from £0.53
# 034
MPN: 327153

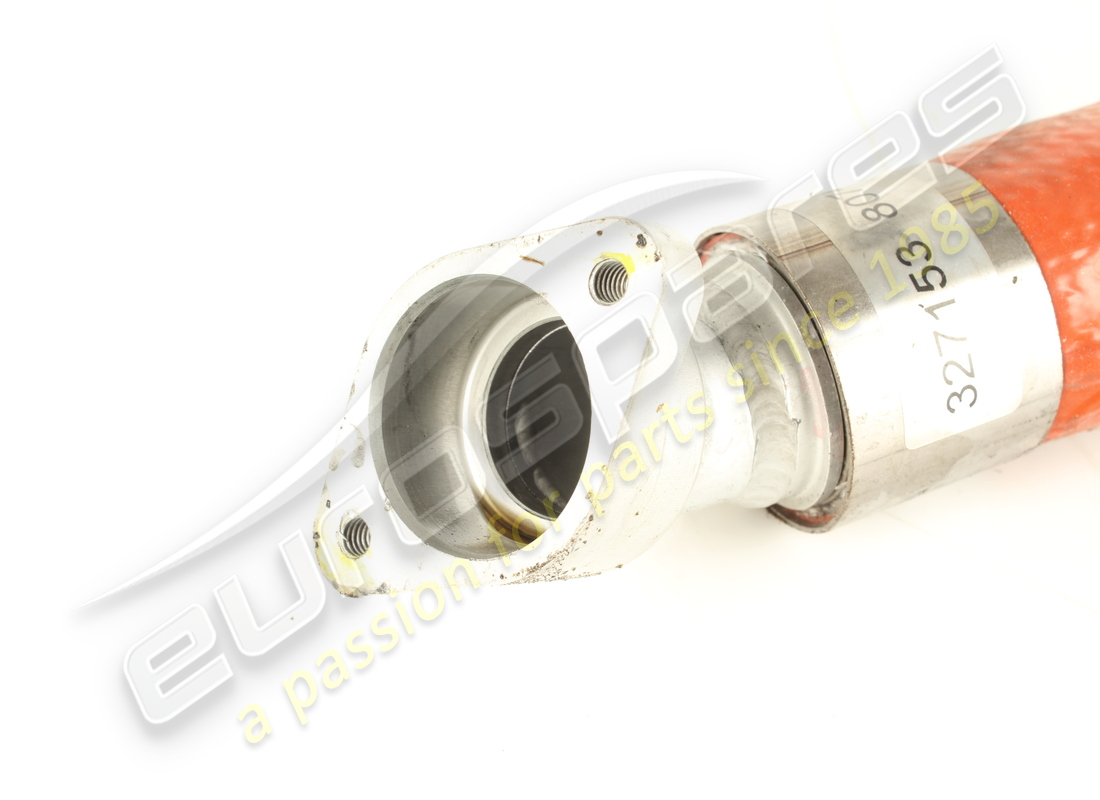

OIL PIPE FROM DISCONNECTER UNION TO PUMP
from £552.03
from £552.03
# 035
MPN: 231619
SCREW
from £0.47
from £0.47
# 036
MPN: 311558
ENGINE OIL RETURN PIPE FROM ENGINE TO DISCONNECTER UNION
from £262.43
from £262.43
# 037
MPN: 341666
SPACER
from £2.88
from £2.88
# 038
MPN: 142202
PLUG
from £14.62
from £14.62
# 039
MPN: 311647
ENGINE OIL RETURN PIPE FROM DISCONNECTER UNION TO THERMOSTAT VALVE
from £315.06
from £315.06
# 040
MPN: 311743
ENGINE OIL RETURN PIPE FROM VALVE TO RESERVOIR
from £210.85
from £210.85
# 041
MPN: 122791
GASKET
from £1.26
from £1.26
# 042
MPN: 315530
PILLORY BLOCK
from £25.99
from £25.99
# 043
MPN: 311723
ENGINE OIL PIPE RETAINER FORK
from £55.91
from £55.91
# 044
MPN: 231618
SCREW
from £0.47
from £0.47
# 045
MPN: 316675
COMPL. OIL THERMOSTAT
from £302.38
from £302.38
# 046
MPN: 317220
OIL DELIVERY PIPE FROM VALVE TO RADIATOR
from £131.15
from £131.15
# 047
MPN: 315531
OIL RETURN PIPE FROM RADIATOR TO VALVE
from £230.50
from £230.50
# 048
MPN: 122791
GASKET
from £1.26
from £1.26
# 049
MPN: 231620
SCREW
from £0.47
from £0.47
# 050
MPN: 121903
GASKET
from £0.47
from £0.47
# 051
MPN: 231619
SCREW
from £0.47
from £0.47
# 052
MPN: 304075
BUSHING
from £3.28
from £3.28
This part replaces part number 289837
# 053
MPN: 138149
THREADED CONNECTOR
from £17.42
from £17.42
# 054
MPN: 891997
GASKET
| Applies until depletion |
Supersession
Supersession
This part replaces part number 144485
# 054
MPN: 898271
GASKET
| Applicable after depletion of 891997 |
from £18.42
from £18.42
This part replaces part number 144485 - and 1 more. Click to view details
# 055
MPN: 231618
SCREW
from £0.47
from £0.47
# 056
MPN: 231620
SCREW
from £0.47
from £0.47
# 057
MPN: 103549
GROMMET
from £0.71
from £0.71
# 058
MPN: 149707
SHIM
from £0.66
from £0.66
# 059
MPN: 16286224
SCREW
from £1.33
from £1.33
# 060
MPN: 12643724
WASHER
from £0.47
from £0.47
This part replaces part number 109684 - and 4 more. Click to view details
# 061
MPN: 315540
RETAINER BLOCK FASTENER PLATE
from £15.33
from £15.33
# 062
MPN: 255495
SCREW
from £0.50
from £0.50
This part replaces part number 282404
# 063
MPN: 267300
MOUNTING
from £6.13
from £6.13
This part replaces part number 294902 - and 1 more. Click to view details
# 064
MPN: 103549
GROMMET
from £0.71
from £0.71
# 065
MPN: 149707
SHIM
from £0.65
from £0.65
# 066
MPN: 14059214
NUT
from £0.47
from £0.47
# 067
MPN: 12643724
WASHER
from £0.47
from £0.47
This part replaces part number 109684 - and 4 more. Click to view details
# 068
MPN: 14039614
NUT
from £0.53
from £0.53
# 069
MPN: 231616
SCREW
from £0.47
from £0.47
This part replaces part number 14305724 which we have in stock
# 070
MPN: 315529
PILLORY BLOCK
from £25.99
from £25.99
# 071
MPN: 315539
RETAINER BLOCK FASTENER PLATE
from £14.23
from £14.23
# 072
MPN: 322190
BRACKET
from £21.57
from £21.57
# 073
MPN: 275528
PUMP SEAL FILTER
from £17.70
from £17.70
This part replaces part number 266381
# 074
MPN: 290538
CONNECTOR
| Not applicable for: USA, CDN, USA LIGHT |
from £37.12
from £37.12
# 075
MPN: 231621
SCREW
from £0.47
from £0.47
This part replaces part number 216568
# 076
MPN: 12643724
WASHER
from £0.47
from £0.47
This part replaces part number 109684 - and 4 more. Click to view details
# 077
MPN: 149707
SHIM
from £0.65
from £0.65
# 078
MPN: 231618
SCREW
from £0.47
from £0.47
# 079
MPN: 231619
SCREW
from £0.47
from £0.47
