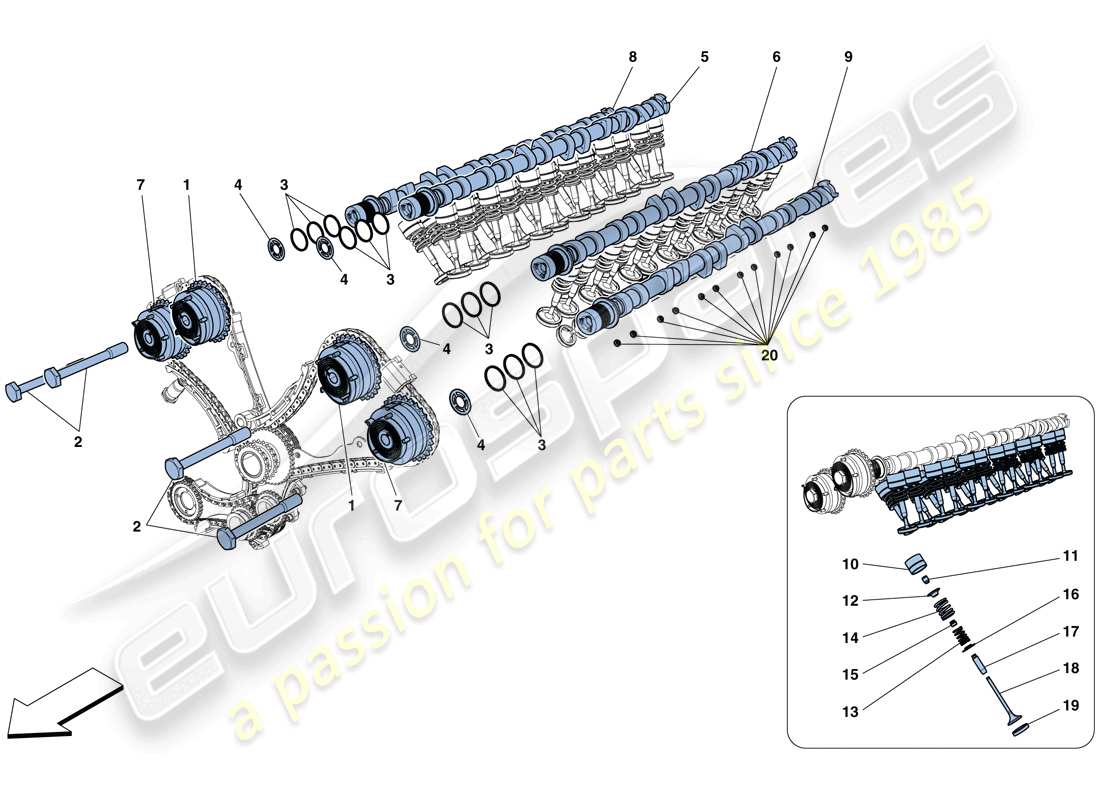

Ferrari 812 Superfast (Europe) TIMING SYSTEM - TAPPETS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Price
                                # 001
                                MPN: 241906
                                VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT
                                from £147.13
                                from £147.13
                                # 002
                                MPN: 254892
                                VARIABLE TIMING ADJUSTER SCREW
                                -M14 X 1.5 X 109-
                                from £3.90
                                from £3.90
                                This part replaces part number 248022 - and 4 more. Click to view details
                                # 003
                                MPN: 197975
                                SEAL RING
                                -Also comes with engine gasket set-
                                from £3.86
                                from £3.86
                                # 004
                                MPN: 240559
                                DIAMOND COATED WASHER
                                from £4.75
                                from £4.75
                                # 005
                                MPN: 321295
                                RH INTAKE CAMSHAFT
                                from £318.67
                                from £318.67
                                # 006
                                MPN: 321296
                                LH INTAKE CAMSHAFT
                                from £318.67
                                from £318.67
                                # 007
                                MPN: 248020
                                VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT
                                from £147.74
                                from £147.74
                                # 008
                                MPN: 321297
                                RH EXHAUST CAMSHAFT
                                from £318.67
                                from £318.67
                                # 009
                                MPN: 321298
                                LH EXHAUST CAMSHAFT
                                from £318.67
                                from £318.67
                                # 010
                                MPN: 255431
                                HYDRAULIC TAPPET
                                from £14.26
                                from £14.26
                                # 011
                                MPN: 179763
                                VALVE SPRING SEMI-CONE
                                from £0.26
                                from £0.26
                                # 012
                                MPN: 320911
                                UPPER VALVE SPRING CAP
                                from £5.34
                                from £5.34
                                # 013
                                MPN: 238641
                                INTERNAL VALVE RETURN SPRING
                                -Applicable up to engine No. 446900-
                                Supersession
                                Supersession
                                # 013
                                MPN: 789304
                                INTERNAL VALVE RETURN SPRING
                                -Applicable from engine No. 446901-
                                from £3.21
                                from £3.21
                                This part replaces part number 238641 - and 4 more. Click to view details
                                # 014
                                MPN: 238640
                                EXTERNAL VALVE RETURN SPRING
                                -Applicable up to engine No. 446900-
                                Supersession
                                Supersession
                                # 014
                                MPN: 789285
                                EXTERNAL VALVE RETURN SPRING
                                -Applicable from engine No. 446901-
                                from £4.28
                                from £4.28
                                This part replaces part number 238640 - and 4 more. Click to view details
                                # 015
                                MPN: 221473
                                OIL SEAL
                                -Also comes with engine gasket set-
                                from £0.94
                                from £0.94
                                # 016
                                MPN: 321017
                                LOWER VALVE SPRING CAP
                                from £4.18
                                from £4.18
                                # 017
                                MPN: 6213498
                                VALVE GUIDE
                                from £1.76
                                from £1.76
                                This part replaces part number 213498
                                # 018
                                MPN: 319636
                                EXHAUST VALVE
                                from £44.30
                                from £44.30
                                # 018
                                MPN: 319722
                                INTAKE VALVE
                                from £22.16
                                from £22.16
                                # 019
                                MPN: 6222847
                                INTAKE VALVE SEAT
                                from £5.07
                                from £5.07
                                This part replaces part number 222847 - and 1 more. Click to view details
                                # 019
                                MPN: 6222848
                                EXHAUST VALVE SEAT
                                from £5.43
                                from £5.43
                                This part replaces part number 222848 - and 1 more. Click to view details
                                # 020
                                MPN: 149229
                                VALVE CLEARANCE ADJUSTER PAD
                                from £13.21
                                from £13.21
