0011 - evaporative emissions control system

Ferrari 812 Superfast (Europe) EVAPORATIVE EMISSIONS CONTROL SYSTEM Parts Diagram

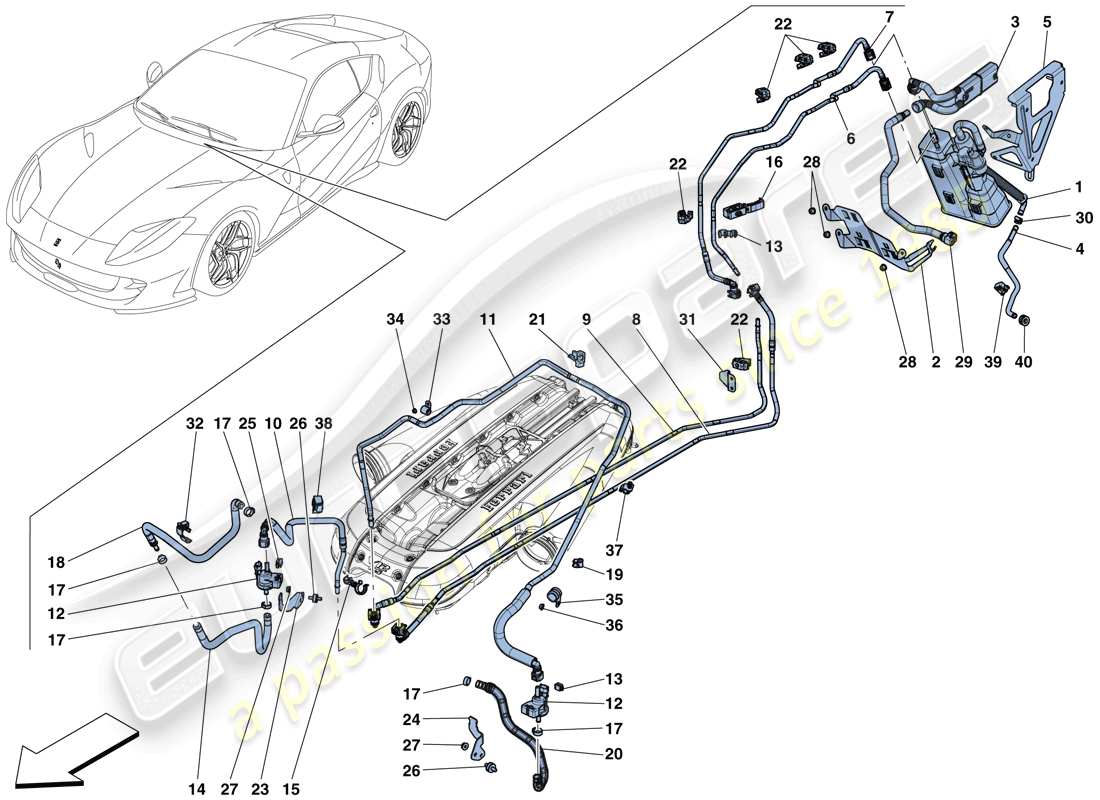

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                        #
                                                                        Part number
                                                                        Description
                                                                        Key
                                                                        Price
                                                                        # 001
                                                                        MPN: 312809
                                                                        COMPL. VAPOUR FILTER
                                                                        from £186.11
                                                                        from £186.11
                                                                        COMPLETE VAPOUR FILTER WITH DI Genuine Ferrari Part - New (to order)
                                                                        COMPLETE VAPOUR FILTER WITH DI Genuine Ferrari Part - Used In stock
                                                                        # 002
                                                                        MPN: 331900
                                                                        COMPL. CANISTER MOUNTING BRACKET
                                                                        from £33.63
                                                                        from £33.63
                                                                        COMPLETE CANISTER MOUNTING BRA Genuine Ferrari Part - New (to order)
                                                                        COMPLETE CANISTER MOUNTING BRA Genuine Ferrari Part - Used In stock
                                                                        # 003
                                                                        MPN: 328256
                                                                        EXTERNAL VAPOUR SEPARATOR KIT
                                                                        from £66.84
                                                                        from £66.84
                                                                        EXTERNAL VAPOUR SEPARATOR KI Genuine Ferrari Part - New (to order)
                                                                        EXTERNAL VAPOUR SEPARATOR KI Genuine Ferrari Part - Used In stock
                                                                        # 004
                                                                        MPN: 339005
                                                                        OBD AIR FILTER INLET PIPE
                                                                        -After depletion, also order cable grommet 10397380 ref.40- -Applicable up to Ass. No. 163573- -Applicable until depletion-
                                                                        from £16.80
                                                                        from £16.80
                                                                        Genuine Ferrari Part (no longer available to order)
                                                                        OBD AIR FILTER INLET PIPE Genuine Ferrari Part - Used In stock
                                                                        # 004
                                                                        MPN: 891209
                                                                        OBD AIR FILTER INLET PIPE
                                                                        -Applicable from Ass. No. 163574- -Applicable after depletion of 339005-
                                                                        from £34.34
                                                                        from £34.34
                                                                        This part replaces part number 339005 which we have in stock
                                                                        OBD AIR FILTER INLET PIPE Genuine Ferrari Part - New (to order)
                                                                        # 005
                                                                        MPN: 338530
                                                                        BRACKET
                                                                        from £33.63
                                                                        from £33.63
                                                                        BRACKET Genuine Ferrari Part - New (to order)
                                                                        BRACKET Genuine Ferrari Part - Used In stock
                                                                        # 006
                                                                        MPN: 335897
                                                                        RH FLUSH PIPE, WHEELHOUSE SECTION
                                                                        from £30.34
                                                                        from £30.34
                                                                        RH FLUSH PIPE, WHEELHOUSE SE Genuine Ferrari Part - New (to order)
                                                                        RH FLUSH PIPE, WHEELHOUSE SE Genuine Ferrari Part - Used In stock
                                                                        # 007
                                                                        MPN: 335896
                                                                        LH FLUSH PIPE, WHEELHOUSE SECTION
                                                                        from £32.81
                                                                        from £32.81
                                                                        LH FLUSH PIPE, WHEELHOUSE SE Genuine Ferrari Part - New (to order)
                                                                        LH FLUSH PIPE, WHEELHOUSE SE Genuine Ferrari Part - Used In stock
                                                                        # 008
                                                                        MPN: 277375
                                                                        RH FLUSH PIPE, UNDERBODY SECTION
                                                                        from £31.16
                                                                        from £31.16
                                                                        RH FLUSH PIPE, UNDERBODY SEC Genuine Ferrari Part - New (to order)
                                                                        RH FLUSH PIPE, UNDERBODY SEC Genuine Ferrari Part - Used In stock
                                                                        # 009
                                                                        MPN: 292203
                                                                        LH FLUSH PIPE, UNDERBODY SECTION
                                                                        from £18.85
                                                                        from £18.85
                                                                        This part replaces part number 277374 - and 1 more. Click to view details
                                                                        LH FLUSH PIPE, UNDERBODY SEC Genuine Ferrari Part - New (to order)
                                                                        LH FLUSH PIPE, UNDERBODY SEC Genuine Ferrari Part - Used In stock
                                                                        # 010
                                                                        MPN: 295052
                                                                        RH FLUSH PIPE, ENGINE COMPARTMENT SECTION
                                                                        from £16.90
                                                                        from £16.90
                                                                        RH FLUSH PIPE, ENGINE COMPAR Genuine Ferrari Part - New (to order)
                                                                        RH FLUSH PIPE, ENGINE COMPAR Genuine Ferrari Part - Used In stock
                                                                        # 011
                                                                        MPN: 332132
                                                                        LH FLUSH PIPE, VALVE SIDE
                                                                        -Not for GD-
                                                                        from £66.25
                                                                        from £66.25
                                                                        LH FLUSH PIPE, VALVE SIDE Genuine Ferrari Part - New (to order)
                                                                        # 011
                                                                        MPN: 335608
                                                                        LH FLUSH PIPE, VALVE SIDE
                                                                        -Applicable for GD-
                                                                        from £48.80
                                                                        from £48.80
                                                                        LH FLUSH PIPE, VALVE SIDE Genuine Ferrari Part - New (to order)
                                                                        LH FLUSH PIPE, VALVE SIDE Genuine Ferrari Part - Used In stock
                                                                        # 012
                                                                        MPN: 254425
                                                                        FLUSH VALVE
                                                                        from £14.74
                                                                        from £14.74
                                                                        This part replaces part number 237683 - and 3 more. Click to view details
                                                                        FLUSH VALVE Genuine Ferrari Part - New In stock
                                                                        FLUSH VALVE Genuine Ferrari Part - Used In stock
                                                                        # 013
                                                                        MPN: 139966
                                                                        CLIP
                                                                        from £0.47
                                                                        from £0.47
                                                                        SPRING Genuine Ferrari Part - New (to order)
                                                                        # 014
                                                                        MPN: 331077
                                                                        RH FLUSH PIPE, VALVE SIDE
                                                                        from £15.17
                                                                        from £15.17
                                                                        RH FLUSH PIPE, VALVE SIDE Genuine Ferrari Part - New (to order)
                                                                        RH FLUSH PIPE, VALVE SIDE Genuine Ferrari Part - Used In stock
                                                                        # 015
                                                                        MPN: 284145
                                                                        SPACER CLIP
                                                                        from £4.13
                                                                        from £4.13
                                                                        SPACER CLIP Genuine Ferrari Part - New (to order)
                                                                        # 016
                                                                        MPN: 291163
                                                                        CLIP
                                                                        from £0.54
                                                                        from £0.54
                                                                        CLIP Genuine Ferrari Part - New (to order)
                                                                        # 017
                                                                        MPN: 13434670
                                                                        COLLAR
                                                                        -D. 16.2-
                                                                        from £0.47
                                                                        from £0.47
                                                                        SCREW COLLAR Genuine Ferrari Part - New In stock
                                                                        Genuine Maserati Part (no longer available to order)
                                                                        # 018
                                                                        MPN: 337331
                                                                        RH FLUSH PIPE, ENGINE SIDE
                                                                        from £16.41
                                                                        from £16.41
                                                                        RH FLUSH PIPE, ENGINE SIDE Genuine Ferrari Part - New (to order)
                                                                        RH FLUSH PIPE, ENGINE SIDE Genuine Ferrari Part - Used In stock
                                                                        # 019
                                                                        MPN: 235682
                                                                        CLIP
                                                                        from £0.47
                                                                        from £0.47
                                                                        CLIP Genuine Ferrari Part - New In stock
                                                                        # 020
                                                                        MPN: 336508
                                                                        LH FLUSH PIPE, LOWER VALVE SIDE
                                                                        from £18.05
                                                                        from £18.05
                                                                        LH FLUSH PIPE, LOWER VALVE S Genuine Ferrari Part - New (to order)
                                                                        LH FLUSH PIPE, LOWER VALVE S Genuine Ferrari Part - Used In stock
                                                                        # 021
                                                                        MPN: 81649400
                                                                        CLIP
                                                                        from £6.60
                                                                        from £6.60
                                                                        CLIP Genuine Ferrari Part - New (to order)
                                                                        # 022
                                                                        MPN: 244277
                                                                        CLIP
                                                                        from £0.63
                                                                        from £0.63
                                                                        CLIP Genuine Ferrari Part - New (to order)
                                                                        # 023
                                                                        MPN: 295053
                                                                        RH FLUSH VALVE MOUNTING BRACKET
                                                                        from £3.89
                                                                        from £3.89
                                                                        RH FLUSH VALVE MOUNTING BRAC Genuine Ferrari Part - New (to order)
                                                                        RH FLUSH VALVE MOUNTING BRAC Genuine Ferrari Part - Used In stock
                                                                        # 024
                                                                        MPN: 329242
                                                                        LH FLUSH VALVE MOUNTING BRACKET
                                                                        from £10.44
                                                                        from £10.44
                                                                        LH FLUSH VALVE MOUNTING BRAC Genuine Ferrari Part - New (to order)
                                                                        # 025
                                                                        MPN: 254427
                                                                        CLIP
                                                                        from £0.47
                                                                        from £0.47
                                                                        CLIP Genuine Ferrari Part - New (to order)
                                                                        # 026
                                                                        MPN: 225408
                                                                        CYLINDRICAL BUSHING
                                                                        from £4.41
                                                                        from £4.41
                                                                        PAD Genuine Ferrari Part - New In stock
                                                                        Genuine Maserati Part (no longer available to order)
                                                                        # 027
                                                                        MPN: 14040614
                                                                        NUT
                                                                        from £0.47
                                                                        from £0.47
                                                                        NUT Genuine Ferrari Part - New (to order)
                                                                        NUT (14040614) Genuine Maserati Part - New In stock
                                                                        # 028
                                                                        MPN: 14039614
                                                                        NUT
                                                                        from £0.53
                                                                        from £0.53
                                                                        NUT Genuine Ferrari Part - New In stock
                                                                        DADO E AUTOBLOC C/ROS CON IM (14039614) Genuine Maserati Part - New In stock
                                                                        # 029
                                                                        MPN: 341742
                                                                        EVAP. EMISS. CONTROL SYSTEM PIPE ON FUEL FILLER PIPE
                                                                        from £28.70
                                                                        from £28.70
                                                                        EVAP. EMISS. CONTROL SYSTEM Genuine Ferrari Part - New (to order)
                                                                        EVAP. EMISS. CONTROL SYSTEM Genuine Ferrari Part - Used In stock
                                                                        # 030
                                                                        MPN: 10716470
                                                                        COLLAR
                                                                        from £0.64
                                                                        from £0.64
                                                                        COLLAR Genuine Ferrari Part - New In stock
                                                                        # 031
                                                                        MPN: 287857
                                                                        BRACKET
                                                                        from £5.82
                                                                        from £5.82
                                                                        BRACKET Genuine Ferrari Part - New (to order)
                                                                        # 032
                                                                        MPN: 204777
                                                                        CLIP
                                                                        -1 compartment-
                                                                        from £0.47
                                                                        from £0.47
                                                                        CLIP -D.=13 TO 15 - Genuine Ferrari Part - New (to order)
                                                                        # 033
                                                                        MPN: 10441390
                                                                        BRACKET WITH SHEATH
                                                                        from £0.47
                                                                        from £0.47
                                                                        CLAMP Genuine Ferrari Part - New In stock
                                                                        BRACKET WITH SHEATH (10441390) Genuine Maserati Part - New (to order)
                                                                        # 034
                                                                        MPN: 14059111
                                                                        NUT
                                                                        from £0.47
                                                                        from £0.47
                                                                        NUT Genuine Ferrari Part - New In stock
                                                                        NUT (14059111) Genuine Maserati Part - New In stock
                                                                        # 035
                                                                        MPN: 10441690
                                                                        BRACKET WITH SHEATH
                                                                        from £1.10
                                                                        from £1.10
                                                                        This part replaces part number 1044690
                                                                        BRACKET Genuine Ferrari Part - New In stock
                                                                        STAFFETTA CON GUAINA PER 1 T (10441690) Genuine Maserati Part - New (to order)
                                                                        # 036
                                                                        MPN: 14059111
                                                                        NUT
                                                                        from £0.47
                                                                        from £0.47
                                                                        NUT Genuine Ferrari Part - New In stock
                                                                        NUT (14059111) Genuine Maserati Part - New In stock
                                                                        # 037
                                                                        MPN: 262559
                                                                        CLIP
                                                                        from £0.51
                                                                        from £0.51
                                                                        CLIP Genuine Ferrari Part - New In stock
                                                                        # 038
                                                                        MPN: 81649400
                                                                        CLIP
                                                                        from £6.60
                                                                        from £6.60
                                                                        CLIP Genuine Ferrari Part - New (to order)
                                                                        # 039
                                                                        MPN: 285883
                                                                        CLIP
                                                                        from £1.85
                                                                        from £1.85
                                                                        CLIP Genuine Ferrari Part - New (to order)
                                                                        # 040
                                                                        MPN: 10397380
                                                                        GROMMET
                                                                        -Applicable from Ass. No. 163574-
                                                                        from £0.79
                                                                        from £0.79
                                                                        This part replaces part number 83172800
                                                                        RING Genuine Ferrari Part - New In stock
