0038 - ALTERNATOR - STARTER MOTOR

Ferrari 812 Superfast (Europe) ALTERNATOR - STARTER MOTOR Parts Diagram

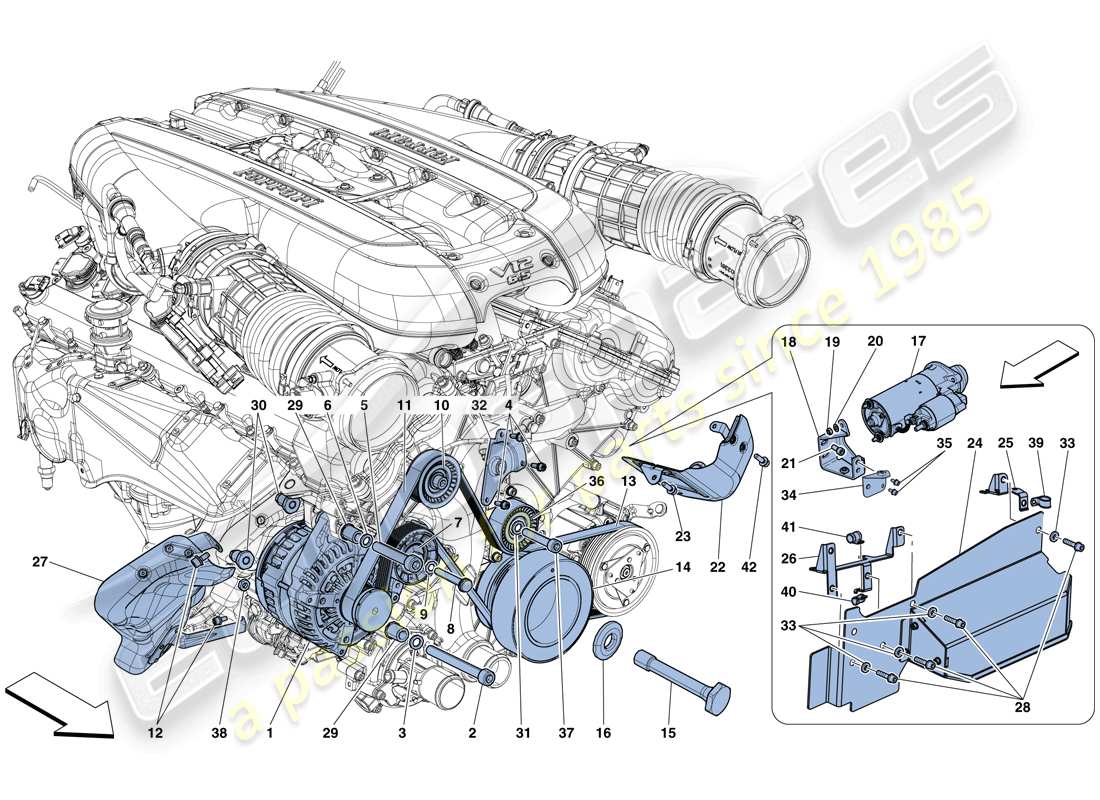

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                          #
                                                          Part number
                                                          Description
                                                          Price
                                                          # 001
                                                          MPN: 321207

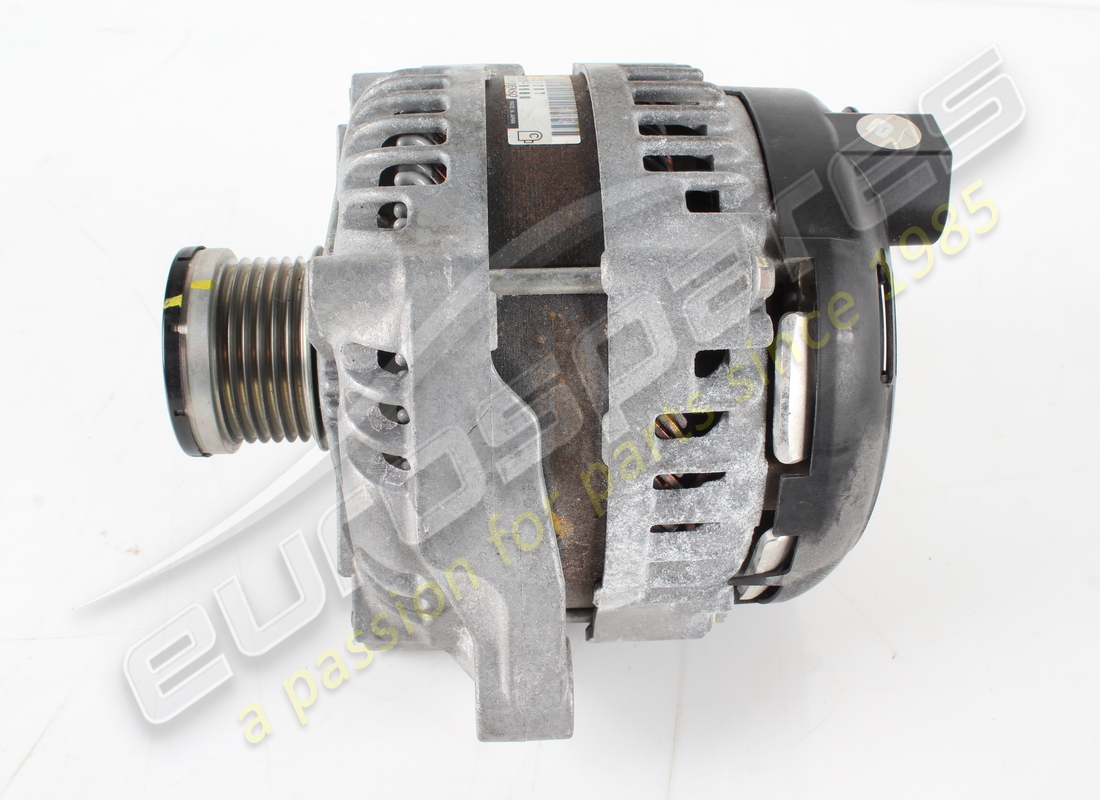

                                                          ALTERNATOR
                                                          from £903.82
                                                          from £903.82
                                                          # 002
                                                          MPN: 14308724
                                                          SCREW
                                                          -M10 X 1.25 X 100-
                                                          from £1.91
                                                          from £1.91
                                                          # 003
                                                          MPN: 10569474
                                                          WASHER
                                                          from £0.47
                                                          from £0.47
                                                          # 004
                                                          MPN: 231618
                                                          SCREW
                                                          -M6 X 20- -Applicable from engine No. 449672-
                                                          from £0.47
                                                          from £0.47
                                                          # 004
                                                          MPN: 248334
                                                          SCREW
                                                          -M6 X 16- -Applicable up to engine No. 449671-
                                                          from £0.52
                                                          from £0.52
                                                          # 005
                                                          MPN: 14308224
                                                          SCREW
                                                          -M10 X 1.25 X 65-
                                                          from £0.59
                                                          from £0.59
                                                          # 006
                                                          MPN: 10569474
                                                          WASHER
                                                          from £0.47
                                                          from £0.47
                                                          # 007
                                                          MPN: 337705
                                                          belt tensioner
                                                          from £66.46
                                                          from £66.46
                                                          # 008
                                                          MPN: 268567
                                                          SCREW
                                                          -M8 X 60-
                                                          from £2.88
                                                          from £2.88
                                                          # 009
                                                          MPN: 11193874
                                                          WASHER
                                                          from £0.47
                                                          from £0.47
                                                          This part replaces part number 11193879 which we have in stock
                                                          # 010
                                                          MPN: 295763
                                                          BELT TIGHTENER
                                                          from £30.63
                                                          from £30.63
                                                          # 011
                                                          MPN: 343363
                                                          BELT
                                                          Supersession
                                                          Supersession
                                                          # 012
                                                          MPN: 233600
                                                          SCREW
                                                          -M6 X 12-
                                                          from £0.47
                                                          from £0.47
                                                          # 013
                                                          MPN: 332699
                                                          BELT
                                                          from £13.79
                                                          from £13.79
                                                          # 014
                                                          MPN: 318563
                                                          torsion damper
                                                          -Applicable until depletion-
                                                          Supersession
                                                          Supersession
                                                          # 014
                                                          MPN: 771975
                                                          torsion damper
                                                          -Applicable after depletion of 318563- -Applicable until depletion-
                                                          Supersession
                                                          Supersession
                                                          This part replaces part number 318563
                                                          # 014
                                                          MPN: 819217
                                                          torsion damper
                                                          -Applicable after depletion of 771975-
                                                          from £711.67
                                                          from £711.67
                                                          This part replaces part number 771975
                                                          # 015
                                                          MPN: 196216
                                                          TORSION DAMPER FASTENER SCREW
                                                          from £21.08
                                                          from £21.08
                                                          # 017
                                                          MPN: 297969
                                                          STARTER MOTOR
                                                          Supersession
                                                          Supersession
                                                          # 018
                                                          MPN: 277661
                                                          STARTER MOTOR MOUNTING BRACKET
                                                          from £21.05
                                                          from £21.05
                                                          This part replaces part number 257521 - and 3 more. Click to view details
                                                          # 020
                                                          MPN: 12646621
                                                          WASHER
                                                          from £0.53
                                                          from £0.53
                                                          # 021
                                                          MPN: 248471
                                                          SCREW
                                                          -M8 X 20-
                                                          from £0.64
                                                          from £0.64
                                                          # 022
                                                          MPN: 333075
                                                          HEAT SHIELD
                                                          from £64.37
                                                          from £64.37
                                                          # 023
                                                          MPN: 231628
                                                          SCREW
                                                          -M8 X 25-
                                                          from £0.47
                                                          from £0.47
                                                          # 024
                                                          MPN: 330113
                                                          STARTER MOTOR HEAT SHIELD
                                                          -Applicable for GD- -No longer supplied- -Replaced by 341579-
                                                          from £242.90
                                                          from £242.90
                                                          # 024
                                                          MPN: 341579
                                                          STARTER MOTOR HEAT SHIELD
                                                          from £137.65
                                                          from £137.65
                                                          # 025
                                                          MPN: 291924
                                                          BRACKET
                                                          from £21.35
                                                          from £21.35
                                                          # 026
                                                          MPN: 291925
                                                          BRACKET
                                                          from £34.22
                                                          from £34.22
                                                          # 027
                                                          MPN: 290295
                                                          ALTERNATOR HEAT SHIELD
                                                          from £61.80
                                                          from £61.80
                                                          # 028
                                                          MPN: 231616
                                                          SCREW
                                                          -M6 X 14-
                                                          from £0.47
                                                          from £0.47
                                                          This part replaces part number 14305724 which we have in stock
                                                          # 028
                                                          MPN: 231617
                                                          SCREW
                                                          -M6 X 18-
                                                          from £0.47
                                                          from £0.47
                                                          This part replaces part number 14433124
                                                          # 029
                                                          MPN: 258137
                                                          BUSHING
                                                          from £2.88
                                                          from £2.88
                                                          # 030
                                                          MPN: 288320
                                                          THREADED BUSHING
                                                          from £6.59
                                                          from £6.59
                                                          # 031
                                                          MPN: 12642524
                                                          WASHER
                                                          from £0.47
                                                          from £0.47
                                                          This part replaces part number 12642501 - and 1 more. Click to view details
                                                          # 032
                                                          MPN: 324198
                                                          BELT TIGHTENER MOUNT
                                                          -Applicable up to engine No. 449671-
                                                          from £280.09
                                                          from £280.09
                                                          # 032
                                                          MPN: 809527
                                                          BELT TIGHTENER MOUNT
                                                          -Applicable from engine No. 449672-
                                                          from £139.00
                                                          from £139.00
                                                          # 033
                                                          MPN: 12646621
                                                          WASHER
                                                          from £0.51
                                                          from £0.51
                                                          # 034
                                                          MPN: 282190
                                                          WIRING HARNESS FASTENER BRACKET
                                                          from £4.57
                                                          from £4.57
                                                          # 035
                                                          MPN: 233600
                                                          SCREW
                                                          -M6 X 12-
                                                          from £0.47
                                                          from £0.47
                                                          # 036
                                                          MPN: 294613
                                                          SMOOTH PULLEY
                                                          from £54.47
                                                          from £54.47
                                                          # 037
                                                          MPN: 14307434
                                                          SCREW
                                                          -Applicable up to engine No. 449671-
                                                          from £0.96
                                                          from £0.96
                                                          # 037
                                                          MPN: 899010
                                                          SCREW
                                                          -Applicable from engine No. 449672-
                                                          from £0.47
                                                          from £0.47
                                                          # 038
                                                          MPN: 16102314
                                                          NUT
                                                          from £0.47
                                                          from £0.47
                                                          This part replaces part number 16102311 - and 1 more. Click to view details
                                                          # 039
                                                          MPN: 10418901
                                                          BRACKET
                                                          from £0.47
                                                          from £0.47
                                                          # 040
                                                          MPN: 10441590
                                                          BRACKET WITH SHEATH
                                                          from £0.47
                                                          from £0.47
                                                          This part replaces part number 10113600
                                                          # 041
                                                          MPN: 10441790
                                                          BRACKET WITH SHEATH
                                                          from £0.47
                                                          from £0.47
                                                          # 042
                                                          MPN: 233600
                                                          SCREW
                                                          -M6 X 12-
                                                          from £0.47
                                                          from £0.47
