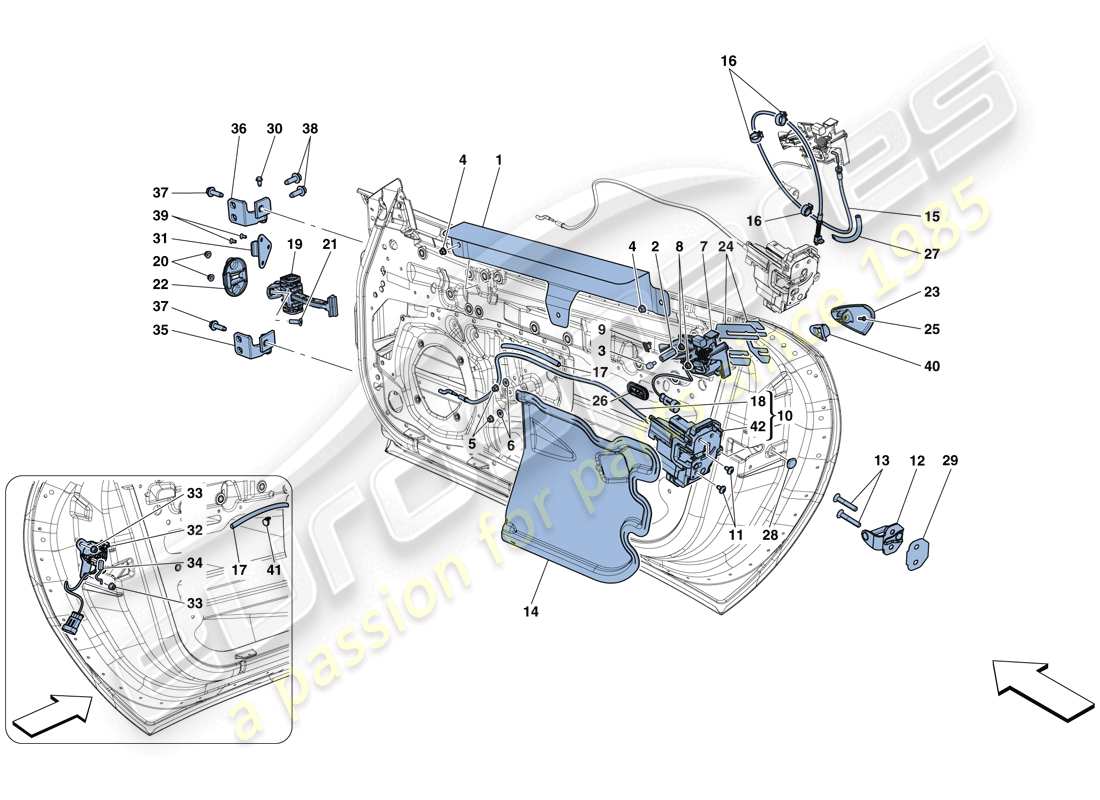

0115 - DOORS - OPENING MECHANISMS AND HINGES

Ferrari 812 Superfast (Europe) DOORS - OPENING MECHANISMS AND HINGES Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Price
                                                    # 001
                                                    MPN: 767414
                                                    FOIL FLAP
                                                    from £18.22
                                                    from £18.22
                                                    # 002
                                                    MPN: 87940300
                                                    HEXAGONAL PILLAR
                                                    from £6.41
                                                    from £6.41
                                                    This part replaces part number 83982900 - and 1 more. Click to view details
                                                    # 003
                                                    MPN: 62239900
                                                    PIN
                                                    from £3.59
                                                    from £3.59
                                                    # 004
                                                    MPN: 14059214
                                                    NUT
                                                    from £0.47
                                                    from £0.47
                                                    # 005
                                                    MPN: 14059214
                                                    NUT
                                                    from £0.47
                                                    from £0.47
                                                    # 006
                                                    MPN: 14498801
                                                    WASHER
                                                    from £0.47
                                                    from £0.47
                                                    # 007
                                                    MPN: 80821600
                                                    RH OUTER DOOR HANDLE MODULE
                                                    from £132.71
                                                    from £132.71
                                                    # 007
                                                    MPN: 80821800
                                                    LH OUTER DOOR HANDLE MODULE
                                                    from £132.71
                                                    from £132.71
                                                    # 008
                                                    MPN: 14059121
                                                    NUT
                                                    from £0.53
                                                    from £0.53
                                                    # 009
                                                    MPN: 204781
                                                    CLIP
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 12486580 - and 1 more. Click to view details
                                                    # 010
                                                    MPN: 771085
                                                    COMPL. LH LOCK UNIT
                                                    -After depletion, order loose components- -Applicable for GD- -Applicable until depletion-
                                                    from £92.05
                                                    from £92.05
                                                    # 010
                                                    MPN: 771086
                                                    COMPL. RH LOCK UNIT
                                                    -After depletion, order loose components- -Applicable for GD- -Applicable until depletion-
                                                    from £167.37
                                                    from £167.37
                                                    # 010
                                                    MPN: 88312100
                                                    COMPL. LH LOCK UNIT
                                                    -After depletion, order loose components- -Not for GD- -Applicable until depletion-
                                                    from £126.93
                                                    from £126.93
                                                    # 010
                                                    MPN: 88312200
                                                    COMPL. RH LOCK UNIT
                                                    -After depletion, order loose components- -Not for GD- -Applicable until depletion-
                                                    from £149.43
                                                    from £149.43
                                                    # 011
                                                    MPN: 46401657
                                                    SCREW
                                                    -M6 X 12-
                                                    from £0.52
                                                    from £0.52
                                                    # 012
                                                    MPN: 85052500
                                                    DOOR LOCK STRIKER PLATE
                                                    -Grey-
                                                    from £5.43
                                                    from £5.43
                                                    # 013
                                                    MPN: 85052700
                                                    SCREW
                                                    -M8 X 45- -Grey-
                                                    from £0.74
                                                    from £0.74
                                                    # 014
                                                    MPN: 88157800
                                                    LH DOOR WATERPROOF MEMBRANE
                                                    from £33.12
                                                    from £33.12
                                                    # 014
                                                    MPN: 88157900
                                                    RH DOOR WATERPROOF MEMBRANE
                                                    from £33.12
                                                    from £33.12
                                                    # 015
                                                    MPN: 69877100
                                                    BOWDEN CABLE
                                                    from £13.34
                                                    from £13.34
                                                    # 016
                                                    MPN: 14569480
                                                    CLIP
                                                    -No longer supplied- -Replaced by 248061-
                                                    from £0.53
                                                    from £0.53
                                                    This part replaces part number 81580800
                                                    # 016
                                                    MPN: 14570180
                                                    CLIP
                                                    -No longer supplied- -Replaced by 248061-
                                                    from £0.83
                                                    from £0.83
                                                    # 016
                                                    MPN: 248061
                                                    CLIP
                                                    from £1.14
                                                    from £1.14
                                                    This part replaces part number 301064
                                                    # 017
                                                    MPN: 82936500
                                                    PROTECTIVE SHEATH FOR INTERNAL HANDLE BOWDEN CABLE
                                                    from £1.48
                                                    from £1.48
                                                    # 018
                                                    MPN: 86622600
                                                    INNER DOOR HANDLE BOWDEN CABLE
                                                    -Applicable up to Ass. No. 167305-
                                                    from £21.46
                                                    from £21.46
                                                    # 018
                                                    MPN: 895642
                                                    INNER DOOR HANDLE BOWDEN CABLE
                                                    -Applicable from Ass. No. 167306-
                                                    from £24.50
                                                    from £24.50
                                                    # 019
                                                    MPN: 83965500
                                                    DOOR ARRESTER TIE-ROD
                                                    from £35.35
                                                    from £35.35
                                                    # 020
                                                    MPN: 14059214
                                                    NUT
                                                    from £0.47
                                                    from £0.47
                                                    # 021
                                                    MPN: 84872900
                                                    SCREW
                                                    -M8 X 25-
                                                    from £0.53
                                                    from £0.53
                                                    # 022
                                                    MPN: 83897000
                                                    DOOR ARRESTER TIE-ROD SEAL
                                                    from £4.57
                                                    from £4.57
                                                    # 023
                                                    MPN: 69978910
                                                    RH OUTER DOOR HANDLE
                                                    Supersession
                                                    Supersession
                                                    # 023
                                                    MPN: 69979110
                                                    LH OUTER DOOR HANDLE
                                                    from £15.00
                                                    from £15.00
                                                    # 024
                                                    MPN: 80821900
                                                    EXTERNAL DOOR HANDLE SPACER
                                                    from £3.46
                                                    from £3.46
                                                    # 024
                                                    MPN: 88007300
                                                    EXTERNAL DOOR HANDLE SPACER
                                                    from £1.02
                                                    from £1.02
                                                    # 025
                                                    MPN: 80365900
                                                    SCREW
                                                    -M4 X 12-
                                                    from £0.47
                                                    from £0.47
                                                    # 026
                                                    MPN: 82629100
                                                    CABLE GROMMET
                                                    -No longer supplied- -Replaced by 898656-
                                                    Supersession
                                                    Supersession
                                                    # 026
                                                    MPN: 898656
                                                    CABLE GROMMET
                                                    from £1.57
                                                    from £1.57
                                                    This part replaces part number 82629100
                                                    # 027
                                                    MPN: 82936400
                                                    SHEATH
                                                    from £3.09
                                                    from £3.09
                                                    # 028
                                                    MPN: 14506587
                                                    CAP
                                                    from £0.54
                                                    from £0.54
                                                    # 029
                                                    MPN: 85052600
                                                    DOOR STRIKER PLATE SHIM
                                                    -Grey-
                                                    from £3.24
                                                    from £3.24
                                                    # 030
                                                    MPN: 85133600
                                                    SCREW
                                                    -M8 X 15-
                                                    from £0.74
                                                    from £0.74
                                                    # 031
                                                    MPN: 81916400
                                                    DOOR SAFETY HOOK
                                                    from £16.93
                                                    from £16.93
                                                    # 032
                                                    MPN: 89385200
                                                    LH DOOR LOCK LATCH LEVER
                                                    -Not for GD-
                                                    from £86.49
                                                    from £86.49
                                                    # 032
                                                    MPN: 89388600
                                                    RH DOOR LOCK LATCH LEVER
                                                    -Applicable for GD-
                                                    from £86.49
                                                    from £86.49
                                                    # 033
                                                    MPN: 14059121
                                                    NUT
                                                    from £0.54
                                                    from £0.54
                                                    # 034
                                                    MPN: 88063400
                                                    COMPL. LH DOOR LOCK LATCH LEVER
                                                    -Not for GD-
                                                    from £92.01
                                                    from £92.01
                                                    # 034
                                                    MPN: 89296600
                                                    COMPL. RH DOOR LOCK LATCH LEVER
                                                    -Applicable for GD-
                                                    from £92.01
                                                    from £92.01
                                                    # 035
                                                    MPN: 83856000
                                                    LOWER RH DOOR HINGE
                                                    from £27.82
                                                    from £27.82
                                                    # 035
                                                    MPN: 83864900
                                                    LOWER LH DOOR HINGE
                                                    from £15.30
                                                    from £15.30
                                                    # 036
                                                    MPN: 83856100
                                                    UPPER RH DOOR HINGE
                                                    from £27.82
                                                    from £27.82
                                                    # 036
                                                    MPN: 83865100
                                                    UPPER LH DOOR HINGE
                                                    from £15.30
                                                    from £15.30
                                                    # 037
                                                    MPN: 81267100
                                                    SCREW
                                                    -M10 X 30-
                                                    from £2.87
                                                    from £2.87
                                                    This part replaces part number 82505100
                                                    # 038
                                                    MPN: 18754324
                                                    SCREW
                                                    from £0.85
                                                    from £0.85
                                                    This part replaces part number 18754424
                                                    # 039
                                                    MPN: 14441234
                                                    SCREW
                                                    -M6 X 12-
                                                    from £0.52
                                                    from £0.52
                                                    This part replaces part number 307346
                                                    # 040
                                                    MPN: 81327900
                                                    LH SEAL
                                                    from £4.17
                                                    from £4.17
                                                    # 040
                                                    MPN: 81328000
                                                    RH SEAL
                                                    from £7.59
                                                    from £7.59
                                                    # 041
                                                    MPN: 145854
                                                    RING CLAMP
                                                    -Not for GD-
                                                    from £0.47
                                                    from £0.47
                                                    # 042
                                                    MPN: 785970
                                                    LH DOOR LOCK
                                                    -Not for GD- -Applicable after depletion of 85730900-
                                                    from £83.40
                                                    from £83.40
                                                    This part replaces part number 85730900
                                                    # 042
                                                    MPN: 785971
                                                    RH DOOR LOCK
                                                    -Not for GD- -Applicable after depletion of 85730800-
                                                    from £83.40
                                                    from £83.40
                                                    This part replaces part number 85730800
                                                    # 042
                                                    MPN: 785974
                                                    LH DOOR LOCK
                                                    -Applicable for GD- -Applicable after depletion of 85731000-
                                                    from £45.87
                                                    from £45.87
                                                    This part replaces part number 85731000 - and 4 more. Click to view details
                                                    # 042
                                                    MPN: 785975
                                                    RH DOOR LOCK
                                                    -Applicable for GD- -Applicable after depletion of 85731100-
                                                    from £45.87
                                                    from £45.87
                                                    This part replaces part number 85731100 - and 2 more. Click to view details
                                                    # 042
                                                    MPN: 85730800
                                                    RH DOOR LOCK
                                                    -Not for GD- -Applicable until depletion-
                                                    Supersession
                                                    Supersession
                                                    # 042
                                                    MPN: 85730900
                                                    LH DOOR LOCK
                                                    -Not for GD- -Applicable until depletion-
                                                    Supersession
                                                    Supersession
                                                    # 042
                                                    MPN: 85731000
                                                    LH DOOR LOCK
                                                    -Applicable for GD- -Applicable until depletion-
                                                    Supersession
                                                    Supersession
                                                    This part replaces part number 88116500
                                                    # 042
                                                    MPN: 85731100
                                                    RH DOOR LOCK
                                                    -Applicable for GD- -Applicable until depletion-
                                                    Supersession
                                                    Supersession
                                                    This part replaces part number 88116600
