ferrari 812 superfast (europe) shields - external trim parts diagram

0132 - SHIELDS - EXTERNAL TRIM

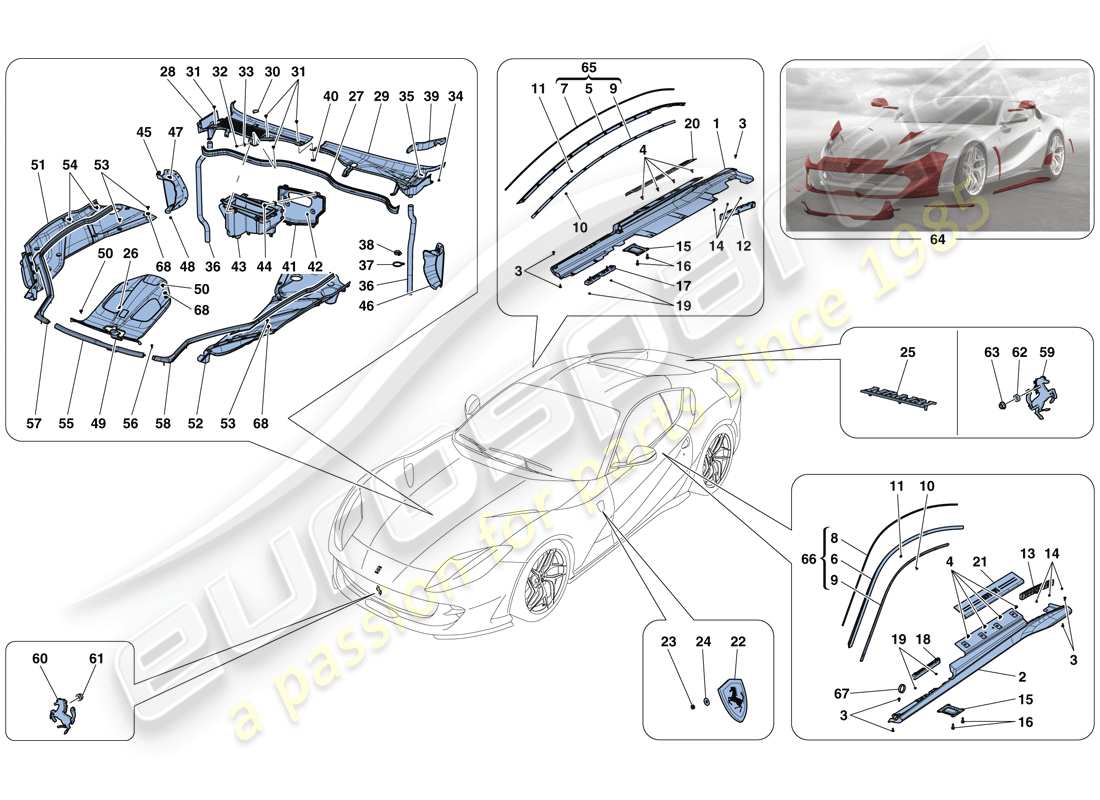

Ferrari 812 Superfast (Europe) SHIELDS - EXTERNAL TRIM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Price
                                                                    # 001
                                                                    MPN: 88068610
                                                                    COMPL. RH OUTER SILL COVER
                                                                    -Primered-
                                                                    from £1,012.05
                                                                    from £1,012.05
                                                                    This part replaces part number 88068600 - and 2 more. Click to view details
                                                                    # 001
                                                                    MPN: 89130300
                                                                    COMPL. RH OUTER SILL COVER
                                                                    -Carbon version-
                                                                    from £1,726.00
                                                                    from £1,726.00
                                                                    # 002
                                                                    MPN: 88068510
                                                                    COMPL. LH OUTER SILL COVER
                                                                    -Primered-
                                                                    from £1,748.09
                                                                    from £1,748.09
                                                                    This part replaces part number 88068500 - and 1 more. Click to view details
                                                                    # 002
                                                                    MPN: 89130200
                                                                    COMPL. LH OUTER SILL COVER
                                                                    -Carbon version-
                                                                    from £1,726.00
                                                                    from £1,726.00
                                                                    # 003
                                                                    MPN: 82113500
                                                                    SCREW
                                                                    -M6 X 18-
                                                                    from £1.50
                                                                    from £1.50
                                                                    # 004
                                                                    MPN: 65933500
                                                                    SCREW
                                                                    -M6 X 15-
                                                                    from £0.91
                                                                    from £0.91
                                                                    # 005
                                                                    MPN: 88069700
                                                                    RH ROOF GUTTER MOULDING
                                                                    -No longer supplied-
                                                                    Supersession
                                                                    Supersession
                                                                    # 006
                                                                    MPN: 88069600
                                                                    LH ROOF GUTTER MOULDING
                                                                    -No longer supplied-
                                                                    Supersession
                                                                    Supersession
                                                                    # 007
                                                                    MPN: 88069900
                                                                    RH ROOF GUTTER MOULDING SEAL
                                                                    -No longer supplied-
                                                                    Supersession
                                                                    Supersession
                                                                    # 008
                                                                    MPN: 88069800
                                                                    LH ROOF GUTTER MOULDING SEAL
                                                                    -No longer supplied-
                                                                    Supersession
                                                                    Supersession
                                                                    # 009
                                                                    MPN: 88060900
                                                                    DOUBLE-SIDED ADHESIVE SPACER ON ROOF GUTTER MOULDING
                                                                    -No longer supplied-
                                                                    # 010
                                                                    MPN: 15538777
                                                                    SCREW
                                                                    -M8 X 13-
                                                                    from £0.52
                                                                    from £0.52
                                                                    # 011
                                                                    MPN: 14115680
                                                                    BLOCK
                                                                    from £0.50
                                                                    from £0.50
                                                                    # 012
                                                                    MPN: 88070500
                                                                    REAR RH SILL TRIM BRACKET
                                                                    from £4.86
                                                                    from £4.86
                                                                    # 013
                                                                    MPN: 88070400
                                                                    REAR LH SILL TRIM BRACKET
                                                                    from £4.86
                                                                    from £4.86
                                                                    # 014
                                                                    MPN: 13046014
                                                                    NUT
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 015
                                                                    MPN: 269375
                                                                    RH VEHICLE LIFT BRACKET
                                                                    from £12.68
                                                                    from £12.68
                                                                    # 016
                                                                    MPN: 16287224
                                                                    SCREW
                                                                    -M8 X 25-
                                                                    from £0.47
                                                                    from £0.47
                                                                    This part replaces part number 16287221
                                                                    # 017
                                                                    MPN: 88363700
                                                                    FRONT RH SILL TRIM BRACKET
                                                                    from £8.10
                                                                    from £8.10
                                                                    # 018
                                                                    MPN: 88363600
                                                                    FRONT LH SILL TRIM BRACKET
                                                                    from £8.10
                                                                    from £8.10
                                                                    # 019
                                                                    MPN: 13046014
                                                                    NUT
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 020
                                                                    MPN: 88070100
                                                                    RH KICKPLATE
                                                                    -Carbon version-
                                                                    Supersession
                                                                    Supersession
                                                                    # 020
                                                                    MPN: 88070300
                                                                    RH KICKPLATE
                                                                    from £139.85
                                                                    from £139.85
                                                                    # 021
                                                                    MPN: 88070000
                                                                    LH KICKPLATE
                                                                    -Carbon version-
                                                                    Supersession
                                                                    Supersession
                                                                    # 021
                                                                    MPN: 88070200
                                                                    LH KICKPLATE
                                                                    from £139.85
                                                                    from £139.85
                                                                    # 022
                                                                    MPN: 88077400
                                                                    SQUADRA CORSE SHIELD BADGE
                                                                    -Scuderia Ferrari shields on fenders-
                                                                    Supersession
                                                                    Supersession
                                                                    # 023
                                                                    MPN: 16101711
                                                                    NUT
                                                                    -Scuderia Ferrari shields on fenders-
                                                                    from £0.47
                                                                    from £0.47
                                                                    This part replaces part number 16101715
                                                                    # 024
                                                                    MPN: 12642878
                                                                    WASHER
                                                                    -Scuderia Ferrari shields on fenders-
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 025
                                                                    MPN: 770318
                                                                    Ferrari BADGE
                                                                    from £40.92
                                                                    from £40.92
                                                                    # 026
                                                                    MPN: 14183376
                                                                    TYPE A PLATE FOR PIN
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 027
                                                                    MPN: 88077500
                                                                    UNDERWINDSCREEN TRAY SEAL
                                                                    from £36.92
                                                                    from £36.92
                                                                    # 028
                                                                    MPN: 771050
                                                                    COMPL. RH UNDERWINDSCREEN TRAY
                                                                    -Applicable for GD-
                                                                    from £137.65
                                                                    from £137.65
                                                                    # 028
                                                                    MPN: 89386100
                                                                    COMPL. RH UNDERWINDSCREEN TRAY
                                                                    -Not for GD-
                                                                    from £99.35
                                                                    from £99.35
                                                                    # 029
                                                                    MPN: 89081000
                                                                    COMPL. LH UNDERWINDSCREEN TRAY
                                                                    -Applicable for GD-
                                                                    from £137.65
                                                                    from £137.65
                                                                    # 029
                                                                    MPN: 89385900
                                                                    COMPL. LH UNDERWINDSCREEN TRAY
                                                                    -Not for GD-
                                                                    from £99.35
                                                                    from £99.35
                                                                    # 030
                                                                    MPN: 84434900
                                                                    FASTENER COVER CAP
                                                                    -Not for GD-
                                                                    from £1.43
                                                                    from £1.43
                                                                    # 030
                                                                    MPN: 85031700
                                                                    FASTENER COVER CAP
                                                                    -Applicable for GD-
                                                                    from £1.26
                                                                    from £1.26
                                                                    # 031
                                                                    MPN: 256490
                                                                    SCREW
                                                                    -M5 X 16-
                                                                    from £1.10
                                                                    from £1.10
                                                                    This part replaces part number 86607000
                                                                    # 032
                                                                    MPN: 16285127
                                                                    SCREW
                                                                    -M5 X 16-
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 033
                                                                    MPN: 61148700
                                                                    WASHER
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 034
                                                                    MPN: 14215480
                                                                    BLOCK
                                                                    from £0.47
                                                                    from £0.47
                                                                    This part replaces part number 14211580
                                                                    # 035
                                                                    MPN: 15958077
                                                                    SCREW
                                                                    from £1.93
                                                                    from £1.93
                                                                    # 036
                                                                    MPN: 83364200
                                                                    WATER DRAIN PIPE
                                                                    -Not for GD-
                                                                    from £2.43
                                                                    from £2.43
                                                                    # 036
                                                                    MPN: 83364200
                                                                    WATER DRAIN PIPE
                                                                    -RH side- -Applicable for GD-
                                                                    from £2.43
                                                                    from £2.43
                                                                    # 036
                                                                    MPN: 85031600
                                                                    WATER DRAIN PIPE
                                                                    -LH side- -Applicable for GD-
                                                                    from £2.38
                                                                    from £2.38
                                                                    # 037
                                                                    MPN: 206739
                                                                    RING CLAMP
                                                                    from £3.64
                                                                    from £3.64
                                                                    This part replaces part number 243232
                                                                    # 038
                                                                    MPN: 296779
                                                                    SCREW COLLAR
                                                                    from £3.97
                                                                    from £3.97
                                                                    # 039
                                                                    MPN: 89378300
                                                                    LH A-PILLAR SEAL
                                                                    from £44.14
                                                                    from £44.14
                                                                    # 039
                                                                    MPN: 89378400
                                                                    RH A-PILLAR SEAL
                                                                    from £44.14
                                                                    from £44.14
                                                                    # 040
                                                                    MPN: 68119800
                                                                    PLATE FOR SCREWS
                                                                    from £0.76
                                                                    from £0.76
                                                                    # 041
                                                                    MPN: 88429000
                                                                    COMPL. AC UNIT AIR INTAKE TRAY, FIXED PART
                                                                    -Not for GD-
                                                                    from £75.29
                                                                    from £75.29
                                                                    # 041
                                                                    MPN: 89145700
                                                                    COMPL. AC UNIT AIR INTAKE TRAY, FIXED PART
                                                                    -Applicable for GD-
                                                                    from £80.96
                                                                    from £80.96
                                                                    # 042
                                                                    MPN: 13046014
                                                                    NUT
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 043
                                                                    MPN: 88429300
                                                                    COMPL. AC UNIT AIR INTAKE TRAY, MOBILE PART
                                                                    -Not for GD-
                                                                    from £182.76
                                                                    from £182.76
                                                                    # 043
                                                                    MPN: 89146100
                                                                    COMPL. AC UNIT AIR INTAKE TRAY, MOBILE PART
                                                                    -Applicable for GD-
                                                                    from £182.17
                                                                    from £182.17
                                                                    # 044
                                                                    MPN: 256490
                                                                    SCREW
                                                                    -M5 X 16-
                                                                    from £1.20
                                                                    from £1.20
                                                                    This part replaces part number 86607000
                                                                    # 045
                                                                    MPN: 88085500
                                                                    COMPL. RH UPPER FENDER DUCT
                                                                    from £71.17
                                                                    from £71.17
                                                                    # 046
                                                                    MPN: 88085400
                                                                    COMPL. LH UPPER FENDER DUCT
                                                                    from £71.17
                                                                    from £71.17
                                                                    # 047
                                                                    MPN: 11568027
                                                                    SCREW
                                                                    -M6 X 18- -No longer supplied- -Replaced by 81591700-
                                                                    from £0.88
                                                                    from £0.88
                                                                    # 047
                                                                    MPN: 81591700
                                                                    SCREW
                                                                    -M6 X 18-
                                                                    from £1.15
                                                                    from £1.15
                                                                    # 048
                                                                    MPN: 14039614
                                                                    NUT
                                                                    from £0.53
                                                                    from £0.53
                                                                    # 048
                                                                    MPN: 194031
                                                                    NUT
                                                                    -No longer supplied- -Replaced by 14039614-
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 049
                                                                    MPN: 88736200
                                                                    COMPL. CENTRAL ENGINE COMPARTMENT COVER
                                                                    from £216.40
                                                                    from £216.40
                                                                    # 049
                                                                    MPN: 89202500
                                                                    COMPL. CENTRAL ENGINE COMPARTMENT COVER
                                                                    -Carbon fibre engine compartment trim-
                                                                    from £3,091.35
                                                                    from £3,091.35
                                                                    # 050
                                                                    MPN: 256490
                                                                    SCREW
                                                                    -M5 X 16-
                                                                    from £1.15
                                                                    from £1.15
                                                                    This part replaces part number 86607000
                                                                    # 051
                                                                    MPN: 89188200
                                                                    COMPL. RH LATERAL RH ENGINE COMPARTMENT COVER
                                                                    -Applicable for GD-
                                                                    from £343.42
                                                                    from £343.42
                                                                    # 051
                                                                    MPN: 89202100
                                                                    COMPL. RH LATERAL RH ENGINE COMPARTMENT COVER
                                                                    -Carbon fibre engine compartment trim- -Not for GD-
                                                                    from £4,884.32
                                                                    from £4,884.32
                                                                    # 051
                                                                    MPN: 89202900
                                                                    COMPL. RH LATERAL RH ENGINE COMPARTMENT COVER
                                                                    -Carbon fibre engine compartment trim- -Applicable for GD-
                                                                    from £4,832.79
                                                                    from £4,832.79
                                                                    # 051
                                                                    MPN: 89380000
                                                                    COMPL. RH LATERAL RH ENGINE COMPARTMENT COVER
                                                                    -Not for GD-
                                                                    from £310.30
                                                                    from £310.30
                                                                    # 052
                                                                    MPN: 89187400
                                                                    COMPL. LH LATERAL ENGINE COMPARTMENT COVER
                                                                    -Applicable for GD-
                                                                    from £334.15
                                                                    from £334.15
                                                                    # 052
                                                                    MPN: 89201600
                                                                    COMPL. LH LATERAL ENGINE COMPARTMENT COVER
                                                                    -Carbon fibre engine compartment trim- -Not for GD-
                                                                    from £4,884.32
                                                                    from £4,884.32
                                                                    # 052
                                                                    MPN: 89202700
                                                                    COMPL. LH LATERAL ENGINE COMPARTMENT COVER
                                                                    -Carbon fibre engine compartment trim- -Applicable for GD-
                                                                    from £4,832.79
                                                                    from £4,832.79
                                                                    # 052
                                                                    MPN: 89379900
                                                                    COMPL. LH LATERAL ENGINE COMPARTMENT COVER
                                                                    -Not for GD-
                                                                    from £301.03
                                                                    from £301.03
                                                                    # 053
                                                                    MPN: 256490
                                                                    SCREW
                                                                    -M5 X 16-
                                                                    from £1.12
                                                                    from £1.12
                                                                    This part replaces part number 86607000
                                                                    # 054
                                                                    MPN: 69854700
                                                                    SCREW
                                                                    -M5 X 19.5-
                                                                    from £2.07
                                                                    from £2.07
                                                                    # 055
                                                                    MPN: 88098100
                                                                    UPPER SEAL FOR FRONT BUMPER
                                                                    from £72.24
                                                                    from £72.24
                                                                    # 056
                                                                    MPN: 84436400
                                                                    PELOSATO BUTTON
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 057
                                                                    MPN: 88098300
                                                                    RH LATERAL ENGINE COMPARTMENT COVER SEAL
                                                                    from £69.03
                                                                    from £69.03
                                                                    # 058
                                                                    MPN: 88098200
                                                                    LH LATERAL ENGINE COMPARTMENT COVER SEAL
                                                                    from £69.03
                                                                    from £69.03
                                                                    # 059
                                                                    MPN: 84796400
                                                                    REAR CAVALLINO RAMPANTE BADGE
                                                                    from £25.42
                                                                    from £25.42
                                                                    # 060
                                                                    MPN: 84933700
                                                                    CAVALLINO RAMPANTE BADGE
                                                                    from £40.48
                                                                    from £40.48
                                                                    # 061
                                                                    MPN: 16101711
                                                                    NUT
                                                                    from £0.47
                                                                    from £0.47
                                                                    This part replaces part number 16101715
                                                                    # 062
                                                                    MPN: 60995100
                                                                    RUBBER RING
                                                                    from £1.52
                                                                    from £1.52
                                                                    # 063
                                                                    MPN: 14039414
                                                                    NUT
                                                                    from £0.53
                                                                    from £0.53
                                                                    This part replaces part number 14039411
                                                                    # 064
                                                                    MPN: 70004279
                                                                    COMPL. FILM KIT
                                                                    -Consisting of protective covers for: RH and LH side skirt, RH and LH lid side flap, RH and LH mirror, central low bumper, bumper, centre grille surround- -Not for USA, CDN, USA LIGHT-
                                                                    from £2,641.08
                                                                    from £2,641.08
                                                                    # 064
                                                                    MPN: 70004280
                                                                    COMPL. FILM KIT
                                                                    -Consisting of protective covers for: RH and LH side skirt, RH and LH lid side flap, RH and LH mirror, central low bumper, bumper, centre grille surround- -Applicable for USA, CDN, USA LIGHT-
                                                                    from £2,023.68
                                                                    from £2,023.68
                                                                    # 064
                                                                    MPN: 70004281
                                                                    LH SIDE FILM KIT
                                                                    -Consisting of protective covers for: LH side skirt and LH mirror-
                                                                    from £1,766.44
                                                                    from £1,766.44
                                                                    # 064
                                                                    MPN: 70004282
                                                                    RH SIDE FILM KIT
                                                                    -Consisting of protective covers for: RH side skirt and RH mirror-
                                                                    from £1,766.44
                                                                    from £1,766.44
                                                                    # 064
                                                                    MPN: 70004283
                                                                    FRONT ADHESIVE FILM KIT
                                                                    -Consisting of protective covers for: RH and LH lid side flap, central low bumper, bumper, centre grille surround- -Not for USA, CDN, USA LIGHT-
                                                                    from £1,766.44
                                                                    from £1,766.44
                                                                    # 064
                                                                    MPN: 70004284
                                                                    FRONT ADHESIVE FILM KIT
                                                                    -Consisting of protective covers for: RH and LH lid side flap, central low bumper, bumper, centre grille surround- -Applicable for USA, CDN, USA LIGHT-
                                                                    from £1,200.50
                                                                    from £1,200.50
                                                                    # 064
                                                                    MPN: 70004285
                                                                    HIGH WEAR FILM KIT
                                                                    -Consisting of protective covers for: Film inside LH and RH front wheel, high/medium/low, film inside LH and RH rear wheel, high/low, film on LH and RH side, film on rear loading edge-
                                                                    from £186.65
                                                                    from £186.65
                                                                    # 065
                                                                    MPN: 88069500
                                                                    COMPL. RH ROOF GUTTER MOULDING
                                                                    from £162.55
                                                                    from £162.55
                                                                    This part replaces part number 88069700 - and 3 more. Click to view details
                                                                    # 066
                                                                    MPN: 88069400
                                                                    COMPL. LH ROOF GUTTER MOULDING
                                                                    from £255.44
                                                                    from £255.44
                                                                    This part replaces part number 88069600 - and 3 more. Click to view details
                                                                    # 067
                                                                    MPN: 327132
                                                                    ADHESIVE FOAM
                                                                    from £12.65
                                                                    from £12.65
                                                                    # 068
                                                                    MPN: 13579478
                                                                    WASHER
                                                                    -Carbon fibre engine compartment trim-
                                                                    from £0.47
                                                                    from £0.47
