0140 - AUDIO SPEAKER SYSTEM

Ferrari 812 Superfast (Europe) AUDIO SPEAKER SYSTEM Parts Diagram

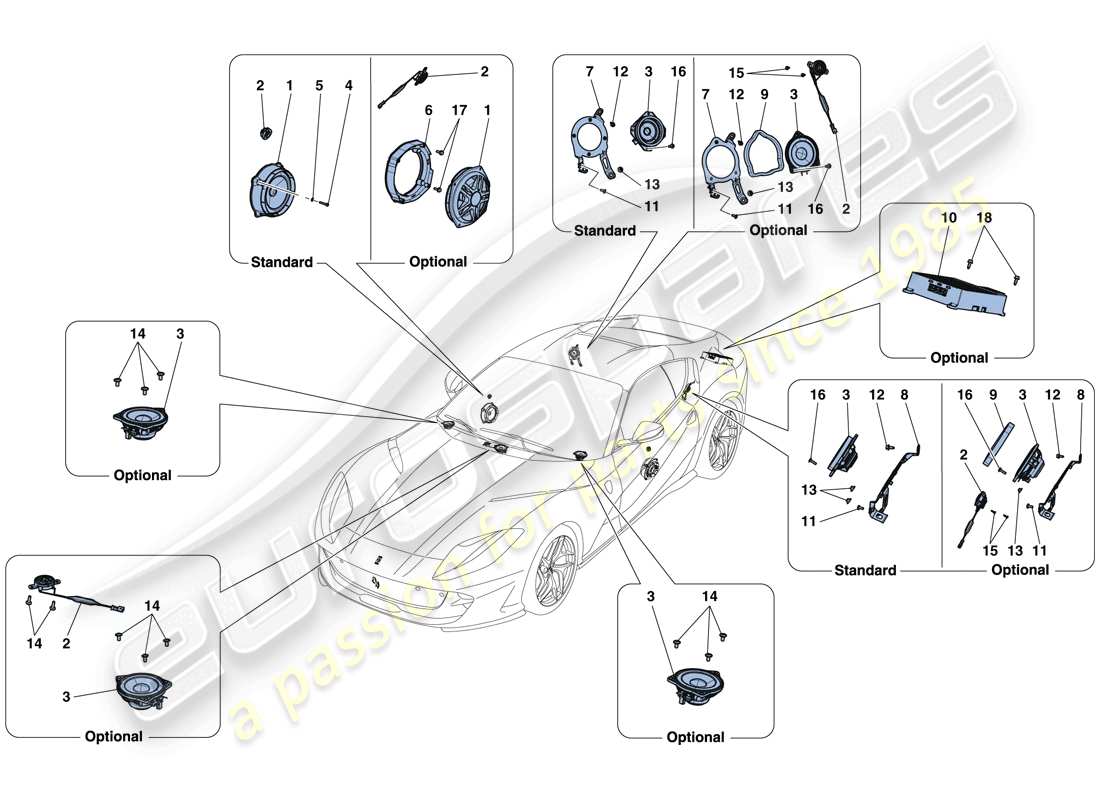

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Price
      # 001
      MPN: 310208
      WOOFER
      -Applicable up to Ass. No. 161988-
      from £81.42
      from £81.42
      # 001
      MPN: 328469
      WOOFER
      -Premium Hi-Fi version-
      from £220.01
      from £220.01
      # 001
      MPN: 334279
      WOOFER
      -Applicable from Ass. No. 161989-
      from £31.70
      from £31.70
      # 002
      MPN: 251541
      TWEETER
      from £9.47
      from £9.47
      # 002
      MPN: 321882
      TWEETER
      -Premium Hi-Fi version-
      from £22.24
      from £22.24
      # 003
      MPN: 269772
      TWIDDLER
      from £18.33
      from £18.33
      # 003
      MPN: 321880
      TWIDDLER
      -Premium Hi-Fi version-
      from £54.02
      from £54.02
      # 004
      MPN: 14304524
      SCREW
      -M5 X 30-
      from £0.47
      from £0.47
      # 005
      MPN: 12637801
      WASHER
      from £0.47
      from £0.47
      # 006
      MPN: 260130
      LH BECKER WOOFER ADAPTER
      -Premium Hi-Fi version-
      from £8.09
      from £8.09
      # 006
      MPN: 260131
      RH BECKER WOOFER ADAPTER
      -Premium Hi-Fi version-
      from £8.09
      from £8.09
      # 007
      MPN: 325233
      RH TWIDDLER FASTENER BRACKET
      from £25.67
      from £25.67
      # 007
      MPN: 325697
      RH TWIDDLER FASTENER BRACKET
      -Premium Hi-Fi version-
      from £51.55
      from £51.55
      # 008
      MPN: 325235
      LH TWIDDLER FASTENER BRACKET
      from £25.67
      from £25.67
      # 008
      MPN: 325698
      LH TWIDDLER FASTENER BRACKET
      -Premium Hi-Fi version-
      from £51.55
      from £51.55
      # 009
      MPN: 85276800
      GRILLE GASKET
      -Premium Hi-Fi version-
      from £9.57
      from £9.57
      # 010
      MPN: 339778
      12-CHANNEL AMPLIFIER
      -Premium Hi-Fi version-
      from £1,748.81
      from £1,748.81
      This part replaces part number 321883 - and 1 more. Click to view details
      # 011
      MPN: 85833700
      SCREW
      -M5 X 14-
      from £0.47
      from £0.47
      # 012
      MPN: 11566224
      SCREW
      -M5 X 14-
      from £0.53
      from £0.53
      # 013
      MPN: 14039511
      NUT
      from £0.53
      from £0.53
      # 014
      MPN: 85692000
      SCREW
      -M5 X 10- -Premium Hi-Fi version-
      from £0.50
      from £0.50
      # 015
      MPN: 62771900
      SCREW
      -Premium Hi-Fi version-
      from £0.53
      from £0.53
      This part replaces part number 68391900
      # 016
      MPN: 63343400
      SCREW
      -M4 X 15-
      from £1.36
      from £1.36
      # 016
      MPN: 63343400
      SCREW
      -M4 X 15- -Premium Hi-Fi version-
      from £1.36
      from £1.36
      # 017
      MPN: 16285127
      SCREW
      -M5 X 16- -Premium Hi-Fi version-
      from £0.47
      from £0.47
      # 018
      MPN: 18750321
      SCREW
      -M6 X 18- -Premium Hi-Fi version-
      from £0.47
      from £0.47
