0015 - silencers

Ferrari 812 Superfast (RHD) SILENCERS Parts Diagram

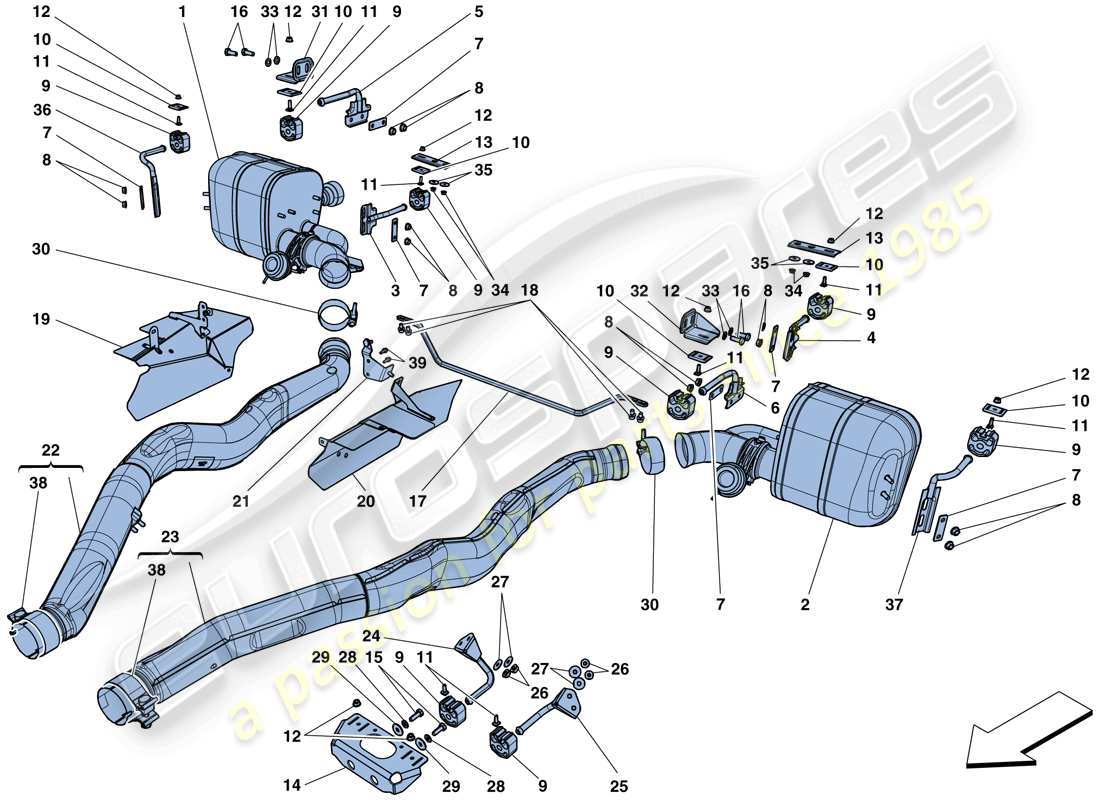

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                          #
                                                                          Part number
                                                                          Description
                                                                          Price

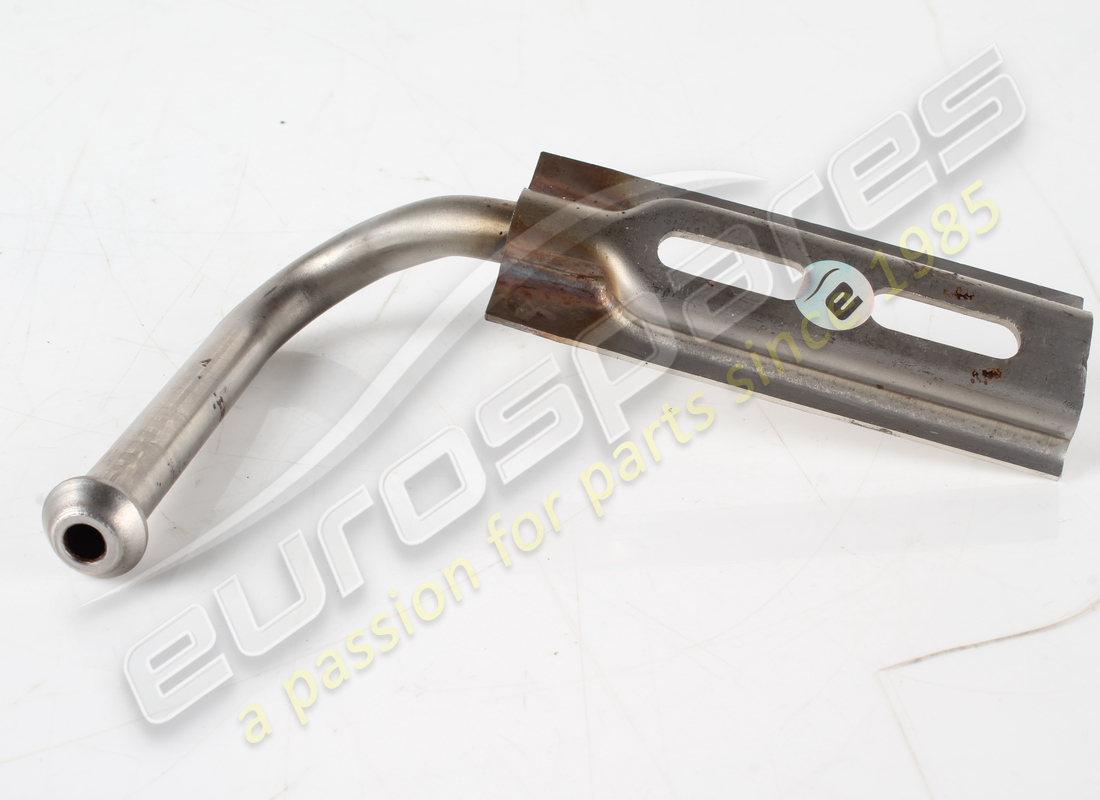

                                                                          # 003
                                                                          MPN: 291432
                                                                          RH REAR BRACKET ON SILENCER
                                                                          from £34.14
                                                                          from £34.14
                                                                          This part replaces part number 270490 which we have in stock
                                                                          # 004
                                                                          MPN: 291433
                                                                          LH REAR BRACKET ON SILENCER
                                                                          from £34.14
                                                                          from £34.14
                                                                          This part replaces part number 270491
                                                                          # 005
                                                                          MPN: 272542
                                                                          RH REAR BRACKET ON SILENCER
                                                                          from £34.66
                                                                          from £34.66
                                                                          # 006
                                                                          MPN: 272543
                                                                          LH REAR BRACKET ON SILENCER
                                                                          from £34.66
                                                                          from £34.66
                                                                          # 007
                                                                          MPN: 240597
                                                                          PLATE
                                                                          from £5.78
                                                                          from £5.78
                                                                          # 008
                                                                          MPN: 14059311
                                                                          NUT
                                                                          from £0.50
                                                                          from £0.50
                                                                          # 009
                                                                          MPN: 289529
                                                                          SILENCER MOUNTING BUSHING
                                                                          from £14.05
                                                                          from £14.05
                                                                          # 010
                                                                          MPN: 240598
                                                                          PLATE
                                                                          from £7.71
                                                                          from £7.71
                                                                          This part replaces part number 799014
                                                                          # 011
                                                                          MPN: 250222
                                                                          SQUARE HEADED SCREW
                                                                          -M6 X 18.5-
                                                                          from £1.55
                                                                          from £1.55
                                                                          # 012
                                                                          MPN: 14058421
                                                                          NUT
                                                                          from £0.75
                                                                          from £0.75
                                                                          This part replaces part number 14075721
                                                                          # 013
                                                                          MPN: 266812
                                                                          REAR BRACKET
                                                                          from £5.21
                                                                          from £5.21
                                                                          # 014
                                                                          MPN: 272447
                                                                          EXTENSION MOUNTING BRACKET
                                                                          from £19.27
                                                                          from £19.27
                                                                          # 015
                                                                          MPN: 16043524
                                                                          SCREW
                                                                          from £0.47
                                                                          from £0.47
                                                                          # 016
                                                                          MPN: 16043524
                                                                          SCREW
                                                                          from £0.47
                                                                          from £0.47
                                                                          # 017
                                                                          MPN: 283513
                                                                          SILENCER CROSS PIECE
                                                                          from £29.70
                                                                          from £29.70
                                                                          # 018
                                                                          MPN: 280460
                                                                          SCREW
                                                                          -M8 X 14-
                                                                          from £2.44
                                                                          from £2.44
                                                                          # 019
                                                                          MPN: 272274
                                                                          RH GEARBOX HEAT SHIELD
                                                                          from £58.20
                                                                          from £58.20
                                                                          # 020
                                                                          MPN: 294603
                                                                          LH GEARBOX HEAT SHIELD
                                                                          from £56.36
                                                                          from £56.36
                                                                          This part replaces part number 272275 which we have in stock - and 1 more. Click to view details
                                                                          # 021
                                                                          MPN: 263583
                                                                          BRACKET
                                                                          from £17.36
                                                                          from £17.36
                                                                          # 024
                                                                          MPN: 278732
                                                                          RH REMOVABLE BRACKET
                                                                          from £18.06
                                                                          from £18.06
                                                                          # 025
                                                                          MPN: 278733
                                                                          LH REMOVABLE BRACKET
                                                                          from £18.06
                                                                          from £18.06
                                                                          # 026
                                                                          MPN: 14059311
                                                                          NUT
                                                                          from £0.53
                                                                          from £0.53
                                                                          # 027
                                                                          MPN: 13578324
                                                                          WASHER
                                                                          from £0.53
                                                                          from £0.53
                                                                          This part replaces part number 13578311
                                                                          # 028
                                                                          MPN: 11193874
                                                                          WASHER
                                                                          from £0.54
                                                                          from £0.54
                                                                          This part replaces part number 11193879 which we have in stock
                                                                          # 029
                                                                          MPN: 12647024
                                                                          WASHER
                                                                          Supersession
                                                                          Supersession
                                                                          # 030
                                                                          MPN: 270454
                                                                          RING CLAMP
                                                                          from £6.97
                                                                          from £6.97
                                                                          # 031
                                                                          MPN: 282086
                                                                          FRONT RH BRACKET
                                                                          from £9.23
                                                                          from £9.23
                                                                          # 032
                                                                          MPN: 282087
                                                                          FRONT LH BRACKET
                                                                          from £9.23
                                                                          from £9.23
                                                                          # 033
                                                                          MPN: 11193874
                                                                          WASHER
                                                                          from £0.53
                                                                          from £0.53
                                                                          This part replaces part number 11193879 which we have in stock
                                                                          # 034
                                                                          MPN: 14059214
                                                                          NUT
                                                                          from £0.53
                                                                          from £0.53
                                                                          # 035
                                                                          MPN: 12640624
                                                                          WASHER
                                                                          from £0.53
                                                                          from £0.53
                                                                          This part replaces part number 12640601 - and 1 more. Click to view details
                                                                          # 036
                                                                          MPN: 291412
                                                                          RH LATERAL BRACKET
                                                                          from £34.66
                                                                          from £34.66
                                                                          # 037
                                                                          MPN: 291413
                                                                          LH LATERAL BRACKET
                                                                          from £34.66
                                                                          from £34.66
                                                                          # 038
                                                                          MPN: 282998
                                                                          RING CLAMP
                                                                          from £16.77
                                                                          from £16.77
                                                                          # 039
                                                                          MPN: 16286124
                                                                          SCREW
                                                                          -M6 X 20-
                                                                          from £0.53
                                                                          from £0.53
                                                                          Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
