ferrari 812 superfast (rhd) lubrication system: tank parts diagram

0017 - LUBRICATION SYSTEM: TANK

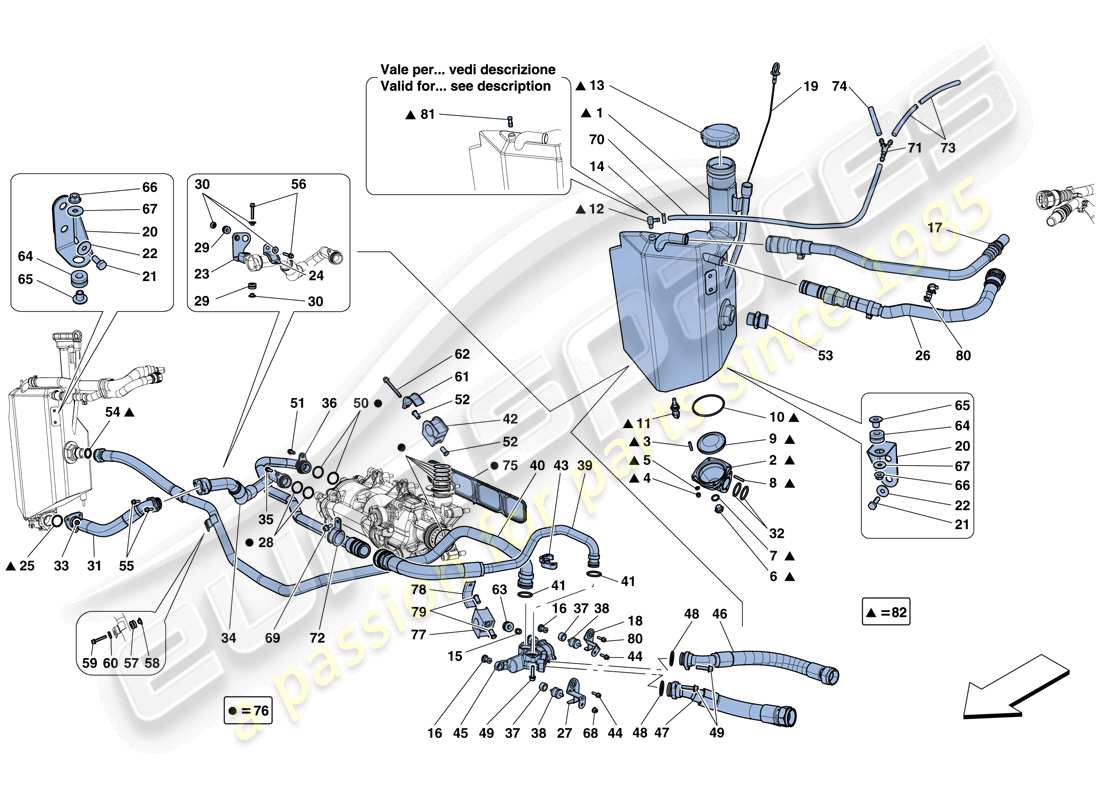

Ferrari 812 Superfast (RHD) LUBRICATION SYSTEM: TANK Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                      #
                                                                                                                      Part number
                                                                                                                      Description
                                                                                                                      Price
                                                                                                                      # 001
                                                                                                                      MPN: 333831
                                                                                                                      ENGINE OIL TANK
                                                                                                                      -Replaced by complete tank ref. 82- -No longer supplied-
                                                                                                                      from £1,547.78
                                                                                                                      from £1,547.78
                                                                                                                      # 002
                                                                                                                      MPN: 210914
                                                                                                                      OIL TANK PICKUP
                                                                                                                      from £298.37
                                                                                                                      from £298.37
                                                                                                                      # 003
                                                                                                                      MPN: 11500524
                                                                                                                      STUD BOLT
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 11500521
                                                                                                                      # 004
                                                                                                                      MPN: 102948
                                                                                                                      NUT
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 12574211 - and 3 more. Click to view details
                                                                                                                      # 005
                                                                                                                      MPN: 12601274
                                                                                                                      WASHER
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                                      # 006
                                                                                                                      MPN: 293107
                                                                                                                      THREADED PLUG
                                                                                                                      from £45.51
                                                                                                                      from £45.51
                                                                                                                      # 007
                                                                                                                      MPN: 10261460
                                                                                                                      GASKET
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      # 008
                                                                                                                      MPN: 13541124
                                                                                                                      STUD BOLT
                                                                                                                      from £12.06
                                                                                                                      from £12.06
                                                                                                                      This part replaces part number 13541121
                                                                                                                      # 009
                                                                                                                      MPN: 100332
                                                                                                                      SUMP FILTER
                                                                                                                      from £9.22
                                                                                                                      from £9.22
                                                                                                                      This part replaces part number 240387 - and 9 more. Click to view details
                                                                                                                      # 012
                                                                                                                      MPN: 290538
                                                                                                                      CONNECTOR
                                                                                                                      -Not for EU GS, AUS, USA, CDN, UK, USA LIGHT-
                                                                                                                      from £36.79
                                                                                                                      from £36.79
                                                                                                                      # 012
                                                                                                                      MPN: 290538
                                                                                                                      CONNECTOR
                                                                                                                      -Applicable for EU GS, AUS, UK- -Applicable up to Ass. No. 152775-
                                                                                                                      from £36.79
                                                                                                                      from £36.79
                                                                                                                      # 013
                                                                                                                      MPN: 175708
                                                                                                                      COMPL. PLUG
                                                                                                                      from £91.10
                                                                                                                      from £91.10
                                                                                                                      This part replaces part number 142790 which we have in stock - and 3 more. Click to view details
                                                                                                                      # 014
                                                                                                                      MPN: 171406
                                                                                                                      COLLAR
                                                                                                                      -Not for EU GS, AUS, USA, CDN, UK, USA LIGHT-
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      # 014
                                                                                                                      MPN: 171406
                                                                                                                      COLLAR
                                                                                                                      -Applicable for EU GS, AUS, UK- -Applicable up to Ass. No. 152775-
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      # 015
                                                                                                                      MPN: 341672
                                                                                                                      SPACER
                                                                                                                      from £2.92
                                                                                                                      from £2.92
                                                                                                                      # 016
                                                                                                                      MPN: 341649
                                                                                                                      PIN
                                                                                                                      from £20.97
                                                                                                                      from £20.97
                                                                                                                      # 017
                                                                                                                      MPN: 333851
                                                                                                                      OIL VAPOUR PIPE FROM RESERVOIR TO DISCONNECTOR UNION
                                                                                                                      -Applicable for EU GS, AUS, UK- -Applicable from Ass. No. 152776-
                                                                                                                      from £48.63
                                                                                                                      from £48.63
                                                                                                                      # 017
                                                                                                                      MPN: 333851
                                                                                                                      OIL VAPOUR PIPE FROM RESERVOIR TO DISCONNECTOR UNION
                                                                                                                      -Applicable for USA, CDN, USA LIGHT-
                                                                                                                      from £48.63
                                                                                                                      from £48.63
                                                                                                                      # 017
                                                                                                                      MPN: 333853
                                                                                                                      OIL VAPOUR PIPE FROM RESERVOIR TO DISCONNECTOR UNION
                                                                                                                      -Not for AUS, USA, CDN, UK, USA LIGHT-
                                                                                                                      from £42.03
                                                                                                                      from £42.03
                                                                                                                      # 017
                                                                                                                      MPN: 333853
                                                                                                                      OIL VAPOUR PIPE FROM RESERVOIR TO DISCONNECTOR UNION
                                                                                                                      -Applicable for EU GS, AUS, UK- -Applicable up to Ass. No. 152775-
                                                                                                                      from £42.03
                                                                                                                      from £42.03
                                                                                                                      # 018
                                                                                                                      MPN: 341699
                                                                                                                      BRACKET
                                                                                                                      from £6.68
                                                                                                                      from £6.68
                                                                                                                      # 019
                                                                                                                      MPN: 342579
                                                                                                                      COMPL. OIL DIPSTICK
                                                                                                                      from £60.90
                                                                                                                      from £60.90
                                                                                                                      # 020
                                                                                                                      MPN: 269835
                                                                                                                      FASTENER BRACKET
                                                                                                                      from £9.31
                                                                                                                      from £9.31
                                                                                                                      # 021
                                                                                                                      MPN: 10902124
                                                                                                                      SCREW
                                                                                                                      -M6 X 14-
                                                                                                                      from £0.53
                                                                                                                      from £0.53
                                                                                                                      This part replaces part number 10902111 - and 1 more. Click to view details
                                                                                                                      # 021
                                                                                                                      MPN: 10902424
                                                                                                                      SCREW
                                                                                                                      -M6 X 20-
                                                                                                                      from £0.53
                                                                                                                      from £0.53
                                                                                                                      This part replaces part number 10902324 - and 3 more. Click to view details
                                                                                                                      # 022
                                                                                                                      MPN: 12643724
                                                                                                                      WASHER
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 109684 - and 4 more. Click to view details
                                                                                                                      # 023
                                                                                                                      MPN: 326791
                                                                                                                      PIPE MOUNTING BRACKET
                                                                                                                      from £40.48
                                                                                                                      from £40.48
                                                                                                                      # 024
                                                                                                                      MPN: 326821
                                                                                                                      PIPE MOUNTING BRACKET
                                                                                                                      from £18.48
                                                                                                                      from £18.48
                                                                                                                      # 025
                                                                                                                      MPN: 153628
                                                                                                                      GASKET
                                                                                                                      -Also comes with engine gasket set-
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      # 026
                                                                                                                      MPN: 330592
                                                                                                                      VAPOUR PIPE FROM DISCONNECTOR UNION TO PCV
                                                                                                                      -Applicable for EU GS, AUS, UK- -Applicable from Ass. No. 152776-
                                                                                                                      from £262.11
                                                                                                                      from £262.11
                                                                                                                      # 026
                                                                                                                      MPN: 330592
                                                                                                                      VAPOUR PIPE FROM DISCONNECTOR UNION TO PCV
                                                                                                                      -Applicable for USA, CDN, USA LIGHT-
                                                                                                                      from £262.11
                                                                                                                      from £262.11
                                                                                                                      # 026
                                                                                                                      MPN: 333854
                                                                                                                      VAPOUR PIPE FROM DISCONNECTOR UNION TO PCV
                                                                                                                      -Not for EU GS, AUS, USA, CDN, UK, USA LIGHT-
                                                                                                                      from £220.80
                                                                                                                      from £220.80
                                                                                                                      # 026
                                                                                                                      MPN: 333854
                                                                                                                      VAPOUR PIPE FROM DISCONNECTOR UNION TO PCV
                                                                                                                      -Applicable for EU GS, AUS, UK- -Applicable up to Ass. No. 152775-
                                                                                                                      from £220.80
                                                                                                                      from £220.80
                                                                                                                      # 027
                                                                                                                      MPN: 341700
                                                                                                                      BRACKET
                                                                                                                      from £6.96
                                                                                                                      from £6.96
                                                                                                                      # 028
                                                                                                                      MPN: 104212
                                                                                                                      GASKET
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      # 029
                                                                                                                      MPN: 240607
                                                                                                                      GROMMET
                                                                                                                      from £3.17
                                                                                                                      from £3.17
                                                                                                                      # 030
                                                                                                                      MPN: 183898
                                                                                                                      FLANGED BUSHING
                                                                                                                      from £1.51
                                                                                                                      from £1.51
                                                                                                                      # 031
                                                                                                                      MPN: 342510
                                                                                                                      OIL PIPE FROM RESERVOIR TO DISCONNECTOR UNION
                                                                                                                      from £409.97
                                                                                                                      from £409.97
                                                                                                                      This part replaces part number 318529
                                                                                                                      # 032
                                                                                                                      MPN: 104212
                                                                                                                      GASKET
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      # 033
                                                                                                                      MPN: 14040611
                                                                                                                      NUT
                                                                                                                      from £0.53
                                                                                                                      from £0.53
                                                                                                                      # 034
                                                                                                                      MPN: 318530
                                                                                                                      OIL PIPE FROM DISCONNECTER UNION TO PUMP
                                                                                                                      from £321.63
                                                                                                                      from £321.63
                                                                                                                      # 035
                                                                                                                      MPN: 231619
                                                                                                                      SCREW
                                                                                                                      -M6 X 22-
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      # 036
                                                                                                                      MPN: 311558
                                                                                                                      ENGINE OIL RETURN PIPE FROM ENGINE TO DISCONNECTER UNION
                                                                                                                      from £260.18
                                                                                                                      from £260.18
                                                                                                                      # 037
                                                                                                                      MPN: 341666
                                                                                                                      SPACER
                                                                                                                      from £2.88
                                                                                                                      from £2.88
                                                                                                                      # 038
                                                                                                                      MPN: 142202
                                                                                                                      PLUG
                                                                                                                      from £14.50
                                                                                                                      from £14.50
                                                                                                                      # 039
                                                                                                                      MPN: 311647
                                                                                                                      ENGINE OIL RETURN PIPE FROM DISCONNECTER UNION TO THERMOSTAT VALVE
                                                                                                                      from £312.37
                                                                                                                      from £312.37
                                                                                                                      # 040
                                                                                                                      MPN: 311743
                                                                                                                      ENGINE OIL RETURN PIPE FROM VALVE TO RESERVOIR
                                                                                                                      from £209.05
                                                                                                                      from £209.05
                                                                                                                      # 041
                                                                                                                      MPN: 122791
                                                                                                                      GASKET
                                                                                                                      from £1.26
                                                                                                                      from £1.26
                                                                                                                      # 042
                                                                                                                      MPN: 315530
                                                                                                                      PILLORY BLOCK
                                                                                                                      from £25.78
                                                                                                                      from £25.78
                                                                                                                      # 043
                                                                                                                      MPN: 311723
                                                                                                                      ENGINE OIL PIPE RETAINER FORK
                                                                                                                      from £55.43
                                                                                                                      from £55.43
                                                                                                                      # 044
                                                                                                                      MPN: 231618
                                                                                                                      SCREW
                                                                                                                      -M6 X 20-
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      # 045
                                                                                                                      MPN: 316675
                                                                                                                      COMPL. OIL THERMOSTAT
                                                                                                                      from £299.80
                                                                                                                      from £299.80
                                                                                                                      # 046
                                                                                                                      MPN: 317220
                                                                                                                      OIL DELIVERY PIPE FROM VALVE TO RADIATOR
                                                                                                                      from £130.03
                                                                                                                      from £130.03
                                                                                                                      # 047
                                                                                                                      MPN: 315531
                                                                                                                      OIL RETURN PIPE FROM RADIATOR TO VALVE
                                                                                                                      from £228.53
                                                                                                                      from £228.53
                                                                                                                      # 048
                                                                                                                      MPN: 122791
                                                                                                                      GASKET
                                                                                                                      from £1.26
                                                                                                                      from £1.26
                                                                                                                      # 049
                                                                                                                      MPN: 231620
                                                                                                                      SCREW
                                                                                                                      -M6 X 25-
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      # 050
                                                                                                                      MPN: 121903
                                                                                                                      GASKET
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      # 051
                                                                                                                      MPN: 231619
                                                                                                                      SCREW
                                                                                                                      -M6 X 22-
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      # 052
                                                                                                                      MPN: 304075
                                                                                                                      BUSHING
                                                                                                                      from £3.28
                                                                                                                      from £3.28
                                                                                                                      This part replaces part number 289837
                                                                                                                      # 053
                                                                                                                      MPN: 138149
                                                                                                                      THREADED CONNECTOR
                                                                                                                      from £17.42
                                                                                                                      from £17.42
                                                                                                                      # 054
                                                                                                                      -
                                                                                                                      GASKET
                                                                                                                      # 054
                                                                                                                      MPN: 144485
                                                                                                                      GASKET
                                                                                                                      -No longer supplied- -Replaced by 891997-
                                                                                                                      from £12.50
                                                                                                                      from £12.50
                                                                                                                      # 055
                                                                                                                      MPN: 248334
                                                                                                                      SCREW
                                                                                                                      -M6 X 16-
                                                                                                                      from £0.53
                                                                                                                      from £0.53
                                                                                                                      # 056
                                                                                                                      MPN: 231622
                                                                                                                      SCREW
                                                                                                                      -M6 X 35-
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      # 057
                                                                                                                      MPN: 103549
                                                                                                                      GROMMET
                                                                                                                      from £0.70
                                                                                                                      from £0.70
                                                                                                                      # 058
                                                                                                                      MPN: 149707
                                                                                                                      SHIM
                                                                                                                      from £0.66
                                                                                                                      from £0.66
                                                                                                                      # 059
                                                                                                                      MPN: 16286224
                                                                                                                      SCREW
                                                                                                                      -M6 X 25-
                                                                                                                      from £1.33
                                                                                                                      from £1.33
                                                                                                                      # 060
                                                                                                                      MPN: 12643724
                                                                                                                      WASHER
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 109684 - and 4 more. Click to view details
                                                                                                                      # 061
                                                                                                                      MPN: 315540
                                                                                                                      RETAINER BLOCK FASTENER PLATE
                                                                                                                      from £15.08
                                                                                                                      from £15.08
                                                                                                                      # 062
                                                                                                                      MPN: 255495
                                                                                                                      SCREW
                                                                                                                      -M6 X 65-
                                                                                                                      from £0.50
                                                                                                                      from £0.50
                                                                                                                      This part replaces part number 282404
                                                                                                                      # 063
                                                                                                                      MPN: 267300
                                                                                                                      MOUNTING
                                                                                                                      from £6.08
                                                                                                                      from £6.08
                                                                                                                      This part replaces part number 294902 - and 1 more. Click to view details
                                                                                                                      # 064
                                                                                                                      MPN: 103549
                                                                                                                      GROMMET
                                                                                                                      from £0.70
                                                                                                                      from £0.70
                                                                                                                      # 065
                                                                                                                      MPN: 149707
                                                                                                                      SHIM
                                                                                                                      from £0.65
                                                                                                                      from £0.65
                                                                                                                      # 066
                                                                                                                      MPN: 14059214
                                                                                                                      NUT
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      # 067
                                                                                                                      MPN: 12643724
                                                                                                                      WASHER
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 109684 - and 4 more. Click to view details
                                                                                                                      # 068
                                                                                                                      MPN: 14039614
                                                                                                                      NUT
                                                                                                                      from £0.53
                                                                                                                      from £0.53
                                                                                                                      # 068
                                                                                                                      MPN: 228265
                                                                                                                      NUT
                                                                                                                      -No longer supplied- -Replaced by 14039614-
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      # 069
                                                                                                                      MPN: 231616
                                                                                                                      SCREW
                                                                                                                      -M6 X 14-
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 14305724 which we have in stock
                                                                                                                      # 070
                                                                                                                      MPN: 336898
                                                                                                                      RUBBER PIPE
                                                                                                                      -Not for EU GS, AUS, USA, CDN, UK, USA LIGHT-
                                                                                                                      from £43.72
                                                                                                                      from £43.72
                                                                                                                      # 070
                                                                                                                      MPN: 336898
                                                                                                                      RUBBER PIPE
                                                                                                                      -Applicable for EU GS, AUS, UK- -Applicable up to Ass. No. 152775-
                                                                                                                      from £43.72
                                                                                                                      from £43.72
                                                                                                                      # 071
                                                                                                                      MPN: 258855
                                                                                                                      3-WAY CONNECTOR
                                                                                                                      -Not for EU GS, AUS, USA, CDN, UK, USA LIGHT-
                                                                                                                      from £23.07
                                                                                                                      from £23.07
                                                                                                                      # 071
                                                                                                                      MPN: 258855
                                                                                                                      3-WAY CONNECTOR
                                                                                                                      -Applicable for EU GS, AUS, UK- -Applicable up to Ass. No. 152775-
                                                                                                                      from £23.07
                                                                                                                      from £23.07
                                                                                                                      # 072
                                                                                                                      MPN: 322190
                                                                                                                      BRACKET
                                                                                                                      from £21.38
                                                                                                                      from £21.38
                                                                                                                      # 073
                                                                                                                      MPN: 118901
                                                                                                                      RUBBER PIPE
                                                                                                                      -Not for EU GS, AUS, USA, CDN, UK, USA LIGHT-
                                                                                                                      from £3.25
                                                                                                                      from £3.25
                                                                                                                      # 073
                                                                                                                      MPN: 118901
                                                                                                                      RUBBER PIPE
                                                                                                                      -Applicable for EU GS, AUS, UK- -Applicable up to Ass. No. 152775-
                                                                                                                      from £3.25
                                                                                                                      from £3.25
                                                                                                                      # 074
                                                                                                                      MPN: 170530
                                                                                                                      RUBBER PIPE
                                                                                                                      -Not for EU GS, AUS, USA, CDN, UK, USA LIGHT-
                                                                                                                      from £2.95
                                                                                                                      from £2.95
                                                                                                                      # 074
                                                                                                                      MPN: 170530
                                                                                                                      RUBBER PIPE
                                                                                                                      -Applicable for EU GS, AUS, UK- -Applicable up to Ass. No. 152775-
                                                                                                                      from £2.95
                                                                                                                      from £2.95
                                                                                                                      # 075
                                                                                                                      MPN: 275528
                                                                                                                      PUMP SEAL FILTER
                                                                                                                      from £17.31
                                                                                                                      from £17.31
                                                                                                                      This part replaces part number 266381
                                                                                                                      # 076
                                                                                                                      MPN: 794125
                                                                                                                      OIL PUMP GASKET KIT
                                                                                                                      from £33.43
                                                                                                                      from £33.43
                                                                                                                      # 077
                                                                                                                      MPN: 315529
                                                                                                                      PILLORY BLOCK
                                                                                                                      from £25.78
                                                                                                                      from £25.78
                                                                                                                      # 078
                                                                                                                      MPN: 315539
                                                                                                                      RETAINER BLOCK FASTENER PLATE
                                                                                                                      from £14.10
                                                                                                                      from £14.10
                                                                                                                      # 079
                                                                                                                      MPN: 315649
                                                                                                                      FLANGED BUSHING
                                                                                                                      from £2.29
                                                                                                                      from £2.29
                                                                                                                      # 080
                                                                                                                      MPN: 330910
                                                                                                                      CLIP
                                                                                                                      from £1.15
                                                                                                                      from £1.15
                                                                                                                      # 081
                                                                                                                      MPN: 14326101
                                                                                                                      THREADED PLUG
                                                                                                                      -Applicable for EU GS, AUS, UK- -Applicable from Ass. No. 152776-
                                                                                                                      from £0.61
                                                                                                                      from £0.61
                                                                                                                      # 081
                                                                                                                      MPN: 14326101
                                                                                                                      THREADED PLUG
                                                                                                                      -Applicable for USA, CDN, USA LIGHT-
                                                                                                                      from £0.61
                                                                                                                      from £0.61
                                                                                                                      # 082
                                                                                                                      MPN: 333832
                                                                                                                      COMPL. ENGINE OIL TANK
                                                                                                                      -Applicable for EU GS, AUS, UK- -Applicable from Ass. No. 152776-
                                                                                                                      from £723.09
                                                                                                                      from £723.09
                                                                                                                      # 082
                                                                                                                      MPN: 333832
                                                                                                                      COMPL. ENGINE OIL TANK
                                                                                                                      -Applicable for USA, CDN, USA LIGHT-
                                                                                                                      from £723.09
                                                                                                                      from £723.09
                                                                                                                      # 082
                                                                                                                      MPN: 333836
                                                                                                                      COMPL. ENGINE OIL TANK
                                                                                                                      -Not for EU GS, AUS, USA, CDN, UK, USA LIGHT-
                                                                                                                      from £1,314.70
                                                                                                                      from £1,314.70
                                                                                                                      # 082
                                                                                                                      MPN: 333836
                                                                                                                      COMPL. ENGINE OIL TANK
                                                                                                                      -Applicable for EU GS, AUS, UK- -Applicable up to Ass. No. 152775-
                                                                                                                      from £1,314.70
                                                                                                                      from £1,314.70
