ferrari 812 superfast (rhd) cooling - header tank and pipes parts diagram

0019 - COOLING - HEADER TANK AND PIPES

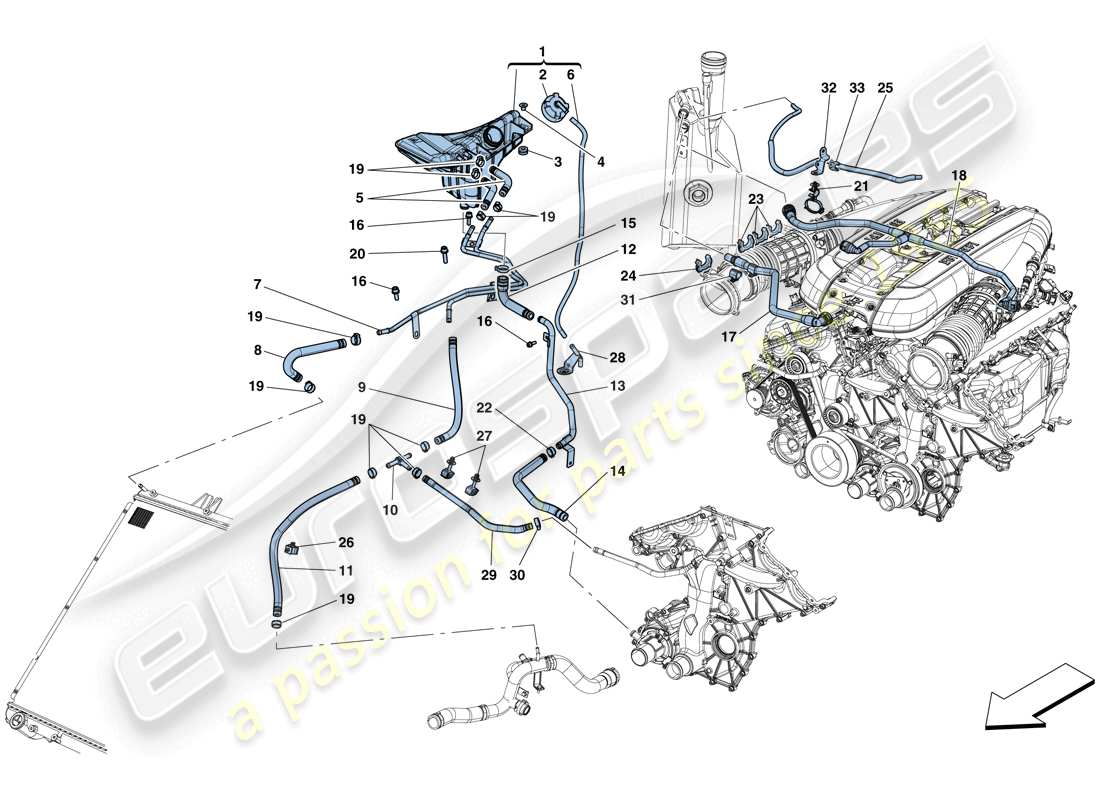

Ferrari 812 Superfast (RHD) COOLING - HEADER TANK AND PIPES Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Key
                                        Price
                                        # 001
                                        MPN: 282956
                                        COMPL. EXPANSION TANK
                                        -No longer supplied- -Replaced by 750859-
                                        from £75.12
                                        from £75.12
                                        COMPLETE EXPANSION TANK Genuine Ferrari Part - New In stock
                                        # 001
                                        MPN: 750859
                                        COMPL. EXPANSION TANK
                                        from £43.47
                                        from £43.47
                                        COMPLETE EXPANSION TANK Genuine Ferrari Part - New (to order)
                                        COMPLETE EXPANSION TANK Genuine Ferrari Part - Used In stock
                                        # 002
                                        MPN: 145030
                                        CAP WITH BREATHER
                                        from £12.74
                                        from £12.74
                                        TANK PLUG Genuine Ferrari Part - New In stock
                                        Genuine Maserati Part (no longer available to order)
                                        TANK PLUG Genuine Ferrari Part - Used In stock
                                        # 003
                                        MPN: 103549
                                        GROMMET
                                        from £0.69
                                        from £0.69
                                        RING Genuine Ferrari Part - New In stock
                                        CABLE GROMMET Genuine Maserati Part - New (to order)
                                        # 004
                                        MPN: 149707
                                        SHIM
                                        from £0.79
                                        from £0.79
                                        SPACER Genuine Ferrari Part - New In stock
                                        SPACER Genuine Maserati Part - New (to order)
                                        # 005
                                        MPN: 288386
                                        RUBBER PIPE
                                        -D. 7-14 X 107-
                                        from £4.92
                                        from £4.92
                                        RUBBER PIPE Genuine Ferrari Part - New (to order)
                                        RUBBER PIPE Genuine Ferrari Part - Used In stock
                                        # 006
                                        MPN: 280418
                                        RUBBER PIPE
                                        -D. 7 X 1.5 X 825- -No longer supplied- -Replaced by 873407-
                                        from £21.90
                                        from £21.90
                                        RUBBER PIPE Genuine Ferrari Part - New (to order)
                                        # 006
                                        MPN: 873407
                                        HEADER TANK DRAIN PIPE
                                        -D. 7 X 1.5 X 640-
                                        from £47.46
                                        from £47.46
                                        HEADER TANK DRAIN PIPE Genuine Ferrari Part - New (to order)
                                        # 007
                                        MPN: 324412
                                        COMPL. BREATHER PIPING
                                        from £85.92
                                        from £85.92
                                        COMPLETE BREATHER PIPING Genuine Ferrari Part - New (to order)
                                        COMPLETE BREATHER PIPING Genuine Ferrari Part - Used In stock
                                        # 008
                                        MPN: 288387
                                        RUBBER PIPE
                                        from £14.05
                                        from £14.05
                                        RUBBER PIPE Genuine Ferrari Part - New (to order)
                                        RUBBER PIPE Genuine Ferrari Part - Used In stock
                                        # 009
                                        MPN: 288385
                                        RUBBER PIPE
                                        -D. 7-14 X 235-
                                        from £6.49
                                        from £6.49
                                        RUBBER PIPE Genuine Ferrari Part - New (to order)
                                        RUBBER PIPE Genuine Ferrari Part - Used In stock
                                        # 010
                                        MPN: 281899
                                        3-WAY CONNECTOR
                                        from £1.00
                                        from £1.00
                                        3-WAY UNION COMPLETE WITH BR Genuine Ferrari Part - New (to order)
                                        3-WAY UNION COMPLETE WITH BR Genuine Ferrari Part - Used In stock
                                        # 011
                                        MPN: 340329
                                        RUBBER PIPE
                                        -D. 7-14-
                                        from £16.90
                                        from £16.90
                                        RUBBER PIPE Genuine Ferrari Part - New (to order)
                                        RUBBER PIPE Genuine Ferrari Part - Used In stock
                                        # 012
                                        MPN: 282575
                                        PIPE FROM RESERVOIR TO DISCONNECTOR UNION
                                        from £13.77
                                        from £13.77
                                        PIPE FROM RESERVOIR TO DISCO Genuine Ferrari Part - New (to order)
                                        PIPE FROM RESERVOIR TO DISCO Genuine Ferrari Part - Used In stock
                                        # 013
                                        MPN: 289021
                                        RESERVOIR OUTLET RIGID PIPE
                                        from £42.07
                                        from £42.07
                                        RESERVOIR OUTLET RIGID PIPE Genuine Ferrari Part - New (to order)
                                        RESERVOIR OUTLET RIGID PIPE Genuine Ferrari Part - Used In stock
                                        # 014
                                        MPN: 289020
                                        PIPE FROM DISCONNECTOR TO PUMP
                                        from £22.08
                                        from £22.08
                                        PIPE FROM DISCONNECTOR TO PU Genuine Ferrari Part - New (to order)
                                        PIPE FROM DISCONNECTOR TO PU Genuine Ferrari Part - Used In stock
                                        # 015
                                        MPN: 262111
                                        COLLAR
                                        from £0.93
                                        from £0.93
                                        This part replaces part number 13127770
                                        SCREW COLLAR Genuine Ferrari Part - New In stock
                                        # 016
                                        MPN: 231617
                                        SCREW
                                        -M6 X 18-
                                        from £0.52
                                        from £0.52
                                        This part replaces part number 14433124 which we have in stock
                                        SCREW Genuine Ferrari Part - New In stock
                                        SOCKET HEAD SCREW WITH WASHER M6X Genuine Maserati Part - New In stock
                                        # 017
                                        MPN: 330640
                                        VAPOUR PIPE FROM HEADS
                                        -Applicable for EU GS, AUS, UK- -Applicable from Ass. No. 152776-
                                        from £94.57
                                        from £94.57
                                        VAPOUR PIPE FROM HEADS Genuine Ferrari Part - New (to order)
                                        # 017
                                        MPN: 330640
                                        VAPOUR PIPE FROM HEADS
                                        -Applicable for USA, CDN, USA LIGHT-
                                        from £94.57
                                        from £94.57
                                        VAPOUR PIPE FROM HEADS Genuine Ferrari Part - New (to order)
                                        # 017
                                        MPN: 333856
                                        VAPOUR PIPE FROM HEADS
                                        -Not for EU GS, AUS, USA, CDN, UK, USA LIGHT-
                                        from £54.66
                                        from £54.66
                                        VAPOUR PIPE FROM HEADS Genuine Ferrari Part - New (to order)
                                        # 017
                                        MPN: 333856
                                        VAPOUR PIPE FROM HEADS
                                        -Applicable for EU GS, AUS, UK- -Applicable up to Ass. No. 152775-
                                        from £54.66
                                        from £54.66
                                        VAPOUR PIPE FROM HEADS Genuine Ferrari Part - New (to order)
                                        # 018
                                        MPN: 330633
                                        BLOW-BY PIPE FROM TANK TO INTAKE MANIFOLD
                                        -Applicable for EU GS, AUS, UK- -Applicable from Ass. No. 152776-
                                        from £167.71
                                        from £167.71
                                        BLOW-BY PIPE FROM TANK TO IN Genuine Ferrari Part - New (to order)
                                        # 018
                                        MPN: 330633
                                        BLOW-BY PIPE FROM TANK TO INTAKE MANIFOLD
                                        -Applicable for USA, CDN, USA LIGHT-
                                        from £167.71
                                        from £167.71
                                        BLOW-BY PIPE FROM TANK TO IN Genuine Ferrari Part - New (to order)
                                        # 018
                                        MPN: 333857
                                        BLOW-BY PIPE FROM TANK TO INTAKE MANIFOLD
                                        -Not for EU GS, AUS, USA, CDN, UK, USA LIGHT-
                                        from £120.56
                                        from £120.56
                                        BLOW-BY PIPE FROM TANK TO IN Genuine Ferrari Part - New (to order)
                                        # 018
                                        MPN: 333857
                                        BLOW-BY PIPE FROM TANK TO INTAKE MANIFOLD
                                        -Applicable for EU GS, AUS, UK- -Applicable up to Ass. No. 152775-
                                        from £120.56
                                        from £120.56
                                        BLOW-BY PIPE FROM TANK TO IN Genuine Ferrari Part - New (to order)
                                        # 019
                                        MPN: 13125470
                                        COLLAR
                                        from £0.50
                                        from £0.50
                                        COLLAR Genuine Ferrari Part - New In stock
                                        COLLAR Genuine Maserati Part - New In stock
                                        # 020
                                        MPN: 231620
                                        SCREW
                                        -M6 X 25-
                                        from £0.54
                                        from £0.54
                                        SCREW Genuine Ferrari Part - New In stock
                                        SOCKET HEAD SCREW WITH WASHE Genuine Maserati Part - New (to order)
                                        # 021
                                        MPN: 339342
                                        CLIP
                                        from £1.13
                                        from £1.13
                                        CLIP Genuine Ferrari Part - New (to order)
                                        # 022
                                        MPN: 262109
                                        COLLAR
                                        from £0.64
                                        from £0.64
                                        This part replaces part number 10860270 - and 1 more. Click to view details
                                        SCREW COLLAR Genuine Ferrari Part - New In stock
                                        CLAMP Genuine Maserati Part - New In stock
                                        # 023
                                        MPN: 140728
                                        CLIP
                                        -Not for EU GS, AUS, USA, CDN, UK, USA LIGHT-
                                        from £0.54
                                        from £0.54
                                        FIXING CLIP Genuine Ferrari Part - New (to order)
                                        FIXING CLIP Genuine Maserati Part - New (to order)
                                        # 023
                                        MPN: 140728
                                        CLIP
                                        -Applicable for EU GS, AUS, UK- -Applicable up to Ass. No. 152775-
                                        from £0.54
                                        from £0.54
                                        FIXING CLIP Genuine Ferrari Part - New (to order)
                                        FIXING CLIP Genuine Maserati Part - New (to order)
                                        # 024
                                        MPN: 145543
                                        CLIP
                                        -Not for EU GS, AUS, USA, CDN, UK, USA LIGHT-
                                        from £0.54
                                        from £0.54
                                        CLIP Genuine Ferrari Part - New In stock
                                        CLIP Genuine Maserati Part - New (to order)
                                        # 024
                                        MPN: 145543
                                        CLIP
                                        -Applicable for EU GS, AUS, UK- -Applicable up to Ass. No. 152775-
                                        from £0.54
                                        from £0.54
                                        CLIP Genuine Ferrari Part - New In stock
                                        CLIP Genuine Maserati Part - New (to order)
                                        # 025
                                        MPN: 336898
                                        RUBBER PIPE
                                        -Not for EU GS, AUS, USA, CDN, UK, USA LIGHT-
                                        from £43.35
                                        from £43.35
                                        RUBBER PIPE Genuine Ferrari Part - New (to order)
                                        # 025
                                        MPN: 336898
                                        RUBBER PIPE
                                        -Applicable for EU GS, AUS, UK- -Applicable up to Ass. No. 152775-
                                        from £43.35
                                        from £43.35
                                        RUBBER PIPE Genuine Ferrari Part - New (to order)
                                        # 026
                                        MPN: 257273
                                        CLIP
                                        from £0.63
                                        from £0.63
                                        CLIP Genuine Ferrari Part - New (to order)
                                        # 027
                                        MPN: 206536
                                        CLIP
                                        -Applicable up to engine No. 345075-
                                        from £0.54
                                        from £0.54
                                        CLIP Genuine Ferrari Part - New In stock
                                        1 SECT. CLIP D.14 WITH CORD Genuine Maserati Part - New In stock
                                        # 027
                                        MPN: 339343
                                        CLIP
                                        -Applicable from engine No. 345076-
                                        from £1.44
                                        from £1.44
                                        CLIP Genuine Ferrari Part - New (to order)
                                        # 027
                                        MPN: 339343
                                        CLIP
                                        from £1.44
                                        from £1.44
                                        CLIP Genuine Ferrari Part - New (to order)
                                        # 028
                                        MPN: 764686
                                        BRACKET
                                        from £24.88
                                        from £24.88
                                        BRACKET Genuine Ferrari Part - New (to order)
                                        BRACKET Genuine Ferrari Part - Used In stock
                                        # 029
                                        MPN: 342162
                                        PIPE
                                        from £17.25
                                        from £17.25
                                        PIPE Genuine Ferrari Part - New (to order)
                                        PIPE Genuine Ferrari Part - Used In stock
                                        # 030
                                        MPN: 13000290
                                        SCREW COLLAR
                                        from £0.56
                                        from £0.56
                                        CLAMP Genuine Ferrari Part - New In stock
                                        COLLAR Genuine Maserati Part - New (to order)
                                        # 031
                                        MPN: 338263
                                        CLIP
                                        Supersession
                                        Supersession
                                        Genuine Ferrari Part (no longer available to order)
                                        # 032
                                        MPN: 339842
                                        BLOW-BY PIPE FASTENER BRACKET
                                        from £16.42
                                        from £16.42
                                        BRACKET Genuine Ferrari Part - New (to order)
                                        # 033
                                        MPN: 14574287
                                        CLIP
                                        -Not for EU GS, AUS, USA, CDN, UK, USA LIGHT-
                                        from £4.90
                                        from £4.90
                                        SPRING Genuine Ferrari Part - New In stock
                                        # 033
                                        MPN: 14574287
                                        CLIP
                                        -Applicable for EU GS, AUS, UK- -Applicable up to Ass. No. 152775-
                                        from £4.90
                                        from £4.90
                                        SPRING Genuine Ferrari Part - New In stock
