0021 - Transmission Housing

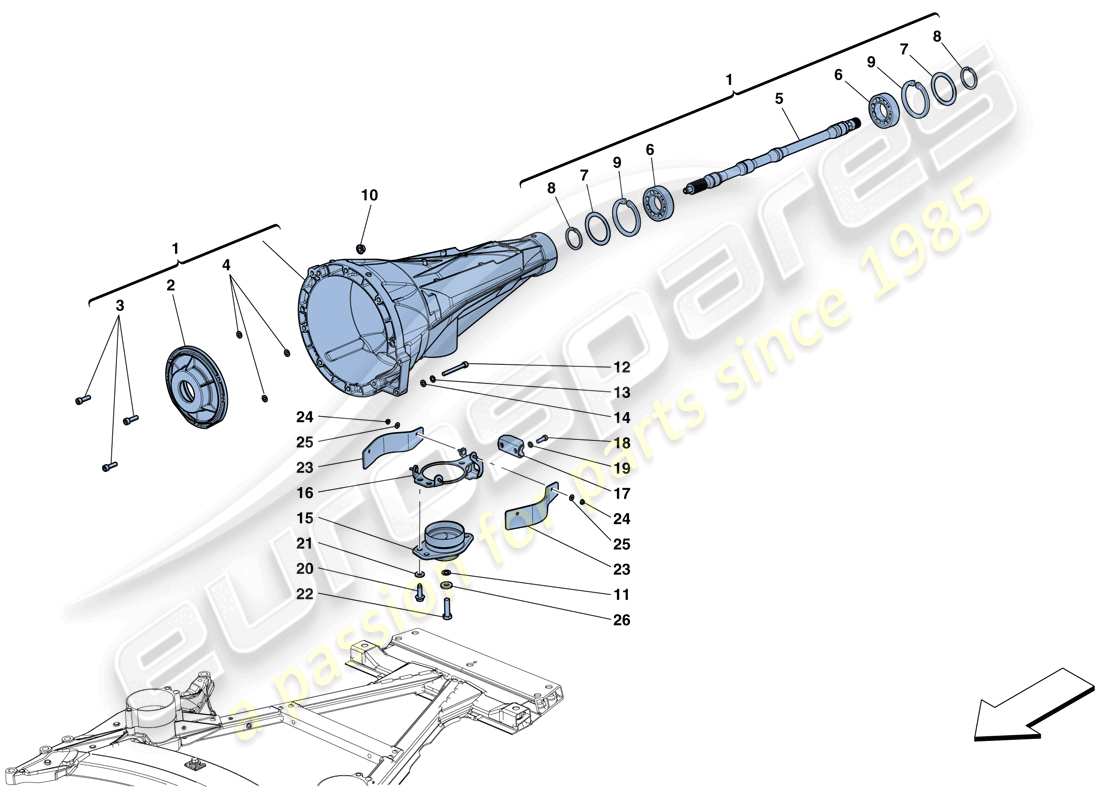

Ferrari 812 Superfast (RHD) TRANSMISSION HOUSING Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Price
                                              # 001
                                              MPN: 337965
                                              COMPL. TRANSMISSION HOUSING
                                              from £636.76
                                              from £636.76
                                              This part replaces part number 277470 which we have in stock - and 1 more. Click to view details
                                              # 002
                                              MPN: 251921
                                              TRANSMISSION HOUSING FLANGE
                                              from £300.31
                                              from £300.31
                                              # 003
                                              MPN: 14306424
                                              SCREW
                                              from £0.47
                                              from £0.47
                                              This part replaces part number 14306324 - and 2 more. Click to view details
                                              # 004
                                              MPN: 12638524
                                              WASHER
                                              from £0.47
                                              from £0.47
                                              This part replaces part number 12638501 - and 2 more. Click to view details
                                              # 005
                                              MPN: 324866
                                              TRANSMISSION HOUSING SHAFT
                                              from £1,987.29
                                              from £1,987.29
                                              # 006
                                              MPN: 253629
                                              COMPLETE BEARING
                                              from £360.22
                                              from £360.22
                                              This part replaces part number 252525
                                              # 007
                                              MPN: 253627
                                              CONTAINMENT RING
                                              from £125.12
                                              from £125.12
                                              This part replaces part number 249427
                                              # 008
                                              MPN: 11068874
                                              SEEGER RING
                                              from £8.03
                                              from £8.03
                                              # 009
                                              MPN: 11062474
                                              SNAP RING
                                              from £3.04
                                              from £3.04
                                              # 010
                                              MPN: 14059421
                                              NUT
                                              from £0.47
                                              from £0.47
                                              This part replaces part number 156462
                                              # 011
                                              MPN: 127498
                                              WASHER
                                              from £0.47
                                              from £0.47
                                              This part replaces part number 106854
                                              # 012
                                              MPN: 14309024
                                              SCREW
                                              -M8 X 70-
                                              from £0.71
                                              from £0.71
                                              This part replaces part number 14309021 which we have in stock
                                              # 013
                                              MPN: 12638524
                                              WASHER
                                              from £0.47
                                              from £0.47
                                              This part replaces part number 12638501 - and 2 more. Click to view details
                                              # 014
                                              MPN: 12601374
                                              WASHER
                                              from £0.54
                                              from £0.54
                                              This part replaces part number 10615474 - and 6 more. Click to view details
                                              # 015
                                              MPN: 289309
                                              RUBBER BUSHING
                                              from £68.41
                                              from £68.41
                                              # 016
                                              MPN: 273665
                                              BUSH TRAVEL LIMITER BRACKET
                                              from £38.46
                                              from £38.46
                                              # 017
                                              MPN: 277524
                                              BUSHING TRAVEL STOP BRACKET
                                              from £12.75
                                              from £12.75
                                              # 018
                                              MPN: 13028734
                                              SCREW
                                              -M8 X 25-
                                              from £0.47
                                              from £0.47
                                              This part replaces part number 14814434 which we have in stock
                                              # 019
                                              MPN: 14499424
                                              WASHER
                                              Supersession
                                              Supersession
                                              This part replaces part number 14499401 which we have in stock
                                              # 020
                                              MPN: 18754424
                                              SCREW
                                              -M10 X 1.25 X 35-
                                              Supersession
                                              Supersession
                                              # 021
                                              MPN: 269664
                                              WASHER
                                              from £2.26
                                              from £2.26
                                              # 022
                                              MPN: 11599524
                                              SCREW
                                              -M12 X 1.75 X 45-
                                              from £0.47
                                              from £0.47
                                              # 023
                                              MPN: 273666
                                              TRANSMISSION HOUSING BUSHING SHIELD
                                              from £32.39
                                              from £32.39
                                              # 024
                                              MPN: 14059114
                                              NUT
                                              from £0.53
                                              from £0.53
                                              # 025
                                              MPN: 12638124
                                              WASHER
                                              from £0.47
                                              from £0.47
                                              This part replaces part number 12638101 which we have in stock - and 1 more. Click to view details
                                              # 026
                                              MPN: 12648524
                                              WASHER
                                              from £0.53
                                              from £0.53
