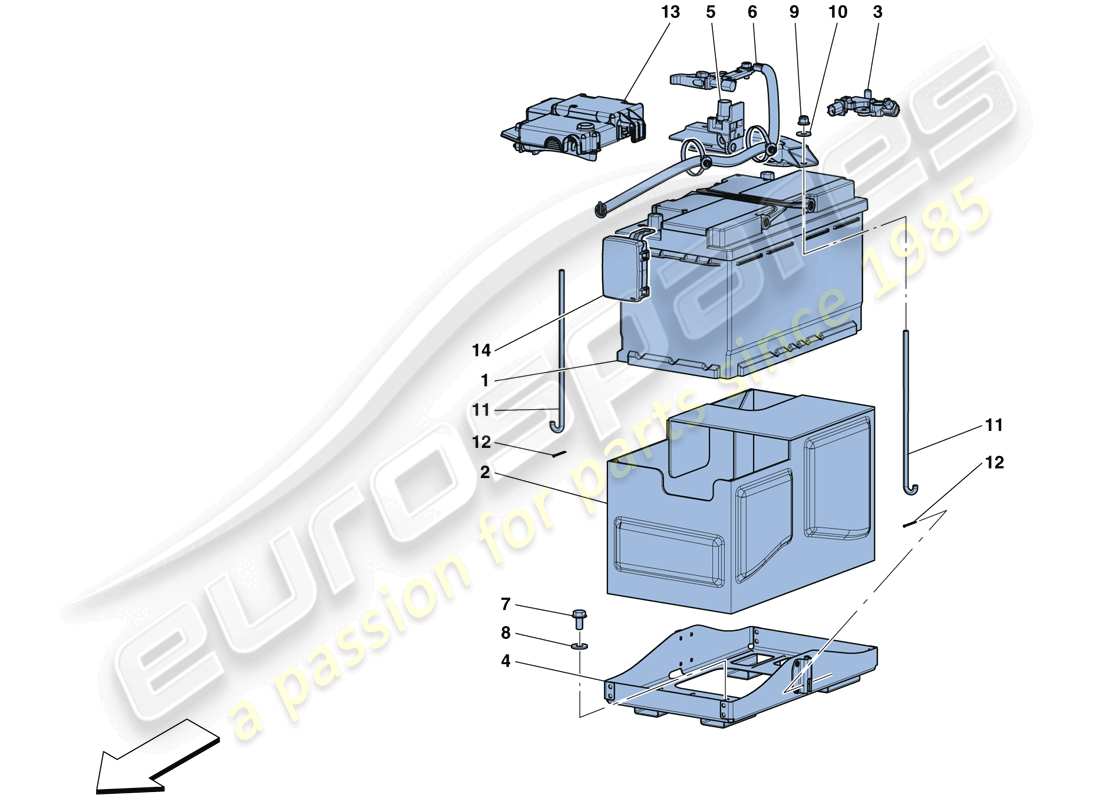

Ferrari 812 Superfast (RHD) BATTERY Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Price
                      # 001
                      MPN: 312188
                      Battery
                      -70 Ah- -Lightweight version- -No longer supplied-
                      from £310.58
                      from £310.58
                      This part replaces part number 214466
                      # 001
                      MPN: 326782
                      Battery
                      -80 Ah-
                      from £320.68
                      from £320.68
                      # 002
                      MPN: 332493
                      BATTERY HEAT SHIELD
                      from £50.11
                      from £50.11
                      # 003
                      MPN: 341861
                      BATTERY SENSOR
                      Supersession
                      Supersession

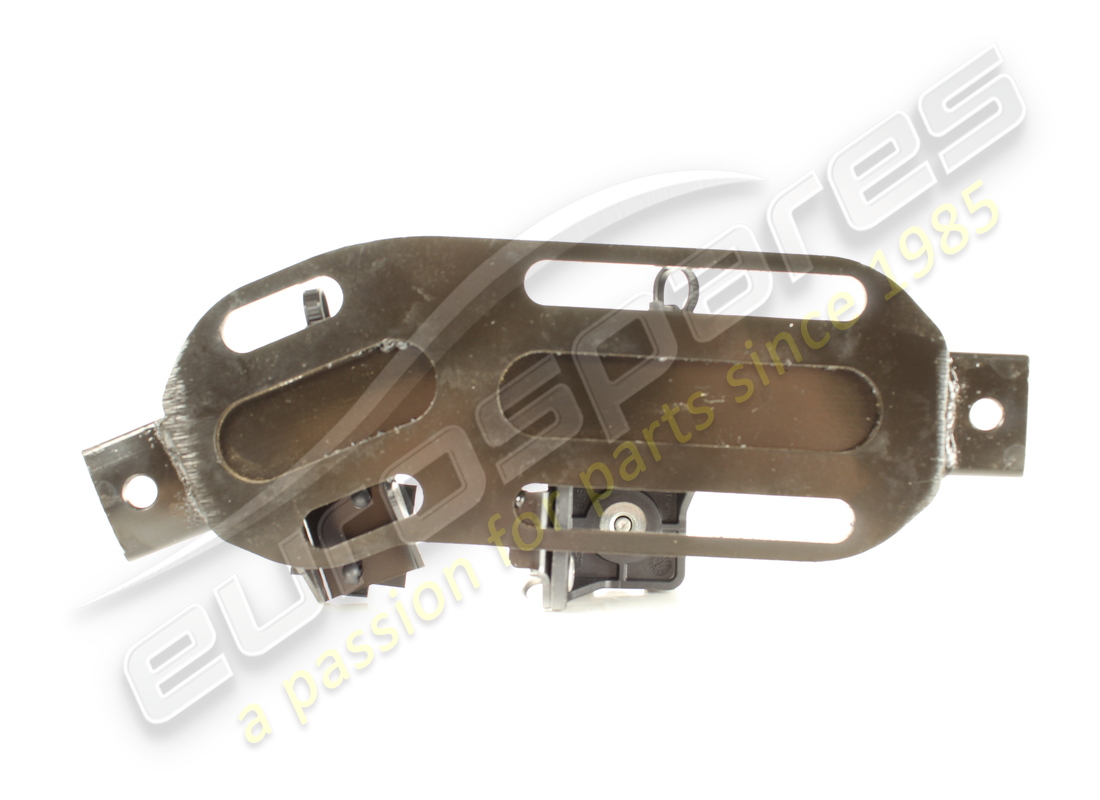

                      # 004
                      MPN: 327752
                      COMPL. BATTERY MOUNTING
                      -Applicable until depletion-
                      Supersession
                      Supersession
                      # 004
                      MPN: 808727
                      COMPL. BATTERY MOUNTING
                      -Applicable after depletion of 327752-
                      from £101.62
                      from £101.62
                      This part replaces part number 327752 - and 1 more. Click to view details
                      # 005
                      MPN: 331908
                      BATTERY RETAINER COMPL. WITH NEGATIVE TERMINAL
                      from £52.63
                      from £52.63
                      # 006
                      MPN: 292866
                      BATTERY GROUND CABLE/TERMINAL CLAMP ASSEMBLY
                      from £28.26
                      from £28.26
                      # 007
                      MPN: 16287024
                      SCREW
                      -M8 X 16-
                      from £0.47
                      from £0.47
                      # 008
                      MPN: 12646778
                      WASHER
                      from £0.53
                      from £0.53
                      This part replaces part number 156093
                      # 009
                      MPN: 228265
                      NUT
                      from £0.47
                      from £0.47
                      # 010
                      MPN: 12643724
                      WASHER
                      from £0.47
                      from £0.47
                      This part replaces part number 109684 - and 4 more. Click to view details
                      # 011
                      MPN: 292882
                      BATTERY FASTENER TIE-ROD
                      from £4.86
                      from £4.86
                      # 012
                      MPN: 10795206
                      SPLIT PIN
                      from £0.47
                      from £0.47
                      # 013
                      MPN: 330703
                      COMPL. BATTERY ECU
                      from £44.53
                      from £44.53
                      # 014
                      MPN: 331600
                      CFO ECU
                      -Premium Hi-Fi version-
                      from £33.20
                      from £33.20
