0101 - GREENHOUSE

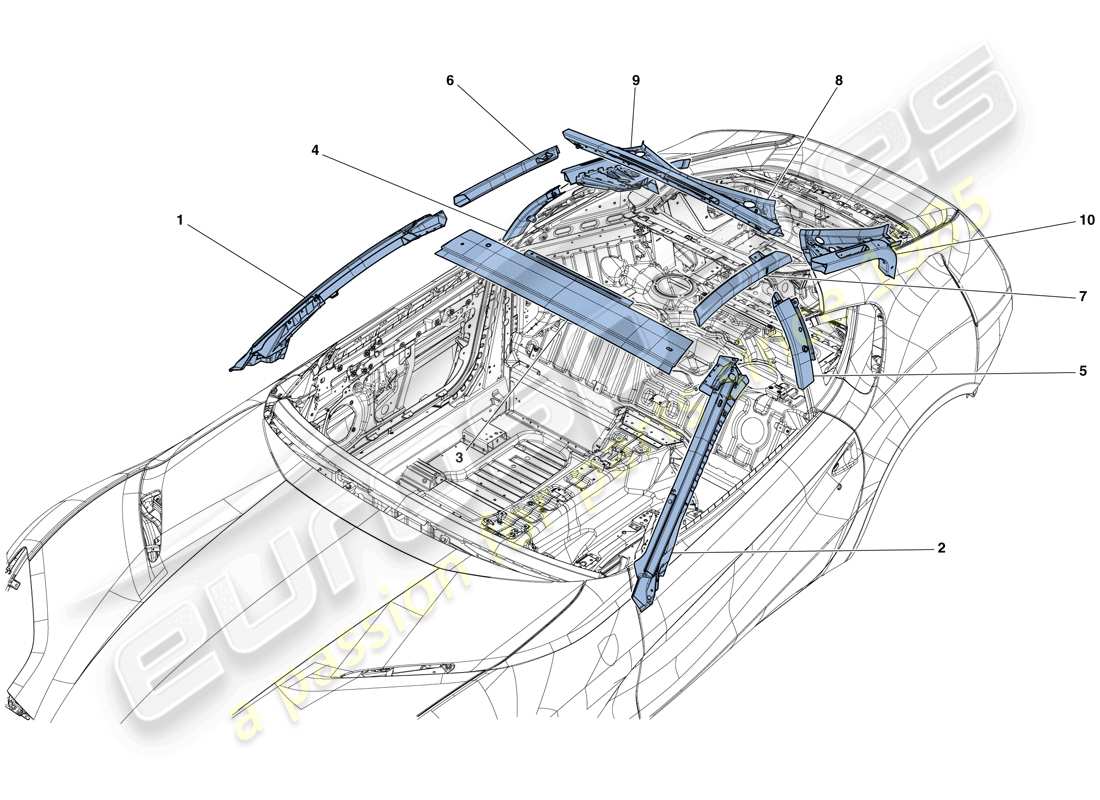

Ferrari 812 Superfast (RHD) GREENHOUSE Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Price
                      # 001
                      MPN: 278182
                      RH WINDSCREEN PILLAR JOINT
                      from £606.15
                      from £606.15
                      # 002
                      MPN: 278181
                      LH WINDSCREEN PILLAR JOINT
                      from £606.15
                      from £606.15
                      # 003
                      MPN: 88153600
                      UPPER WINDSCREEN CROSS-MEMBER
                      from £450.46
                      from £450.46
                      # 004
                      MPN: 88152000
                      RH PILLAR
                      from £412.19
                      from £412.19
                      # 005
                      MPN: 88151900
                      LH PILLAR
                      from £412.19
                      from £412.19
                      # 006
                      MPN: 279450
                      RH CENTRAL ROOF BEAM
                      from £166.35
                      from £166.35
                      # 007
                      MPN: 279452
                      LH CENTRAL ROOF BEAM
                      from £166.35
                      from £166.35
                      # 008
                      MPN: 88153800
                      REAR ROOF CROSS-MEMBER
                      from £463.71
                      from £463.71
                      # 009
                      MPN: 88152400
                      RH REAR ROOF BEAM
                      from £306.92
                      from £306.92
                      # 010
                      MPN: 88152300
                      LH REAR ROOF BEAM
                      from £306.92
                      from £306.92
