0111 - FRONT LID AND OPENING MECHANISM

Ferrari 812 Superfast (RHD) FRONT LID AND OPENING MECHANISM Parts Diagram

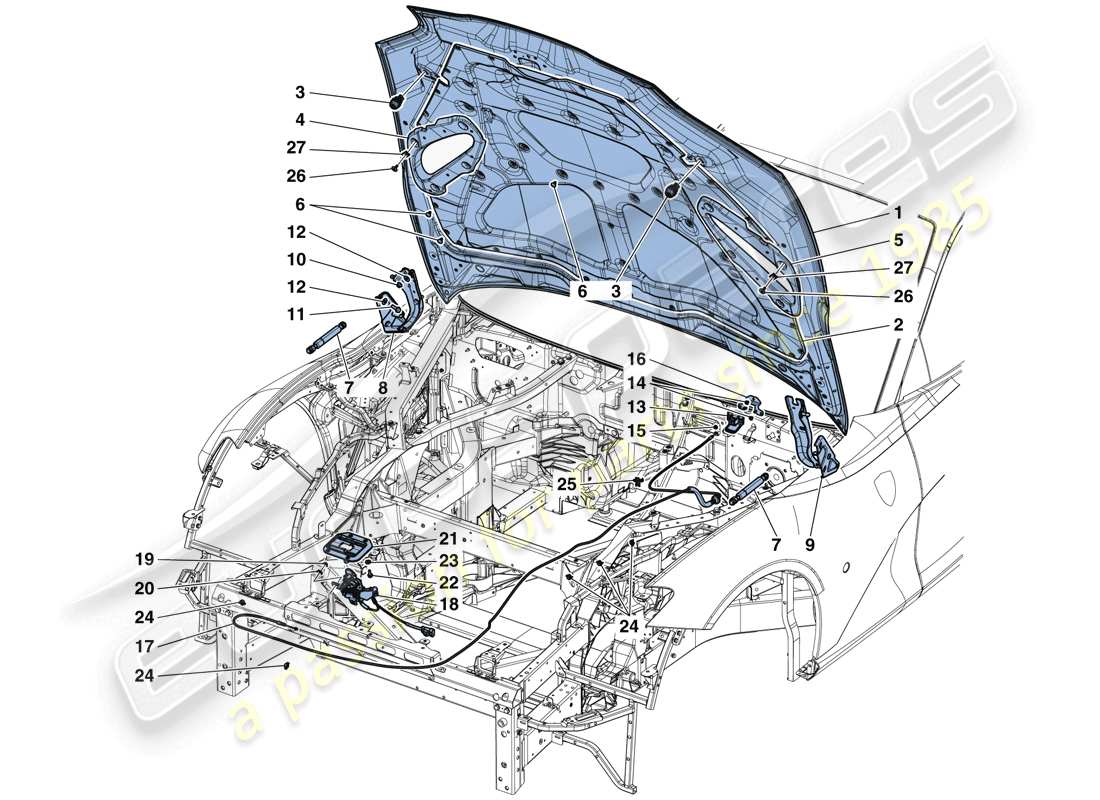

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Price
                                            # 001
                                            MPN: 88155811
                                            COMPL. ENGINE COMPARTMENT LID
                                            from £1,855.41
                                            from £1,855.41
                                            # 002
                                            MPN: 89386400
                                            UNDER-LID INSULATION
                                            from £147.20
                                            from £147.20
                                            # 003
                                            MPN: 67161800
                                            VIBRATION DAMPER
                                            from £21.35
                                            from £21.35
                                            This part replaces part number 69773300
                                            # 004
                                            MPN: 89386800
                                            COMPL. RH AIR VENT BEZEL
                                            from £48.58
                                            from £48.58
                                            # 005
                                            MPN: 89386500
                                            COMPL. LH AIR VENT BEZEL
                                            from £48.58
                                            from £48.58
                                            # 006
                                            MPN: 14591687
                                            FASTENER BUTTON
                                            from £0.26
                                            from £0.26
                                            This part replaces part number 69767700 - and 1 more. Click to view details
                                            # 007
                                            MPN: 89385100
                                            GAS STRUT
                                            from £22.22
                                            from £22.22
                                            # 008
                                            MPN: 85156300
                                            RH ENGINE COMPARTMENT LID HINGE
                                            from £86.70
                                            from £86.70
                                            # 009
                                            MPN: 85156400
                                            LH ENGINE COMPARTMENT LID HINGE
                                            from £86.70
                                            from £86.70
                                            # 010
                                            MPN: 14059311
                                            NUT
                                            from £0.29
                                            from £0.29
                                            # 011
                                            MPN: 16287224
                                            SCREW
                                            -M8 X 25-
                                            from £0.47
                                            from £0.47
                                            This part replaces part number 16287221
                                            # 012
                                            MPN: 12646724
                                            WASHER
                                            from £0.47
                                            from £0.47
                                            This part replaces part number 12601571 - and 3 more. Click to view details
                                            # 012
                                            MPN: 13578324
                                            WASHER
                                            from £0.47
                                            from £0.47
                                            This part replaces part number 13578311
                                            # 013
                                            MPN: 67003800
                                            ENGINE COMPARTMENT LID HANDLE
                                            from £23.68
                                            from £23.68
                                            # 014
                                            MPN: 85691900
                                            SCREW
                                            -M5 X 8-
                                            from £0.53
                                            from £0.53
                                            # 015
                                            MPN: 14059121
                                            NUT
                                            from £0.54
                                            from £0.54
                                            # 016
                                            MPN: 87889100
                                            MOUNTING BRACKET FOR ENGINE COMPARTMENT LID HANDLE
                                            from £73.60
                                            from £73.60
                                            # 017
                                            MPN: 83410600
                                            FRONT LID RELEASE BOWDEN CABLE
                                            -Not for GD-
                                            from £40.48
                                            from £40.48
                                            # 017
                                            MPN: 85041000
                                            FRONT LID RELEASE BOWDEN CABLE
                                            -Applicable for GD-
                                            from £41.95
                                            from £41.95
                                            # 018
                                            MPN: 83752200
                                            LID LOCK
                                            from £91.42
                                            from £91.42
                                            # 019
                                            MPN: 13046112
                                            NUT
                                            from £0.47
                                            from £0.47
                                            # 020
                                            MPN: 12647878
                                            WASHER
                                            from £1.49
                                            from £1.49
                                            # 021
                                            MPN: 80246800
                                            COMPL. STRIKER PLATE
                                            from £17.47
                                            from £17.47
                                            # 022
                                            MPN: 81923100
                                            SCREW
                                            -M6 X 18-
                                            from £0.47
                                            from £0.47
                                            This part replaces part number 16297034
                                            # 023
                                            MPN: 12643778
                                            WASHER
                                            from £0.53
                                            from £0.53
                                            This part replaces part number 12643777 - and 1 more. Click to view details
                                            # 023
                                            MPN: 12647601
                                            WASHER
                                            -No longer supplied- -Replaced by 12647878-
                                            from £0.47
                                            from £0.47
                                            # 023
                                            MPN: 12647878
                                            WASHER
                                            -No longer supplied- -Replaced by 12643778-
                                            from £1.49
                                            from £1.49
                                            # 024
                                            MPN: 14569480
                                            CLIP
                                            from £0.47
                                            from £0.47
                                            This part replaces part number 81580800
                                            # 025
                                            MPN: 268893
                                            CLIP
                                            from £1.11
                                            from £1.11
                                            # 026
                                            MPN: 256490
                                            SCREW
                                            -M5 X 16-
                                            from £1.10
                                            from £1.10
                                            This part replaces part number 86607000
                                            # 027
                                            MPN: 66927700
                                            BRACKET
                                            from £0.75
                                            from £0.75
