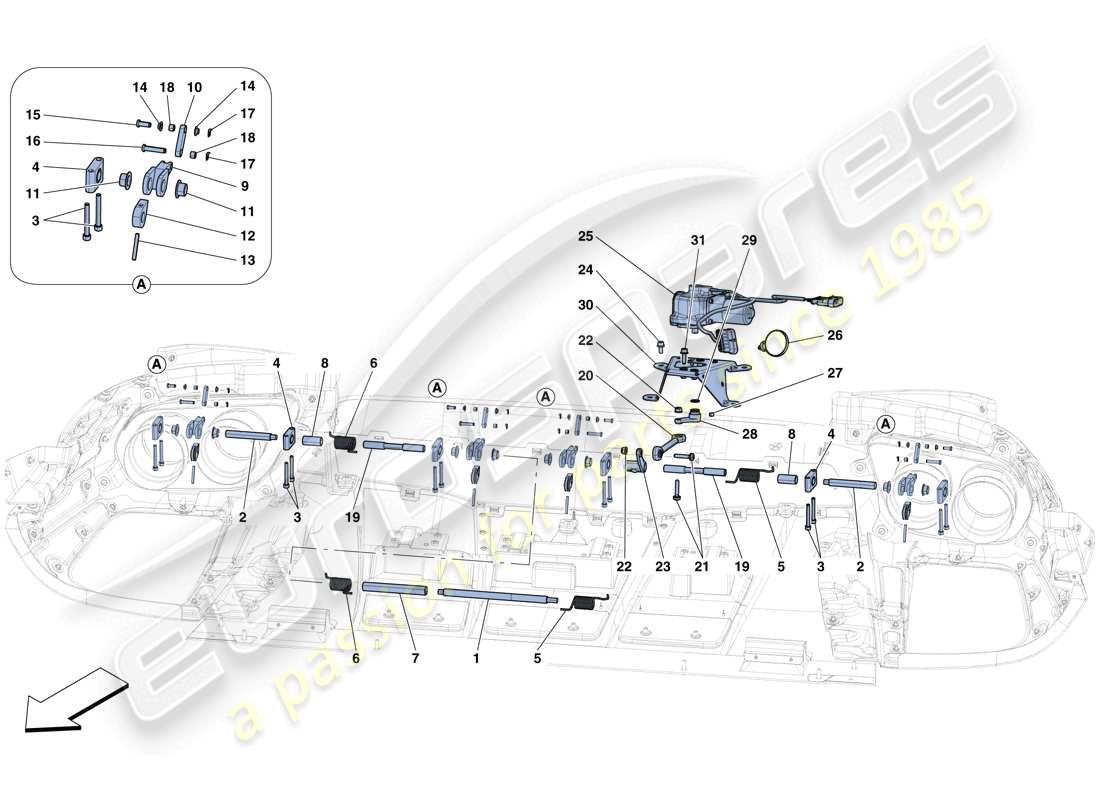

0119 - REAR ACTIVE AERO

Ferrari 812 Superfast (RHD) REAR ACTIVE AERO Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Price
                                                        # 001
                                                        MPN: 87341500
                                                        ACTIVE AERO CENTRE SHAFT
                                                        from £44.65
                                                        from £44.65
                                                        # 002
                                                        MPN: 85708800
                                                        LATERAL SHAFT SECTION
                                                        from £18.01
                                                        from £18.01
                                                        # 003
                                                        MPN: 301785
                                                        SCREW
                                                        -M5 X 40-
                                                        from £0.26
                                                        from £0.26
                                                        # 004
                                                        MPN: 85708900
                                                        SHAFT MOUNT
                                                        from £6.11
                                                        from £6.11
                                                        # 005
                                                        MPN: 310109
                                                        RH RETURN SPRING
                                                        from £4.87
                                                        from £4.87
                                                        # 006
                                                        MPN: 310110
                                                        LH RETURN SPRING
                                                        from £4.87
                                                        from £4.87
                                                        # 007
                                                        MPN: 87341700
                                                        ACTIVE AERO CENTRE SPACER
                                                        from £14.71
                                                        from £14.71
                                                        # 008
                                                        MPN: 85709400
                                                        LATERAL SPACER
                                                        from £2.38
                                                        from £2.38
                                                        # 009
                                                        MPN: 318981
                                                        HATCH ACTUATOR LINK
                                                        from £24.07
                                                        from £24.07
                                                        # 010
                                                        MPN: 85709700
                                                        LATERAL LINK
                                                        from £12.15
                                                        from £12.15
                                                        # 011
                                                        MPN: 85711700
                                                        BUSHING
                                                        from £1.68
                                                        from £1.68
                                                        # 012
                                                        MPN: 328330
                                                        CONTROL CAM
                                                        from £1.34
                                                        from £1.34
                                                        # 013
                                                        MPN: 85711800
                                                        DRIVE PIN
                                                        from £0.39
                                                        from £0.39
                                                        # 014
                                                        MPN: 87804600
                                                        BUSHING
                                                        from £0.69
                                                        from £0.69
                                                        This part replaces part number 85711900
                                                        # 015
                                                        MPN: 306757
                                                        UPPER LINK PIN
                                                        from £3.75
                                                        from £3.75
                                                        # 016
                                                        MPN: 85712100
                                                        LOWER LINK PINS
                                                        from £4.65
                                                        from £4.65
                                                        # 017
                                                        MPN: 306350
                                                        SAFETY CLIP
                                                        from £0.74
                                                        from £0.74
                                                        # 018
                                                        MPN: 85712200
                                                        BUSH FOR LINK PIN
                                                        from £0.86
                                                        from £0.86
                                                        # 019
                                                        MPN: 329318
                                                        FLEXIBLE SHAFT
                                                        from £45.14
                                                        from £45.14
                                                        This part replaces part number 85709900 - and 3 more. Click to view details
                                                        # 020
                                                        MPN: 326022
                                                        COMPL. ACTIVE AERO CONTROL TIE-ROD
                                                        from £100.17
                                                        from £100.17
                                                        # 021
                                                        MPN: 216568
                                                        SCREW
                                                        -M6 X 30- -No longer supplied- -Replaced by 231621-
                                                        Supersession
                                                        Supersession
                                                        # 021
                                                        MPN: 231621
                                                        SCREW
                                                        -M6 X 30-
                                                        from £0.47
                                                        from £0.47
                                                        This part replaces part number 216568
                                                        # 022
                                                        MPN: 301909
                                                        NUT
                                                        from £0.81
                                                        from £0.81
                                                        # 023
                                                        MPN: 335394
                                                        ACTIVE AERO CONTROL SHAFT LEVER
                                                        from £32.63
                                                        from £32.63
                                                        This part replaces part number 326021 - and 1 more. Click to view details
                                                        # 024
                                                        MPN: 231616
                                                        SCREW
                                                        -M6 X 14-
                                                        from £0.47
                                                        from £0.47
                                                        This part replaces part number 14305724 which we have in stock
                                                        # 025
                                                        MPN: 320323

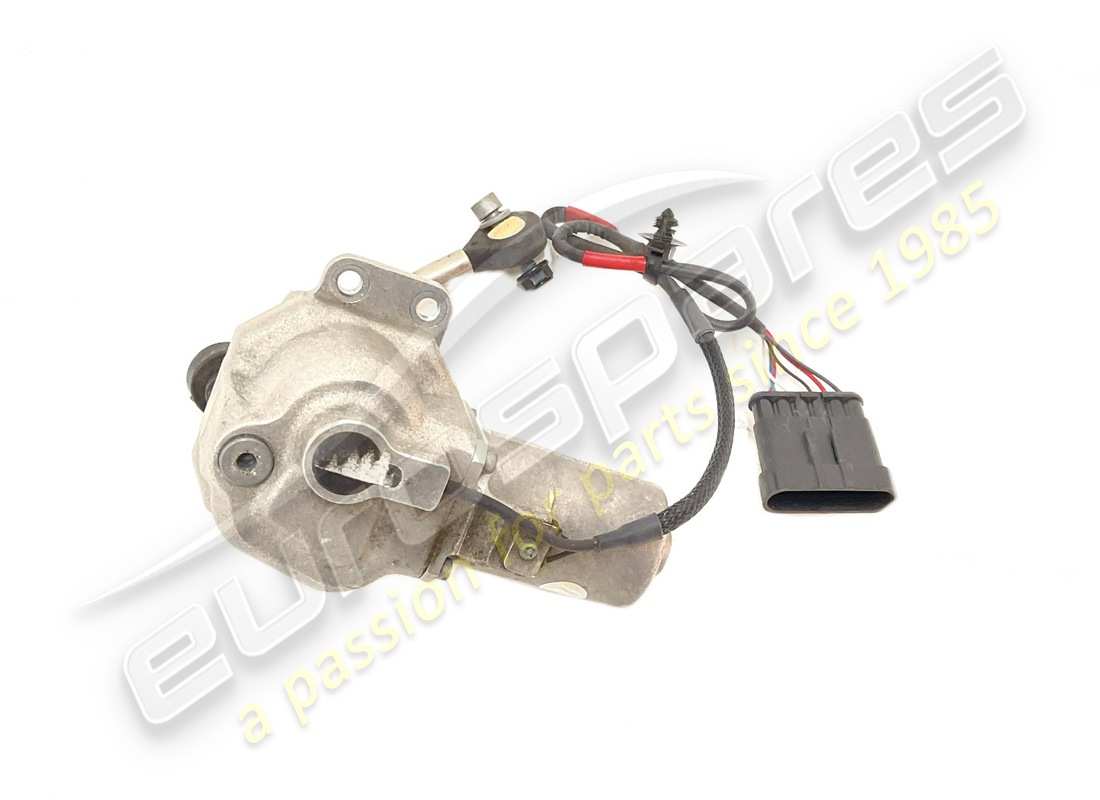

                                                        ELECTRIC ACTUATOR
                                                        from £457.14
                                                        from £457.14
                                                        # 026
                                                        MPN: 217854
                                                        RING CLAMP
                                                        from £0.54
                                                        from £0.54
                                                        # 027
                                                        MPN: 301918
                                                        GRUB SCREW
                                                        from £0.47
                                                        from £0.47
                                                        # 028
                                                        MPN: 318985
                                                        ACTUATOR CONTROL LEVER
                                                        from £48.62
                                                        from £48.62
                                                        # 029
                                                        MPN: 14453181
                                                        GASKET
                                                        from £0.61
                                                        from £0.61
                                                        # 030
                                                        MPN: 87342200
                                                        ACTIVE AERO ACTUATOR MOUNTING BRACKET
                                                        from £22.47
                                                        from £22.47
                                                        # 031
                                                        MPN: 231618
                                                        SCREW
                                                        -M6 X 20-
                                                        from £0.47
                                                        from £0.47
                                                        Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
