ferrari 812 superfast (rhd) dashboard parts diagram

0126 - DASHBOARD

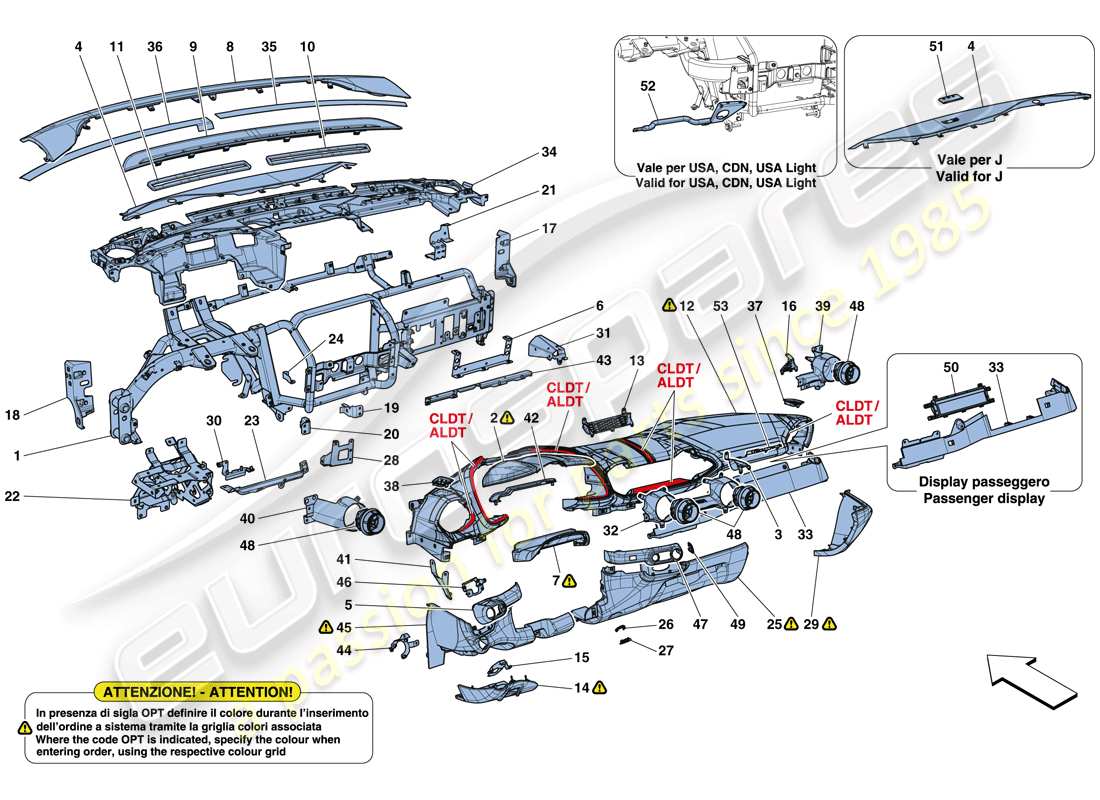

Ferrari 812 Superfast (RHD) DASHBOARD Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Price
                                  # 001
                                  MPN: 87893700
                                  DASHBOARD CROSS MEMBER
                                  -Not for GD-
                                  from £1,523.58
                                  from £1,523.58
                                  # 001
                                  MPN: 88602600
                                  DASHBOARD CROSS MEMBER
                                  -Applicable for GD-
                                  from £858.21
                                  from £858.21
                                  # 002
                                  MPN: 87886000
                                  COMPL. INSTRUMENT PANEL CENTRAL COVER
                                  -INTP- -Leather- -Perforated leather for black, smooth leather for other colours-
                                  Supersession
                                  Supersession
                                  # 003
                                  MPN: 88107600
                                  RH CENTRAL DIFFUSER SURROUND
                                  -Not for GD-
                                  from £13.24
                                  from £13.24
                                  # 003
                                  MPN: 88594800
                                  LH CENTRAL DIFFUSER SURROUND
                                  -Applicable for GD-
                                  from £44.16
                                  from £44.16
                                  # 004
                                  MPN: 760902
                                  COMPL. TWEETER SPEAKER GRILLE
                                  -GS version- -Applicable for J-
                                  from £368.02
                                  from £368.02
                                  # 004
                                  MPN: 765553
                                  COMPL. TWEETER SPEAKER GRILLE
                                  -GD version- -Applicable for J-
                                  from £368.02
                                  from £368.02
                                  # 004
                                  MPN: 87896800
                                  COMPL. TWEETER SPEAKER GRILLE
                                  -Not for J, GD-
                                  from £165.60
                                  from £165.60
                                  # 004
                                  MPN: 88670500
                                  COMPL. TWEETER SPEAKER GRILLE
                                  -Applicable for GD-
                                  from £184.00
                                  from £184.00
                                  # 005
                                  MPN: 88517300
                                  CRUISE CONTROL SURROUND
                                  -Not for GD-
                                  from £143.63
                                  from £143.63
                                  # 005
                                  MPN: 88594900
                                  CRUISE CONTROL SURROUND
                                  -Applicable for GD-
                                  from £182.52
                                  from £182.52
                                  # 005
                                  MPN: 88988500
                                  CRUISE CONTROL SURROUND
                                  -Version with carbon dash inserts- -Not for GD-
                                  from £956.83
                                  from £956.83
                                  # 005
                                  MPN: 89076700
                                  CRUISE CONTROL SURROUND
                                  -Version with carbon dash inserts- -Applicable for GD-
                                  from £1,068.72
                                  from £1,068.72
                                  # 006
                                  MPN: 87887800
                                  UPPER DASHBOARD CONNECTOR BRACKET
                                  from £12.15
                                  from £12.15
                                  # 007
                                  MPN: 88036300
                                  COMPL. STEERING COLUMN SHIELD DASHBOARD BELLOW
                                  -INTP- -Leather-
                                  from £201.61
                                  from £201.61
                                  # 008
                                  MPN: 88517000
                                  COMPL. FRONT GRILLE WITH SUPPORT
                                  from £234.80
                                  from £234.80
                                  # 009
                                  MPN: 87887100
                                  COMPL. DEFROSTER CONTROL SURROUND
                                  from £105.26
                                  from £105.26
                                  # 010
                                  MPN: 84650300
                                  RH WINDSCREEN DEFROSTER SEAL
                                  from £28.46
                                  from £28.46
                                  # 011
                                  MPN: 84536400
                                  LH WINDSCREEN DEFROSTER SEAL
                                  from £28.46
                                  from £28.46
                                  # 012
                                  MPN: 799217
                                  UPPER PART OF DASHBOARD.
                                  -INTP- -CLDT- -ALDT- -CLDT for choice of details in leather- -ALDT for choice of details in alcantara- -STC1- -STC2- -Not for GD-
                                  from £5,345.60
                                  from £5,345.60
                                  # 012
                                  MPN: 799218
                                  UPPER PART OF DASHBOARD.
                                  -INTP- -CLDT- -ALDT- -CLDT for choice of details in leather- -ALDT for choice of details in alcantara- -STC1- -STC2- -Applicable for GD-
                                  from £5,152.25
                                  from £5,152.25
                                  # 012
                                  MPN: 88517500
                                  UPPER PART OF DASHBOARD.
                                  -INTP- -Version with passenger display- -CLDT- -ALDT- -CLDT for choice of details in leather- -ALDT for choice of details in alcantara- -STC1- -STC2- -Not for GD-
                                  Supersession
                                  Supersession
                                  # 012
                                  MPN: 88595500
                                  UPPER PART OF DASHBOARD.
                                  -INTP- -Version with passenger display- -CLDT- -ALDT- -CLDT for choice of details in leather- -ALDT for choice of details in alcantara- -STC1- -STC2- -Applicable for GD-
                                  from £5,173.22
                                  from £5,173.22
                                  # 013
                                  MPN: 88521400
                                  CENTRAL DIFFUSER SURROUND
                                  -Not for GD-
                                  from £46.74
                                  from £46.74
                                  # 013
                                  MPN: 88605000
                                  CENTRAL DIFFUSER SURROUND
                                  -Applicable for GD-
                                  from £76.92
                                  from £76.92
                                  # 014
                                  MPN: 88519600
                                  COMPL. FUSE BOX COVER
                                  -INTP- -Leather- -Not for GD-
                                  from £891.04
                                  from £891.04
                                  # 014
                                  MPN: 88596400
                                  COMPL. FUSE BOX COVER
                                  -INTP- -Leather- -Applicable for GD-
                                  from £350.00
                                  from £350.00
                                  # 014
                                  MPN: 89196300
                                  COMPL. FUSE BOX COVER
                                  -INTA- -Alcantara- -Not for GD-
                                  from £415.76
                                  from £415.76
                                  # 014
                                  MPN: 89196900
                                  COMPL. FUSE BOX COVER
                                  -INTA- -Alcantara- -Applicable for GD-
                                  # 015
                                  MPN: 781531
                                  EPB BRACKET
                                  -Applicable for GD-
                                  from £90.55
                                  from £90.55
                                  # 015
                                  MPN: 88845000
                                  EPB BRACKET
                                  -Not for GD-
                                  from £88.32
                                  from £88.32
                                  # 016
                                  MPN: 88518400
                                  RH COSMETIC STRIP
                                  -Not for GD-
                                  from £13.24
                                  from £13.24
                                  # 016
                                  MPN: 88604500
                                  LH COSMETIC STRIP
                                  -Applicable for GD-
                                  from £24.29
                                  from £24.29
                                  # 017
                                  MPN: 80637100
                                  RH LATERAL BODYSHELL BRACKET
                                  from £24.70
                                  from £24.70
                                  # 018
                                  MPN: 80519100
                                  LH LATERAL BODYSHELL BRACKET
                                  from £24.70
                                  from £24.70
                                  # 019
                                  MPN: 83853800
                                  RH AC UNIT BRACKET
                                  from £15.29
                                  from £15.29
                                  This part replaces part number 82190000
                                  # 020
                                  MPN: 83854000
                                  LH AC UNIT BRACKET
                                  from £15.29
                                  from £15.29
                                  This part replaces part number 82190100
                                  # 021
                                  MPN: 753412
                                  HVAC FIREWALL BRACKET
                                  -Applicable for GD-
                                  from £22.09
                                  from £22.09
                                  # 021
                                  MPN: 82718500
                                  HVAC FIREWALL BRACKET
                                  -Not for GD-
                                  from £22.87
                                  from £22.87
                                  # 022
                                  MPN: 87893100
                                  BODY COMPUTER BRACKET
                                  -Not for USA, CDN, GD, USA LIGHT-
                                  from £228.17
                                  from £228.17
                                  # 022
                                  MPN: 88593500
                                  BODY COMPUTER BRACKET
                                  -Applicable for USA, CDN, USA LIGHT-
                                  from £261.29
                                  from £261.29
                                  # 022
                                  MPN: 88602000
                                  BODY COMPUTER BRACKET
                                  -Applicable for GD-
                                  from £125.49
                                  from £125.49
                                  # 023
                                  MPN: 84494400
                                  LOWER UNDER DRIVER SEAT BRACKET
                                  -Not for USA, CDN, GD, USA LIGHT-
                                  from £60.73
                                  from £60.73
                                  # 023
                                  MPN: 84957400
                                  LOWER UNDER DRIVER SEAT BRACKET
                                  -Applicable for GD-
                                  from £25.76
                                  from £25.76
                                  # 023
                                  MPN: 85090400
                                  LOWER UNDER DRIVER SEAT BRACKET
                                  -Applicable for USA, CDN, USA LIGHT-
                                  from £25.76
                                  from £25.76
                                  # 024
                                  MPN: 88041000
                                  DRIVER SIDE LOWER AIR DUCT BRACKET
                                  -Not for GD-
                                  from £10.31
                                  from £10.31
                                  # 024
                                  MPN: 89010300
                                  DRIVER SIDE LOWER AIR DUCT BRACKET
                                  -Applicable for GD-
                                  from £11.78
                                  from £11.78
                                  # 025
                                  MPN: 88518100
                                  CENTRE PART OF DASHBOARD
                                  -INTP- -Leather- -Not for GD-
                                  Supersession
                                  Supersession
                                  # 025
                                  MPN: 88602500
                                  CENTRE PART OF DASHBOARD
                                  -INTP- -Leather- -Applicable for GD-
                                  from £600.00
                                  from £600.00
                                  # 025
                                  MPN: 89192800
                                  CENTRE PART OF DASHBOARD
                                  -INTA- -Alcantara- -Not for GD-
                                  # 025
                                  MPN: 89198100
                                  CENTRE PART OF DASHBOARD
                                  -INTA- -Alcantara- -Applicable for GD-
                                  # 026
                                  MPN: 80964300
                                  TEMPERATURE SENSOR BRACKET
                                  from £3.25
                                  from £3.25
                                  # 027
                                  MPN: 808863..
                                  TEMPERATURE SENSOR COVER GRILLE
                                  Supersession
                                  Supersession
                                  # 028
                                  MPN: 87894700
                                  LH BRACKET
                                  -Not for USA, CDN, GD, USA LIGHT-
                                  from £38.27
                                  from £38.27
                                  # 028
                                  MPN: 88593700
                                  LH BRACKET
                                  -Applicable for USA, CDN, USA LIGHT-
                                  from £36.08
                                  from £36.08
                                  # 028
                                  MPN: 88603400
                                  RH BRACKET
                                  -Applicable for GD-
                                  from £42.70
                                  from £42.70
                                  # 029
                                  MPN: 87894800
                                  COMPL. RH LATERAL TRIM
                                  -INTP- -Leather- -Not for GD-
                                  from £552.46
                                  from £552.46
                                  # 029
                                  MPN: 88603600
                                  COMPL. LH LATERAL TRIM
                                  -INTP- -Leather- -Applicable for GD-
                                  from £303.85
                                  from £303.85
                                  # 029
                                  MPN: 89193000
                                  COMPL. RH LATERAL TRIM
                                  -INTA- -Alcantara- -Not for GD-
                                  from £547.76
                                  from £547.76
                                  # 029
                                  MPN: 89198300
                                  COMPL. LH LATERAL TRIM
                                  -INTA- -Alcantara- -Applicable for GD-
                                  from £1,408.01
                                  from £1,408.01
                                  # 030
                                  MPN: 84937900
                                  OBD BRACKET
                                  -Not for GD-
                                  from £19.65
                                  from £19.65
                                  # 030
                                  MPN: 84959600
                                  OBD BRACKET
                                  -Applicable for GD-
                                  from £20.60
                                  from £20.60
                                  # 031
                                  MPN: 87895800
                                  RH LATERAL BRACKET
                                  -Not for GD-
                                  from £57.39
                                  from £57.39
                                  # 031
                                  MPN: 88604400
                                  LH LATERAL BRACKET
                                  -Applicable for GD-
                                  from £62.57
                                  from £62.57
                                  # 032
                                  MPN: 88518600
                                  CENTRE LIP
                                  -Not for GD-
                                  from £356.92
                                  from £356.92
                                  # 032
                                  MPN: 88604800
                                  CENTRE LIP
                                  -Applicable for GD-
                                  from £371.03
                                  from £371.03
                                  # 032
                                  MPN: 88988600
                                  CENTRE LIP
                                  -Version with carbon dash inserts- -Not for GD-
                                  from £1,737.03
                                  from £1,737.03
                                  # 032
                                  MPN: 89076800
                                  CENTRE LIP
                                  -Version with carbon dash inserts- -Applicable for GD-
                                  from £1,862.17
                                  from £1,862.17
                                  # 033
                                  MPN: 89267900
                                  AC SURROUND
                                  -Not for GD-
                                  from £1,356.52
                                  from £1,356.52
                                  # 033
                                  MPN: 89268100
                                  AC SURROUND
                                  -Applicable for GD-
                                  from £1,692.00
                                  from £1,692.00
                                  # 033
                                  MPN: 89384000
                                  AC SURROUND
                                  -Version with passenger display- -Not for GD-
                                  from £2,067.59
                                  from £2,067.59
                                  # 033
                                  MPN: 89384300
                                  AC SURROUND
                                  -Version with passenger display- -Applicable for GD-
                                  from £1,242.47
                                  from £1,242.47
                                  # 034
                                  MPN: 87896200
                                  COMPL. DASHBOARD SUBSTRUCTURE
                                  -Not for GD-
                                  from £544.65
                                  from £544.65
                                  # 034
                                  MPN: 88604600
                                  COMPL. DASHBOARD SUBSTRUCTURE
                                  -Applicable for GD-
                                  from £668.68
                                  from £668.68
                                  # 035
                                  MPN: 84801000
                                  RH CROSS MEMBER COVER
                                  from £13.61
                                  from £13.61
                                  # 036
                                  MPN: 84801100
                                  LH CROSS MEMBER COVER
                                  from £15.83
                                  from £15.83
                                  # 037
                                  MPN: 88518900
                                  RH DEMISTER SURROUND
                                  from £7.72
                                  from £7.72
                                  # 038
                                  MPN: 88518800
                                  LH DEMISTER SURROUND
                                  from £7.72
                                  from £7.72
                                  # 039
                                  MPN: 88519000
                                  RH VENT TUBE
                                  -Not for GD-
                                  from £225.65
                                  from £225.65
                                  # 039
                                  MPN: 88605100
                                  RH VENT TUBE
                                  -Applicable for GD-
                                  from £159.20
                                  from £159.20
                                  # 039
                                  MPN: 88988000
                                  RH VENT TUBE
                                  -Version with carbon dash inserts- -Not for GD-
                                  from £993.63
                                  from £993.63
                                  # 039
                                  MPN: 89077000
                                  RH VENT TUBE
                                  -Version with carbon dash inserts- -Applicable for GD-
                                  from £546.50
                                  from £546.50
                                  # 040
                                  MPN: 88527300
                                  LH VENT TUBE
                                  -Not for GD-
                                  from £206.91
                                  from £206.91
                                  # 040
                                  MPN: 88605200
                                  LH VENT TUBE
                                  -Applicable for GD-
                                  from £175.24
                                  from £175.24
                                  # 040
                                  MPN: 88987900
                                  LH VENT TUBE
                                  -Version with carbon dash inserts- -Not for GD-
                                  from £846.45
                                  from £846.45
                                  # 040
                                  MPN: 89077100
                                  LH VENT TUBE
                                  -Version with carbon dash inserts- -Applicable for GD-
                                  from £627.46
                                  from £627.46
                                  # 041
                                  MPN: 88527500
                                  TRIM MOULDING FASTENER BRACKET BELOW DRIVER
                                  -Not for GD-
                                  from £20.24
                                  from £20.24
                                  # 041
                                  MPN: 89015800
                                  TRIM MOULDING FASTENER BRACKET BELOW DRIVER
                                  -Applicable for GD-
                                  from £20.24
                                  from £20.24
                                  # 042
                                  MPN: 87886400
                                  INSTRUMENT PANEL BRACKET
                                  -Not for GD-
                                  from £19.87
                                  from £19.87
                                  # 042
                                  MPN: 88605300
                                  INSTRUMENT PANEL BRACKET
                                  -Applicable for GD-
                                  from £22.09
                                  from £22.09
                                  # 043
                                  MPN: 88311600
                                  GLOVE COMPARTMENT UPPER BRACKET
                                  -Not for GD-
                                  from £36.79
                                  from £36.79
                                  # 043
                                  MPN: 88671300
                                  GLOVE COMPARTMENT UPPER BRACKET
                                  -Applicable for GD-
                                  from £58.51
                                  from £58.51
                                  # 044
                                  MPN: 88520500
                                  LIGHTS CONTROL BRACKET
                                  -Not for GD-
                                  from £184.00
                                  from £184.00
                                  # 044
                                  MPN: 88597600
                                  LIGHTS CONTROL BRACKET
                                  -Applicable for GD-
                                  from £202.41
                                  from £202.41
                                  # 045
                                  MPN: 88520100
                                  COMPL. DRIVER SIDE UNDERDASH TRIM
                                  -INTP- -Leather- -Not for GD-
                                  Supersession
                                  Supersession
                                  # 045
                                  MPN: 88521600
                                  COMPL. DRIVER SIDE UNDERDASH TRIM
                                  -INTP- -Leather- -Applicable for electric steering column- -Not for GD-
                                  # 045
                                  MPN: 88597000
                                  COMPL. DRIVER SIDE UNDERDASH TRIM
                                  -INTP- -Leather- -Applicable for GD-
                                  # 045
                                  MPN: 89013900
                                  COMPL. DRIVER SIDE UNDERDASH TRIM
                                  -INTP- -Leather- -Applicable for electric steering column- -Applicable for GD-
                                  from £600.00
                                  from £600.00
                                  # 045
                                  MPN: 89193300
                                  COMPL. DRIVER SIDE UNDERDASH TRIM
                                  -INTA- -Alcantara- -Applicable for electric steering column- -Not for GD-
                                  # 045
                                  MPN: 89193600
                                  COMPL. DRIVER SIDE UNDERDASH TRIM
                                  -INTA- -Alcantara- -Not for GD-
                                  # 045
                                  MPN: 89197200
                                  COMPL. DRIVER SIDE UNDERDASH TRIM
                                  -INTA- -Alcantara- -Applicable for electric steering column- -Applicable for GD-
                                  # 045
                                  MPN: 89197500
                                  COMPL. DRIVER SIDE UNDERDASH TRIM
                                  -INTA- -Alcantara- -Applicable for GD-
                                  # 046
                                  MPN: 88519100
                                  DRIVER SIDE VENT CONTROL FASTENER BRACKET
                                  -Not for GD-
                                  from £36.79
                                  from £36.79
                                  # 046
                                  MPN: 88595000
                                  DRIVER SIDE VENT CONTROL FASTENER BRACKET
                                  -Applicable for GD-
                                  from £21.05
                                  from £21.05
                                  # 047
                                  MPN: 88517400
                                  NIT CONTROL SURROUND
                                  -Not for GD-
                                  from £135.17
                                  from £135.17
                                  # 047
                                  MPN: 88586800
                                  NIT CONTROL SURROUND
                                  -Version with lifter- -Version without parking camera- -Not for GD-
                                  from £182.89
                                  from £182.89
                                  # 047
                                  MPN: 88586900
                                  NIT CONTROL SURROUND
                                  -Version with analogue rear camera and lift system- -Version with front and rear digital camera and lift system- -Not for GD-
                                  from £182.89
                                  from £182.89
                                  # 047
                                  MPN: 88595200
                                  NIT CONTROL SURROUND
                                  -Applicable for GD-
                                  from £173.42
                                  from £173.42
                                  # 047
                                  MPN: 88595300
                                  NIT CONTROL SURROUND
                                  -Version with analogue rear camera- -Version with front and rear digital cameras- -Version without lift- -Applicable for GD-
                                  from £173.42
                                  from £173.42
                                  # 047
                                  MPN: 88595400
                                  NIT CONTROL SURROUND
                                  -Version with analogue rear camera and lift system- -Version with front and rear digital camera and lift system- -Applicable for GD-
                                  from £169.36
                                  from £169.36
                                  # 047
                                  MPN: 88696600
                                  NIT CONTROL SURROUND
                                  -Version with lifter- -Version without parking camera- -Applicable for GD-
                                  from £200.42
                                  from £200.42
                                  # 047
                                  MPN: 88845100
                                  NIT CONTROL SURROUND
                                  -Version with analogue rear camera- -Version with front and rear digital cameras- -Version without lift- -Not for GD-
                                  from £182.89
                                  from £182.89
                                  # 047
                                  MPN: 88988100
                                  NIT CONTROL SURROUND
                                  -Version with lifter- -Version with carbon dash inserts- -Not for GD-
                                  from £956.83
                                  from £956.83
                                  # 047
                                  MPN: 88988200
                                  NIT CONTROL SURROUND
                                  -Version with analogue rear camera and lift system- -Version with front and rear digital camera and lift system- -Version with carbon dash inserts- -Not for GD-
                                  from £956.83
                                  from £956.83
                                  # 047
                                  MPN: 88988300
                                  NIT CONTROL SURROUND
                                  -Version with analogue rear camera- -Version with front and rear digital cameras- -Version with carbon dash inserts- -Not for GD-
                                  from £956.83
                                  from £956.83
                                  # 047
                                  MPN: 88988400
                                  NIT CONTROL SURROUND
                                  -Version with carbon dash inserts- -Not for GD-
                                  from £956.83
                                  from £956.83
                                  # 047
                                  MPN: 89076300
                                  NIT CONTROL SURROUND
                                  -Version with analogue rear camera- -Version with front and rear digital cameras- -Version with carbon dash inserts- -Applicable for GD-
                                  from £1,104.06
                                  from £1,104.06
                                  # 047
                                  MPN: 89076400
                                  NIT CONTROL SURROUND
                                  -Version with analogue rear camera and lift system- -Version with front and rear digital camera and lift system- -Version with carbon dash inserts- -Applicable for GD-
                                  from £607.23
                                  from £607.23
                                  # 047
                                  MPN: 89076500
                                  NIT CONTROL SURROUND
                                  -Version with lifter- -Version with carbon dash inserts- -Applicable for GD-
                                  from £1,104.06
                                  from £1,104.06
                                  # 047
                                  MPN: 89076600
                                  NIT CONTROL SURROUND
                                  -Version with carbon dash inserts- -Applicable for GD-
                                  from £1,104.06
                                  from £1,104.06
                                  # 048
                                  MPN: 87893200
                                  AC VENT
                                  from £83.68
                                  from £83.68
                                  # 048
                                  MPN: 88752200
                                  AC VENT
                                  -Version with black rings-
                                  from £83.68
                                  from £83.68
                                  # 049
                                  MPN: 88696500
                                  NIT SATELLITE END PIECE SURROUND
                                  -Not for GD-
                                  from £24.66
                                  from £24.66
                                  # 049
                                  MPN: 89015700
                                  NIT SATELLITE END PIECE SURROUND
                                  -Applicable for GD-
                                  from £14.17
                                  from £14.17
                                  # 050
                                  MPN: 343169
                                  PASSENGER DISPLAY
                                  -Version with passenger display-
                                  from £805.59
                                  from £805.59
                                  This part replaces part number 342785 - and 1 more. Click to view details
                                  # 051
                                  MPN: 760905
                                  TRANSCEIVER BEACON MOUNTING BRACKET
                                  -Applicable for J-
                                  from £13.98
                                  from £13.98
                                  # 052
                                  MPN: 88593800
                                  COMPL. LH LOWER DASHBOARD BRACKET
                                  -Applicable for USA, CDN, USA LIGHT-
                                  from £77.28
                                  from £77.28
                                  # 053
                                  MPN: 87887700
                                  VEHICLE LOGO
                                  from £48.58
                                  from £48.58
