ferrari 812 superfast (rhd) glove compartment parts diagram

0128 - GLOVE COMPARTMENT

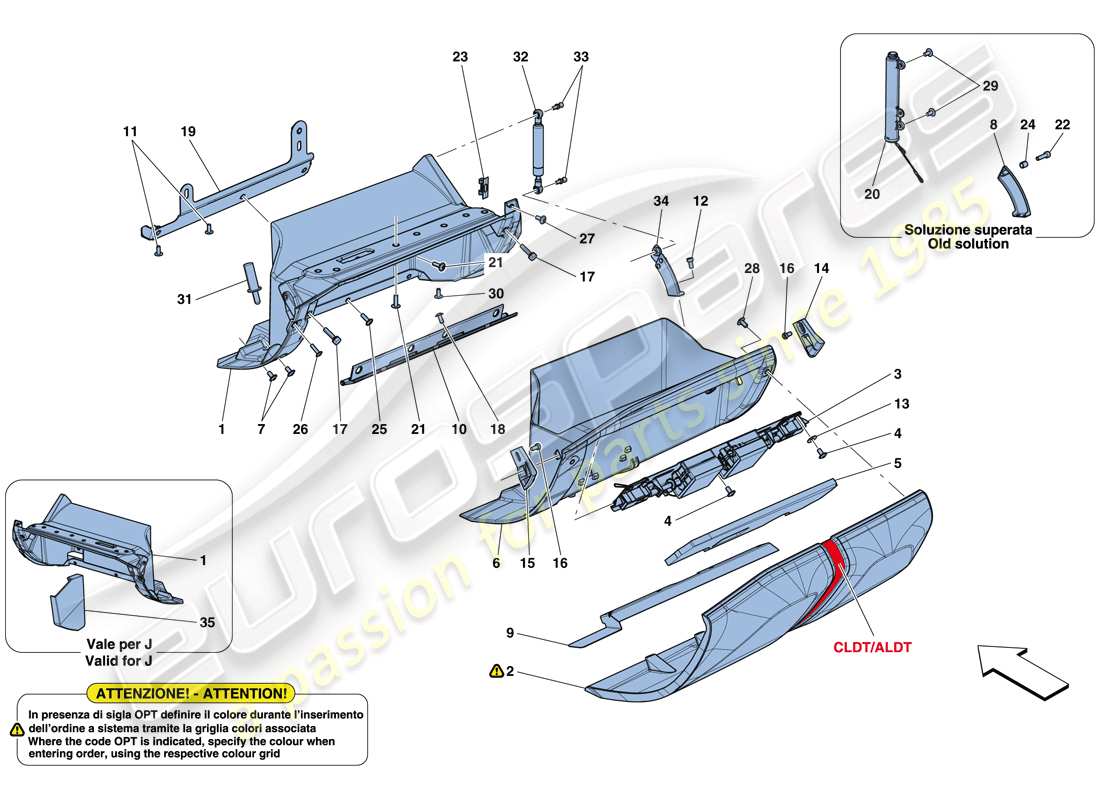

Ferrari 812 Superfast (RHD) GLOVE COMPARTMENT Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Price
                # 001
                MPN: 760918
                POCKET CHANGE TRAY
                -GS version- -Applicable for J-
                from £493.12
                from £493.12
                # 001
                MPN: 765560
                POCKET CHANGE TRAY
                -GD version- -Applicable for J-
                from £493.12
                from £493.12
                # 001
                MPN: 87890500
                POCKET CHANGE TRAY
                -Not for USA, CDN, J, GD, USA LIGHT-
                from £448.98
                from £448.98
                # 001
                MPN: 88598700
                POCKET CHANGE TRAY
                -Applicable for GD-
                from £267.17
                from £267.17
                # 001
                MPN: 88656900
                POCKET CHANGE TRAY
                -Applicable for USA, CDN, USA LIGHT-
                from £441.61
                from £441.61
                # 002
                MPN: 87889800
                COMPL. GLOVE COMPARTMENT DOOR
                -INTP- -Leather- -CLDT for choice of details in leather- -STC1- -STC2- -Not for USA, CDN, GD, USA LIGHT-
                Supersession
                Supersession
                # 002
                MPN: 88593000
                COMPL. GLOVE COMPARTMENT DOOR
                -INTP- -Leather- -CLDT for choice of details in leather- -STC1- -STC2- -Applicable for USA, CDN, USA LIGHT-
                from £1,020.43
                from £1,020.43
                # 002
                MPN: 88597900
                COMPL. GLOVE COMPARTMENT DOOR
                -INTP- -Leather- -CLDT for choice of details in leather- -STC1- -STC2- -Applicable for GD-
                # 002
                MPN: 89192600
                COMPL. GLOVE COMPARTMENT DOOR
                -INTA- -Alcantara- -ALDT for choice of details in alcantara- -STC1- -STC2- -Not for USA, CDN, GD, USA LIGHT-
                from £810.03
                from £810.03
                # 002
                MPN: 89196700
                COMPL. GLOVE COMPARTMENT DOOR
                -INTA- -Alcantara- -ALDT for choice of details in alcantara- -STC1- -STC2- -Applicable for USA, CDN, USA LIGHT-
                # 002
                MPN: 89197900
                COMPL. GLOVE COMPARTMENT DOOR
                -INTA- -Alcantara- -ALDT for choice of details in alcantara- -STC1- -STC2- -Applicable for GD-
                from £831.67
                from £831.67
                # 003
                MPN: 88286000
                COMPL. GLOVE COMPARTMENT LOCK
                from £281.23
                from £281.23
                # 004
                MPN: 85691900
                SCREW
                -M5 X 8-
                from £0.52
                from £0.52
                # 004
                MPN: 85692000
                SCREW
                -M5 X 10- -No longer supplied- -Replaced by 85691900-
                from £0.52
                from £0.52
                # 005
                MPN: 85341800
                GLOVE COMPARTMENT LOCK SOUNDPROOFING
                from £73.53
                from £73.53
                # 006
                MPN: 760916
                GLOVE COMPARTMENT DOOR BACKING
                -GS version- -Applicable for J-
                from £507.86
                from £507.86
                # 006
                MPN: 765558
                GLOVE COMPARTMENT DOOR BACKING
                -GD version- -Applicable for J-
                from £537.30
                from £537.30
                # 006
                MPN: 87890200
                GLOVE COMPARTMENT DOOR BACKING
                -Not for J, GD-
                from £448.98
                from £448.98
                # 006
                MPN: 88598400
                GLOVE COMPARTMENT DOOR BACKING
                -Applicable for GD-
                from £485.77
                from £485.77
                # 007
                MPN: 85692000
                SCREW
                -M5 X 10-
                from £0.53
                from £0.53
                # 008
                MPN: 88490500
                SWIVEL BRACKET
                -Order new solution: stabilus 88751400 pos.32, ball joint 88751300 pos.33, stabilus bracket 794440 pos.34- -No longer supplied-
                # 009
                MPN: 87890300
                KNEE IMPACT BRACKET
                -Not for GD-
                from £11.78
                from £11.78
                # 009
                MPN: 89014700
                KNEE IMPACT BRACKET
                -Applicable for GD-
                from £27.23
                from £27.23
                # 010
                MPN: 89132900
                COMPL. DOOR HINGE
                from £90.63
                from £90.63
                This part replaces part number 84089600 which we have in stock - and 1 more. Click to view details
                # 011
                MPN: 85692200
                SCREW
                -M5 X 10-
                from £0.47
                from £0.47
                # 012
                MPN: 13025787
                SCREW
                -M5 X 10-
                from £0.47
                from £0.47
                # 013
                MPN: 12638178
                WASHER
                -No longer supplied-
                from £0.47
                from £0.47
                This part replaces part number 10519578 - and 3 more. Click to view details
                # 014
                MPN: 67332500
                RH LOCK STRIKER PLATE
                -Applicable up to Ass. No. 159275-
                from £1.96
                from £1.96
                # 014
                MPN: 825136
                RH LOCK STRIKER PLATE
                -Applicable from Ass. No. 159276-
                from £4.31
                from £4.31
                # 015
                MPN: 67332600
                LH LOCK STRIKER PLATE
                -Applicable up to Ass. No. 159275-
                from £1.96
                from £1.96
                # 015
                MPN: 824979
                LH LOCK STRIKER PLATE
                -Applicable from Ass. No. 159276-
                from £3.61
                from £3.61
                # 016
                MPN: 13025728
                SCREW
                -M5 X 10- -Applicable up to Ass. No. 159275-
                from £2.27
                from £2.27
                # 016
                MPN: 85692200
                SCREW
                -M5 X 10- -Applicable from Ass. No. 159276-
                from £0.47
                from £0.47
                # 017
                MPN: 84749000
                SPOILER VIBRATION DAMPER
                from £3.96
                from £3.96
                This part replaces part number 84706700
                # 018
                MPN: 85692200
                SCREW
                -M5 X 10-
                from £0.47
                from £0.47
                # 019
                MPN: 87890600
                GLOVE BOX HINGE MOUNT
                -Not for USA, CDN, GD, USA LIGHT-
                from £132.47
                from £132.47
                # 019
                MPN: 88593400
                GLOVE BOX HINGE MOUNT
                -Applicable for USA, CDN, USA LIGHT-
                from £291.54
                from £291.54
                # 019
                MPN: 89014900
                GLOVE BOX HINGE MOUNT
                -Applicable for GD-
                from £182.17
                from £182.17
                # 020
                MPN: 87890700
                PIOLAX
                -Order new solution: stabilus 88751400 pos.32, ball joint 88751300 pos.33, stabilus bracket 794440 pos.34- -No longer supplied-
                # 021
                MPN: 85833900
                SCREW
                -M5 X 16-
                from £0.51
                from £0.51
                This part replaces part number 81972800
                # 022
                MPN: 14358524
                SCREW
                -M5 X 18- -Order new solution: stabilus 88751400 pos.32, ball joint 88751300 pos.33, stabilus bracket 794440 pos.34- -No longer supplied-
                from £0.47
                from £0.47
                # 023
                MPN: 68700200
                CLIP
                from £2.20
                from £2.20
                # 024
                MPN: 81901400
                BUSHING
                -Order new solution: stabilus 88751400 pos.32, ball joint 88751300 pos.33, stabilus bracket 794440 pos.34- -No longer supplied-
                # 025
                MPN: 85833900
                SCREW
                -M5 X 16-
                from £0.53
                from £0.53
                This part replaces part number 81972800
                # 026
                MPN: 85692300
                SCREW
                -M5 X 20-
                from £0.47
                from £0.47
                This part replaces part number 83914200
                # 027
                MPN: 85692200
                SCREW
                -M5 X 10-
                from £0.47
                from £0.47
                # 028
                MPN: 85692000
                SCREW
                -M5 X 10-
                from £0.53
                from £0.53
                # 029
                MPN: 85692000
                SCREW
                -M5 X 10- -Order new solution: stabilus 88751400 pos.32, ball joint 88751300 pos.33, stabilus bracket 794440 pos.34- -No longer supplied-
                from £0.53
                from £0.53
                # 030
                MPN: 85692000
                SCREW
                -M5 X 10-
                from £0.54
                from £0.54
                # 032
                MPN: 88751400
                STABILUS
                from £20.58
                from £20.58
                # 033
                MPN: 792590
                BALL JOINT
                -No longer supplied- -Replaced by 88751300-
                Supersession
                Supersession
                # 033
                MPN: 88751300
                GLOVE COMPARTMENT DAMPER BALL JOINT
                from £16.89
                from £16.89
                This part replaces part number 792590
                # 034
                MPN: 794440
                STABILUS FASTENER BRACKET
                -Not for GD-
                from £36.79
                from £36.79
                # 034
                MPN: 794441
                STABILUS FASTENER BRACKET
                -Applicable for GD-
                from £44.97
                from £44.97
                # 035
                MPN: 760921
                CARD READER COVER
                -GS version- -Applicable for J-
                from £97.15
                from £97.15
                # 035
                MPN: 765565
                CARD READER COVER
                -GD version- -Applicable for J-
                from £104.89
                from £104.89
