ferrari 812 superfast (usa) crankshaft - connecting rods and pistons parts diagram

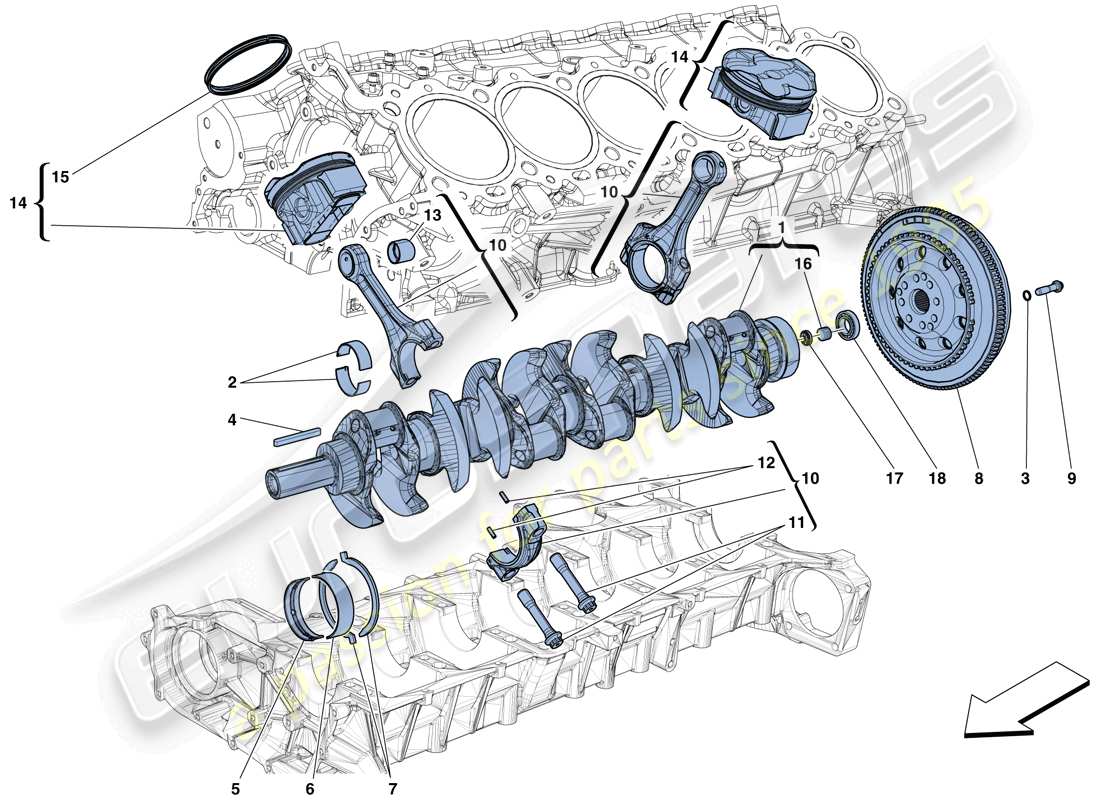

0002 - crankshaft - connecting rods and pistons

Ferrari 812 Superfast (USA) CRANKSHAFT - CONNECTING RODS AND PISTONS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Key
                      Price
                      # 001
                      MPN: 332068
                      crankshaft
                      -Applicable up to engine No. 436994- -Applicable until depletion-
                      Supersession
                      Supersession
                      Genuine Ferrari Part (no longer available to order)
                      # 001
                      MPN: 823503
                      crankshaft
                      -Applicable from engine No. 436995- -Applicable after depletion of 332068-
                      from £4,007.69
                      from £4,007.69
                      This part replaces part number 332068
                      crankshaft Genuine Ferrari Part - New (to order)
                      # 002
                      MPN: 304681
                      CONNECTING ROD HALF-BEARING
                      -Blue-
                      from £10.60
                      from £10.60
                      CONNECTING ROD HALF-BEARING Genuine Ferrari Part - New (to order)
                      # 002
                      MPN: 304682
                      CONNECTING ROD HALF-BEARING
                      -Red-
                      from £10.60
                      from £10.60
                      CONNECTING ROD HALF-BEARING Genuine Ferrari Part - New (to order)
                      # 002
                      MPN: 304683
                      CONNECTING ROD HALF-BEARING
                      -Pink-
                      from £10.60
                      from £10.60
                      CONNECTING ROD HALF-BEARING Genuine Ferrari Part - New (to order)
                      # 002
                      MPN: 823845
                      CONNECTING ROD HALF-BEARING
                      -Yellow-
                      from £10.50
                      from £10.50
                      CONNECTING ROD HALF-BEARING Genuine Ferrari Part - New (to order)
                      # 002
                      MPN: 823846
                      CONNECTING ROD HALF-BEARING
                      -Green-
                      from £10.50
                      from £10.50
                      CONNECTING ROD HALF-BEARING Genuine Ferrari Part - New (to order)
                      # 003
                      MPN: 282966
                      GASKET
                      from £2.49
                      from £2.49
                      O-RING Genuine Ferrari Part - New In stock
                      # 004
                      MPN: 190981
                      Key
                      from £0.67
                      from £0.67
                      Key Genuine Ferrari Part - New (to order)
                      Key Genuine Maserati Part - New (to order)
                      # 005
                      MPN: 271028
                      UPPER HALF-BEARING
                      -Blue-
                      from £17.60
                      from £17.60
                      UPPER HALF-BEARING Genuine Ferrari Part - New (to order)
                      # 005
                      MPN: 271029
                      UPPER HALF-BEARING
                      -Yellow-
                      from £19.99
                      from £19.99
                      UPPER HALF-BEARING Genuine Ferrari Part - New (to order)
                      # 005
                      MPN: 271030
                      UPPER HALF-BEARING
                      -Green-
                      from £19.22
                      from £19.22
                      UPPER HALF-BEARING Genuine Ferrari Part - New (to order)
                      # 005
                      MPN: 313685
                      UPPER HALF-BEARING
                      -Brown-
                      from £14.29
                      from £14.29
                      UPPER HALF-BEARING Genuine Ferrari Part - New (to order)
                      # 005
                      MPN: 313686
                      UPPER HALF-BEARING
                      -Pink-
                      from £14.29
                      from £14.29
                      UPPER HALF-BEARING Genuine Ferrari Part - New (to order)
                      # 006
                      MPN: 271023
                      LOWER HALF-BEARING
                      -Blue-
                      from £17.53
                      from £17.53
                      LOWER HALF-BEARING Genuine Ferrari Part - New In stock
                      # 006
                      MPN: 271024
                      LOWER HALF-BEARING
                      -Yellow-
                      from £19.88
                      from £19.88
                      LOWER HALF-BEARING Genuine Ferrari Part - New (to order)
                      # 006
                      MPN: 271025
                      LOWER HALF-BEARING
                      -Green-
                      from £19.12
                      from £19.12
                      LOWER HALF-BEARING Genuine Ferrari Part - New (to order)
                      # 006
                      MPN: 313687
                      LOWER HALF-BEARING
                      -Brown-
                      from £14.23
                      from £14.23
                      LOWER HALF-BEARING Genuine Ferrari Part - New (to order)
                      # 006
                      MPN: 313688
                      LOWER HALF-BEARING
                      -Pink-
                      from £14.23
                      from £14.23
                      LOWER HALF-BEARING Genuine Ferrari Part - New (to order)
                      # 007
                      MPN: 261727
                      CRANKSHAFT BEARING SHIM
                      from £5.58
                      from £5.58
                      CRANKSHAFT BEARING SHIM Genuine Ferrari Part - New (to order)
                      ENGINE SHIMMING Genuine Maserati Part - New (to order)
                      # 008
                      MPN: 323539
                      engine flywheel
                      Supersession
                      Supersession
                      Genuine Ferrari Part (no longer available to order)
                      # 009
                      MPN: 229907
                      FASTENER SCREW
                      -M10 X 1.25 X 41.5-
                      from £4.71
                      from £4.71
                      SCREW Genuine Ferrari Part - New In stock
                      # 010
                      MPN: 327386
                      COMPL. CONNECTING ROD AND CAP
                      -Applicable up to engine No. 436994- -Applicable until depletion-
                      Supersession
                      Supersession
                      Genuine Ferrari Part (no longer available to order)
                      # 010
                      MPN: 824391
                      COMPL. CONNECTING ROD AND CAP
                      -Applicable from engine No. 436995- -Applicable after depletion of 327386-
                      from £179.13
                      from £179.13
                      This part replaces part number 327386
                      COMPLETE CONNECTING ROD AND CA Genuine Ferrari Part - New (to order)
                      # 011
                      MPN: 281320
                      SCREW
                      from £99.27
                      from £99.27
                      SCREW Genuine Ferrari Part - New (to order)
                      # 012
                      MPN: 292751
                      ALIGNMENT PIN
                      from £14.60
                      from £14.60
                      ALIGNMENT PIN Genuine Ferrari Part - New (to order)
                      CENTRING PIN FOR CONNECTING ROD/B Genuine Maserati Part - New (to order)
                      # 013
                      MPN: 300758
                      BUSHING
                      from £21.46
                      from £21.46
                      BUSHING Genuine Ferrari Part - New In stock
                      # 014
                      MPN: 336529
                      COMPL. PISTON, RH CYLINDER BANK
                      -Applicable up to engine No. 409315-
                      from £281.57
                      from £281.57
                      COMPLETE PISTON, RH CYLINDER B Genuine Ferrari Part - New (to order)
                      # 014
                      MPN: 336530
                      COMPL. PISTON, LH CYLINDER BANK
                      -Applicable up to engine No. 409315-
                      from £281.57
                      from £281.57
                      COMPLETE PISTON, LH CYLINDER B Genuine Ferrari Part - New (to order)
                      # 014
                      MPN: 803899
                      COMPL. PISTON, RH CYLINDER BANK
                      -Applicable from engine No. 409316-
                      from £291.41
                      from £291.41
                      COMPLETE PISTON, RH CYLINDER B Genuine Ferrari Part - New (to order)
                      # 014
                      MPN: 803900
                      COMPL. PISTON, LH CYLINDER BANK
                      -Applicable from engine No. 409316-
                      from £291.41
                      from £291.41
                      COMPLETE PISTON, LH CYLINDER B Genuine Ferrari Part - New (to order)
                      # 015
                      MPN: 329062
                      COMPL. PISTON RING SET
                      -Applicable up to engine No. 409315-
                      from £62.68
                      from £62.68
                      COMPLETE PISTON RING SET Genuine Ferrari Part - New (to order)
                      # 015
                      MPN: 863119
                      COMPL. PISTON RING SET
                      -Applicable from engine No. 409316-
                      from £186.87
                      from £186.87
                      COMPLETE PISTON RING SET Genuine Ferrari Part - New (to order)
                      # 016
                      MPN: 176396
                      THREADED PLUG
                      from £3.36
                      from £3.36
                      THREADED PLUG Genuine Ferrari Part - New In stock
                      THREADED PLUG Genuine Maserati Part - New (to order)
                      # 017
                      MPN: 14328801
                      PLUG
                      from £0.47
                      from £0.47
                      PLUG Genuine Ferrari Part - New (to order)
                      THREADED PLUG FOR GEARBOX Genuine Maserati Part - New (to order)
                      # 018
                      MPN: 103877
                      BEARING
                      from £18.43
                      from £18.43
                      This part replaces part number 24940440
                      BALL BEARING Genuine Ferrari Part - New In stock
                      BALL BEARING, 30-35 X 1 Genuine Maserati Part - New In stock
