ferrari 812 superfast (usa) steering control parts diagram

0030 - Steering Control

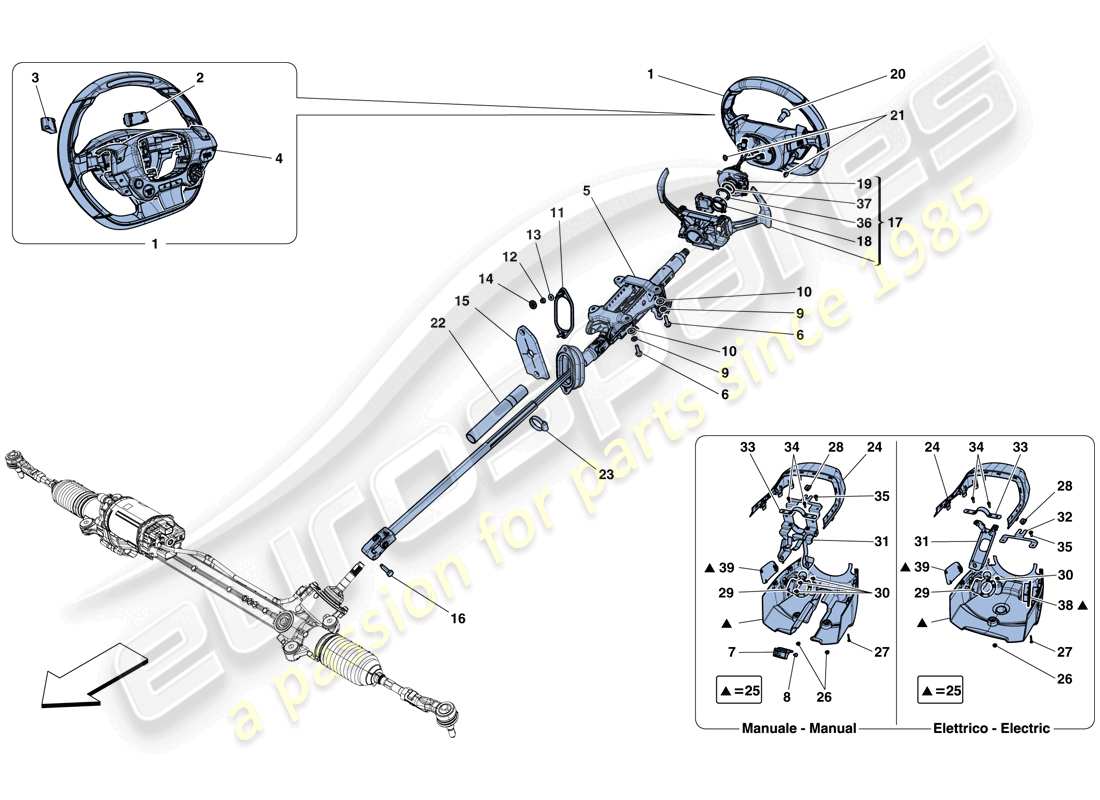

Ferrari 812 Superfast (USA) STEERING CONTROL Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Price
                                                      # 001
                                                      MPN: 337539
                                                      COMPL. STEERING WHEEL
                                                      -INTP- -Leather- -Version with LEDs- -STIC-
                                                      from £6,706.07
                                                      from £6,706.07
                                                      # 001
                                                      MPN: 337540
                                                      COMPL. STEERING WHEEL
                                                      -INTP- -Leather- -Carbon- -Version with LEDs- -STIC-
                                                      from £5,740.69
                                                      from £5,740.69
                                                      # 001
                                                      MPN: 337541
                                                      COMPL. STEERING WHEEL
                                                      -INTP- -Version with upper and lower rim in Alcantara- -INTP for leather colour option, STWA for Alcantara colour- -Without LED- -STWA- -STIC-
                                                      from £4,543.99
                                                      from £4,543.99
                                                      # 001
                                                      MPN: 337542
                                                      COMPL. STEERING WHEEL
                                                      -INTP- -Leather- -Without LED- -STIC-
                                                      from £2,096.10
                                                      from £2,096.10
                                                      # 002
                                                      MPN: 321865
                                                      RH NIT THUMBWHEEL CONTROL
                                                      from £100.77
                                                      from £100.77
                                                      # 003
                                                      MPN: 321866
                                                      LH NIT THUMBWHEEL CONTROL
                                                      from £100.77
                                                      from £100.77
                                                      # 004
                                                      MPN: 337534
                                                      STEERING WHEEL NODE
                                                      -Applicable for steering wheel without LEDs- -Not for carbon steering wheel-
                                                      from £1,330.21
                                                      from £1,330.21
                                                      # 004
                                                      MPN: 337535
                                                      STEERING WHEEL NODE
                                                      -Applicable for steering wheel with LEDs- -Applicable for carbon steering wheel-
                                                      from £3,371.34
                                                      from £3,371.34
                                                      # 004
                                                      MPN: 339926
                                                      STEERING WHEEL NODE
                                                      -Applicable for steering wheel with LEDs- -Not for carbon steering wheel-
                                                      from £2,418.57
                                                      from £2,418.57
                                                      # 005
                                                      MPN: 320095
                                                      COMPL. STEERING COLUMN
                                                      -Electric-
                                                      from £959.37
                                                      from £959.37
                                                      # 005
                                                      MPN: 325550
                                                      COMPL. STEERING COLUMN
                                                      -Manual-
                                                      from £1,216.62
                                                      from £1,216.62
                                                      # 006
                                                      MPN: 16287321
                                                      SCREW
                                                      from £0.47
                                                      from £0.47
                                                      # 007
                                                      MPN: 313964
                                                      ADJUSTABLE STEERING WHEEL LOCK LEVER
                                                      -Applicable for manual steering column-
                                                      from £5.90
                                                      from £5.90
                                                      # 008
                                                      MPN: 13273977
                                                      SCREW
                                                      -Applicable for manual steering column-
                                                      from £0.54
                                                      from £0.54
                                                      # 009
                                                      MPN: 11194074
                                                      WASHER
                                                      from £0.47
                                                      from £0.47
                                                      This part replaces part number 11194077 - and 1 more. Click to view details
                                                      # 010
                                                      MPN: 12646701
                                                      WASHER
                                                      from £0.53
                                                      from £0.53
                                                      # 011
                                                      MPN: 237433
                                                      STEERING COLUMN GAITER FASTENER PLATE
                                                      from £14.91
                                                      from £14.91
                                                      # 012
                                                      MPN: 14058419
                                                      NUT
                                                      from £0.47
                                                      from £0.47
                                                      # 013
                                                      MPN: 12647624
                                                      WASHER
                                                      from £0.53
                                                      from £0.53
                                                      This part replaces part number 12647611
                                                      # 014
                                                      MPN: 250645
                                                      RING NUT
                                                      from £0.47
                                                      from £0.47
                                                      # 015
                                                      MPN: 338451
                                                      STEERING COLUMN GAITER SOUNDPROOFING SEAL
                                                      from £6.96
                                                      from £6.96
                                                      # 016
                                                      MPN: 245173
                                                      SCREW
                                                      from £0.47
                                                      from £0.47
                                                      This part replaces part number 187006
                                                      # 017
                                                      MPN: 327250
                                                      SHIFT PADDLE ASSEMBLY
                                                      from £414.75
                                                      from £414.75
                                                      # 017
                                                      MPN: 327251
                                                      SHIFT PADDLE ASSEMBLY
                                                      -Carbon-
                                                      from £495.00
                                                      from £495.00
                                                      # 018
                                                      MPN: 309296
                                                      STEERING ANGLE SENSOR
                                                      from £113.25
                                                      from £113.25
                                                      # 019
                                                      MPN: 327252
                                                      CLOCK SPRING CONTACT
                                                      from £271.17
                                                      from £271.17
                                                      # 020
                                                      MPN: 301723
                                                      SCREW
                                                      from £30.23
                                                      from £30.23
                                                      This part replaces part number 275398 - and 1 more. Click to view details
                                                      # 021
                                                      MPN: 14506587
                                                      CAP
                                                      from £0.53
                                                      from £0.53
                                                      # 022
                                                      MPN: 278791
                                                      STEERING COLUMN SHIELD
                                                      from £29.33
                                                      from £29.33
                                                      # 023
                                                      MPN: 13000690
                                                      SCREW COLLAR
                                                      from £0.47
                                                      from £0.47
                                                      This part replaces part number 12174090 - and 2 more. Click to view details
                                                      # 024
                                                      MPN: 883575..
                                                      UPPER STEERING COLUMN SHIELD
                                                      Supersession
                                                      Supersession
                                                      # 025
                                                      -
                                                      COMPL. LOWER STEERING COLUMN SHIELD
                                                      # 025
                                                      MPN: 883574..
                                                      LOWER STEERING COLUMN SHIELD
                                                      -Applicable for electric steering column-
                                                      Supersession
                                                      Supersession
                                                      # 026
                                                      MPN: 14059121
                                                      NUT
                                                      -Applicable for manual steering column-
                                                      from £0.54
                                                      from £0.54
                                                      # 026
                                                      MPN: 14059121
                                                      NUT
                                                      -Applicable for electric steering column-
                                                      from £0.54
                                                      from £0.54
                                                      # 027
                                                      MPN: 15689201
                                                      SCREW
                                                      from £0.54
                                                      from £0.54
                                                      # 028
                                                      MPN: 68002000
                                                      RUBBER PAD
                                                      from £1.89
                                                      from £1.89
                                                      # 029
                                                      MPN: 88490300
                                                      ENGINE BUTTON MOUNTING BRACKET
                                                      from £21.99
                                                      from £21.99
                                                      # 030
                                                      MPN: 65752800
                                                      SCREW
                                                      -M4 X 10-
                                                      from £1.14
                                                      from £1.14
                                                      This part replaces part number 294485 - and 1 more. Click to view details
                                                      # 031
                                                      MPN: 86592000
                                                      LOWER BRACKET FOR STEERING COLUMN TRIM
                                                      -Applicable for electric steering column-
                                                      from £27.49
                                                      from £27.49
                                                      # 031
                                                      MPN: 88527400
                                                      LOWER BRACKET FOR LOWER STEERING COLUMN TRIM
                                                      -Applicable for manual steering column-
                                                      from £179.56
                                                      from £179.56
                                                      # 032
                                                      MPN: 88133500
                                                      UPPER STEERING COLUMN TRIM BRACKET
                                                      -Applicable for electric steering column-
                                                      from £12.95
                                                      from £12.95
                                                      # 033
                                                      MPN: 86431600
                                                      UPPER BRACKET FOR LOWER STEERING COLUMN TRIM
                                                      from £8.27
                                                      from £8.27
                                                      # 034
                                                      MPN: 14304224
                                                      SCREW
                                                      -M5 X 16-
                                                      from £0.47
                                                      from £0.47
                                                      # 035
                                                      MPN: 15688801
                                                      SCREW
                                                      from £0.47
                                                      from £0.47
                                                      # 036
                                                      MPN: 828381
                                                      CLOCK SPRING CONNECTOR LOCK RING
                                                      from £3.29
                                                      from £3.29
                                                      # 037
                                                      MPN: 828380
                                                      CLOCK SPRING CONNECTOR SPRING
                                                      from £0.80
                                                      from £0.80
                                                      # 038
                                                      MPN: 84001400
                                                      JOYSTICK PANEL
                                                      -Applicable for electric steering column-
                                                      from £40.69
                                                      from £40.69
                                                      # 039
                                                      MPN: 87691000
                                                      ENGINE START BUTTON BEZEL
                                                      from £60.47
                                                      from £60.47
