0031 - Front Suspension - Shock Absorber and Brake Disc

Ferrari 812 Superfast (USA) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC Parts Diagram

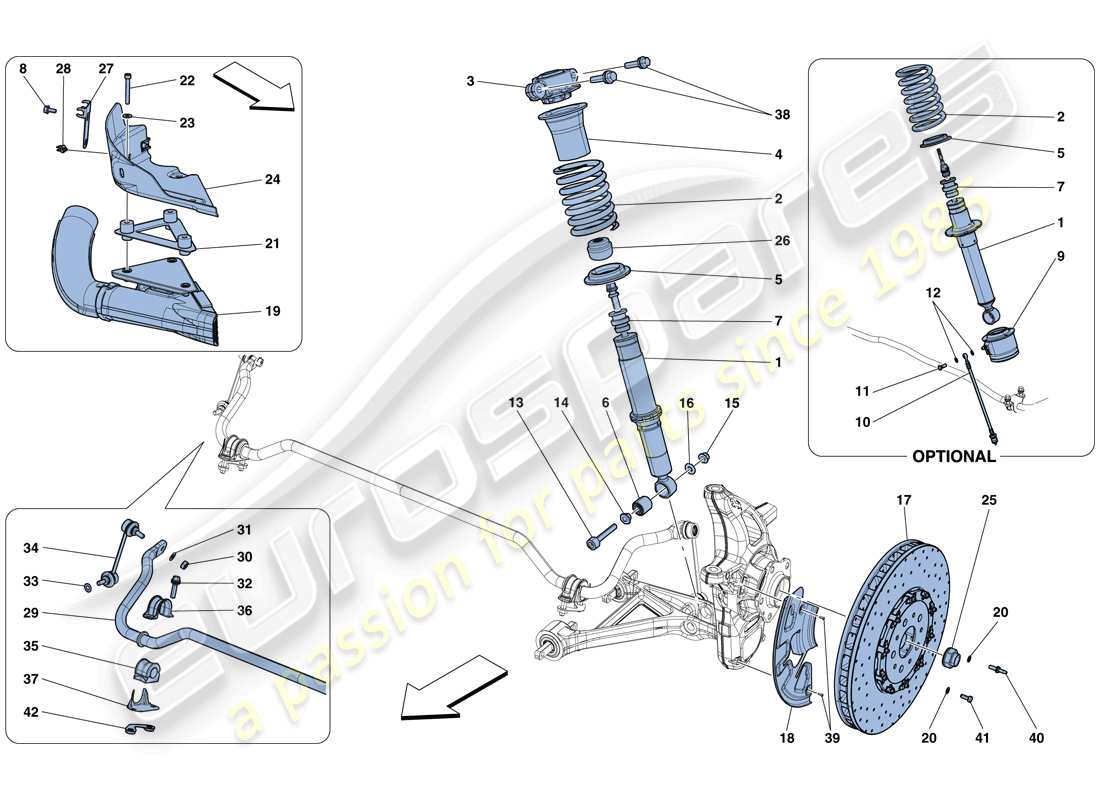

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Price
                                                    # 001
                                                    MPN: 321240
                                                    FRONT SHOCK ABSORBER
                                                    from £872.92
                                                    from £872.92
                                                    # 001
                                                    MPN: 336094
                                                    FRONT SHOCK ABSORBER
                                                    -Version with lifter-
                                                    from £626.13
                                                    from £626.13
                                                    # 002
                                                    MPN: 332988
                                                    FRONT SUSPENSION SPRING
                                                    from £81.69
                                                    from £81.69
                                                    # 002
                                                    MPN: 332989
                                                    FRONT SUSPENSION SPRING
                                                    -Version with lifter-
                                                    from £59.52
                                                    from £59.52
                                                    # 003
                                                    MPN: 250394
                                                    STOP CAP
                                                    -Applicable up to Ass. No. 168264-
                                                    from £68.25
                                                    from £68.25
                                                    # 003
                                                    MPN: 340231
                                                    STOP CAP
                                                    -Applicable from Ass. No. 168265-
                                                    from £68.87
                                                    from £68.87
                                                    # 005
                                                    MPN: 188996
                                                    LOWER SPACER
                                                    from £4.41
                                                    from £4.41
                                                    This part replaces part number 259314 - and 8 more. Click to view details
                                                    # 006
                                                    MPN: 157630
                                                    BALL JOINT
                                                    from £48.50
                                                    from £48.50
                                                    This part replaces part number 159262
                                                    # 007
                                                    MPN: 257412
                                                    ENDSTOP BUSH
                                                    -Applicable from Ass. No. 168265-
                                                    Supersession
                                                    Supersession
                                                    # 007
                                                    MPN: 288828
                                                    ENDSTOP BUSH
                                                    -Applicable up to Ass. No. 168264-
                                                    from £21.05
                                                    from £21.05
                                                    This part replaces part number 257412 - and 2 more. Click to view details
                                                    # 008
                                                    MPN: 16296924
                                                    SCREW
                                                    -M6 X 14-
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 289834
                                                    # 009
                                                    MPN: 300214
                                                    COMPL. ACTUATOR
                                                    -Version with lift system-
                                                    from £387.12
                                                    from £387.12
                                                    # 010
                                                    MPN: 277168
                                                    RUBBER PIPE
                                                    -Version with lifter-
                                                    from £45.30
                                                    from £45.30
                                                    # 011
                                                    MPN: 261587
                                                    CONNECTION FOR UNION
                                                    -Version with lifter-
                                                    from £16.79
                                                    from £16.79
                                                    # 012
                                                    MPN: 259638
                                                    GASKET
                                                    -Version with lifter-
                                                    from £7.81
                                                    from £7.81
                                                    # 013
                                                    MPN: 237297
                                                    SCREW
                                                    -M12 X 1.25 X 80-
                                                    from £16.01
                                                    from £16.01
                                                    # 014
                                                    MPN: 237821
                                                    BUSHING
                                                    from £2.60
                                                    from £2.60
                                                    # 015
                                                    MPN: 255271
                                                    NUT
                                                    from £0.40
                                                    from £0.40
                                                    This part replaces part number 14058721 - and 1 more. Click to view details
                                                    # 016
                                                    MPN: 12646921
                                                    WASHER
                                                    from £0.30
                                                    from £0.30
                                                    This part replaces part number 12646901 - and 1 more. Click to view details
                                                    # 017
                                                    MPN: 321910
                                                    FRONT BRAKE DISC
                                                    from £1,569.22
                                                    from £1,569.22
                                                    # 018
                                                    MPN: 321235
                                                    FRONT LH DISC SHIELD
                                                    from £14.73
                                                    from £14.73
                                                    # 018
                                                    MPN: 321236
                                                    FRONT RH DISC SHIELD
                                                    from £14.73
                                                    from £14.73
                                                    # 019
                                                    MPN: 336477
                                                    LH FRONT BRAKE AIR DUCT
                                                    from £235.52
                                                    from £235.52
                                                    # 019
                                                    MPN: 336478
                                                    RH FRONT BRAKE AIR DUCT
                                                    from £235.52
                                                    from £235.52
                                                    # 020
                                                    MPN: 228132
                                                    WASHER
                                                    from £0.47
                                                    from £0.47
                                                    # 021
                                                    MPN: 320714
                                                    BRACKET FASTENING DUCT TO LH LOWER ARM
                                                    from £31.82
                                                    from £31.82
                                                    # 021
                                                    MPN: 320715
                                                    BRACKET FASTENING DUCT TO RH LOWER ARM
                                                    from £31.82
                                                    from £31.82
                                                    # 022
                                                    MPN: 14305924
                                                    SCREW
                                                    -M6 X 45-
                                                    from £0.50
                                                    from £0.50
                                                    # 023
                                                    MPN: 11193274
                                                    WASHER
                                                    from £0.53
                                                    from £0.53
                                                    This part replaces part number 11193279 which we have in stock
                                                    # 024
                                                    MPN: 322888
                                                    COMPL. LH AIR DEFLECTOR
                                                    from £21.05
                                                    from £21.05
                                                    # 024
                                                    MPN: 322889
                                                    COMPL. RH AIR DEFLECTOR
                                                    from £21.05
                                                    from £21.05
                                                    # 025
                                                    MPN: 203780
                                                    NUT
                                                    from £11.70
                                                    from £11.70
                                                    This part replaces part number 187814
                                                    # 026
                                                    MPN: 288829
                                                    STOP CAP
                                                    -Applicable up to Ass. No. 168264-
                                                    from £28.34
                                                    from £28.34
                                                    # 027
                                                    MPN: 291864
                                                    ABS CABLE MOUNTING BRACKET
                                                    from £5.67
                                                    from £5.67
                                                    # 028
                                                    MPN: 261214
                                                    RAYMOND CLIP
                                                    from £0.68
                                                    from £0.68
                                                    # 029
                                                    MPN: 321262
                                                    STABILISER BAR
                                                    from £128.00
                                                    from £128.00
                                                    # 030
                                                    MPN: 12164714
                                                    NUT
                                                    from £0.47
                                                    from £0.47
                                                    # 031
                                                    MPN: 12601474
                                                    WASHER
                                                    from £0.54
                                                    from £0.54
                                                    This part replaces part number 12601471 which we have in stock - and 2 more. Click to view details
                                                    # 032
                                                    MPN: 328463
                                                    SCREW
                                                    -M10 X 1.25 X 30-
                                                    from £1.15
                                                    from £1.15
                                                    # 033
                                                    MPN: 12601474
                                                    WASHER
                                                    from £0.54
                                                    from £0.54
                                                    This part replaces part number 12601471 which we have in stock - and 2 more. Click to view details
                                                    # 034
                                                    MPN: 242391
                                                    SPHERICAL TIE-ROD
                                                    -LH front-
                                                    from £35.51
                                                    from £35.51
                                                    # 034
                                                    MPN: 242392
                                                    SPHERICAL TIE-ROD
                                                    -RH front-
                                                    from £35.56
                                                    from £35.56
                                                    # 035
                                                    MPN: 242404
                                                    STABILISER BAR BUSH
                                                    from £5.58
                                                    from £5.58
                                                    # 036
                                                    MPN: 244778
                                                    RETAINER BRACKET
                                                    from £6.68
                                                    from £6.68
                                                    # 037
                                                    MPN: 286144
                                                    BUSHING MOUNT
                                                    from £7.28
                                                    from £7.28
                                                    # 038
                                                    MPN: 248790
                                                    SCREW
                                                    -M12 X 1.25 X 50-
                                                    from £2.15
                                                    from £2.15
                                                    # 039
                                                    MPN: 250657
                                                    SCREW
                                                    -M6 X 14-
                                                    from £4.44
                                                    from £4.44
                                                    # 040
                                                    MPN: 104370
                                                    SCREW
                                                    from £5.12
                                                    from £5.12
                                                    This part replaces part number 139981
                                                    # 041
                                                    MPN: 228131
                                                    SCREW
                                                    -M8 X 20-
                                                    from £0.47
                                                    from £0.47
                                                    # 042
                                                    MPN: 327874
                                                    TORSION BAR FASTENER BRACKET
                                                    from £9.92
                                                    from £9.92
