0114 - DOORS - SUBSTRUCTURE AND TRIM

Ferrari 812 Superfast (USA) DOORS - SUBSTRUCTURE AND TRIM Parts Diagram

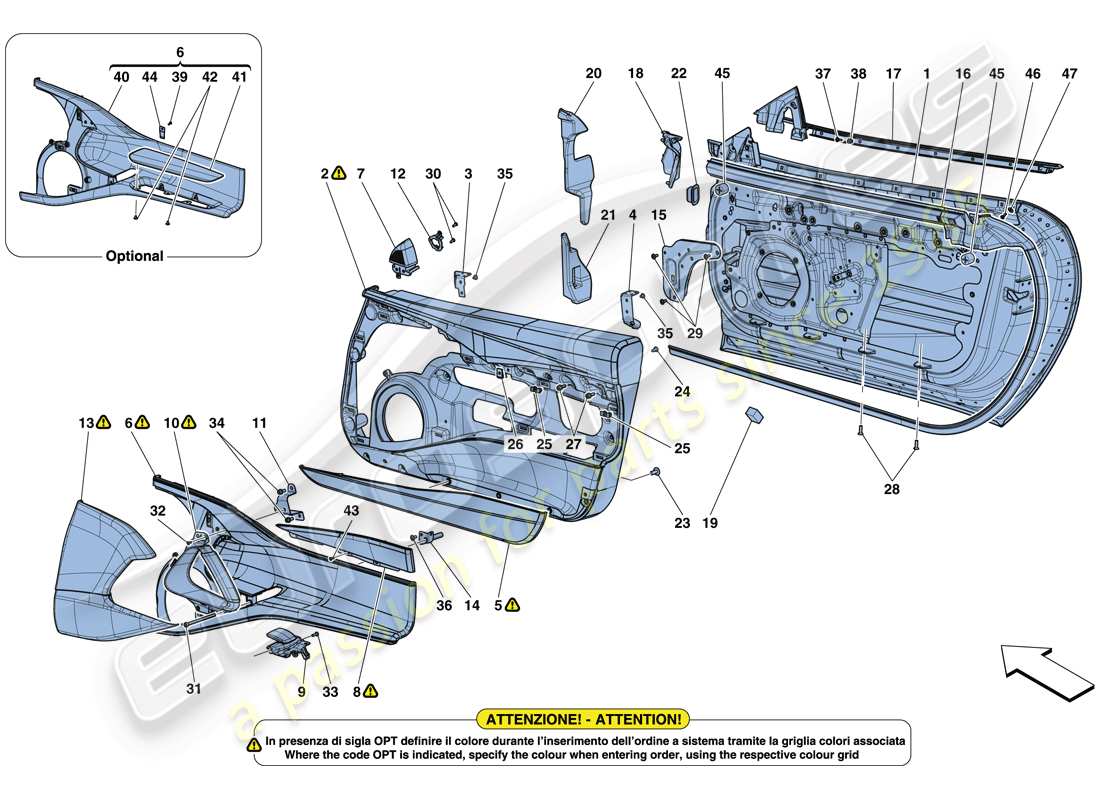

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Price
                                        # 001
                                        MPN: 88070611
                                        COMPL. LH LATERAL DOOR
                                        -Not for GD-
                                        Supersession
                                        Supersession
                                        # 001
                                        MPN: 88070711
                                        COMPL. RH LATERAL DOOR
                                        -Not for GD-
                                        Supersession
                                        Supersession
                                        # 001
                                        MPN: 88714311
                                        COMPL. LH LATERAL DOOR
                                        -Applicable for GD-
                                        Supersession
                                        Supersession
                                        # 001
                                        MPN: 88714411
                                        COMPL. RH LATERAL DOOR
                                        -Applicable for GD-
                                        Supersession
                                        Supersession
                                        # 002
                                        MPN: 87973800
                                        LH UPHOLSTERED PANEL
                                        -INTP- -Leather-
                                        Supersession
                                        Supersession
                                        # 002
                                        MPN: 87973900
                                        RH UPHOLSTERED PANEL
                                        -INTP- -Leather-
                                        Supersession
                                        Supersession
                                        # 002
                                        MPN: 87979900
                                        LH UPHOLSTERED PANEL
                                        -INTP- -Premium Hi-Fi version- -Leather-
                                        Supersession
                                        Supersession
                                        # 002
                                        MPN: 87980000
                                        RH UPHOLSTERED PANEL
                                        -INTP- -Premium Hi-Fi version- -Leather-
                                        Supersession
                                        Supersession
                                        # 003
                                        MPN: 87974200
                                        FRONT LH SHELF REINFORCEMENT BRACKET
                                        from £39.75
                                        from £39.75
                                        # 003
                                        MPN: 88359900
                                        FRONT RH SHELF REINFORCEMENT BRACKET
                                        from £39.75
                                        from £39.75
                                        # 004
                                        MPN: 88062700
                                        REAR LH SHELF REINFORCEMENT BRACKET
                                        from £66.25
                                        from £66.25
                                        # 004
                                        MPN: 88062800
                                        REAR RH SHELF REINFORCEMENT BRACKET
                                        from £66.25
                                        from £66.25
                                        # 005
                                        MPN: 87974300
                                        COMPL. LH DOOR PANEL POCKET
                                        -INTP- -Leather-
                                        Supersession
                                        Supersession
                                        # 005
                                        MPN: 87974400
                                        COMPL. RH DOOR PANEL POCKET
                                        -INTP- -Leather-
                                        Supersession
                                        Supersession
                                        # 006
                                        MPN: 794484
                                        COMPL. RH CENTRAL MEDALLION DOOR PANEL
                                        -INTA- -Alcantara- -STC1- -STC2- -Not for USA, CDN, USA LIGHT-
                                        from £1,801.22
                                        from £1,801.22
                                        # 006
                                        MPN: 794485
                                        COMPL. LH CENTRAL MEDALLION DOOR PANEL
                                        -INTA- -Alcantara- -STC1- -STC2- -Not for USA, CDN, USA LIGHT-
                                        from £1,802.50
                                        from £1,802.50
                                        # 006
                                        MPN: 803955
                                        COMPL. RH CENTRAL MEDALLION DOOR PANEL
                                        -INTP- -Leather- -STC1- -STC2- -Applicable for USA, CDN, USA LIGHT-
                                        from £1,520.26
                                        from £1,520.26
                                        # 006
                                        MPN: 803959
                                        COMPL. LH CENTRAL MEDALLION DOOR PANEL
                                        -INTP- -Leather- -STC1- -STC2- -Applicable for USA, CDN, USA LIGHT-
                                        from £1,520.26
                                        from £1,520.26
                                        # 006
                                        MPN: 804038
                                        COMPL. RH CENTRAL MEDALLION DOOR PANEL
                                        -INTA- -Alcantara- -STC1- -STC2- -Applicable for USA, CDN, USA LIGHT-
                                        from £2,130.54
                                        from £2,130.54
                                        # 006
                                        MPN: 804041
                                        COMPL. LH CENTRAL MEDALLION DOOR PANEL
                                        -INTA- -Alcantara- -STC1- -STC2- -Applicable for USA, CDN, USA LIGHT-
                                        from £1,659.57
                                        from £1,659.57
                                        # 006
                                        MPN: 87972900
                                        COMPL. LH CENTRAL MEDALLION DOOR PANEL
                                        -INTP- -Leather- -STC1- -STC2- -Not for USA, CDN, USA LIGHT-
                                        from £895.00
                                        from £895.00
                                        # 006
                                        MPN: 87973000
                                        COMPL. RH CENTRAL MEDALLION DOOR PANEL
                                        -INTP- -Leather- -STC1- -STC2- -Not for USA, CDN, USA LIGHT-
                                        from £750.00
                                        from £750.00
                                        # 006
                                        MPN: 89330200
                                        COMPL. LH CENTRAL MEDALLION DOOR PANEL
                                        -Carbon version- -Order loose parts- -No longer supplied-
                                        # 006
                                        MPN: 89330400
                                        COMPL. RH CENTRAL MEDALLION DOOR PANEL
                                        -Carbon version- -Order loose parts- -No longer supplied-
                                        # 007
                                        MPN: 88202300
                                        LH MIRROR TRIANGLE TRIM
                                        from £10.53
                                        from £10.53
                                        # 007
                                        MPN: 88202400
                                        RH MIRROR TRIANGLE TRIM
                                        from £10.53
                                        from £10.53
                                        # 008
                                        MPN: 88032200
                                        COMPL. LH INTERNAL MEDALLION DOOR PANEL
                                        -INTP- -Leather-
                                        Supersession
                                        Supersession
                                        # 008
                                        MPN: 88032300
                                        COMPL. RH INTERNAL MEDALLION DOOR PANEL
                                        -INTP- -Leather-
                                        Supersession
                                        Supersession

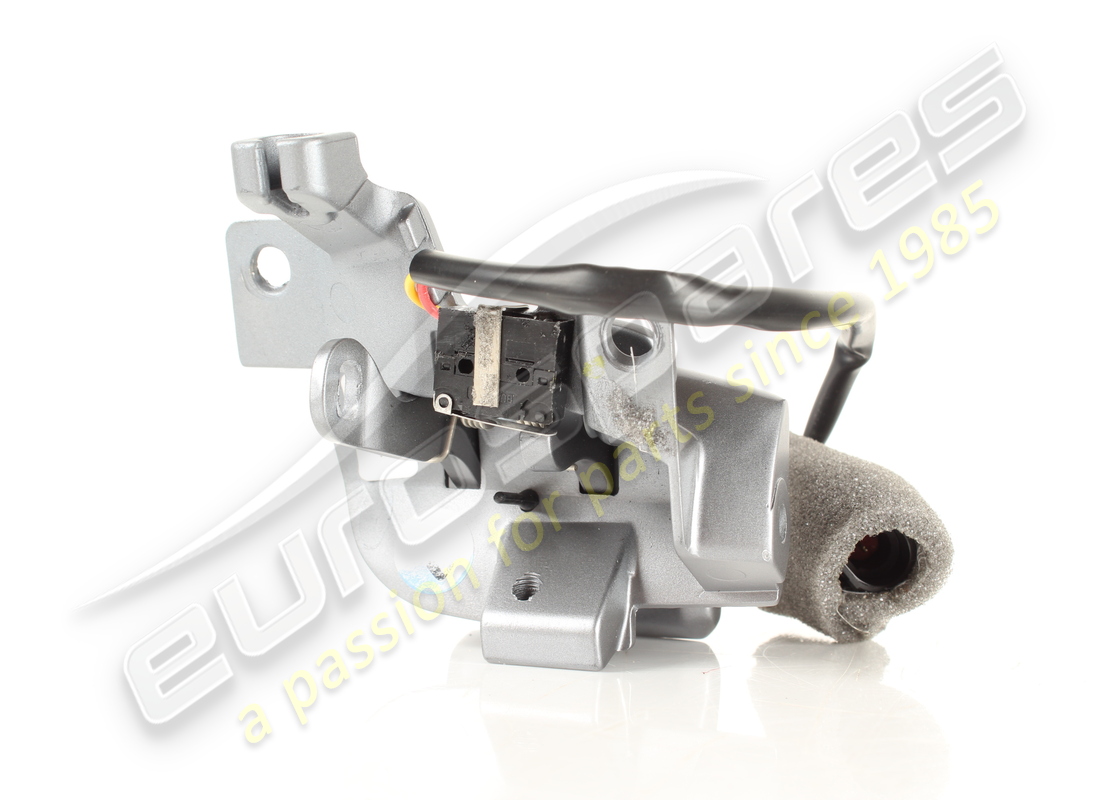

                                        # 009
                                        MPN: 88061200
                                        COMPL. LH HANDLE MOUNT
                                        -Applicable up to Ass. No. 167305-
                                        from £98.45
                                        from £98.45
                                        # 009
                                        MPN: 88061300
                                        COMPL. RH HANDLE MOUNT
                                        -Applicable up to Ass. No. 167305-
                                        from £98.45
                                        from £98.45
                                        # 009
                                        MPN: 895921
                                        COMPL. LH HANDLE MOUNT
                                        -Applicable from Ass. No. 167306-
                                        from £172.03
                                        from £172.03
                                        # 009
                                        MPN: 895924
                                        COMPL. RH HANDLE MOUNT
                                        -Applicable from Ass. No. 167306-
                                        from £172.03
                                        from £172.03

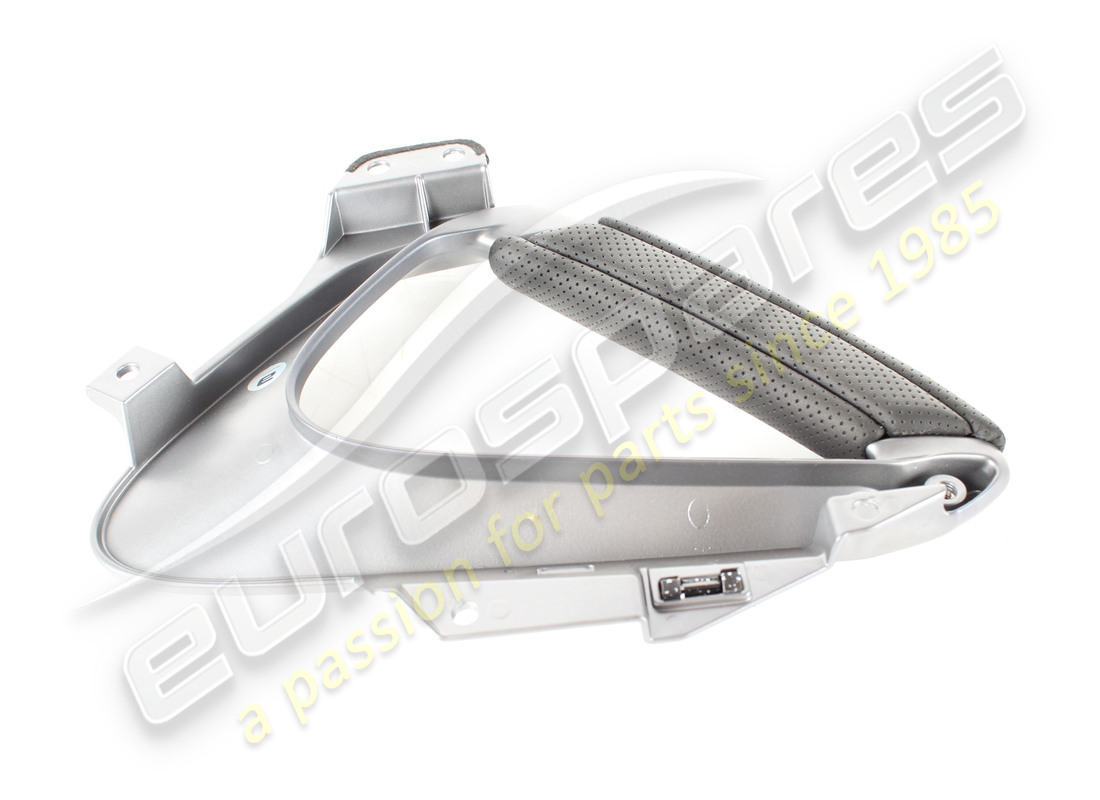

                                        # 010
                                        MPN: 765714
                                        COMPL. RH DOOR PULL
                                        -INTP- -Perforated leather- -Carbon handle version- -Applicable for electric steering column- -Applicable for GD-
                                        from £2,091.96
                                        from £2,091.96
                                        # 010
                                        MPN: 765717
                                        COMPL. RH DOOR PULL
                                        -INTP- -Perforated leather- -Carbon handle version- -Applicable for mechanical steering column- -Applicable for GD-
                                        from £2,150.10
                                        from £2,150.10
                                        # 010
                                        MPN: 765722
                                        COMPL. LH DOOR PULL
                                        -INTP- -Perforated leather- -Carbon handle version- -Applicable for GD-
                                        from £1,742.13
                                        from £1,742.13
                                        # 010
                                        MPN: 88062300
                                        COMPL. LH DOOR PULL
                                        -INTP- -Perforated leather- -Applicable for electric steering column- -Not for GD-
                                        Supersession
                                        Supersession
                                        # 010
                                        MPN: 88062400
                                        COMPL. RH DOOR PULL
                                        -INTP- -Perforated leather- -Not for GD-
                                        Supersession
                                        Supersession
                                        # 010
                                        MPN: 88677200
                                        COMPL. RH DOOR PULL
                                        -INTP- -Perforated leather- -Applicable for electric steering column- -Applicable for GD-
                                        from £1,013.53
                                        from £1,013.53
                                        # 010
                                        MPN: 88677400
                                        COMPL. LH DOOR PULL
                                        -INTP- -Perforated leather- -Applicable for mechanical steering column- -Not for GD-
                                        from £651.94
                                        from £651.94
                                        # 010
                                        MPN: 88727000
                                        COMPL. RH DOOR PULL
                                        -INTP- -Perforated leather- -Applicable for mechanical steering column- -Applicable for GD-
                                        from £1,467.85
                                        from £1,467.85
                                        # 010
                                        MPN: 88727400
                                        COMPL. LH DOOR PULL
                                        -INTP- -Perforated leather- -Applicable for GD-
                                        from £839.43
                                        from £839.43
                                        # 010
                                        MPN: 89147500
                                        COMPL. RH DOOR PULL
                                        -INTP- -Perforated leather- -Carbon handle version- -Not for GD-
                                        from £1,702.09
                                        from £1,702.09
                                        # 010
                                        MPN: 89147600
                                        COMPL. LH DOOR PULL
                                        -INTP- -Perforated leather- -Carbon handle version- -Applicable for mechanical steering column- -Not for GD-
                                        from £1,702.09
                                        from £1,702.09
                                        # 010
                                        MPN: 89147900
                                        COMPL. LH DOOR PULL
                                        -INTP- -Perforated leather- -Carbon handle version- -Applicable for electric steering column- -Not for GD-
                                        from £2,091.96
                                        from £2,091.96
                                        # 011
                                        MPN: 88061800
                                        LH DOOR PULL SUPPORT FASTENER BRACKET
                                        from £10.12
                                        from £10.12
                                        # 011
                                        MPN: 88202600
                                        RH DOOR PULL SUPPORT FASTENER BRACKET
                                        from £10.12
                                        from £10.12
                                        # 012
                                        MPN: 88202500
                                        TWEETER SUPPORT
                                        -Not for Hi-Fi premium version-
                                        from £1.48
                                        from £1.48
                                        # 013
                                        MPN: 88108700
                                        LH FRONT MEDALLION PANEL
                                        -INTP- -Perforated leather-
                                        Supersession
                                        Supersession
                                        # 013
                                        MPN: 88108800
                                        RH FRONT MEDALLION PANEL
                                        -INTP- -Perforated leather-
                                        Supersession
                                        Supersession
                                        # 013
                                        MPN: 88108900
                                        LH FRONT MEDALLION PANEL
                                        -INTP- -Perforated leather- -Premium Hi-Fi version-
                                        Supersession
                                        Supersession
                                        # 013
                                        MPN: 88109000
                                        RH FRONT MEDALLION PANEL
                                        -INTP- -Perforated leather- -Premium Hi-Fi version-
                                        from £757.38
                                        from £757.38
                                        # 014
                                        MPN: 89289900
                                        RH DOORPULL FASTENER BRACKET
                                        from £14.17
                                        from £14.17
                                        # 014
                                        MPN: 89290100
                                        LH DOORPULL FASTENER BRACKET
                                        from £14.17
                                        from £14.17
                                        # 015
                                        MPN: 88257500
                                        COMPL. LH DOOR SUBSTRUCTURE COVER PANEL
                                        from £21.05
                                        from £21.05
                                        # 015
                                        MPN: 88257600
                                        COMPL. RH DOOR SUBSTRUCTURE COVER PANEL
                                        from £21.05
                                        from £21.05
                                        # 016
                                        MPN: 88059300
                                        INTERNAL LH WINDOW SCRAPER SEAL
                                        -No longer supplied- -Replaced by 890463-
                                        from £109.55
                                        from £109.55
                                        # 016
                                        MPN: 88059400
                                        INTERNAL RH WINDOW SCRAPER SEAL
                                        -No longer supplied- -Replaced by 890461-
                                        from £109.55
                                        from £109.55
                                        # 016
                                        MPN: 890461
                                        INTERNAL RH WINDOW SCRAPER SEAL
                                        from £170.16
                                        from £170.16
                                        This part replaces part number 88059400 which we have in stock
                                        # 016
                                        MPN: 890463
                                        INTERNAL LH WINDOW SCRAPER SEAL
                                        from £170.16
                                        from £170.16
                                        This part replaces part number 88059300 which we have in stock
                                        # 017
                                        MPN: 88059500
                                        EXTERNAL LH WINDOW SCRAPER SEAL
                                        from £120.40
                                        from £120.40
                                        # 017
                                        MPN: 88059600
                                        EXTERNAL RH WINDOW SCRAPER SEAL
                                        from £120.40
                                        from £120.40
                                        # 018
                                        MPN: 88060000
                                        LH SEAL
                                        Supersession
                                        Supersession
                                        # 018
                                        MPN: 88060100
                                        RH SEAL
                                        Supersession
                                        Supersession
                                        # 019
                                        MPN: 89386300
                                        SEAL BUSHING
                                        from £1.09
                                        from £1.09
                                        # 020
                                        MPN: 88996700
                                        RH UPPER DOOR PILLAR PULER
                                        from £30.55
                                        from £30.55
                                        # 020
                                        MPN: 88996800
                                        LH UPPER DOOR PILLAR PULER
                                        from £30.55
                                        from £30.55
                                        # 021
                                        MPN: 748607
                                        LH DOOR PILLAR PULER
                                        from £22.82
                                        from £22.82
                                        # 021
                                        MPN: 748609
                                        RH DOOR PILLAR PULER
                                        from £22.82
                                        from £22.82
                                        # 022
                                        MPN: 85058100
                                        RECTANGULAR PLUG
                                        from £6.59
                                        from £6.59
                                        # 023
                                        MPN: 85692200
                                        SCREW
                                        -M5 X 10-
                                        from £0.47
                                        from £0.47
                                        # 024
                                        MPN: 16082801
                                        SCREW
                                        from £0.47
                                        from £0.47
                                        # 025
                                        MPN: 68700200
                                        CLIP
                                        from £2.08
                                        from £2.08
                                        # 026
                                        MPN: 84583500
                                        PLATE
                                        from £0.69
                                        from £0.69
                                        # 027
                                        MPN: 231618
                                        SCREW
                                        -M6 X 20-
                                        from £0.47
                                        from £0.47
                                        # 028
                                        MPN: 14441434
                                        SCREW
                                        -M6 X 20-
                                        from £1.08
                                        from £1.08
                                        This part replaces part number 14441427 which we have in stock - and 1 more. Click to view details
                                        # 029
                                        MPN: 85692200
                                        SCREW
                                        -M5 X 10-
                                        from £0.47
                                        from £0.47
                                        # 030
                                        MPN: 15643975
                                        SCREW
                                        from £0.61
                                        from £0.61
                                        This part replaces part number 15643978
                                        # 031
                                        MPN: 14300724
                                        SCREW
                                        -M6 X 90-
                                        from £2.40
                                        from £2.40
                                        # 032
                                        MPN: 65377400
                                        SCREW
                                        -M6 X 1 X 18-
                                        from £1.21
                                        from £1.21
                                        This part replaces part number 156814 - and 3 more. Click to view details
                                        # 033
                                        MPN: 64830600
                                        SCREW
                                        -M6 X 22- -Not for version with handle in carbon fibre-
                                        from £0.99
                                        from £0.99
                                        This part replaces part number 64882800 - and 1 more. Click to view details
                                        # 033
                                        MPN: 85834000
                                        SCREW
                                        -M5 X 25- -Carbon handle version-
                                        from £0.47
                                        from £0.47
                                        # 034
                                        MPN: 248334
                                        SCREW
                                        -M6 X 16-
                                        from £0.51
                                        from £0.51
                                        # 035
                                        MPN: 85691900
                                        SCREW
                                        -M5 X 8-
                                        from £0.51
                                        from £0.51
                                        # 036
                                        MPN: 85691900
                                        SCREW
                                        -M5 X 8- -Standard-
                                        from £0.53
                                        from £0.53
                                        # 036
                                        MPN: 85692200
                                        SCREW
                                        -M5 X 10- -Carbon version-
                                        from £0.47
                                        from £0.47
                                        # 037
                                        MPN: 15689809
                                        SCREW
                                        from £0.49
                                        from £0.49
                                        # 038
                                        MPN: 14115885
                                        BLOCK
                                        from £0.52
                                        from £0.52
                                        This part replaces part number 14202686 - and 1 more. Click to view details
                                        # 039
                                        MPN: 85691900
                                        SCREW
                                        -M5 X 8- -Version with carbon fibre centre medallion door panel-
                                        from £0.53
                                        from £0.53
                                        # 040
                                        MPN: 88928300
                                        LH CENTRAL MEDALLION DOOR PANEL SUBSTRUCTURE
                                        -Carbon version-
                                        from £2,944.13
                                        from £2,944.13
                                        # 040
                                        MPN: 88928400
                                        RH CENTRAL MEDALLION DOOR PANEL SUBSTRUCTURE
                                        -Carbon version-
                                        from £2,944.13
                                        from £2,944.13
                                        # 041
                                        MPN: 765503
                                        COMPL. RH ARMREST
                                        -Version with carbon fibre centre medallion door panel- -Black leather-
                                        from £397.45
                                        from £397.45
                                        # 041
                                        MPN: 765512
                                        COMPL. LH ARMREST
                                        -Version with carbon fibre centre medallion door panel- -Black leather-
                                        from £397.45
                                        from £397.45
                                        # 042
                                        MPN: 85691900
                                        SCREW
                                        -M5 X 8- -Version with carbon fibre centre medallion door panel-
                                        from £0.51
                                        from £0.51
                                        # 043
                                        MPN: 85833700
                                        SCREW
                                        -M5 X 14-
                                        from £0.47
                                        from £0.47
                                        # 044
                                        MPN: 807258
                                        CENTRE MEDALLION DOOR PANEL MOUNTING BRACKET
                                        -Version with carbon fibre centre medallion door panel-
                                        from £5.01
                                        from £5.01
                                        # 045
                                        MPN: 83888400
                                        DOOR ALIGNMENT FOAM PAD
                                        from £1.90
                                        from £1.90
                                        # 046
                                        MPN: 63343400
                                        SCREW
                                        -M4 X 15- -No longer supplied- -Replaced by 826584-
                                        from £1.36
                                        from £1.36
                                        # 046
                                        MPN: 826584
                                        SCREW
                                        from £0.47
                                        from £0.47
                                        # 047
                                        MPN: 12637801
                                        WASHER
                                        -No longer supplied-
                                        from £0.47
                                        from £0.47
                                        Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
