0121 - FRONT SEAT - SEAT BELTS, GUIDES AND ADJUSTMENT

Ferrari 812 Superfast (USA) FRONT SEAT - SEAT BELTS, GUIDES AND ADJUSTMENT Parts Diagram

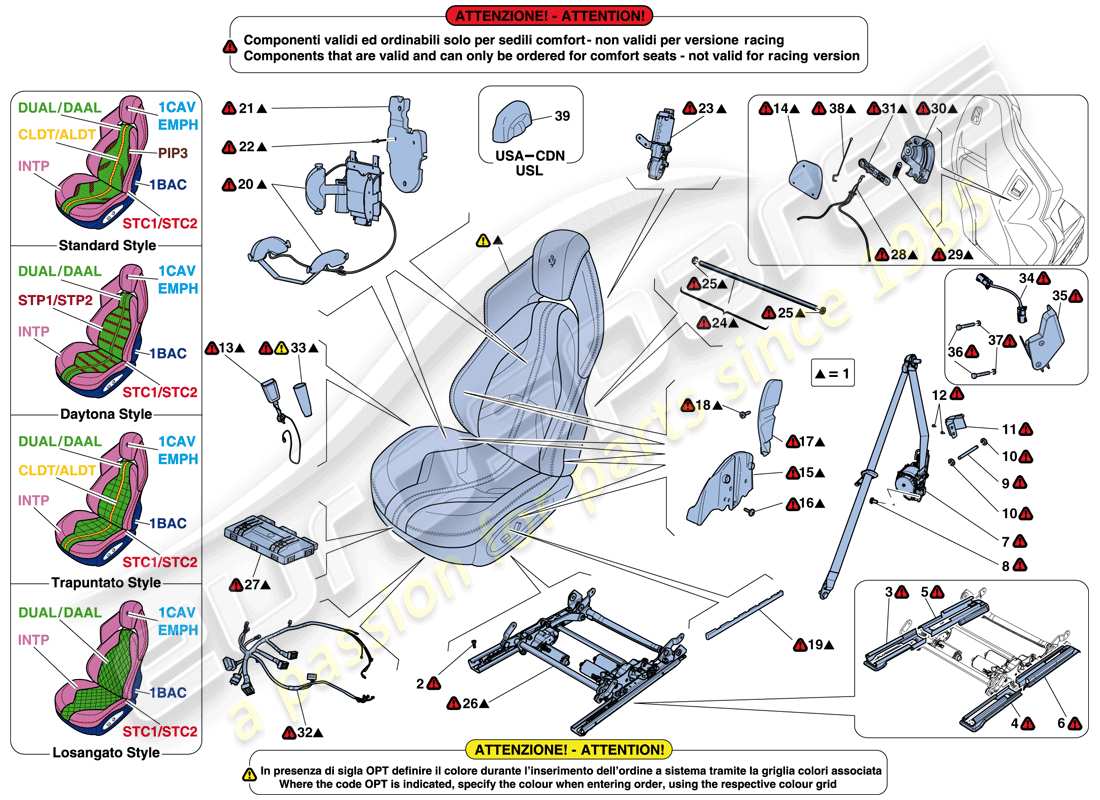

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Price
                                                      # 001
                                                      MPN: 803982
                                                      RH SEAT COMPLETE WITH GUIDE RAILS
                                                      -Base- -Base- -INTP- -DUAL- -DAAL- -1BAC- -CLDT- -ALDT- -PIP3- -EMPH- -1CAV- -STC1- -STC2- -Applicable for USA, CDN, USA LIGHT-
                                                      from £9,575.92
                                                      from £9,575.92
                                                      # 001
                                                      MPN: 803983
                                                      RH SEAT COMPLETE WITH GUIDE RAILS
                                                      -Quilted- -Full electric- -INTP- -DUAL- -DAAL- -1BAC- -CLDT- -ALDT- -EMPH- -1CAV- -STC1- -STC2- -Applicable for USA, CDN, USA LIGHT-
                                                      # 001
                                                      MPN: 803984
                                                      RH SEAT COMPLETE WITH GUIDE RAILS
                                                      -Quilted- -Base- -INTP- -DUAL- -DAAL- -1BAC- -CLDT- -ALDT- -EMPH- -1CAV- -STC1- -STC2- -Applicable for USA, CDN, USA LIGHT-
                                                      # 001
                                                      MPN: 803985
                                                      RH SEAT COMPLETE WITH GUIDE RAILS
                                                      -Diamond style pattern- -Full electric- -INTP- -DUAL- -DAAL- -1BAC- -EMPH- -1CAV- -STC1- -STC2- -Applicable for USA, CDN, USA LIGHT-
                                                      # 001
                                                      MPN: 803986
                                                      RH SEAT COMPLETE WITH GUIDE RAILS
                                                      -Daytona- -Full electric- -INTP- -DUAL- -DAAL- -1BAC- -STP1- -STP2- -EMPH- -1CAV- -STC1- -STC2- -Applicable for USA, CDN, USA LIGHT-
                                                      # 001
                                                      MPN: 803987
                                                      RH SEAT COMPLETE WITH GUIDE RAILS
                                                      -Base- -Full electric- -INTP- -DUAL- -DAAL- -1BAC- -CLDT- -ALDT- -PIP3- -EMPH- -1CAV- -STC1- -STC2- -Applicable for USA, CDN, USA LIGHT-
                                                      from £15,797.02
                                                      from £15,797.02
                                                      # 001
                                                      MPN: 803988
                                                      RH SEAT COMPLETE WITH GUIDE RAILS
                                                      -Diamond style pattern- -Base- -INTP- -DUAL- -DAAL- -1BAC- -EMPH- -1CAV- -STC1- -STC2- -Applicable for USA, CDN, USA LIGHT-
                                                      # 001
                                                      MPN: 803989
                                                      RH SEAT COMPLETE WITH GUIDE RAILS
                                                      -Daytona- -Base- -INTP- -DUAL- -DAAL- -1BAC- -STP1- -STP2- -EMPH- -1CAV- -STC1- -STC2- -Applicable for USA, CDN, USA LIGHT-
                                                      # 001
                                                      MPN: 88810300
                                                      LH SEAT COMPLETE WITH GUIDE RAILS
                                                      -Base- -Base- -INTP- -DUAL- -DAAL- -1BAC- -CLDT- -ALDT- -PIP3- -EMPH- -1CAV- -STC1- -STC2-
                                                      from £14,941.46
                                                      from £14,941.46
                                                      # 001
                                                      MPN: 88810500
                                                      LH SEAT COMPLETE WITH GUIDE RAILS
                                                      -Daytona- -Base- -INTP- -DUAL- -DAAL- -1BAC- -STP1- -STP2- -EMPH- -1CAV- -STC1- -STC2-
                                                      Supersession
                                                      Supersession
                                                      # 001
                                                      MPN: 88810700
                                                      LH SEAT COMPLETE WITH GUIDE RAILS
                                                      -Diamond style pattern- -Base- -INTP- -DUAL- -DAAL- -1BAC- -EMPH- -1CAV- -STC1- -STC2-
                                                      # 001
                                                      MPN: 88811200
                                                      LH SEAT COMPLETE WITH GUIDE RAILS
                                                      -Base- -Full electric- -INTP- -DUAL- -DAAL- -1BAC- -CLDT- -ALDT- -PIP3- -EMPH- -1CAV- -STC1- -STC2- -Not for GD-
                                                      from £15,486.87
                                                      from £15,486.87
                                                      # 001
                                                      MPN: 88811300
                                                      LH SEAT COMPLETE WITH GUIDE RAILS
                                                      -Daytona- -Full electric- -INTP- -DUAL- -DAAL- -1BAC- -STP1- -STP2- -EMPH- -1CAV- -STC1- -STC2- -Not for GD-
                                                      Supersession
                                                      Supersession
                                                      # 001
                                                      MPN: 88811400
                                                      LH SEAT COMPLETE WITH GUIDE RAILS
                                                      -Diamond style pattern- -Full electric- -INTP- -DUAL- -DAAL- -1BAC- -EMPH- -1CAV- -STC1- -STC2- -Not for GD-
                                                      # 001
                                                      MPN: 88812200
                                                      LH SEAT COMPLETE WITH GUIDE RAILS
                                                      -Base- -Full electric- -INTP- -DUAL- -DAAL- -1BAC- -CLDT- -ALDT- -PIP3- -EMPH- -1CAV- -STC1- -STC2- -Applicable for GD-
                                                      from £16,978.81
                                                      from £16,978.81
                                                      # 001
                                                      MPN: 88812300
                                                      LH SEAT COMPLETE WITH GUIDE RAILS
                                                      -Daytona- -Full electric- -INTP- -DUAL- -DAAL- -1BAC- -STP1- -STP2- -EMPH- -1CAV- -STC1- -STC2- -Applicable for GD-
                                                      from £17,176.70
                                                      from £17,176.70
                                                      # 001
                                                      MPN: 88812400
                                                      LH SEAT COMPLETE WITH GUIDE RAILS
                                                      -Diamond style pattern- -Full electric- -INTP- -DUAL- -DAAL- -1BAC- -EMPH- -1CAV- -STC1- -STC2- -Applicable for GD-
                                                      # 001
                                                      MPN: 88813200
                                                      RH SEAT COMPLETE WITH GUIDE RAILS
                                                      -Base- -Full electric- -INTP- -DUAL- -DAAL- -1BAC- -CLDT- -ALDT- -PIP3- -EMPH- -1CAV- -STC1- -STC2- -Applicable for GD-
                                                      from £17,717.01
                                                      from £17,717.01
                                                      # 001
                                                      MPN: 88813300
                                                      RH SEAT COMPLETE WITH GUIDE RAILS
                                                      -Daytona- -Full electric- -INTP- -DUAL- -DAAL- -1BAC- -STP1- -STP2- -EMPH- -1CAV- -STC1- -STC2- -Applicable for GD-
                                                      from £17,176.70
                                                      from £17,176.70
                                                      # 001
                                                      MPN: 88813400
                                                      RH SEAT COMPLETE WITH GUIDE RAILS
                                                      -Diamond style pattern- -Full electric- -INTP- -DUAL- -DAAL- -1BAC- -EMPH- -1CAV- -STC1- -STC2- -Applicable for GD-
                                                      # 001
                                                      MPN: 88814000
                                                      RH SEAT COMPLETE WITH GUIDE RAILS
                                                      -Base- -Base- -INTP- -DUAL- -DAAL- -1BAC- -CLDT- -ALDT- -PIP3- -EMPH- -1CAV- -STC1- -STC2- -Not for USA, CDN, USA LIGHT-
                                                      Supersession
                                                      Supersession
                                                      # 001
                                                      MPN: 88814100
                                                      RH SEAT COMPLETE WITH GUIDE RAILS
                                                      -Daytona- -Base- -INTP- -DUAL- -DAAL- -1BAC- -STP1- -STP2- -EMPH- -1CAV- -STC1- -STC2- -Not for USA, CDN, USA LIGHT-
                                                      Supersession
                                                      Supersession
                                                      # 001
                                                      MPN: 88814200
                                                      RH SEAT COMPLETE WITH GUIDE RAILS
                                                      -Diamond style pattern- -Base- -INTP- -DUAL- -DAAL- -1BAC- -EMPH- -1CAV- -STC1- -STC2- -Not for USA, CDN, USA LIGHT-
                                                      # 001
                                                      MPN: 88814500
                                                      RH SEAT COMPLETE WITH GUIDE RAILS
                                                      -Base- -Full electric- -INTP- -DUAL- -DAAL- -1BAC- -CLDT- -ALDT- -PIP3- -EMPH- -1CAV- -STC1- -STC2- -Not for USA, CDN, GD, USA LIGHT-
                                                      from £16,978.81
                                                      from £16,978.81
                                                      # 001
                                                      MPN: 88814600
                                                      RH SEAT COMPLETE WITH GUIDE RAILS
                                                      -Daytona- -Full electric- -INTP- -DUAL- -DAAL- -1BAC- -STP1- -STP2- -EMPH- -1CAV- -STC1- -STC2- -Not for USA, CDN, GD, USA LIGHT-
                                                      Supersession
                                                      Supersession
                                                      # 001
                                                      MPN: 88814700
                                                      RH SEAT COMPLETE WITH GUIDE RAILS
                                                      -Diamond style pattern- -Full electric- -INTP- -DUAL- -DAAL- -1BAC- -EMPH- -1CAV- -STC1- -STC2- -Not for USA, CDN, GD, USA LIGHT-
                                                      # 001
                                                      MPN: 89324400
                                                      LH SEAT COMPLETE WITH GUIDE RAILS
                                                      -Quilted- -Base- -INTP- -DUAL- -DAAL- -1BAC- -CLDT- -ALDT- -EMPH- -1CAV- -STC1- -STC2-
                                                      # 001
                                                      MPN: 89324500
                                                      LH SEAT COMPLETE WITH GUIDE RAILS
                                                      -Quilted- -Full electric- -INTP- -DUAL- -DAAL- -1BAC- -CLDT- -ALDT- -EMPH- -1CAV- -STC1- -STC2- -Not for GD-
                                                      # 001
                                                      MPN: 89324600
                                                      RH SEAT COMPLETE WITH GUIDE RAILS
                                                      -Quilted- -Base- -INTP- -DUAL- -DAAL- -1BAC- -CLDT- -ALDT- -EMPH- -1CAV- -STC1- -STC2- -Not for USA, CDN, USA LIGHT-
                                                      # 001
                                                      MPN: 89324700
                                                      RH SEAT COMPLETE WITH GUIDE RAILS
                                                      -Quilted- -Full electric- -INTP- -DUAL- -DAAL- -1BAC- -CLDT- -ALDT- -EMPH- -1CAV- -STC1- -STC2- -Not for USA, CDN, GD, USA LIGHT-
                                                      # 001
                                                      MPN: 89325000
                                                      LH SEAT COMPLETE WITH GUIDE RAILS
                                                      -Quilted- -Full electric- -INTP- -DUAL- -DAAL- -1BAC- -CLDT- -ALDT- -EMPH- -1CAV- -STC1- -STC2- -Applicable for GD-
                                                      # 001
                                                      MPN: 89325200
                                                      RH SEAT COMPLETE WITH GUIDE RAILS
                                                      -Quilted- -Full electric- -INTP- -DUAL- -DAAL- -1BAC- -CLDT- -ALDT- -EMPH- -1CAV- -STC1- -STC2- -Applicable for GD-
                                                      # 002
                                                      MPN: 82140000
                                                      SCREW
                                                      -Fastening seat-
                                                      from £1.68
                                                      from £1.68
                                                      # 003
                                                      MPN: 83957400
                                                      FRONT RH GUIDE RAIL COVER
                                                      from £6.62
                                                      from £6.62
                                                      # 004
                                                      MPN: 83957300
                                                      FRONT LH GUIDE RAIL COVER
                                                      from £6.62
                                                      from £6.62
                                                      # 005
                                                      MPN: 83957800
                                                      REAR RH GUIDE RAIL COVER, LH SEAT
                                                      from £6.62
                                                      from £6.62
                                                      # 005
                                                      MPN: 83958000
                                                      REAR RH GUIDE RAIL COVER, RH SEAT
                                                      from £6.62
                                                      from £6.62
                                                      # 006
                                                      MPN: 83957700
                                                      REAR LH GUIDE RAIL COVER, LH SEAT
                                                      from £6.62
                                                      from £6.62
                                                      # 006
                                                      MPN: 83957900
                                                      REAR LH GUIDE RAIL COVER, RH SEAT
                                                      from £6.62
                                                      from £6.62
                                                      # 007
                                                      MPN: 83409900
                                                      RH FRONT WINDER SECTION
                                                      -Standard- -Black- -Not for GD-
                                                      from £242.89
                                                      from £242.89
                                                      # 007
                                                      MPN: 83410000
                                                      LH FRONT WINDER SECTION
                                                      -Standard- -Black- -Not for GD-
                                                      from £441.61
                                                      from £441.61
                                                      # 007
                                                      MPN: 847915
                                                      RH FRONT WINDER SECTION
                                                      -Coloured- -Order 83409900 for black- -Not for GD-
                                                      Supersession
                                                      Supersession
                                                      This part replaces part number 813688
                                                      # 007
                                                      MPN: 847916
                                                      LH FRONT WINDER SECTION
                                                      -Coloured- -Order 83410000 for black- -Not for GD-
                                                      Supersession
                                                      Supersession
                                                      This part replaces part number 891029
                                                      # 007
                                                      MPN: 85041600
                                                      RH FRONT WINDER SECTION
                                                      -Standard- -Black- -Applicable for GD-
                                                      from £441.61
                                                      from £441.61
                                                      # 007
                                                      MPN: 850417..
                                                      RH FRONT WINDER SECTION
                                                      -Coloured- -Order 85041600 for black- -Applicable for GD-
                                                      from £209.01
                                                      from £209.01
                                                      # 007
                                                      MPN: 85041800
                                                      LH FRONT WINDER SECTION
                                                      -Standard- -Black- -Applicable for GD-
                                                      from £441.61
                                                      from £441.61
                                                      # 007
                                                      MPN: 850419..
                                                      LH FRONT WINDER SECTION
                                                      -Coloured- -Order 85041800 for black- -Applicable for GD-
                                                      from £200.00
                                                      from £200.00
                                                      # 008
                                                      MPN: 83911900
                                                      RETRACTOR SCREW
                                                      from £0.99
                                                      from £0.99
                                                      # 009
                                                      MPN: 69129500
                                                      ROLLER
                                                      from £1.83
                                                      from £1.83
                                                      # 010
                                                      MPN: 11087776
                                                      SNAP RING
                                                      from £0.47
                                                      from £0.47
                                                      # 011
                                                      MPN: 84716000
                                                      RH RETRACTOR TRIM
                                                      from £13.98
                                                      from £13.98
                                                      # 011
                                                      MPN: 84716100
                                                      LH RETRACTOR TRIM
                                                      from £13.98
                                                      from £13.98
                                                      # 012
                                                      MPN: 85692000
                                                      SCREW
                                                      -M5 X 10-
                                                      from £0.53
                                                      from £0.53
                                                      # 013
                                                      MPN: 80515900
                                                      SEAT BELT SECTION
                                                      from £150.15
                                                      from £150.15
                                                      # 014
                                                      MPN: 85384100
                                                      PROTECTIVE COVER FOR MOUNT
                                                      from £13.24
                                                      from £13.24
                                                      # 015
                                                      MPN: 85377700
                                                      RH LATERAL SUPPORT
                                                      from £36.79
                                                      from £36.79
                                                      # 015
                                                      MPN: 85377800
                                                      LH LATERAL SUPPORT
                                                      from £36.79
                                                      from £36.79
                                                      # 016
                                                      MPN: 82588000
                                                      SCREW
                                                      from £1.23
                                                      from £1.23
                                                      # 017
                                                      MPN: 85378200
                                                      RH LATERAL BACKREST SUPPORT
                                                      from £36.79
                                                      from £36.79
                                                      # 017
                                                      MPN: 85378300
                                                      LH LATERAL BACKREST SUPPORT
                                                      from £36.79
                                                      from £36.79
                                                      # 018
                                                      MPN: 82588000
                                                      SCREW
                                                      from £1.23
                                                      from £1.23
                                                      # 019
                                                      MPN: 83472500
                                                      LH MOULDING
                                                      from £22.09
                                                      from £22.09
                                                      # 019
                                                      MPN: 83472600
                                                      RH MOULDING
                                                      from £22.09
                                                      from £22.09
                                                      # 020
                                                      MPN: 85382600
                                                      LUMBAR SUPPORT + PNEUMATICALLY ADJUSTABLE BOLSTER KIT
                                                      -Full electric-
                                                      from £662.44
                                                      from £662.44
                                                      # 021
                                                      MPN: 86755100
                                                      LH LUMBAR SUPPORT FRAME
                                                      from £161.92
                                                      from £161.92
                                                      # 021
                                                      MPN: 86854200
                                                      RH LUMBAR SUPPORT FRAME
                                                      from £368.02
                                                      from £368.02
                                                      # 022
                                                      MPN: 82588300
                                                      RIVET
                                                      from £9.57
                                                      from £9.57
                                                      # 023
                                                      MPN: 82588900
                                                      ADJUSTMENT MOTOR
                                                      -Base- -Full electric on passenger side-
                                                      from £382.88
                                                      from £382.88
                                                      # 023
                                                      MPN: 82589000
                                                      ADJUSTMENT MOTOR
                                                      -Full electric-
                                                      from £414.25
                                                      from £414.25
                                                      # 024
                                                      MPN: 66328800
                                                      ADJUSTER CONNECTING BAR
                                                      from £22.40
                                                      from £22.40
                                                      # 025
                                                      MPN: 66328700
                                                      CROWN FASTENER
                                                      from £2.89
                                                      from £2.89
                                                      # 026
                                                      MPN: 82586000
                                                      UNDERSEAT FRAME
                                                      -Full electric- -Driver side-
                                                      from £1,496.64
                                                      from £1,496.64
                                                      # 026
                                                      MPN: 83245400
                                                      UNDERSEAT FRAME
                                                      -Base- -Full electric on passenger side-
                                                      from £997.74
                                                      from £997.74
                                                      # 027
                                                      MPN: 787085
                                                      NAG/NAP ECU
                                                      -Full electric-
                                                      from £463.71
                                                      from £463.71
                                                      # 028
                                                      MPN: 85383000
                                                      LH RELEASE CABLE
                                                      from £51.53
                                                      from £51.53
                                                      # 028
                                                      MPN: 85383100
                                                      RH RELEASE CABLE
                                                      from £51.53
                                                      from £51.53
                                                      # 029
                                                      MPN: 85383200
                                                      SPRING
                                                      from £2.88
                                                      from £2.88
                                                      # 030
                                                      MPN: 85383300
                                                      LH LEVER MOUNTING BRACKET
                                                      from £14.73
                                                      from £14.73
                                                      # 030
                                                      MPN: 85383600
                                                      RH LEVER MOUNTING BRACKET
                                                      from £14.73
                                                      from £14.73
                                                      # 031
                                                      MPN: 85383900
                                                      RELEASE LEVER
                                                      from £11.04
                                                      from £11.04
                                                      # 032
                                                      MPN: 787078
                                                      WIRING HARNESS
                                                      -Base-
                                                      from £161.92
                                                      from £161.92
                                                      # 032
                                                      MPN: 787081
                                                      DRIVER SIDE WIRING HARNESS
                                                      -Full electric-
                                                      from £426.91
                                                      from £426.91
                                                      # 032
                                                      MPN: 787082
                                                      PASSENGER SIDE WIRING HARNESS
                                                      -Full electric-
                                                      from £390.09
                                                      from £390.09
                                                      # 033
                                                      MPN: 790261
                                                      SEAT BELT BUCKLE SECTION SLEEVE
                                                      -INTP- -Leather- -STC1- -STC2-
                                                      from £147.39
                                                      from £147.39
                                                      # 034
                                                      MPN: 85515900
                                                      WIRING HARNESS
                                                      -Full electric-
                                                      from £66.33
                                                      from £66.33
                                                      # 035
                                                      MPN: 85516000
                                                      COMPLETE MICROSWITCH BRACKET
                                                      from £14.73
                                                      from £14.73
                                                      # 036
                                                      MPN: 85516100
                                                      SCREW
                                                      from £4.13
                                                      from £4.13
                                                      # 037
                                                      MPN: 85516200
                                                      SPACER
                                                      -Base-
                                                      from £2.03
                                                      from £2.03
                                                      # 038
                                                      MPN: 852246
                                                      RELEASE TIE-ROD
                                                      from £36.79
                                                      from £36.79
                                                      # 039
                                                      MPN: 85638600
                                                      BELT GUIDE SCREW COVER
                                                      -Applicable for USA, CDN, USA LIGHT-
                                                      from £33.12
                                                      from £33.12
                                                      This part replaces part number 83491700
