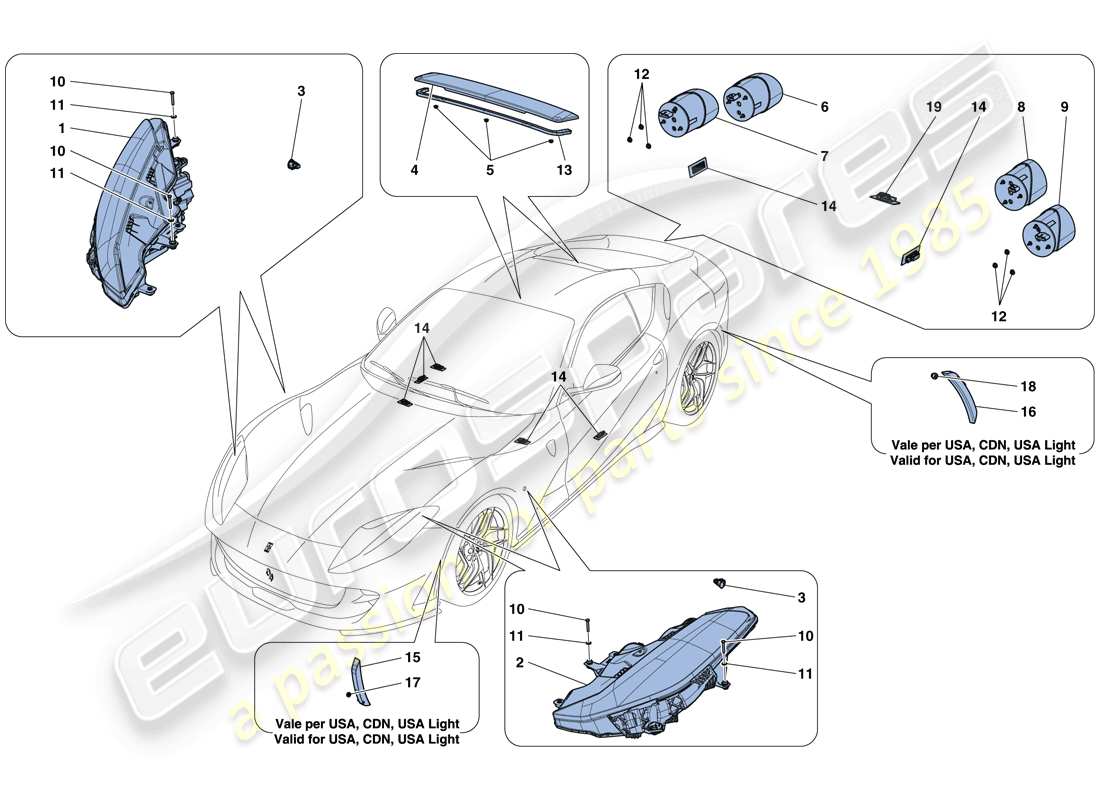

0131 - HEADLIGHTS AND TAILLIGHTS

Ferrari 812 Superfast (USA) HEADLIGHTS AND TAILLIGHTS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Key
                  Price
                  # 001
                  MPN: 325606
                  RH HEADLAMP
                  -Not for CINA, USA, CDN, J, GD, USA LIGHT-
                  from £1,802.54
                  from £1,802.54
                  RH HEADLAMP Genuine Ferrari Part - New (to order)
                  # 001
                  MPN: 336570
                  RH HEADLAMP
                  -AFS- -Not for CINA, USA, CDN, J, GD, USA LIGHT-
                  from £2,062.53
                  from £2,062.53
                  RH HEADLAMP AFS Genuine Ferrari Part - New (to order)
                  # 001
                  MPN: 336576
                  RH HEADLAMP
                  -Applicable for J, GD-
                  from £1,906.55
                  from £1,906.55
                  RH HEADLAMP Genuine Ferrari Part - New (to order)
                  # 001
                  MPN: 336581
                  RH HEADLAMP
                  -AFS- -Applicable for J, GD-
                  from £750.06
                  from £750.06
                  RH HEADLAMP AFS Genuine Ferrari Part - New (to order)
                  RH HEADLAMP AFS Genuine Ferrari Part - Damaged In stock
                  # 001
                  MPN: 338308
                  RH HEADLAMP
                  -Applicable for USA, CDN, USA LIGHT-
                  from £1,888.64
                  from £1,888.64
                  RH HEADLAMP Genuine Ferrari Part - New In stock
                  # 001
                  MPN: 338312
                  RH HEADLAMP
                  -AFS- -Applicable for USA, CDN, USA LIGHT-
                  from £2,184.98
                  from £2,184.98
                  RH HEADLAMP AFS Genuine Ferrari Part - New (to order)
                  # 001
                  MPN: 338466
                  RH HEADLAMP
                  -Applicable for CINA-
                  from £1,888.64
                  from £1,888.64
                  RH HEADLAMP Genuine Ferrari Part - New (to order)
                  # 001
                  MPN: 338470
                  RH HEADLAMP
                  -AFS- -Applicable for CINA-
                  from £2,184.98
                  from £2,184.98
                  RH HEADLAMP AFS Genuine Ferrari Part - New (to order)
                  # 002
                  MPN: 325605
                  LH HEADLAMP
                  -Not for CINA, USA, CDN, J, GD, USA LIGHT-
                  from £1,802.54
                  from £1,802.54
                  LH HEADLAMP Genuine Ferrari Part - New (to order)
                  # 002
                  MPN: 336568
                  LH HEADLAMP
                  -AFS- -Not for CINA, USA, CDN, J, GD, USA LIGHT-
                  from £2,062.53
                  from £2,062.53
                  LH HEADLAMP AFS Genuine Ferrari Part - New (to order)
                  # 002
                  MPN: 336572
                  LH HEADLAMP
                  -Applicable for J, GD-
                  from £667.29
                  from £667.29
                  LH HEADLAMP Genuine Ferrari Part - New (to order)
                  LH HEADLAMP Genuine Ferrari Part - Damaged In stock
                  # 002
                  MPN: 336578
                  LH HEADLAMP
                  -AFS- -Applicable for J, GD-
                  from £2,143.04
                  from £2,143.04
                  LH HEADLAMP AFS Genuine Ferrari Part - New (to order)
                  # 002
                  MPN: 338310
                  LH HEADLAMP
                  -Applicable for USA, CDN, USA LIGHT-
                  from £1,888.64
                  from £1,888.64
                  LH HEADLAMP Genuine Ferrari Part - New (to order)
                  # 002
                  MPN: 338314
                  LH HEADLAMP
                  -AFS- -Applicable for USA, CDN, USA LIGHT-
                  from £2,184.98
                  from £2,184.98
                  LH HEADLAMP AFS Genuine Ferrari Part - New (to order)
                  # 002
                  MPN: 338468
                  LH HEADLAMP
                  -Applicable for CINA-
                  from £1,888.64
                  from £1,888.64
                  LH HEADLAMP Genuine Ferrari Part - New (to order)
                  # 002
                  MPN: 338472
                  LH HEADLAMP
                  -AFS- -Applicable for CINA-
                  from £2,184.98
                  from £2,184.98
                  LH HEADLAMP AFS Genuine Ferrari Part - New (to order)
                  # 003
                  MPN: 317211
                  COMPL. LATERAL TURN INDICATOR
                  from £29.67
                  from £29.67
                  LATERAL TURN INDICATOR Genuine Ferrari Part - New In stock
                  LATERAL TURN INDICATOR Genuine Ferrari Part - Used In stock
                  # 004
                  MPN: 330893
                  THIRD STOP LIGHT
                  from £101.42
                  from £101.42
                  THIRD STOP LIGHT Genuine Ferrari Part - New (to order)
                  THIRD STOP LIGHT Genuine Ferrari Part - Used In stock
                  # 005
                  MPN: 14059211
                  NUT
                  from £0.47
                  from £0.47
                  NUT Genuine Ferrari Part - New In stock
                  NUT (14059211) Genuine Maserati Part - New In stock
                  # 006
                  MPN: 322257
                  INNER RH TAILLIGHT
                  from £220.26
                  from £220.26
                  INNER RH TAILLIGHT Genuine Ferrari Part - New (to order)
                  INNER RH TAILLIGHT Genuine Ferrari Part - Used In stock
                  # 007
                  MPN: 317207
                  OUTER RH TAILLIGHT
                  -Applicable for Korea and Brazil- -Not for USA, CDN-
                  from £396.29
                  from £396.29
                  OUTER RH TAILLIGHT Genuine Ferrari Part - New In stock
                  # 007
                  MPN: 325107
                  OUTER RH TAILLIGHT
                  -Not for Korea and Brazil- -Applicable for USA, CDN, USA LIGHT-
                  from £392.50
                  from £392.50
                  OUTER RH TAILLIGHT Genuine Ferrari Part - New In stock
                  # 008
                  MPN: 322258
                  INNER LH TAILLIGHT
                  from £220.26
                  from £220.26
                  INNER LH TAILLIGHT Genuine Ferrari Part - New (to order)
                  INNER LH TAILLIGHT Genuine Ferrari Part - Used In stock
                  # 009
                  MPN: 317208
                  OUTER LH TAILLIGHT
                  -Applicable for Korea and Brazil- -Not for USA, CDN-
                  from £396.29
                  from £396.29
                  OUTER LH TAILLIGHT Genuine Ferrari Part - New (to order)
                  # 009
                  MPN: 325108
                  OUTER LH TAILLIGHT
                  -Not for Korea and Brazil- -Applicable for USA, CDN, USA LIGHT-
                  from £392.50
                  from £392.50
                  OUTER LH TAIL LIGHT Genuine Ferrari Part - New In stock
                  # 010
                  MPN: 10903224
                  SCREW
                  -M6 X 40-
                  from £0.47
                  from £0.47
                  This part replaces part number 10903221
                  SCREW Genuine Ferrari Part - New In stock
                  SCREW (10903224) Genuine Maserati Part - New (to order)
                  # 011
                  MPN: 12647604
                  WASHER
                  from £0.47
                  from £0.47
                  WASHER Genuine Ferrari Part - New In stock
                  # 012
                  MPN: 14039614
                  NUT
                  from £0.50
                  from £0.50
                  NUT Genuine Ferrari Part - New In stock
                  DADO E AUTOBLOC C/ROS CON IM (14039614) Genuine Maserati Part - New In stock
                  # 013
                  MPN: 343141
                  GASKET
                  -Applicable until depletion-
                  Supersession
                  Supersession
                  Genuine Ferrari Part (no longer available to order)
                  # 013
                  MPN: 831264
                  GASKET
                  -Applicable after depletion of 343141-
                  from £11.34
                  from £11.34
                  This part replaces part number 343141
                  GASKET Genuine Ferrari Part - New (to order)
                  # 014
                  MPN: 318013
                  LIGHT UNIT 1, LED
                  from £10.91
                  from £10.91
                  LIGHT UNIT Genuine Ferrari Part - New (to order)
                  LIGHT UNIT Genuine Ferrari Part - Used In stock
                  # 015
                  MPN: 87329500
                  LH FRONT SIDE MARKER
                  -Applicable for USA, CDN, USA LIGHT-
                  from £40.32
                  from £40.32
                  LH FRONT SIDE MARKER Genuine Ferrari Part - New (to order)
                  # 015
                  MPN: 87329600
                  RH FRONT SIDE MARKER
                  -Applicable for USA, CDN, USA LIGHT-
                  from £40.32
                  from £40.32
                  RH FRONT SIDE MARKER Genuine Ferrari Part - New (to order)
                  # 016
                  MPN: 87329700
                  LH REAR SIDE MARKER
                  -Applicable for USA, CDN, USA LIGHT-
                  from £40.32
                  from £40.32
                  LH REAR SIDE MARKER Genuine Ferrari Part - New (to order)
                  # 016
                  MPN: 87329800
                  RH REAR SIDE MARKER
                  -Applicable for USA, CDN, USA LIGHT-
                  from £40.32
                  from £40.32
                  RH REAR SIDE MARKER Genuine Ferrari Part - New (to order)
                  # 017
                  MPN: 84784600
                  WASHER FOR PIN
                  -Applicable for USA, CDN, USA LIGHT-
                  from £12.35
                  from £12.35
                  WASHER FOR PIN Genuine Ferrari Part - New (to order)
                  FASTENING PIN #(Image not available)# (84784600) Genuine Maserati Part - New (to order)
                  # 018
                  MPN: 89241300
                  NUT
                  -Applicable for USA, CDN, USA LIGHT-
                  from £8.24
                  from £8.24
                  NUT Genuine Ferrari Part - New In stock
                  # 019
                  MPN: 318013
                  LIGHT UNIT 1, LED
                  -Applicable up to Ass. No. 158352-
                  from £10.91
                  from £10.91
                  LIGHT UNIT Genuine Ferrari Part - New (to order)
                  LIGHT UNIT Genuine Ferrari Part - Used In stock
