0139 - INFOTAINMENT SYSTEM

Ferrari 812 Superfast (USA) INFOTAINMENT SYSTEM Parts Diagram

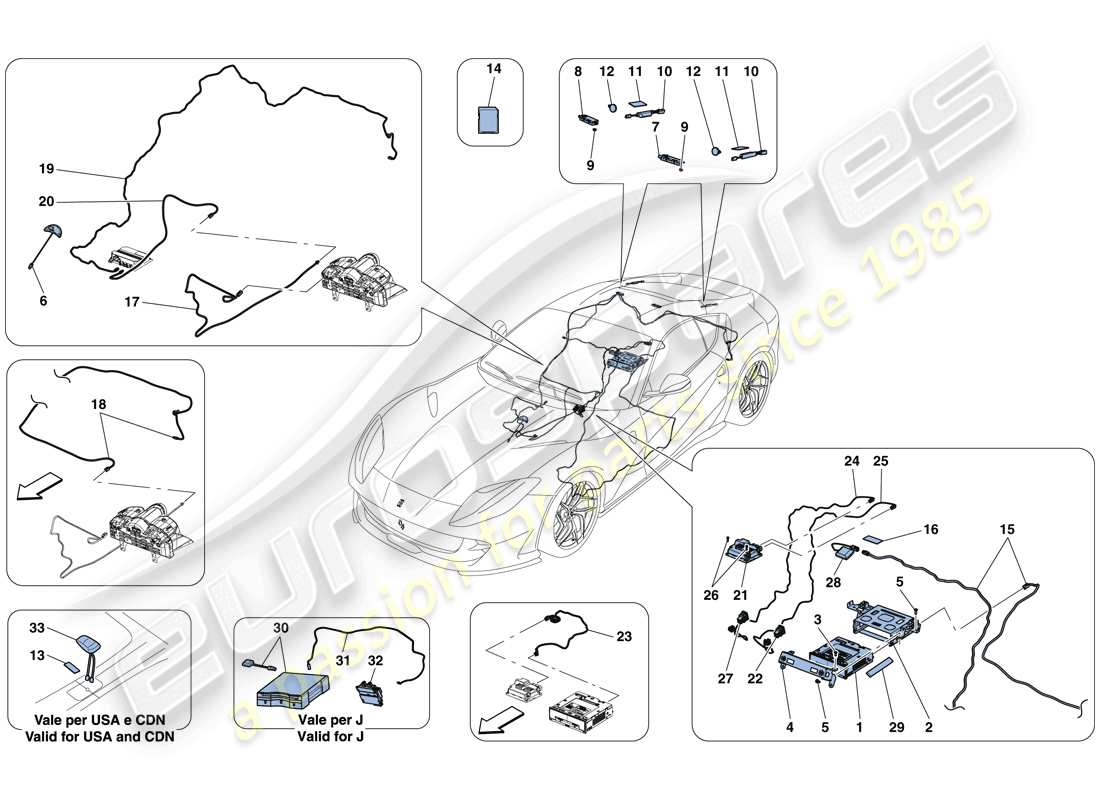

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Price
                            # 001
                            MPN: 335389
                            NIT
                            -Not for USA, CDN, J-
                            from £1,408.31
                            from £1,408.31
                            # 001
                            MPN: 335390
                            NIT
                            -Applicable for USA, CDN-
                            from £3,326.37
                            from £3,326.37
                            # 001
                            MPN: 335391
                            NIT
                            -Applicable for J-
                            from £3,326.37
                            from £3,326.37
                            # 002
                            MPN: 339006
                            NIT MOUNTING BRACKET
                            from £77.25
                            from £77.25
                            # 003
                            MPN: 85833700
                            SCREW
                            -M5 X 14-
                            from £0.47
                            from £0.47
                            # 004
                            MPN: 339218
                            COMPL. LUGGAGE RETAINER LIP FASTENER BRACKET
                            from £16.27
                            from £16.27
                            # 005
                            MPN: 65377400
                            SCREW
                            -M6 X 1 X 18-
                            from £1.21
                            from £1.21
                            This part replaces part number 156814 - and 3 more. Click to view details
                            # 006
                            MPN: 286160
                            BLUETOOTH ANTENNA
                            from £165.13
                            from £165.13
                            # 007
                            MPN: 277243
                            AM/FM AMPLIFIER
                            from £45.33
                            from £45.33
                            # 008
                            MPN: 284486
                            FM2/DAB AMPLIFIER
                            from £87.41
                            from £87.41
                            # 009
                            MPN: 14059111
                            NUT
                            from £0.47
                            from £0.47
                            # 010
                            MPN: 263421
                            POSITIVE FILTER
                            from £21.76
                            from £21.76
                            This part replaces part number 263423 - and 2 more. Click to view details
                            # 011
                            MPN: 179309
                            ADHESIVE FOAM
                            from £2.20
                            from £2.20
                            # 012
                            MPN: 217854
                            RING CLAMP
                            from £0.53
                            from £0.53
                            # 013
                            MPN: 179309
                            ADHESIVE FOAM
                            -Applicable for USA, CDN-
                            from £2.20
                            from £2.20
                            # 014
                            MPN: 336947
                            sd card
                            from £437.27
                            from £437.27
                            # 015
                            MPN: 341252
                            GPS ANTENNA CABLE
                            -Version without telemetry- -Not for USA, CDN-
                            from £41.39
                            from £41.39
                            # 016
                            MPN: 179309
                            ADHESIVE FOAM
                            from £2.20
                            from £2.20
                            # 017
                            MPN: 317426
                            PARKING CAMERA DASHBOARD WIRING HARNESS
                            -Version with analogue or digital camera-
                            from £97.76
                            from £97.76
                            # 018
                            MPN: 329363
                            WIRING HARNESS FOR ANALOGUE REAR CAMERA
                            -Version with analogue rear camera- -No longer supplied- -Replaced by 771542-
                            from £166.03
                            from £166.03
                            This part replaces part number 325070
                            # 018
                            MPN: 771542
                            WIRING HARNESS FOR ANALOGUE REAR CAMERA
                            -Version with analogue rear camera-
                            Supersession
                            Supersession
                            # 019
                            MPN: 329362
                            REAR DIGITAL CAMERA VIDEO CABLE
                            -Version with front and rear digital cameras- -No longer supplied- -Replaced by 771541-
                            from £185.57
                            from £185.57
                            This part replaces part number 325072
                            # 019
                            MPN: 771541
                            REAR DIGITAL CAMERA VIDEO CABLE
                            -Version with front and rear digital cameras-
                            from £101.64
                            from £101.64
                            # 020
                            MPN: 317425
                            PARKING CAMERA WIRING HARNESS
                            -Version with front and rear digital cameras-
                            from £81.38
                            from £81.38
                            # 021
                            MPN: 337571
                            USB SPLITTER
                            -Applicable for Apple Car Play- -Not for J-
                            from £211.40
                            from £211.40
                            This part replaces part number 320420 - and 2 more. Click to view details
                            # 022
                            MPN: 317086
                            NDM USB PORT
                            -Applicable for Apple Car Play-
                            from £20.94
                            from £20.94
                            # 023
                            MPN: 320423
                            NIT-SPLITTER CABLE
                            -Applicable for Apple Car Play-
                            from £159.35
                            from £159.35
                            # 024
                            MPN: 320422
                            USB-NIT SPLITTER-SOCKET CABLE
                            -Applicable for Apple Car Play-
                            from £183.84
                            from £183.84
                            # 025
                            MPN: 311948
                            CABLE FROM USB TO NDM
                            -Applicable for Apple Car Play-
                            from £91.69
                            from £91.69
                            This part replaces part number 309771 - and 2 more. Click to view details
                            # 026
                            MPN: 14303024
                            SCREW
                            -M4 X 12- -Applicable for Apple Car Play-
                            from £0.51
                            from £0.51
                            This part replaces part number 14303021 - and 1 more. Click to view details
                            # 027
                            MPN: 303226
                            USB SOCKET
                            from £18.90
                            from £18.90
                            # 028
                            MPN: 789209
                            NAVIGATION SYSTEM GPS ANTENNA
                            -Not for USA, CDN-
                            from £26.96
                            from £26.96
                            This part replaces part number 331961 - and 5 more. Click to view details
                            # 028
                            MPN: 789209
                            NAVIGATION SYSTEM GPS ANTENNA
                            -Version with telemetry- -Applicable for USA, CDN-
                            from £26.96
                            from £26.96
                            This part replaces part number 331961 - and 5 more. Click to view details
                            # 028
                            MPN: 931307432
                            NAVIGATION SYSTEM GPS ANTENNA
                            -No longer supplied- -Replaced by 789209-
                            Supersession
                            Supersession
                            # 029
                            MPN: 255515
                            PLUG
                            from £1.24
                            from £1.24
                            This part replaces part number 84069800 - and 1 more. Click to view details
                            # 030
                            MPN: 336234
                            DSRC/VICS KIT
                            -Applicable for J-
                            from £1,936.82
                            from £1,936.82
                            # 031
                            MPN: 338458
                            DSRC/HUB CABLE
                            -Applicable for J-
                            from £351.86
                            from £351.86
                            # 032
                            MPN: 337572
                            4-WAY USB HUB
                            -Applicable for J-
                            from £532.22
                            from £532.22
                            # 033
                            MPN: 893597..
                            SDARS/GNSS COMBO ANTENNA
                            -Applicable for USA, CDN-
                            Supersession
                            Supersession
