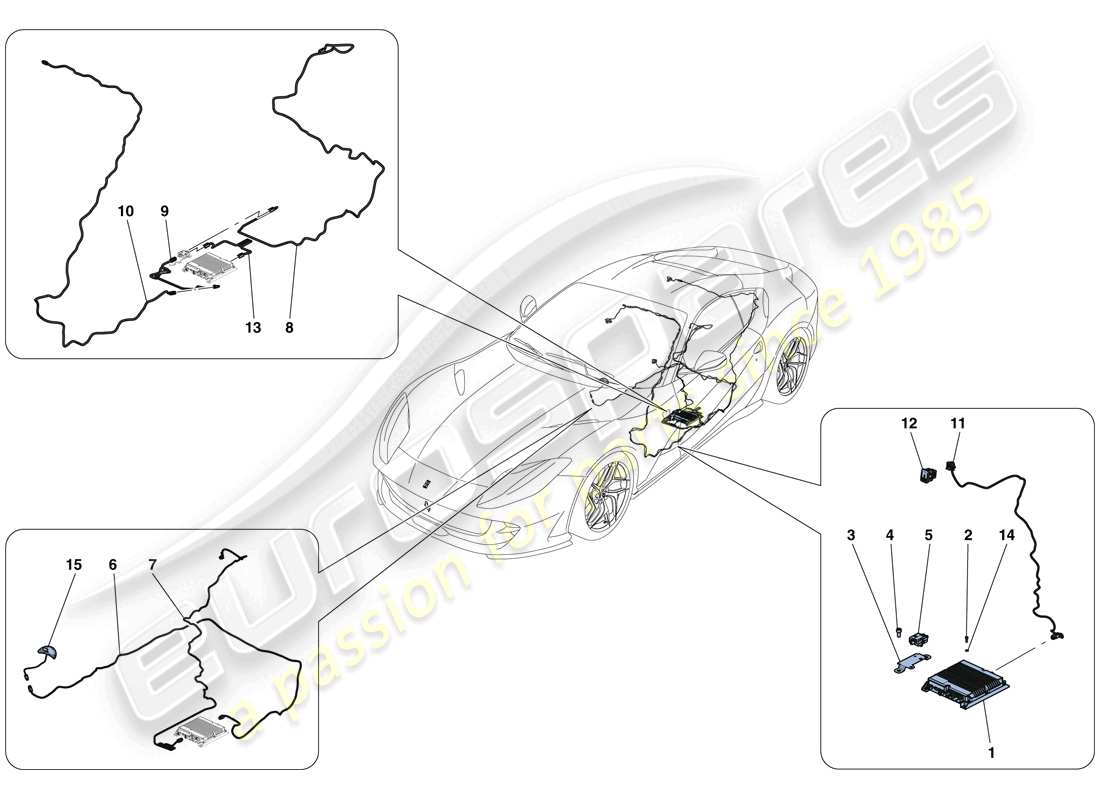

Ferrari 812 Superfast (USA) TELEMETRY Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Price
                        # 001
                        MPN: 338247
                        NTM TELEMETRY NODE
                        from £8,972.58
                        from £8,972.58
                        # 002
                        MPN: 14303024
                        SCREW
                        -M4 X 12-
                        from £0.51
                        from £0.51
                        This part replaces part number 14303021 - and 1 more. Click to view details
                        # 003
                        MPN: 338516
                        GPS ANTENNA SPLITTER BRACKET
                        -Not for USA, CDN-
                        from £11.04
                        from £11.04
                        # 004
                        MPN: 14306224
                        SCREW
                        -M8 X 16-
                        from £0.47
                        from £0.47
                        This part replaces part number 14306221 - and 1 more. Click to view details
                        # 005
                        MPN: 293328
                        GPS-NTM ANTENNA SPLITTER
                        -Not for USA, CDN-
                        from £83.19
                        from £83.19
                        # 006
                        MPN: 305235
                        WI-FI ANTENNA NTM CONNECTOR CABLE
                        from £44.24
                        from £44.24
                        This part replaces part number 297132 - and 1 more. Click to view details
                        # 007
                        MPN: 319165
                        LVDS NIT-NDC VIDEO CABLE
                        from £146.91
                        from £146.91
                        # 008
                        MPN: 302295
                        GPS-NTM ANTENNA SPLITTER EXTENSION CABLE
                        from £33.52
                        from £33.52
                        # 009
                        MPN: 283375
                        GPS ANTENNA EXTENSION CABLE NAV DASHBOARD
                        from £24.21
                        from £24.21
                        # 010
                        MPN: 304817
                        GPS-NTM ANTENNA CABLE
                        from £60.36
                        from £60.36
                        # 011
                        MPN: 342919
                        TELEMETRY USB SOCKET CABLE
                        from £150.45
                        from £150.45
                        # 012
                        MPN: 303226
                        USB SOCKET
                        from £18.82
                        from £18.82
                        # 013
                        MPN: 301322
                        GPS-NIT ANTENNA SPLITTER EXTENSION CABLE
                        from £21.25
                        from £21.25
                        # 014
                        MPN: 14497704
                        WASHER
                        from £0.47
                        from £0.47
                        # 015
                        MPN: 286161
                        WIFI ANTENNA
                        from £73.17
                        from £73.17
