0041 - PARKING BRAKE

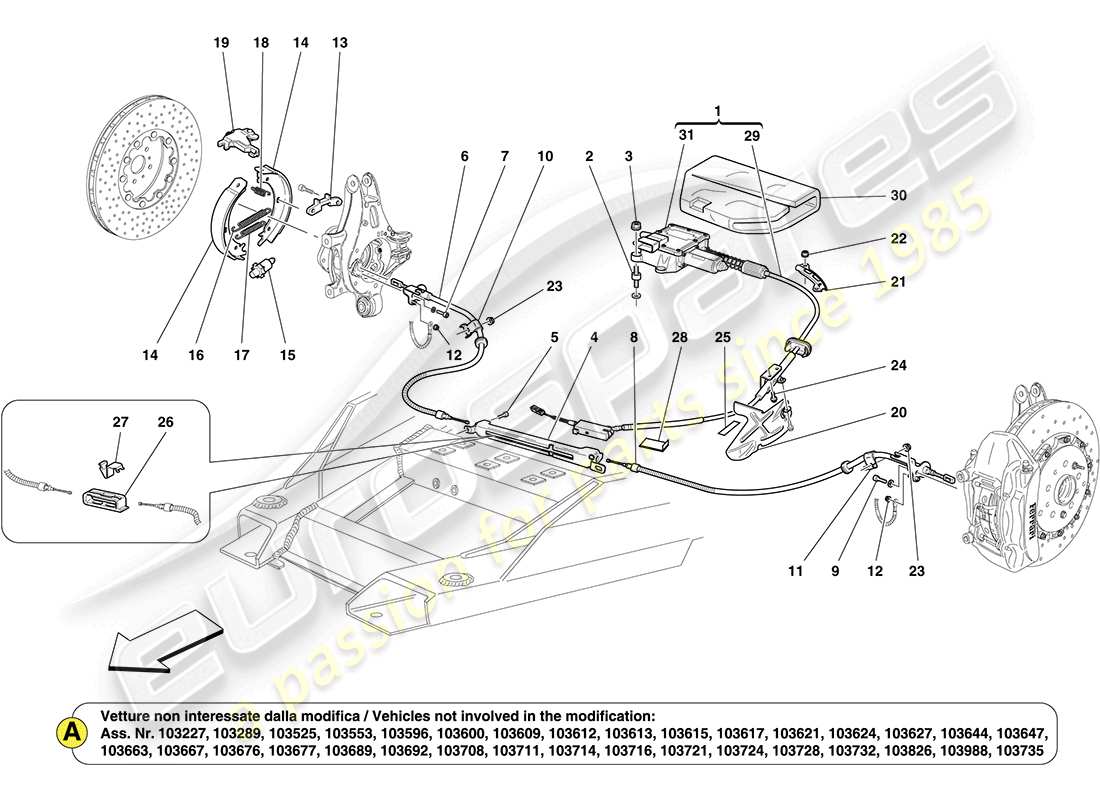

Ferrari California (Europe) PARKING BRAKE Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 238547
COMPLETE ELECTRONIC ACTUATOR
-Applicable up to Ass. No. 103178- -No longer supplied- -Replaced by 281143-
Supersession
Supersession
# 001
MPN: 281143

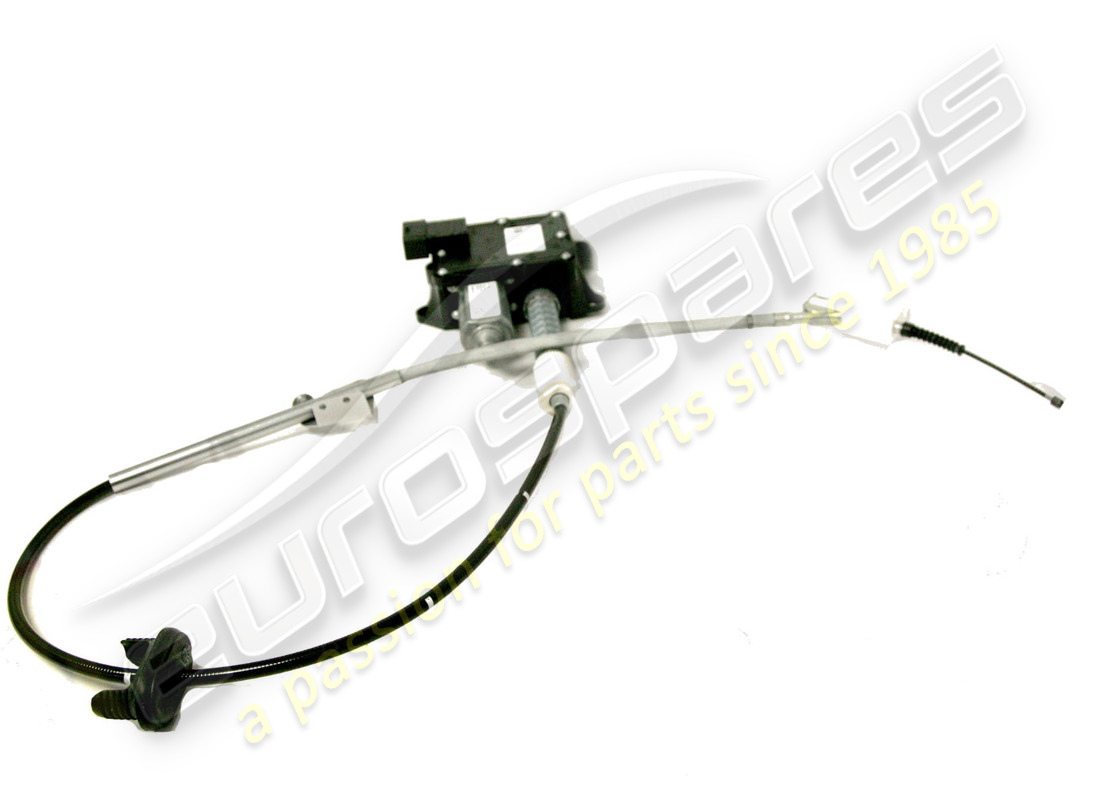

COMPL. ELECTRONIC ACTUATOR
-Applicable up to Ass. No. 103178-
from £1,076.43
from £1,076.43
This part replaces part number 238547 - and 1 more. Click to view details
# 002
MPN: 225408
VIBRATION DAMPER
from £4.39
from £4.39
# 002
MPN: 252018
PLUG
-No longer supplied- -Replaced by 225408-
from £4.75
from £4.75
# 003
MPN: 14059214
NUT
from £0.47
from £0.47
# 004
MPN: 238549
EQUALISER BRACKET
-Applicable up to Ass. No. 103178-
from £13.29
from £13.29
# 004
MPN: 279324
EQUALISER BRACKET
-See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
from £15.88
from £15.88
# 005
MPN: 11568027
SCREW
from £0.80
from £0.80
# 006
MPN: 247322
RH HAND BRAKE CABLE
Supersession
Supersession
# 007
MPN: 11568027
SCREW
from £0.80
from £0.80
# 008
MPN: 247323
LH HAND BRAKE CABLE
from £37.76
from £37.76
# 009
MPN: 11568027
SCREW
from £0.80
from £0.80
# 010
MPN: 247234
RH BRACKET
from £8.01
from £8.01
# 011
MPN: 247084
LH BRACKET
from £8.01
from £8.01
# 012
MPN: 14059211
NUT
from £0.47
from £0.47
# 013
MPN: 240953
REACTION PLATE
from £6.29
from £6.29
# 014
MPN: 240948

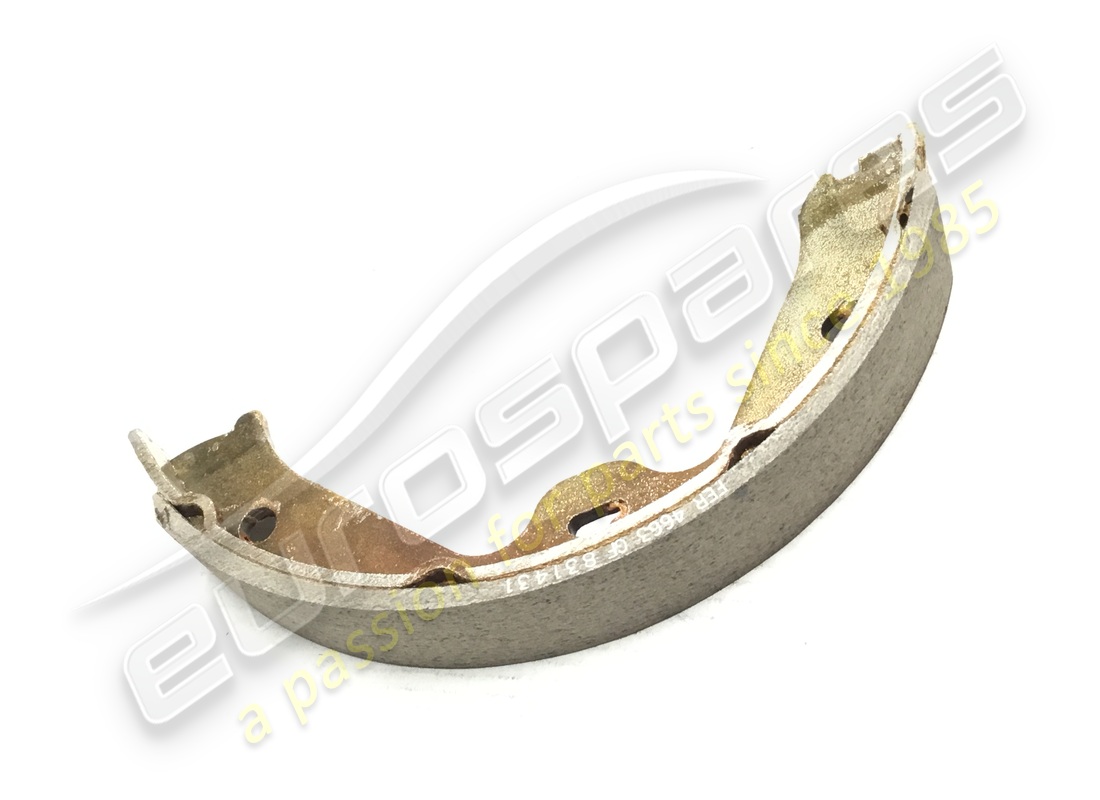

PARKING BRAKE SHOE
from £132.21
from £132.21
# 015
MPN: 186572

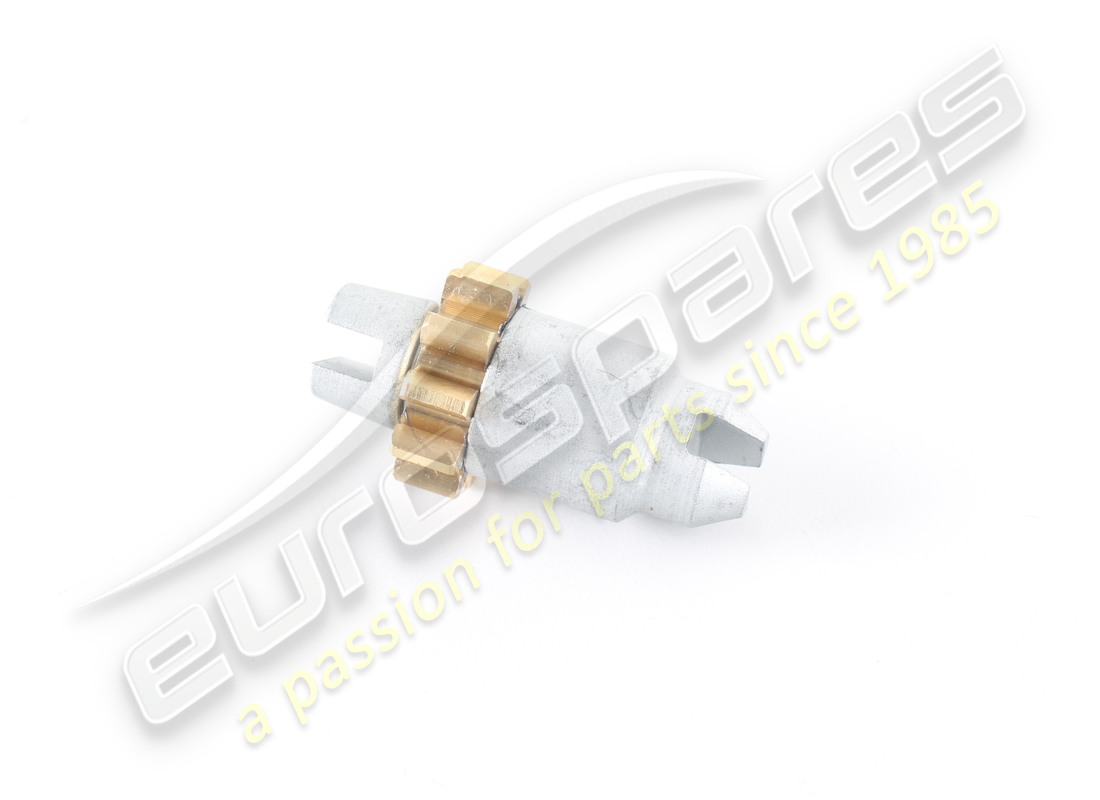

ADJUSTER
from £22.61
from £22.61
# 016
MPN: 240947
LONG EXTENSION SPRING
from £4.16
from £4.16
# 017
MPN: 243123
SHORT EXTENSION SPRING
from £4.16
from £4.16
# 018
MPN: 240952
FASTENER SPRING
from £6.13
from £6.13
# 019
MPN: 194060
HAND BRAKE CONTROL LEVER
-No longer supplied- -Replaced by 254156-
from £47.06
from £47.06
# 019
MPN: 254156
COMPL. PARKING BRAKE LEVER
from £42.01
from £42.01
This part replaces part number 234658 which we have in stock - and 1 more. Click to view details
# 020
MPN: 248300
EPB CABLE HEAT SHIELD
from £14.01
from £14.01
This part replaces part number 256074 - and 2 more. Click to view details
# 020
MPN: 256074
HEAT SHIELD
-Not for DCT-F1 gearbox (Applicable for mechanical gearbox)- -No longer supplied- -Replaced by 248300-
Supersession
Supersession
# 021
MPN: 247441
CABLE GUIDE RETAINER
from £7.41
from £7.41
# 022
MPN: 14058411
NUT
from £0.47
from £0.47
# 023
MPN: 14059211
NUT
from £0.47
from £0.47
# 024
MPN: 11566224
SCREW
from £0.54
from £0.54
# 025
MPN: 260355
ADHESIVE SEAL
from £2.89
from £2.89
# 026
MPN: 245964
CAGE
from £6.40
from £6.40
# 027
MPN: 245162
CLIP
from £2.01
from £2.01
# 028
MPN: 239924
RETAINER KEY
from £2.74
from £2.74
# 029
MPN: 264092
CABLE FROM ACTUATOR TO EQUALISER
-Replaced by 281143 ref. 1- -Applicable up to Ass. No. 103178- -No longer supplied-
Supersession
Supersession
# 029
MPN: 286139

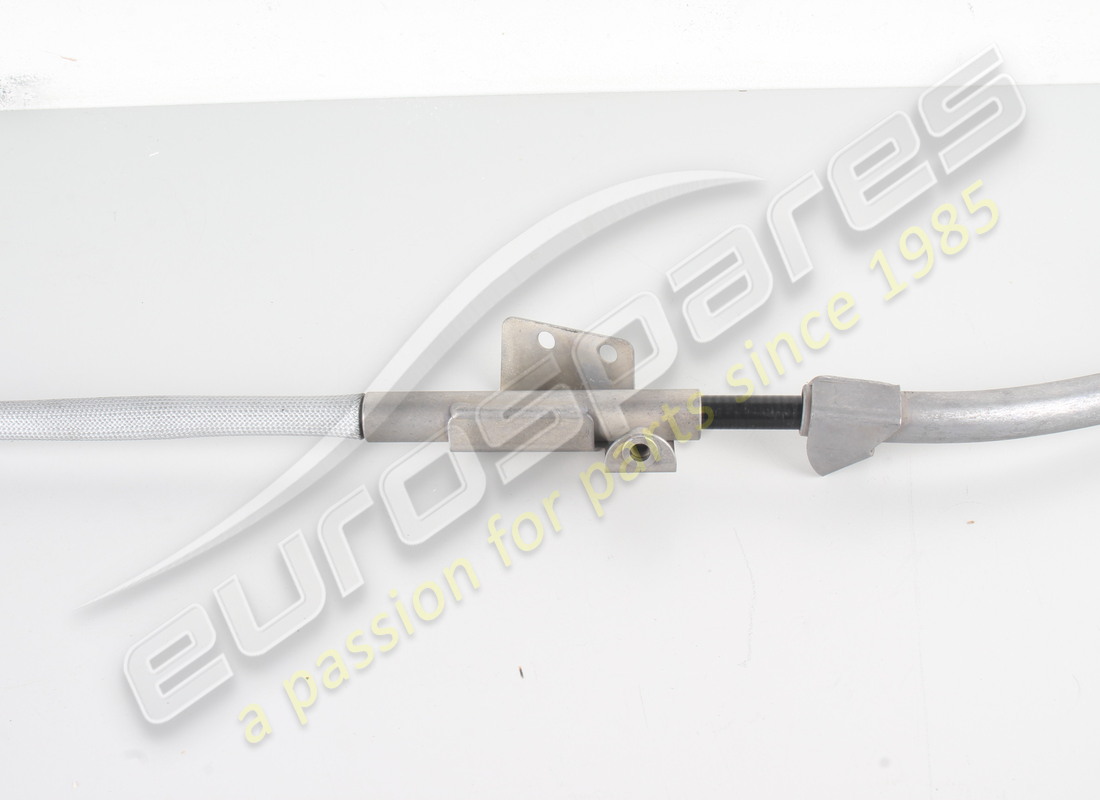

CABLE FROM ACTUATOR TO EQUALISER
-See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
from £228.21
from £228.21
# 030
MPN: 81752900
EPB INSULATION
from £40.83
from £40.83
# 031
MPN: 277500
ELECTRONIC ACTUATOR
-See note A for Ass. Numbers of vehicles not affected by modification- -Without cable- -Applicable from Ass. No. 103179-
from £1,594.37
from £1,594.37
