ferrari california (europe) centre bodyshell and external trim parts diagram

0103 - centre bodyshell and external trim

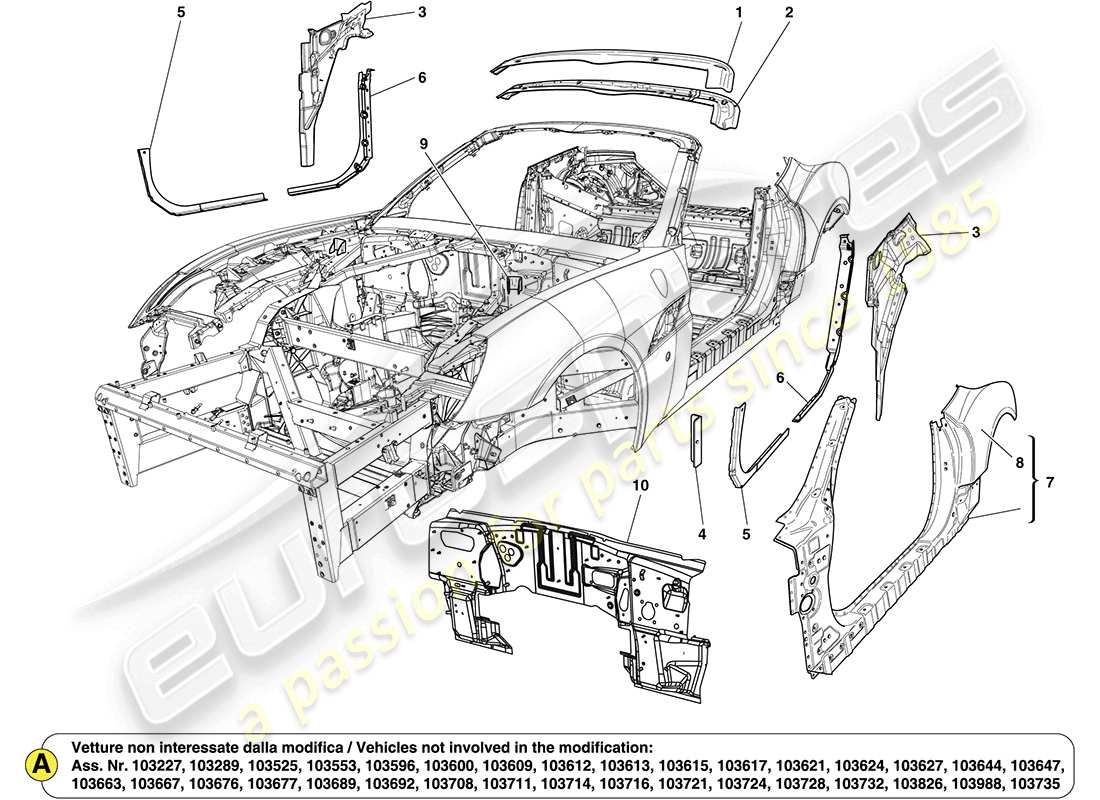

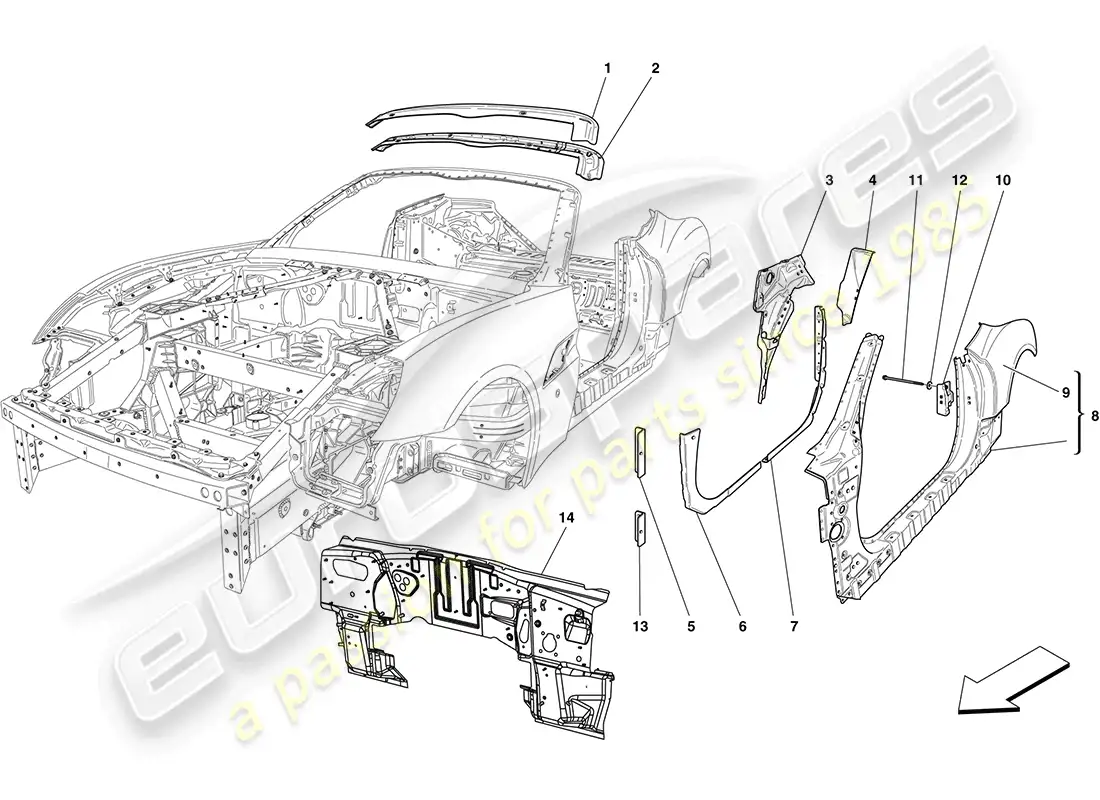

Ferrari California (Europe) CENTRE BODYSHELL AND EXTERNAL TRIM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 81436811
COMPLETE WINDSHIELD UPPER CROSS MEMBER
-Request ASM authorisation- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
from £136.29
from £136.29
This part replaces part number 81436800
COMPLETE WINDSHIELD UPPER CR Genuine Ferrari Part - New (to order)
# 002
MPN: 69874511
COMPLETE UPPER CROSS MEMBER REINFORCEMENT
-Request ASM authorisation- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
from £507.33
from £507.33
This part replaces part number 69874500
COMPLETE UPPER CROSS MEMBER Genuine Ferrari Part - New (to order)
# 003
MPN: 84055311
COMPL. RH REAR WINDOW LIFTER MOUNT
-Request ASM authorisation- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
# 003
MPN: 84055511
COMPL. LH REAR WINDOW LIFTER MOUNT
-Request ASM authorisation- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
# 004
MPN: 69980311
PILLAR FRONT FLANGE
-See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
# 005
MPN: 83961300
REAR FLANGE FOR LH FRONT PILLAR
-Request ASM authorisation- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
from £43.07
from £43.07
This part replaces part number 83961311
REAR FLANGE FOR LH FRONT PIL Genuine Ferrari Part - New (to order)
# 005
MPN: 83961400
REAR FLANGE FOR RH FRONT PILLAR
-Request ASM authorisation- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
from £43.07
from £43.07
This part replaces part number 83961411
REAR FLANGE FOR RH FRONT PIL Genuine Ferrari Part - New (to order)
# 006
MPN: 83961700
LH PILLAR SEAL MOUNT
-Request ASM authorisation- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
from £129.98
from £129.98
This part replaces part number 83961711
LH PILLAR SEAL MOUNT Genuine Ferrari Part - New (to order)
# 006
MPN: 83961800
RH PILLAR SEAL MOUNT
-Request ASM authorisation- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
from £129.98
from £129.98
This part replaces part number 83961811
RH PILLAR SEAL MOUNT Genuine Ferrari Part - New (to order)
# 007
MPN: 81962711
COMPLETE LH LATERAL PANEL
-Request ASM authorisation- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
from £4,247.14
from £4,247.14
COMPLETE LH LATERAL PANEL Genuine Ferrari Part - New (to order)
COMPLETE LH LATERAL PANEL Genuine Ferrari Part - Used In stock
PRIMERED
# 007
MPN: 81962911
COMPLETE RH LATERAL PANEL
-Request ASM authorisation- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
from £4,247.14
from £4,247.14
COMPLETE RH LATERAL PANEL Genuine Ferrari Part - New (to order)
COMPLETE RH LATERAL PANEL Genuine Ferrari Part - Used In stock
PRIMERED
# 008
MPN: 81963011
COMPLETE LH LATERAL OUTER COVER
-Request ASM authorisation- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179- -No longer supplied-
from £3,669.75
from £3,669.75
LH LATERAL OUTER COVER COMPLETE Genuine Ferrari Part - New (to order)
LH LATERAL OUTER COVER COMPLETE Genuine Ferrari Part - Used In stock
# 008
MPN: 81963111
COMPLETE RH LATERAL OUTER COVER
-Request ASM authorisation- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179- -No longer supplied-
from £3,144.75
from £3,144.75
RH LATERAL OUTER COVER COMPLETE Genuine Ferrari Part - New In stock
RH LATERAL OUTER COVER COMPLETE Genuine Ferrari Part - Used In stock
# 009
MPN: 84556700
UPPER FRONT CONNECTOR ELEMENT
-See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
from £111.46
from £111.46
This part replaces part number 84556711
UPPER FRONT CONNECTOR ELEMEN Genuine Ferrari Part - New (to order)
# 010
MPN: 985279409
FRONT FIREWALL
-See note A for Ass. Numbers of vehicles not affected by modification- -Not for GD- -Applicable from Ass. No. 103179-
from £2,854.91
from £2,854.91
COMPLETE FRONT FIREPLACER APPROX Genuine Ferrari Part - New (to order)
# 010
MPN: 985284317
FRONT FIREWALL
-See note A for Ass. Numbers of vehicles not affected by modification- -Applicable for GD- -Applicable from Ass. No. 103179-
FRONT FIREWALL Genuine Ferrari Part - New (to order)
