ferrari california t (europe) headlights and taillights parts diagram

0133 - HEADLIGHTS AND TAILLIGHTS

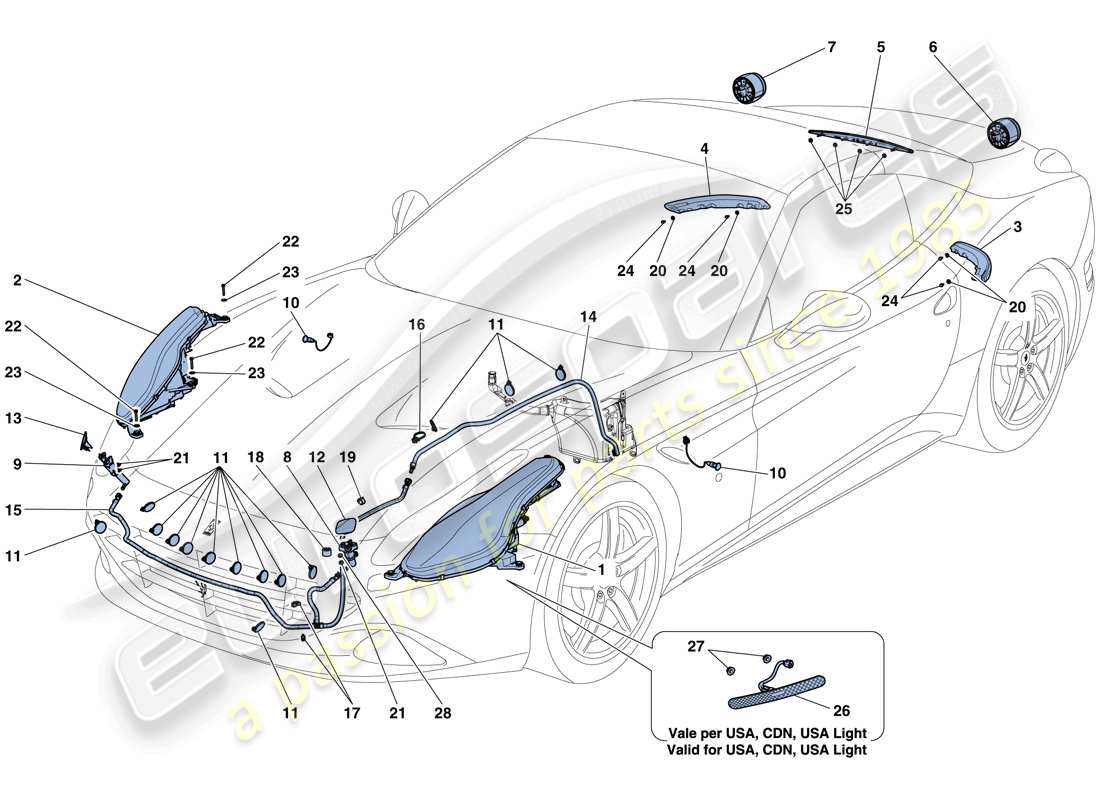

Ferrari California T (Europe) HEADLIGHTS AND TAILLIGHTS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Key
                                          Price
                                          # 001
                                          MPN: 293285
                                          LH HEADLAMP
                                          -Base- -Applicable for Korea- -Not for USA, CDN, J, GD- -Applicable until depletion-
                                          from £3,021.36
                                          from £3,021.36
                                          LH HEADLAMP Genuine Ferrari Part - New In stock
                                          # 001
                                          MPN: 301549
                                          LH HEADLAMP
                                          -AFS- -Applicable for Korea- -Not for USA, CDN, J, GD- -Applicable until depletion-
                                          Supersession
                                          Supersession
                                          Genuine Ferrari Part (no longer available to order)
                                          # 001
                                          MPN: 302427
                                          LH HEADLAMP
                                          -Base- -Not applicable for Korea- -Applicable for USA, CDN, USA LIGHT- -Applicable until depletion-
                                          Supersession
                                          Supersession
                                          Genuine Ferrari Part (no longer available to order)
                                          # 001
                                          MPN: 302429
                                          LH HEADLAMP
                                          -AFS- -Not applicable for Korea- -Applicable for USA, CDN, USA LIGHT- -Applicable until depletion-
                                          from £2,423.65
                                          from £2,423.65
                                          LH HEADLAMP Genuine Ferrari Part - New In stock
                                          # 001
                                          MPN: 302432
                                          LH HEADLAMP
                                          -Base- -Applicable for J, GD- -Applicable until depletion-
                                          Supersession
                                          Supersession
                                          Genuine Ferrari Part (no longer available to order)
                                          # 001
                                          MPN: 302434
                                          LH HEADLAMP
                                          -AFS- -Applicable for J, GD- -Applicable until depletion-
                                          Supersession
                                          Supersession
                                          Genuine Ferrari Part (no longer available to order)
                                          # 001
                                          MPN: 321522
                                          LH HEADLAMP
                                          -Base- -Applicable for Korea- -Not for USA, CDN, J, GD- -Applicable after depletion of 293285-
                                          from £2,123.84
                                          from £2,123.84
                                          This part replaces part number 293285 which we have in stock
                                          LH HEADLAMP Genuine Ferrari Part - New (to order)
                                          # 001
                                          MPN: 321524
                                          LH HEADLAMP
                                          -AFS- -Applicable for Korea- -Not for USA, CDN, J, GD- -Applicable after depletion of 301549-
                                          from £3,512.06
                                          from £3,512.06
                                          This part replaces part number 301549
                                          LH HEADLAMP AFS Genuine Ferrari Part - New (to order)
                                          # 001
                                          MPN: 321526
                                          LH HEADLAMP
                                          -Base- -Not applicable for Korea- -Applicable for USA, CDN, USA LIGHT- -Applicable after depletion of 302427-
                                          from £2,318.23
                                          from £2,318.23
                                          This part replaces part number 302427
                                          LH FRONT HEADLIGHT Genuine Ferrari Part - New (to order)
                                          # 001
                                          MPN: 321529
                                          LH HEADLAMP
                                          -AFS- -Not applicable for Korea- -Applicable for USA, CDN, USA LIGHT- -Applicable after depletion of 302429-
                                          from £2,979.72
                                          from £2,979.72
                                          This part replaces part number 302429 which we have in stock
                                          LH FRONT HEADLIGHT Genuine Ferrari Part - New In stock
                                          # 001
                                          MPN: 321531
                                          LH HEADLAMP
                                          -Base- -Applicable for J, GD- -Applicable after depletion of 302432-
                                          from £2,238.06
                                          from £2,238.06
                                          This part replaces part number 302432
                                          LH FRONT HEADLIGHT Genuine Ferrari Part - New (to order)
                                          # 001
                                          MPN: 321533
                                          LH HEADLAMP
                                          -AFS- -Applicable for J, GD- -Applicable after depletion of 302434-
                                          from £1,636.55
                                          from £1,636.55
                                          This part replaces part number 302434 - and 1 more. Click to view details
                                          LH FRONT HEADLIGHT AFS Genuine Ferrari Part - New (to order)
                                          LH FRONT HEADLIGHT AFS Genuine Ferrari Part - Used In stock
                                          # 002
                                          MPN: 293286
                                          RH HEADLAMP
                                          -Base- -Applicable for Korea- -Not for USA, CDN, J, GD- -Applicable until depletion-
                                          Supersession
                                          Supersession
                                          Genuine Ferrari Part (no longer available to order)
                                          # 002
                                          MPN: 301550
                                          RH HEADLAMP
                                          -AFS- -Applicable for Korea- -Not for USA, CDN, J, GD- -Applicable until depletion-
                                          Supersession
                                          Supersession
                                          Genuine Ferrari Part (no longer available to order)
                                          # 002
                                          MPN: 302428
                                          RH HEADLAMP
                                          -Base- -Not applicable for Korea- -Applicable for USA, CDN, USA LIGHT- -Applicable until depletion-
                                          Supersession
                                          Supersession
                                          Genuine Ferrari Part (no longer available to order)
                                          # 002
                                          MPN: 302431
                                          RH HEADLAMP
                                          -AFS- -Not applicable for Korea- -Applicable for USA, CDN, USA LIGHT- -No longer supplied- -Replaced by 321530-
                                          Supersession
                                          Supersession
                                          Genuine Ferrari Part (no longer available to order)
                                          # 002
                                          MPN: 302433
                                          RH HEADLAMP
                                          -Base- -Applicable for J, GD- -Applicable until depletion-
                                          Supersession
                                          Supersession
                                          Genuine Ferrari Part (no longer available to order)
                                          # 002
                                          MPN: 302435
                                          RH HEADLAMP
                                          -AFS- -Applicable for J, GD- -Applicable until depletion-
                                          Supersession
                                          Supersession
                                          Genuine Ferrari Part (no longer available to order)
                                          # 002
                                          MPN: 321523
                                          RH HEADLAMP
                                          -Base- -Applicable for Korea- -Not for USA, CDN, J, GD- -Applicable after depletion of 293286-
                                          from £2,123.84
                                          from £2,123.84
                                          This part replaces part number 293286
                                          RH HEADLAMP Genuine Ferrari Part - New (to order)
                                          # 002
                                          MPN: 321525
                                          RH HEADLAMP
                                          -AFS- -Applicable for Korea- -Not for USA, CDN, J, GD- -Applicable after depletion of 301550-
                                          from £3,512.06
                                          from £3,512.06
                                          This part replaces part number 301550
                                          RH HEADLAMP AFS Genuine Ferrari Part - New (to order)
                                          # 002
                                          MPN: 321528
                                          RH HEADLAMP
                                          -Base- -Not applicable for Korea- -Applicable for USA, CDN, USA LIGHT- -Applicable after depletion of 302428-
                                          from £2,318.23
                                          from £2,318.23
                                          This part replaces part number 302428
                                          RH FRONT HEADLIGHT Genuine Ferrari Part - New (to order)
                                          # 002
                                          MPN: 321530
                                          RH HEADLAMP
                                          -AFS- -Not applicable for Korea- -Applicable for USA, CDN, USA LIGHT-
                                          from £2,979.72
                                          from £2,979.72
                                          This part replaces part number 302431
                                          RH FRONT HEADLIGHT Genuine Ferrari Part - New (to order)
                                          # 002
                                          MPN: 321532
                                          RH HEADLAMP
                                          -Base- -Applicable for J, GD- -Applicable after depletion of 302433-
                                          from £733.95
                                          from £733.95
                                          This part replaces part number 302433 - and 1 more. Click to view details
                                          RH FRONT HEADLIGHT Genuine Ferrari Part - New (to order)
                                          RH FRONT HEADLIGHT Genuine Ferrari Part - Used In stock
                                          # 002
                                          MPN: 321535
                                          RH HEADLAMP
                                          -AFS- -Applicable for J, GD- -Applicable after depletion of 302435-
                                          from £2,975.54
                                          from £2,975.54
                                          This part replaces part number 302435
                                          RH FRONT HEADLIGHT AFS Genuine Ferrari Part - New (to order)
                                          # 003
                                          MPN: 302299
                                          LH TAILLIGHT, FIXED PART
                                          -Not for USA, CDN, USA LIGHT-
                                          from £525.55
                                          from £525.55
                                          LH TAILLIGHT, FIXED PART Genuine Ferrari Part - New In stock
                                          # 003
                                          MPN: 302986
                                          LH TAILLIGHT, FIXED PART
                                          -Applicable for USA, CDN, USA LIGHT-
                                          from £531.14
                                          from £531.14
                                          LH TAILLIGHT, FIXED PART Genuine Ferrari Part - New (to order)
                                          # 004
                                          MPN: 302300
                                          RH TAILLIGHT, FIXED PART
                                          -Not for USA, CDN, USA LIGHT-
                                          from £525.55
                                          from £525.55
                                          RH TAILLIGHT, FIXED PART Genuine Ferrari Part - New (to order)
                                          # 004
                                          MPN: 302987
                                          RH TAILLIGHT, FIXED PART
                                          -Applicable for USA, CDN, USA LIGHT-
                                          from £531.14
                                          from £531.14
                                          RH TAILLIGHT, FIXED PART Genuine Ferrari Part - New (to order)
                                          # 005
                                          MPN: 249848
                                          COMPL. THIRD STOP LIGHT
                                          from £89.33
                                          from £89.33
                                          COMPLETE ADDITIONAL STOP Genuine Ferrari Part - New In stock
                                          # 006
                                          MPN: 293287
                                          LH TAILLIGHT, MOBILE PART
                                          from £157.50
                                          from £157.50
                                          LH TAILLIGHT, MOBILE PART Genuine Ferrari Part - New (to order)
                                          LH TAILLIGHT, MOBILE PART Genuine Ferrari Part - Used In stock
                                          # 007
                                          MPN: 293289
                                          RH TAILLIGHT, MOBILE PART
                                          from £157.50
                                          from £157.50
                                          RH TAILLIGHT, MOBILE PART Genuine Ferrari Part - New (to order)
                                          RH TAILLIGHT, MOBILE PART Genuine Ferrari Part - Used In stock
                                          DAMAGED (water not working)
                                          # 008
                                          MPN: 86309300
                                          LH HEADLAMP WASHER
                                          from £155.63
                                          from £155.63
                                          LH HEADLAMP WASHER Genuine Ferrari Part - New (to order)
                                          # 009
                                          MPN: 86309400
                                          RH HEADLAMP WASHER
                                          from £155.63
                                          from £155.63
                                          RH HEADLAMP WASHER Genuine Ferrari Part - New (to order)
                                          # 010
                                          MPN: 165558
                                          LATERAL TURN INDICATOR
                                          from £9.31
                                          from £9.31
                                          This part replaces part number 180415 - and 1 more. Click to view details
                                          DIRECTION LIGHT Genuine Ferrari Part - New In stock
                                          DIRECTION LIGHT Genuine Ferrari Part - Used In stock
                                          FRONT SIDE DIRECTION LIGHT (165558) Genuine Maserati Part - New (to order)
                                          # 011
                                          MPN: 217854
                                          CLIP
                                          from £0.49
                                          from £0.49
                                          CLIP Genuine Ferrari Part - New In stock
                                          # 012
                                          MPN: 85827910
                                          LH HEADLAMP WASHER CAP
                                          from £102.91
                                          from £102.91
                                          LH HEADLAMP WASHER CAP Genuine Ferrari Part - New In stock
                                          # 013
                                          MPN: 85828010
                                          RH HEADLAMP WASHER CAP
                                          from £102.91
                                          from £102.91
                                          RH HEADLAMP WASHER CAP Genuine Ferrari Part - New (to order)
                                          # 014
                                          MPN: 86233400
                                          PIPE FROM RESERVOIR TO SECTION
                                          from £43.14
                                          from £43.14
                                          PIPE FROM RESERVOIR TO SECTI Genuine Ferrari Part - New (to order)
                                          # 015
                                          MPN: 86233500
                                          PIPE FROM SECTION TO SPRAY NOZZLES
                                          from £74.23
                                          from £74.23
                                          PIPE FROM SECTION TO SPRAY N Genuine Ferrari Part - New (to order)
                                          # 016
                                          MPN: 69708300
                                          CLIP
                                          from £0.78
                                          from £0.78
                                          CLIP Genuine Ferrari Part - New In stock
                                          # 017
                                          MPN: 86224600
                                          RING CLAMP
                                          from £0.47
                                          from £0.47
                                          RING CLAMP Genuine Ferrari Part - New (to order)
                                          # 018
                                          MPN: 254315
                                          RUBBER PAD
                                          from £16.48
                                          from £16.48
                                          RUBBER PAD Genuine Ferrari Part - New (to order)
                                          # 019
                                          MPN: 206536
                                          CLIP
                                          -No longer supplied- -Replaced by 309014-
                                          from £0.54
                                          from £0.54
                                          CLIP Genuine Ferrari Part - New (to order)
                                          1 SECT. CLIP D.14 WITH CORD (206536) Genuine Maserati Part - New In stock
                                          # 019
                                          MPN: 247440
                                          CLIP
                                          from £0.47
                                          from £0.47
                                          CLIP Genuine Ferrari Part - New In stock
                                          SPRING (247440) Genuine Maserati Part - New (to order)
                                          # 019
                                          MPN: 309014
                                          CLIP
                                          -No longer supplied- -Replaced by 247440-
                                          from £0.50
                                          from £0.50
                                          CLIP Genuine Ferrari Part - New (to order)
                                          # 020
                                          MPN: 12643701
                                          WASHER
                                          Supersession
                                          Supersession
                                          This part replaces part number 12643704 - and 1 more. Click to view details
                                          Genuine Ferrari Part (no longer available to order)
                                          Genuine Maserati Part (no longer available to order)
                                          # 021
                                          MPN: 16286024
                                          SCREW
                                          -M6 X 16- -No longer supplied- -Replaced by 65752800-
                                          from £0.47
                                          from £0.47
                                          VITE TE FLANGIATA M 6X16 Genuine Ferrari Part - New In stock
                                          SCREW. (16286024) Genuine Maserati Part - New (to order)
                                          # 021
                                          MPN: 65752800
                                          SCREW
                                          -M4 X 10-
                                          from £1.14
                                          from £1.14
                                          This part replaces part number 294485 - and 1 more. Click to view details
                                          SCREW Genuine Ferrari Part - New In stock
                                          # 022
                                          MPN: 11628524
                                          SCREW
                                          from £0.74
                                          from £0.74
                                          SCREW Genuine Ferrari Part - New In stock
                                          # 023
                                          MPN: 12625224
                                          WASHER
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 12625201 which we have in stock - and 2 more. Click to view details
                                          WASHER Genuine Ferrari Part - New In stock
                                          WASHER (12625224) Genuine Maserati Part - New (to order)
                                          # 024
                                          MPN: 86574700
                                          SCREW
                                          from £0.47
                                          from £0.47
                                          SCREW Genuine Ferrari Part - New (to order)
                                          # 025
                                          MPN: 12625224
                                          WASHER
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 12625201 which we have in stock - and 2 more. Click to view details
                                          WASHER Genuine Ferrari Part - New In stock
                                          WASHER (12625224) Genuine Maserati Part - New (to order)
                                          # 026
                                          MPN: 233797
                                          FRONT SIDE MARKER
                                          -Applicable for USA, CDN, USA LIGHT-
                                          from £106.21
                                          from £106.21
                                          FRONT SIDE MARKER -VALID FOR Genuine Ferrari Part - New In stock
                                          # 027
                                          MPN: 12578011
                                          NUT
                                          -Applicable for USA, CDN, USA LIGHT-
                                          from £0.47
                                          from £0.47
                                          NUT Genuine Ferrari Part - New In stock
                                          NUT (12578011) Genuine Maserati Part - New (to order)
                                          # 028
                                          MPN: 12638124
                                          WASHER
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 12638101 - and 1 more. Click to view details
                                          WASHER Genuine Ferrari Part - New In stock
                                          SPLIT WASHER D.2 5.45-14X 1 (12638124) Genuine Maserati Part - New (to order)
                                          Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
