031 - Pedals Brake Pedal

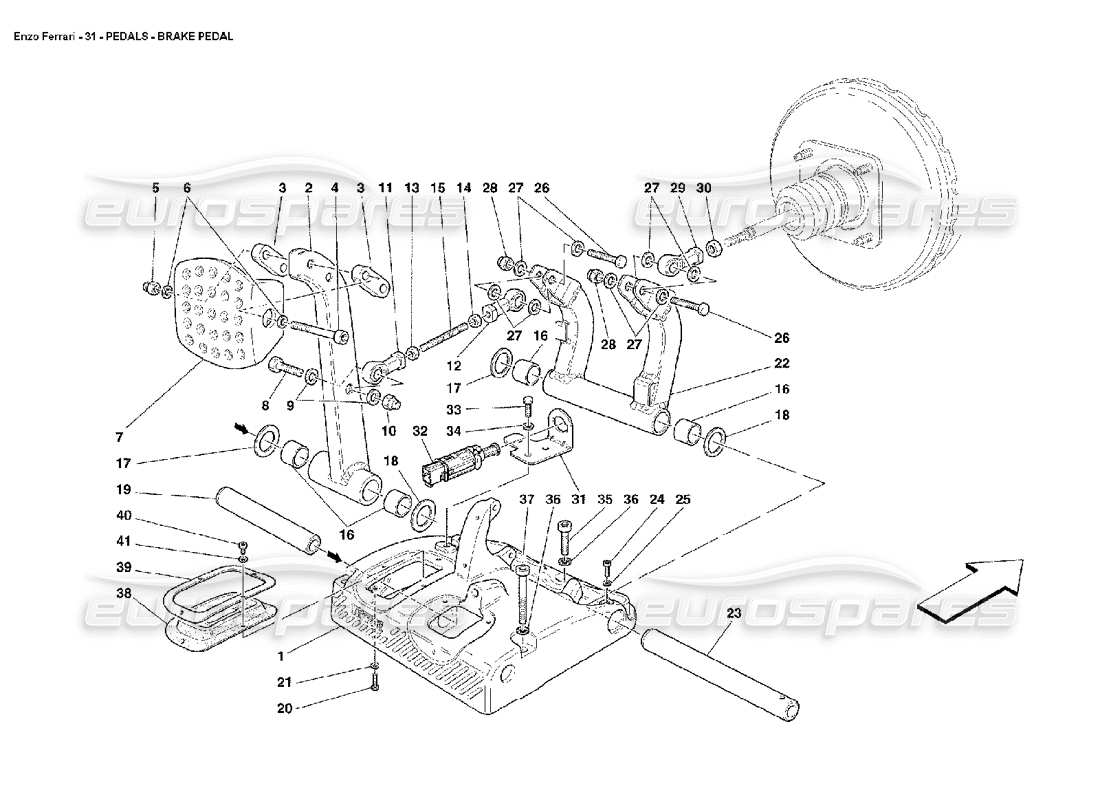

Ferrari Enzo Pedals Brake Pedal Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 186050
PEDAL SUPPORT
from £1,117.23
from £1,117.23
# 002
MPN: 186055
BRAKE PEDAL
from £402.14
from £402.14
# 003
MPN: 187017
SPACER
from £12.10
from £12.10
# 004
MPN: 14304824
SCREW
from £0.53
from £0.53
This part replaces part number 14304821
# 005
MPN: 14037211
CAP NUT
from £5.80
from £5.80
# 006
MPN: 12639724
WASHER
from £0.54
from £0.54
This part replaces part number 12639725 - and 1 more. Click to view details
# 007
MPN: 186059
BRAKE PEDAL PLATE
from £246.71
from £246.71
# 008
MPN: 187025
SCREW
from £8.51
from £8.51
# 009
MPN: 10730314
WASHER
from £1.44
from £1.44
# 010
MPN: 14037311
CAP NUT
from £9.72
from £9.72
# 011
MPN: 145482
BALL JOINT
from £37.61
from £37.61
# 012
MPN: 145483
BALL JOINT
from £62.70
from £62.70
# 013
MPN: 16102914
NUT
from £1.70
from £1.70
This part replaces part number 16102911
# 014
MPN: 16102314
NUT
from £0.54
from £0.54
This part replaces part number 16102311 which we have in stock - and 1 more. Click to view details
# 015
MPN: 186064
SPRAG
from £67.57
from £67.57
# 016
MPN: 103163
SELF LUBRICATING BUSHING
from £2.99
from £2.99
# 017
MPN: 178340
WASHER
- Th. 1,5mm
from £1.86
from £1.86
# 018
MPN: 106083
WASHER
- Th. 1mm
from £0.71
from £0.71
# 018
MPN: 113833
WASHER
- Th. 1,1mm - As an alternative
from £1.94
from £1.94
# 018
MPN: 113834
WASHER
- Th. 1,2mm - As an alternative
from £2.07
from £2.07
# 018
MPN: 113835
WASHER
- Th. 1,3mm - As an alternative
from £1.94
from £1.94
# 018
MPN: 113836
WASHER
- Th. 1,4mm - As an alternative
from £2.42
from £2.42
# 019
MPN: 186056
BRAKE PEDAL PIN
from £187.09
from £187.09
# 020
MPN: 10977724
SCREW
from £0.53
from £0.53
This part replaces part number 10977711
# 021
MPN: 11181574
WASHER
from £0.54
from £0.54
# 022
MPN: 186061
TRANSMISSION BRAKE PEDAL
from £269.04
from £269.04
# 023
MPN: 186062
TRANSMISSION BRAKE PEDAL PIN
from £85.62
from £85.62
# 024
MPN: 10977724
SCREW
from £0.53
from £0.53
This part replaces part number 10977711
# 025
MPN: 11181574
WASHER
from £0.54
from £0.54
# 026
MPN: 187030
SCREW
from £8.51
from £8.51
# 027
MPN: 10730314
WASHER
from £1.44
from £1.44
# 028
MPN: 14037311
CAP NUT
from £9.66
from £9.66
# 029
MPN: 145483
BALL JOINT
from £62.70
from £62.70
# 030
MPN: 16102314
NUT
from £0.54
from £0.54
This part replaces part number 16102311 which we have in stock - and 1 more. Click to view details
# 031
MPN: 186053
SWITCH SUPPORT
from £148.75
from £148.75
# 032
MPN: 334064
STOP LIGHT SWITCH
from £15.46
from £15.46
This part replaces part number 183433
# 033
MPN: 10977724
SCREW
from £0.53
from £0.53
This part replaces part number 10977711
# 034
MPN: 11181574
WASHER
from £0.54
from £0.54
# 035
MPN: 14814234
SCREW
from £1.03
from £1.03
# 036
MPN: 11199874
WASHER
from £1.02
from £1.02
# 037
MPN: 14815034
SCREW
from £0.96
from £0.96
# 038
MPN: 186801
BRAKE PEDAL RUBBER BOOT
from £73.05
from £73.05
# 039
MPN: 186799
PLATE
from £29.81
from £29.81
# 040
MPN: 13271872
SCREW
from £0.47
from £0.47
# 041
MPN: 12601074
WASHER
from £0.53
from £0.53
This part replaces part number 12601070 which we have in stock
