040 - Front Suspension Shock Absorber and Stabilizer Bar

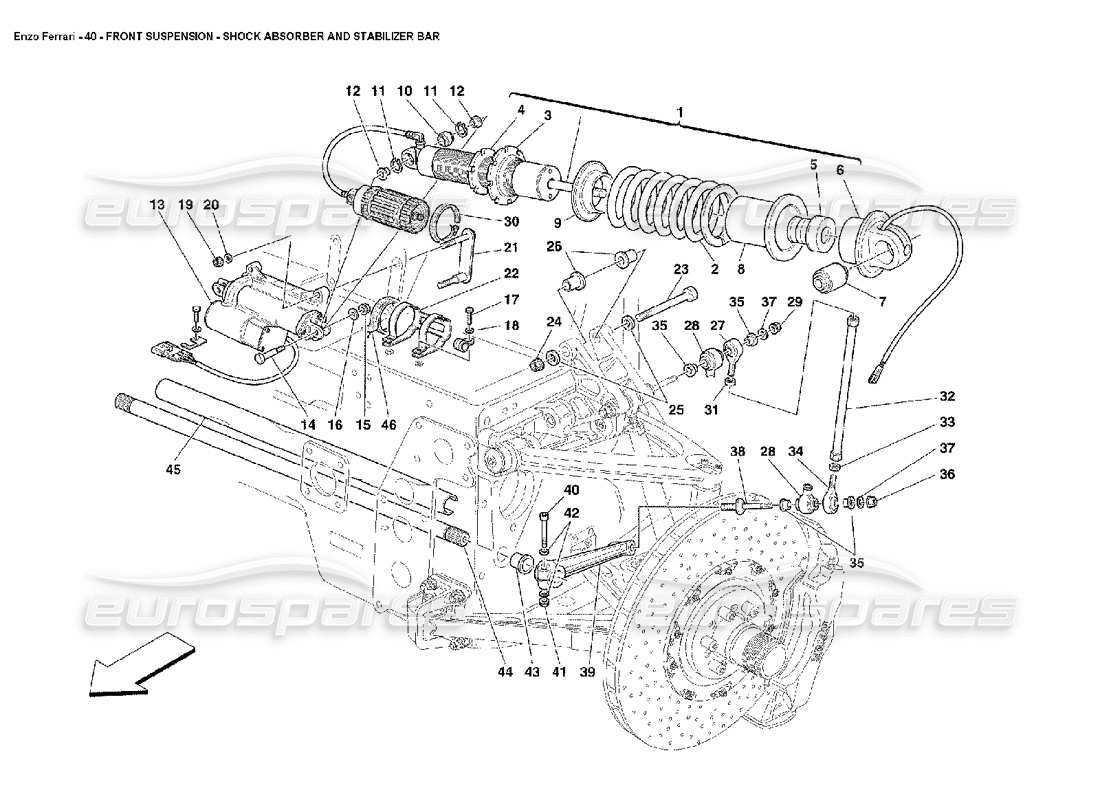

Ferrari Enzo Front Suspension Shock Absorber and Stabilizer Bar Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 186085

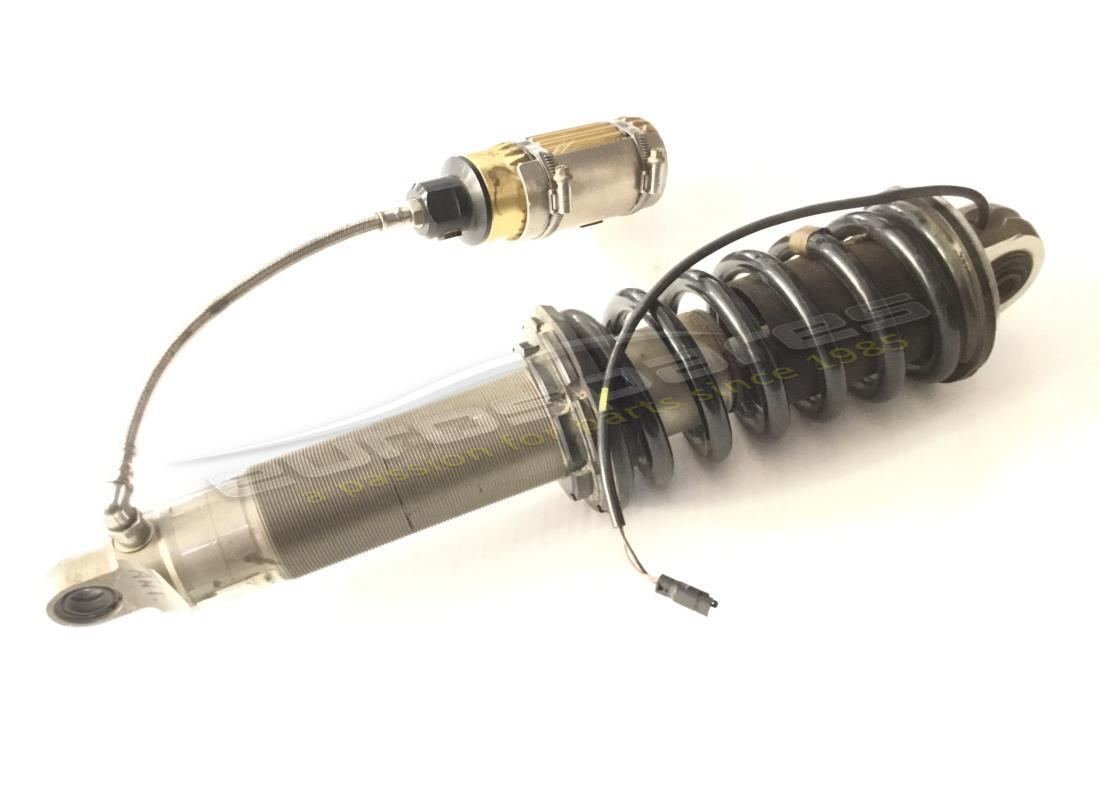

FRONT SHOCK ABSORBER
from £3,500.00
from £3,500.00
# 002
MPN: 185804
SUSPENSION SPRING
from £178.60
from £178.60
# 003
MPN: 174725
SPACER
from £66.44
from £66.44
# 004
MPN: 174726
RING NUT
from £40.11
from £40.11
# 005
MPN: 174728
SHOCK ABSORBER PAD
from £32.73
from £32.73
# 006
MPN: 187702
SPRING RETAINING UPPER SPACER
from £26.25
from £26.25
# 007
MPN: 157630
SILENT BLOCK BUSH
Flanblock
from £48.50
from £48.50
This part replaces part number 159262
# 008
MPN: 177688
UPPER SPACER
from £3.95
from £3.95
# 009
MPN: 169684
LOWER SPACER
from £2.42
from £2.42
# 010
MPN: 149354
BALL JOINT
from £41.03
from £41.03
# 011
MPN: 194143
FLEXIBLE RING
from £0.53
from £0.53
# 012
MPN: 153321
BUSHING
- Not as spare part now - Replaced by 197135
from £20.33
from £20.33
# 012
MPN: 197135
BUSHING
from £12.68
from £12.68
# 013
MPN: 189930
HOISTER
from £23,143.50
from £23,143.50
# 014
MPN: 153320
PIN
from £163.01
from £163.01
# 015
MPN: 133216
NUT
from £4.78
from £4.78
# 016
MPN: 10730514
WASHER
from £0.53
from £0.53
This part replaces part number 10730521 which we have in stock
# 017
MPN: 14305224
SCREW
from £0.51
from £0.51
# 018
MPN: 14499304
WASHER
from £0.53
from £0.53
# 019
MPN: 177778
NUT
from £0.80
from £0.80
This part replaces part number 133215 which we have in stock - and 1 more. Click to view details
# 020
MPN: 12638524
WASHER
from £0.53
from £0.53
This part replaces part number 12638501 - and 2 more. Click to view details
# 021
MPN: 189144
FIXING SMALL PLATE
from £28.70
from £28.70
# 022
MPN: 192654
TANK SUPPORT
from £99.19
from £99.19
This part replaces part number 195987
# 023
MPN: 192018
SCREW
from £12.93
from £12.93
# 024
MPN: 132876
NUT
from £16.32
from £16.32
This part replaces part number 169183
# 025
MPN: 10732531
WASHER
from £0.53
from £0.53
# 026
MPN: 150082
BUSHING
from £339.00
from £339.00
# 027
MPN: 169310
BALL JOINT
from £130.43
from £130.43
# 028
MPN: 148772
PROTECTION
from £7.44
from £7.44
# 029
MPN: 101139
NUT
from £0.54
from £0.54
This part replaces part number 16104425
# 030
MPN: 195101
ANTI VIBRATIONS
from £0.71
from £0.71
# 031
MPN: 10788714
NUT
from £0.53
from £0.53
# 032
MPN: 186078
SHACKLE FOR STABILIZER BAR
from £195.95
from £195.95
# 033
MPN: 11690914
NUT
from £1.98
from £1.98
# 034
MPN: 169311
BALL JOINT
from £140.48
from £140.48
# 035
MPN: 169309
BUSHING
from £19.98
from £19.98
# 036
MPN: 177778
NUT
from £0.82
from £0.82
This part replaces part number 133215 which we have in stock - and 1 more. Click to view details
# 037
MPN: 12638524
WASHER
from £0.53
from £0.53
This part replaces part number 12638501 - and 2 more. Click to view details
# 038
MPN: 151663
PIN
from £97.70
from £97.70
# 039
MPN: 151662
ARM FOR STABILIZER BAR
from £676.99
from £676.99
# 040
MPN: 149939
SCREW
from £3.24
from £3.24
# 041
MPN: 177778
NUT
from £0.82
from £0.82
This part replaces part number 133215 which we have in stock - and 1 more. Click to view details
# 042
MPN: 12638524
WASHER
from £0.53
from £0.53
This part replaces part number 12638501 - and 2 more. Click to view details
# 043
MPN: 151642
BUSHING
from £25.38
from £25.38
# 044
MPN: 194693
FRONT ANTI ROLL BAR
from £322.55
from £322.55
# 045
MPN: 197752
PROTECTION SHEATH
from £9.59
from £9.59
# 046
MPN: 195101
ANTI VIBRATIONS
from £0.71
from £0.71
