044 - Rear Suspension Wishbones

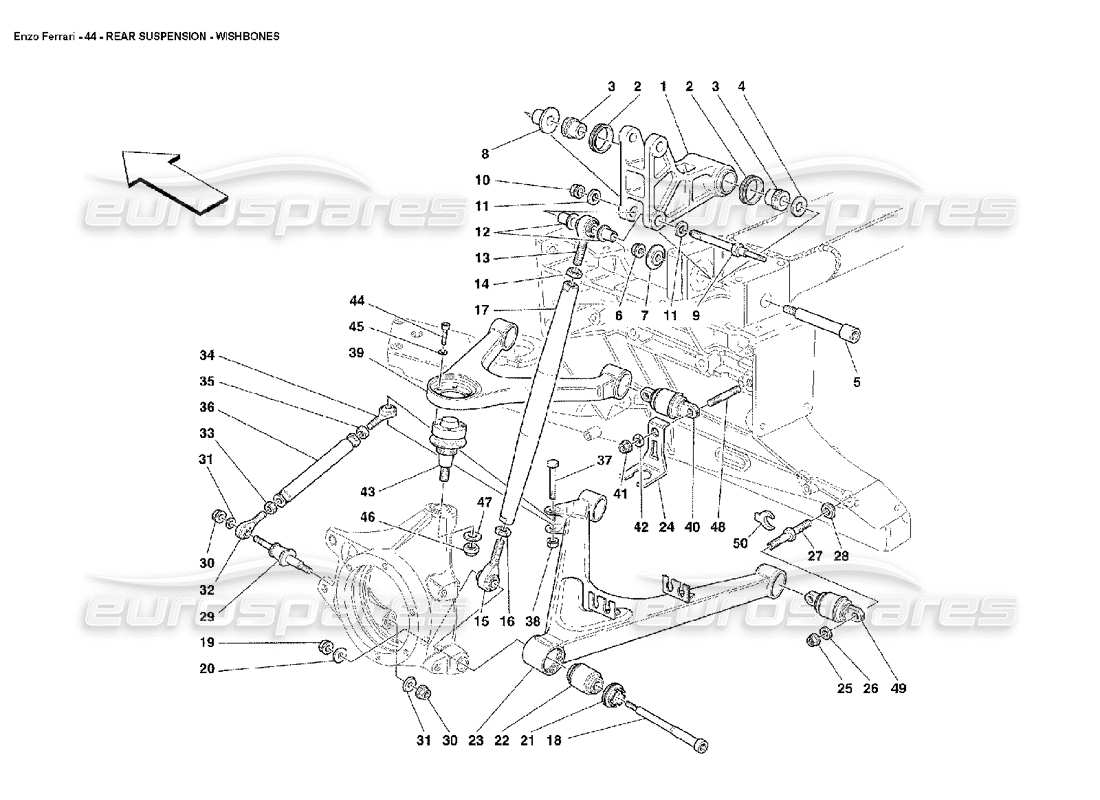

Ferrari Enzo Rear Suspension Wishbones Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 188390

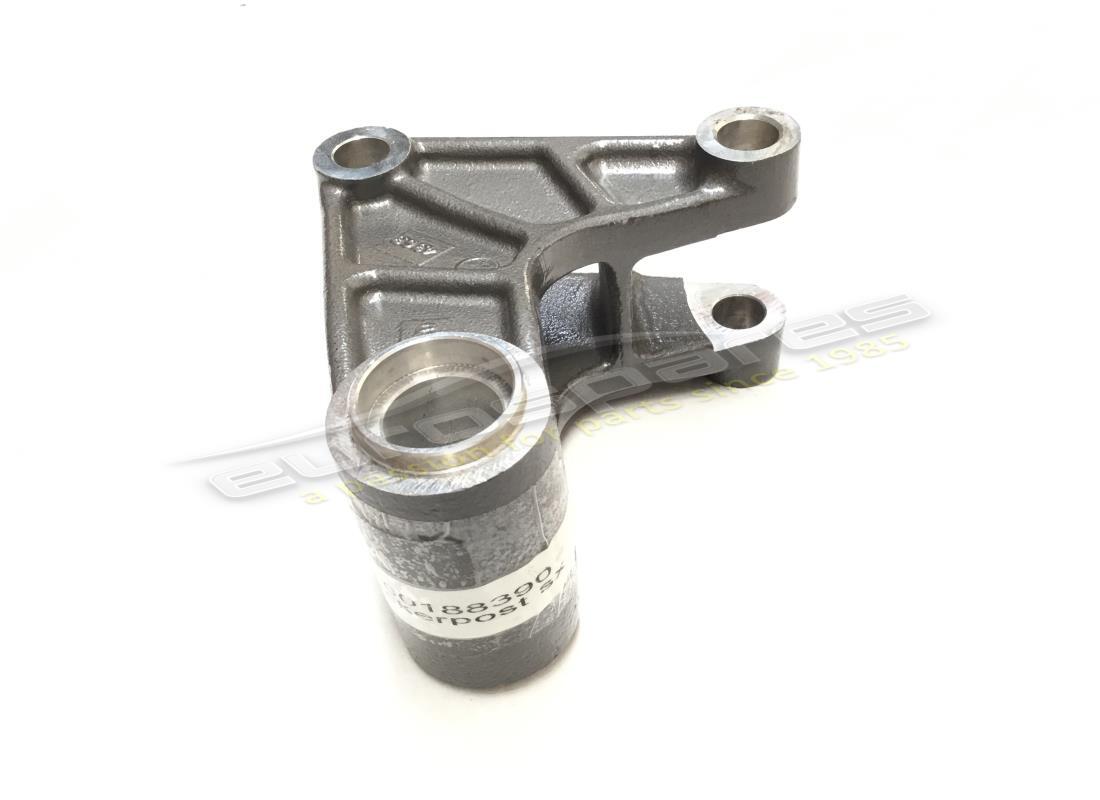

LH REAR ROCKER
from £922.70
from £922.70
# 001
MPN: 188391
RH REAR ROCKER
from £595.65
from £595.65
# 002
MPN: 150153
SEAL RING
from £2.31
from £2.31
# 003
MPN: 150152
ROLLER BEARING
from £81.71
from £81.71
# 004
MPN: 152022
SPACER
from £15.08
from £15.08
# 005
MPN: 151983
FULCRUM PIN
from £192.26
from £192.26
# 006
MPN: 133216
NUT
from £4.84
from £4.84
# 007
MPN: 152021
WASHER
from £5.53
from £5.53
# 008
MPN: 151982
BUSHING
from £15.38
from £15.38
# 009
MPN: 188393
PIN
from £29.22
from £29.22
# 010
MPN: 132876
NUT
from £16.63
from £16.63
This part replaces part number 169183
# 011
MPN: 10732531
WASHER
from £0.47
from £0.47
# 012
MPN: 150082
BUSHING
from £325.21
from £325.21
# 013
MPN: 149125
BALL JOINT
from £315.14
from £315.14
# 014
MPN: 10717477
NUT
from £2.17
from £2.17
This part replaces part number 10717478
# 015
MPN: 149126
BALL JOINT
from £315.14
from £315.14
# 016
MPN: 149124
NUT
from £2.19
from £2.19
# 017
MPN: 165660
REAR SHOCK ABSORBER CONTROL ROD
from £285.31
from £285.31
# 018
MPN: 150141
PIN
from £45.28
from £45.28
# 019
MPN: 169183
NUT
Supersession
Supersession
This part replaces part number 12575725 - and 1 more. Click to view details
# 020
MPN: 101016
WASHER
from £8.28
from £8.28
This part replaces part number 10730721 - and 1 more. Click to view details
# 021
MPN: 150150
RING NUT
from £35.47
from £35.47
# 022
MPN: 163918
LOWER SHOCK ABSORBER BUSH
from £75.40
from £75.40
# 023
MPN: 198314

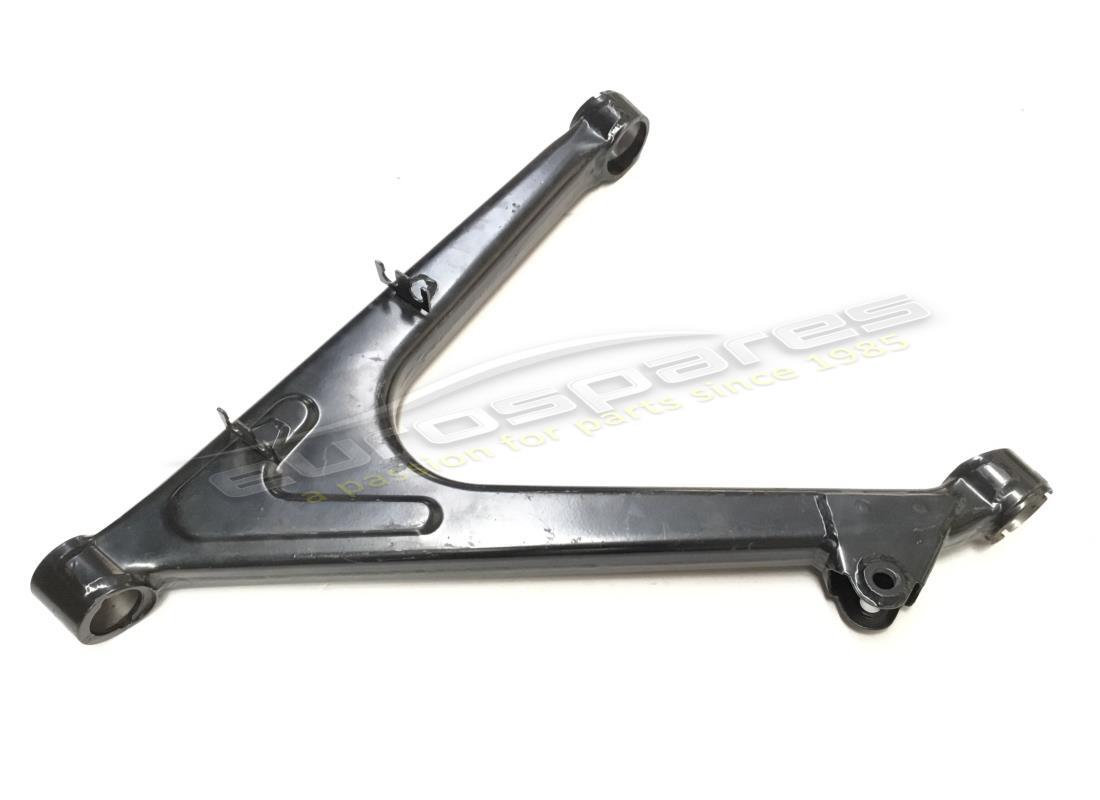

LH REAR LOWER LEVER
from £535.39
from £535.39
This part replaces part number 186907
# 023
MPN: 198315
RH REAR LOWER LEVER
from £535.39
from £535.39
This part replaces part number 193110
# 024
MPN: 193064
ABS SENSOR FIXING BRACKET
from £27.90
from £27.90
# 025
MPN: 133216
NUT
from £4.84
from £4.84
# 026
MPN: 12638624
WASHER
from £0.47
from £0.47
# 027
MPN: 149102
SCREW
from £26.93
from £26.93
# 028
MPN: 149189
WASHER
from £5.00
from £5.00
# 029
MPN: 161958
PIN
from £96.55
from £96.55
# 030
MPN: 132876
NUT
from £16.63
from £16.63
This part replaces part number 169183
# 031
MPN: 101016
WASHER
from £8.28
from £8.28
This part replaces part number 10730721 - and 1 more. Click to view details
# 032
MPN: 160471
BALL JOINT
from £507.40
from £507.40
# 033
MPN: 149124
NUT
from £2.19
from £2.19
# 034
MPN: 160470
BALL JOINT
from £543.60
from £543.60
# 035
MPN: 10717477
NUT
from £2.17
from £2.17
This part replaces part number 10717478
# 036
MPN: 188434
SPRAG
from £190.21
from £190.21
# 037
MPN: 150151
PIN
from £28.35
from £28.35
# 038
MPN: 132876
NUT
from £16.63
from £16.63
This part replaces part number 169183
# 039
MPN: 188383

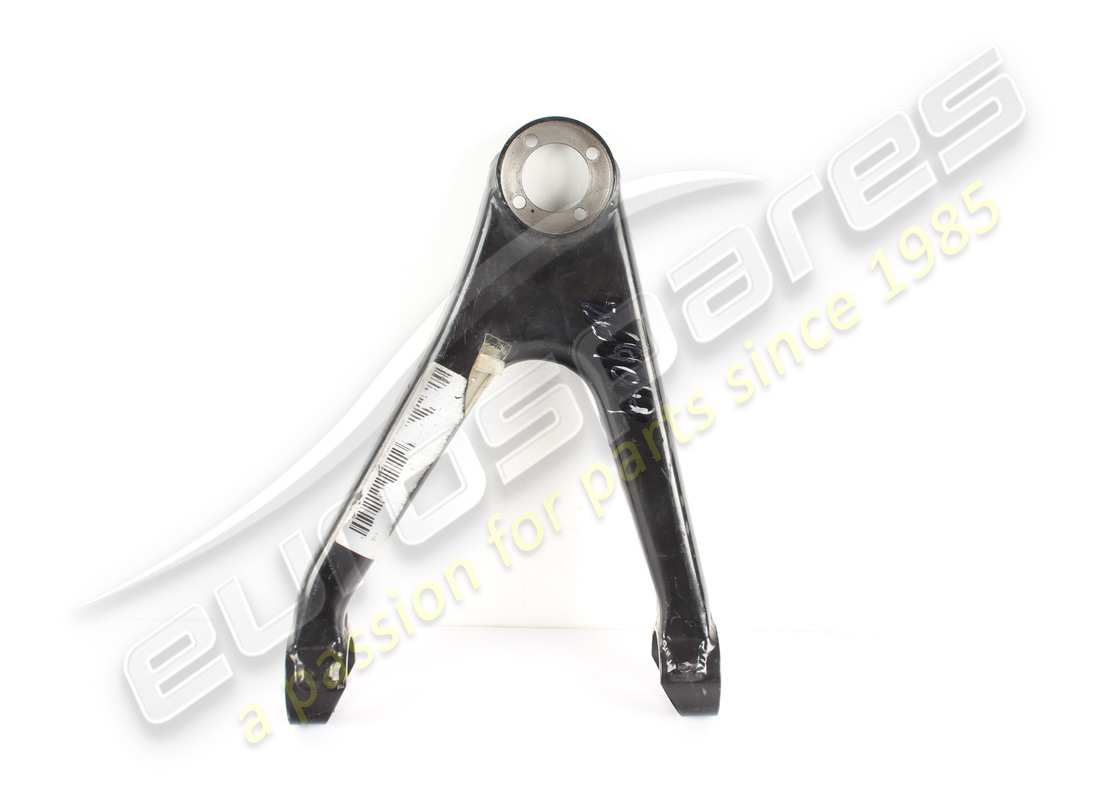

LH REAR UPPER LEVER
Supersession
Supersession
# 039
MPN: 193575
RH REAR UPPER LEVER
from £793.16
from £793.16
# 040
MPN: 153746
BALL JOINT
from £314.47
from £314.47
# 041
MPN: 102742
NUT
from £0.47
from £0.47
This part replaces part number 12557621 - and 2 more. Click to view details
# 042
MPN: 102901
WASHER
from £0.71
from £0.71
This part replaces part number 4146930
# 043
MPN: 130202
BALL JOINT
from £516.52
from £516.52
# 044
MPN: 14305124
SCREW
from £0.47
from £0.47
This part replaces part number 14305121
# 045
MPN: 10569279
WASHER
from £0.71
from £0.71
# 046
MPN: 169193
NUT
from £0.86
from £0.86
# 047
MPN: 150143
WASHER
from £10.18
from £10.18
# 048
MPN: 189141

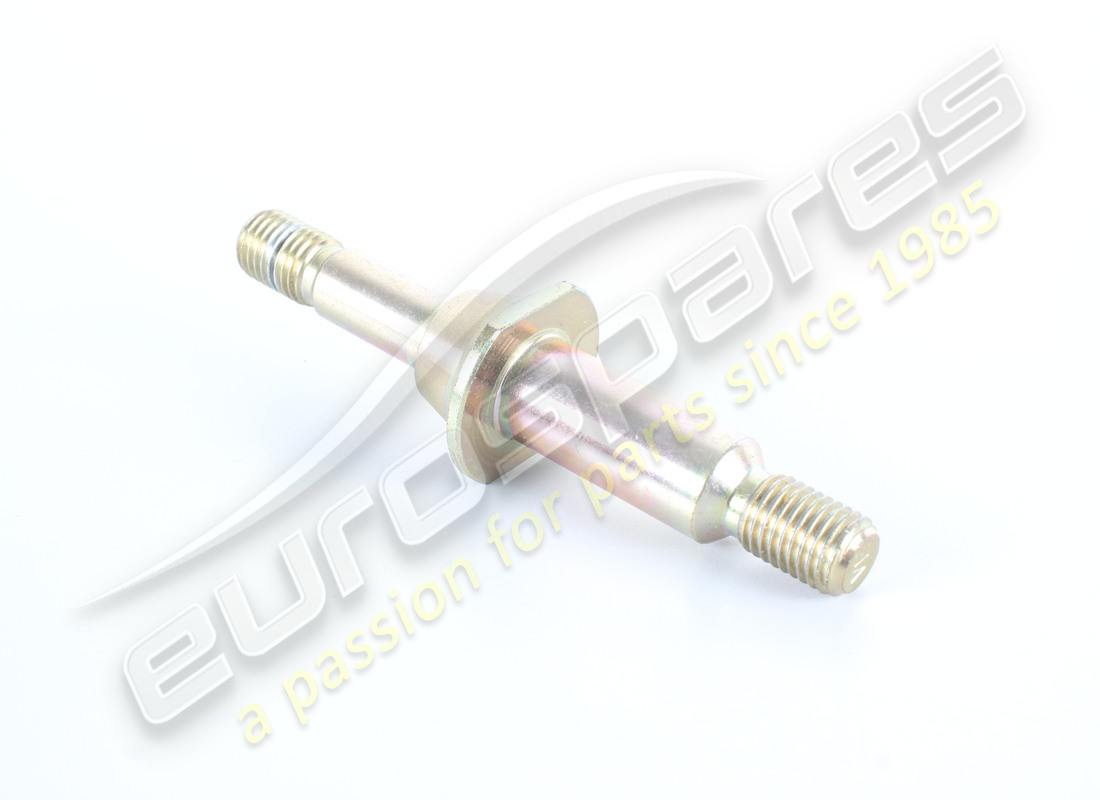

STUD
from £6.30
from £6.30
# 049
MPN: 163703
BALL JOINT
from £608.01
from £608.01
# 050
MPN: 150144
WASHER
- Th. 1 mm.
from £1.71
from £1.71
# 050
MPN: 150145
WASHER
- Th. 1,5 mm.
from £1.86
from £1.86
# 050
MPN: 150146
WASHER
- Th. 2,0 mm.
from £2.02
from £2.02
# 050
MPN: 197774
WASHER
- Th. 0,5 mm.
from £1.33
from £1.33
# 050
MPN: 198889
WASHER
- Th. 3,0 mm.
from £1.43
from £1.43
