101 - Rear Frame

Ferrari Enzo Rear Frame Parts Diagram

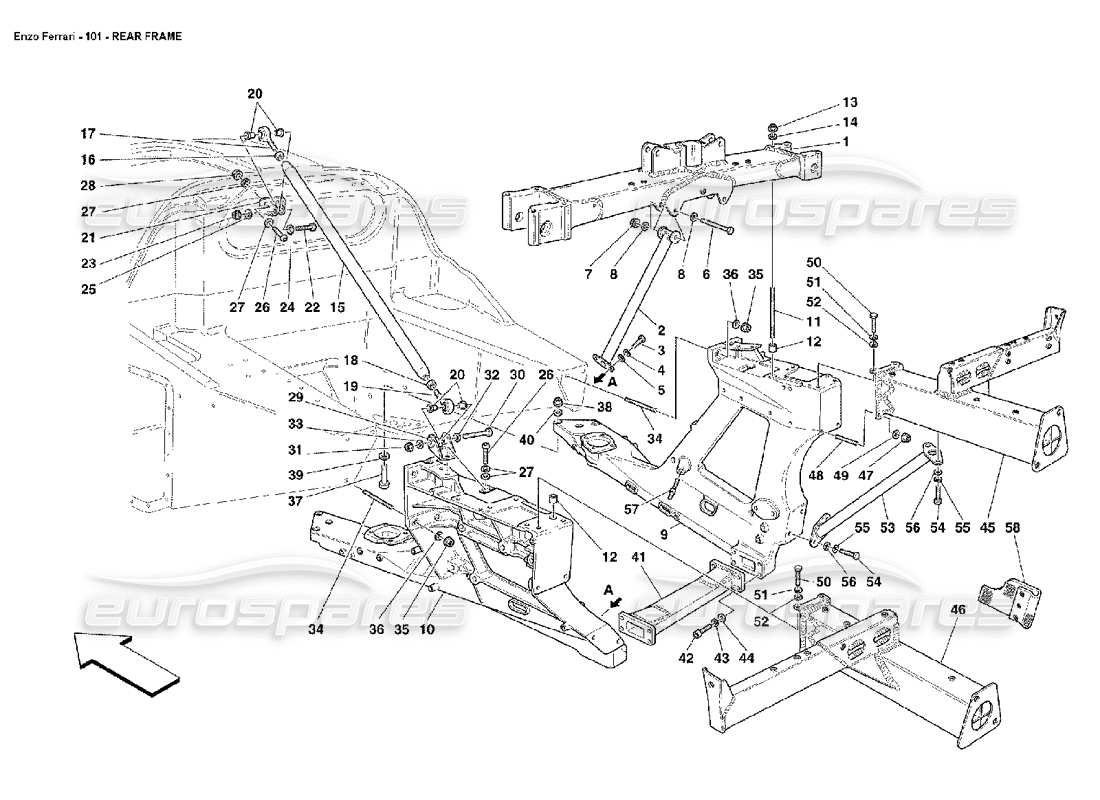

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                      #
                                                                                                                      Part number
                                                                                                                      Description
                                                                                                                      Key
                                                                                                                      Price
                                                                                                                      # 001
                                                                                                                      MPN: 66761700

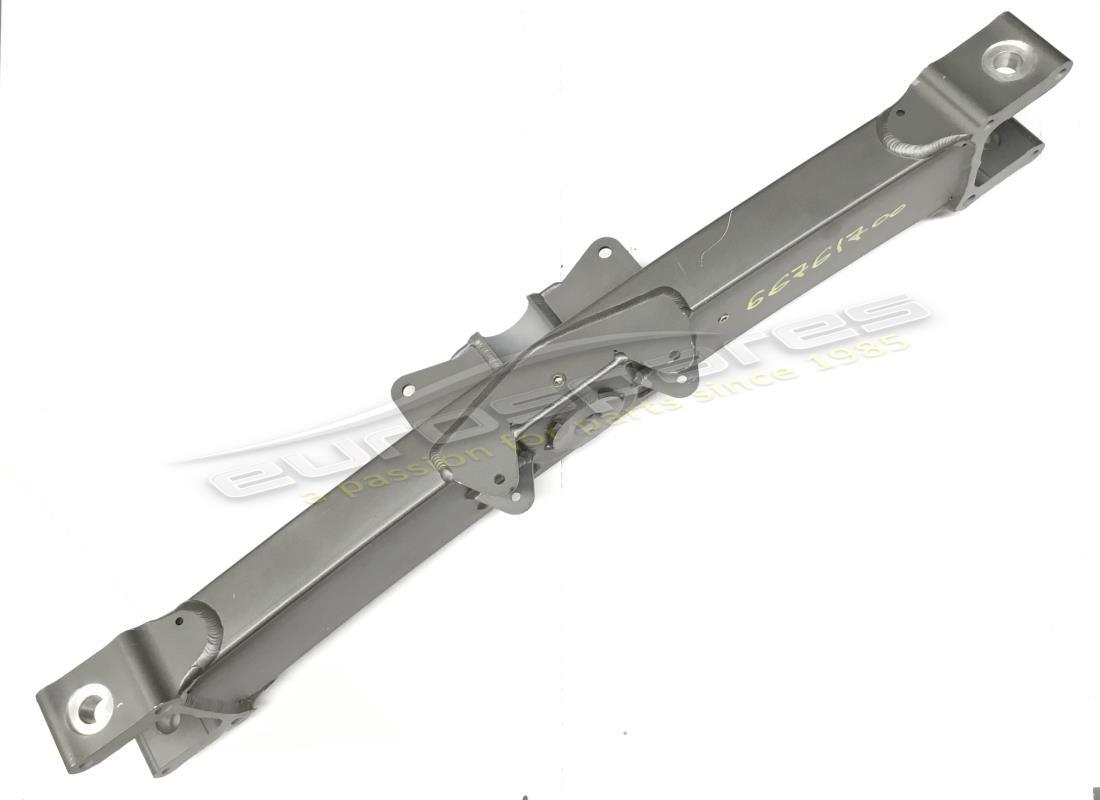

                                                                                                                      UPPER CROSS MEMBER
                                                                                                                      from £3,127.74
                                                                                                                      from £3,127.74
                                                                                                                      UPPER CROSS MEMBER. Genuine Ferrari Part - New In stock
                                                                                                                      # 002
                                                                                                                      MPN: 66846800
                                                                                                                      RH TRANSVERSE SPRAG
                                                                                                                      from £273.69
                                                                                                                      from £273.69
                                                                                                                      RH TRANSVERSE SPRAG. Genuine Ferrari Part - New (to order)
                                                                                                                      # 002
                                                                                                                      MPN: 66846900
                                                                                                                      LH TRANSVERSE SPRAG
                                                                                                                      from £273.69
                                                                                                                      from £273.69
                                                                                                                      LH TRANSVERSE SPRAG. Genuine Ferrari Part - New (to order)
                                                                                                                      # 003
                                                                                                                      MPN: 16043424
                                                                                                                      SCREW
                                                                                                                      from £0.51
                                                                                                                      from £0.51
                                                                                                                      This part replaces part number 16043411 - and 1 more. Click to view details
                                                                                                                      SCREW Genuine Ferrari Part - New In stock
                                                                                                                      SCREW Genuine Maserati Part - New In stock
                                                                                                                      # 004
                                                                                                                      MPN: 14496524
                                                                                                                      WASHER
                                                                                                                      from £0.53
                                                                                                                      from £0.53
                                                                                                                      This part replaces part number 14496525 - and 1 more. Click to view details
                                                                                                                      WASHER Genuine Ferrari Part - New In stock
                                                                                                                      WASHER Genuine Maserati Part - New (to order)
                                                                                                                      # 005
                                                                                                                      MPN: 127496
                                                                                                                      WASHER
                                                                                                                      from £0.53
                                                                                                                      from £0.53
                                                                                                                      This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                                      WASHER Genuine Ferrari Part - New In stock
                                                                                                                      WASHER Genuine Maserati Part - New In stock
                                                                                                                      # 006
                                                                                                                      MPN: 16044524
                                                                                                                      SCREW
                                                                                                                      from £0.59
                                                                                                                      from £0.59
                                                                                                                      SCREW. Genuine Ferrari Part - New In stock
                                                                                                                      SCREW Genuine Maserati Part - New In stock
                                                                                                                      # 007
                                                                                                                      MPN: 177778
                                                                                                                      NUT
                                                                                                                      from £0.85
                                                                                                                      from £0.85
                                                                                                                      This part replaces part number 133215 which we have in stock - and 1 more. Click to view details
                                                                                                                      NUT Genuine Ferrari Part - New In stock
                                                                                                                      NUT Genuine Maserati Part - New (to order)
                                                                                                                      # 008
                                                                                                                      MPN: 14496524
                                                                                                                      WASHER
                                                                                                                      from £0.53
                                                                                                                      from £0.53
                                                                                                                      This part replaces part number 14496525 - and 1 more. Click to view details
                                                                                                                      WASHER Genuine Ferrari Part - New In stock
                                                                                                                      WASHER Genuine Maserati Part - New (to order)
                                                                                                                      # 009
                                                                                                                      MPN: 186312
                                                                                                                      RH FUSION FOR SUSPENSION CONNECTION
                                                                                                                      from £4,633.55
                                                                                                                      from £4,633.55
                                                                                                                      RH FUSION SUSPENSION CONNEC Genuine Ferrari Part - New (to order)
                                                                                                                      RH CAST SUSPENSION COUPLING Genuine Maserati Part - New (to order)
                                                                                                                      # 010
                                                                                                                      MPN: 186313
                                                                                                                      LH FUSION FOR SUSPENSION CONNECTION
                                                                                                                      from £4,633.55
                                                                                                                      from £4,633.55
                                                                                                                      LH FUSION FOR SUSPENSION CO Genuine Ferrari Part - New (to order)
                                                                                                                      LH CAST SUSPENSION COUPLING Genuine Maserati Part - New (to order)
                                                                                                                      # 011
                                                                                                                      MPN: 13547724
                                                                                                                      STUD
                                                                                                                      from £10.37
                                                                                                                      from £10.37
                                                                                                                      STUD Genuine Ferrari Part - New (to order)
                                                                                                                      THREADED STUD Genuine Maserati Part - New (to order)
                                                                                                                      # 012
                                                                                                                      MPN: 160971
                                                                                                                      CENTERING DOWEL
                                                                                                                      from £40.57
                                                                                                                      from £40.57
                                                                                                                      CENTERING DOWEL. Genuine Ferrari Part - New (to order)
                                                                                                                      CENTRING DOWEL D.14X16 Genuine Maserati Part - New (to order)
                                                                                                                      # 013
                                                                                                                      MPN: 133216
                                                                                                                      NUT
                                                                                                                      from £4.84
                                                                                                                      from £4.84
                                                                                                                      NUT Genuine Ferrari Part - New In stock
                                                                                                                      NUT Genuine Maserati Part - New (to order)
                                                                                                                      # 014
                                                                                                                      MPN: 14496624
                                                                                                                      WASHER
                                                                                                                      from £0.51
                                                                                                                      from £0.51
                                                                                                                      This part replaces part number 14496601 - and 2 more. Click to view details
                                                                                                                      WASHER Genuine Ferrari Part - New In stock
                                                                                                                      WASHER Genuine Maserati Part - New (to order)
                                                                                                                      # 015
                                                                                                                      MPN: 67370700
                                                                                                                      SPRAG
                                                                                                                      from £566.27
                                                                                                                      from £566.27
                                                                                                                      SPRAG. Genuine Ferrari Part - New (to order)
                                                                                                                      # 016
                                                                                                                      MPN: 10717377
                                                                                                                      NUT
                                                                                                                      from £0.60
                                                                                                                      from £0.60
                                                                                                                      NUT. Genuine Ferrari Part - New In stock
                                                                                                                      NUT Genuine Maserati Part - New (to order)
                                                                                                                      # 017
                                                                                                                      MPN: 148768
                                                                                                                      BALL JOINT
                                                                                                                      from £161.64
                                                                                                                      from £161.64
                                                                                                                      BALL JOINT Genuine Ferrari Part - New (to order)
                                                                                                                      RH BALL JOINT D.12 M12X1.75 Genuine Maserati Part - New (to order)
                                                                                                                      # 018
                                                                                                                      MPN: 67592600
                                                                                                                      LH THREADED NUT
                                                                                                                      from £2.88
                                                                                                                      from £2.88
                                                                                                                      LH THREADED NUT. Genuine Ferrari Part - New (to order)
                                                                                                                      DADO E M 12X1,75 X7 FILETTAT Genuine Maserati Part - New (to order)
                                                                                                                      # 019
                                                                                                                      MPN: 148769
                                                                                                                      BALL JOINT
                                                                                                                      from £104.14
                                                                                                                      from £104.14
                                                                                                                      BALL JOINT Genuine Ferrari Part - New (to order)
                                                                                                                      LH BALL JOINT D.12 M12X1.75 Genuine Maserati Part - New (to order)
                                                                                                                      # 020
                                                                                                                      MPN: 66649100
                                                                                                                      BUSHING
                                                                                                                      from £2.88
                                                                                                                      from £2.88
                                                                                                                      BUSHING. Genuine Ferrari Part - New (to order)
                                                                                                                      BUSH FOR KNEE HEAD Genuine Maserati Part - New (to order)
                                                                                                                      # 021
                                                                                                                      MPN: 66650600
                                                                                                                      FORK CONNECTION SPRAG
                                                                                                                      from £59.89
                                                                                                                      from £59.89
                                                                                                                      FORK CONNECTION SPRAG. Genuine Ferrari Part - New (to order)
                                                                                                                      FORCELLA ATTACCO PUNT. A PAD Genuine Maserati Part - New (to order)
                                                                                                                      # 022
                                                                                                                      MPN: 66650700
                                                                                                                      SCREW
                                                                                                                      from £1.89
                                                                                                                      from £1.89
                                                                                                                      SCREW. Genuine Ferrari Part - New (to order)
                                                                                                                      SCREW FOR FORK Genuine Maserati Part - New (to order)
                                                                                                                      # 023
                                                                                                                      MPN: 133216
                                                                                                                      NUT
                                                                                                                      from £4.84
                                                                                                                      from £4.84
                                                                                                                      NUT Genuine Ferrari Part - New In stock
                                                                                                                      NUT Genuine Maserati Part - New (to order)
                                                                                                                      # 024
                                                                                                                      MPN: 14496624
                                                                                                                      WASHER
                                                                                                                      from £0.53
                                                                                                                      from £0.53
                                                                                                                      This part replaces part number 14496601 - and 2 more. Click to view details
                                                                                                                      WASHER Genuine Ferrari Part - New In stock
                                                                                                                      WASHER Genuine Maserati Part - New (to order)
                                                                                                                      # 025
                                                                                                                      MPN: 12638624
                                                                                                                      WASHER
                                                                                                                      from £0.53
                                                                                                                      from £0.53
                                                                                                                      WASCHER Genuine Ferrari Part - New In stock
                                                                                                                      WASHER Genuine Maserati Part - New (to order)
                                                                                                                      # 026
                                                                                                                      MPN: 67254400
                                                                                                                      SCREW
                                                                                                                      from £0.93
                                                                                                                      from £0.93
                                                                                                                      SCREW. Genuine Ferrari Part - New (to order)
                                                                                                                      VITE T.B.E.I. M8X1.25X20 Genuine Maserati Part - New (to order)
                                                                                                                      # 027
                                                                                                                      MPN: 12638578
                                                                                                                      WASHER
                                                                                                                      from £0.50
                                                                                                                      from £0.50
                                                                                                                      This part replaces part number 14499478
                                                                                                                      WASHER. Genuine Ferrari Part - New (to order)
                                                                                                                      SPLIT WASHER D.2 8.15-15X 1. Genuine Maserati Part - New (to order)
                                                                                                                      # 028
                                                                                                                      MPN: 177778
                                                                                                                      NUT
                                                                                                                      from £0.83
                                                                                                                      from £0.83
                                                                                                                      This part replaces part number 133215 which we have in stock - and 1 more. Click to view details
                                                                                                                      NUT Genuine Ferrari Part - New In stock
                                                                                                                      NUT Genuine Maserati Part - New (to order)
                                                                                                                      # 029
                                                                                                                      MPN: 66647200
                                                                                                                      COMPLETE FORK CONNECTION SPRAG
                                                                                                                      from £72.42
                                                                                                                      from £72.42
                                                                                                                      COMPLETE FORK CONNECTION SPR Genuine Ferrari Part - New (to order)
                                                                                                                      COMPLETE FORK STRUT ATTACHMENT Genuine Maserati Part - New (to order)
                                                                                                                      # 030
                                                                                                                      MPN: 66649300
                                                                                                                      SCREW
                                                                                                                      from £1.74
                                                                                                                      from £1.74
                                                                                                                      This part replaces part number 14308324
                                                                                                                      SCREW. Genuine Ferrari Part - New (to order)
                                                                                                                      SCREW FOR FORK Genuine Maserati Part - New (to order)
                                                                                                                      # 031
                                                                                                                      MPN: 133216
                                                                                                                      NUT
                                                                                                                      from £4.84
                                                                                                                      from £4.84
                                                                                                                      NUT Genuine Ferrari Part - New In stock
                                                                                                                      NUT Genuine Maserati Part - New (to order)
                                                                                                                      # 032
                                                                                                                      MPN: 14496624
                                                                                                                      WASHER
                                                                                                                      from £0.53
                                                                                                                      from £0.53
                                                                                                                      This part replaces part number 14496601 - and 2 more. Click to view details
                                                                                                                      WASHER Genuine Ferrari Part - New In stock
                                                                                                                      WASHER Genuine Maserati Part - New (to order)
                                                                                                                      # 033
                                                                                                                      MPN: 12638624
                                                                                                                      WASHER
                                                                                                                      from £0.53
                                                                                                                      from £0.53
                                                                                                                      WASCHER Genuine Ferrari Part - New In stock
                                                                                                                      WASHER Genuine Maserati Part - New (to order)
                                                                                                                      # 034
                                                                                                                      MPN: 13546635
                                                                                                                      STUD
                                                                                                                      from £2.09
                                                                                                                      from £2.09
                                                                                                                      This part replaces part number 13546630
                                                                                                                      STUD Genuine Ferrari Part - New In stock
                                                                                                                      THREADED STUD Genuine Maserati Part - New (to order)
                                                                                                                      # 035
                                                                                                                      MPN: 133216
                                                                                                                      NUT
                                                                                                                      from £4.84
                                                                                                                      from £4.84
                                                                                                                      NUT Genuine Ferrari Part - New In stock
                                                                                                                      NUT Genuine Maserati Part - New (to order)
                                                                                                                      # 036
                                                                                                                      MPN: 12638624
                                                                                                                      WASHER
                                                                                                                      from £0.52
                                                                                                                      from £0.52
                                                                                                                      WASCHER Genuine Ferrari Part - New In stock
                                                                                                                      WASHER Genuine Maserati Part - New (to order)
                                                                                                                      # 037
                                                                                                                      MPN: 15541124
                                                                                                                      SCREW
                                                                                                                      from £0.52
                                                                                                                      from £0.52
                                                                                                                      SCREW. Genuine Ferrari Part - New (to order)
                                                                                                                      SCREW Genuine Maserati Part - New (to order)
                                                                                                                      # 038
                                                                                                                      MPN: 191959
                                                                                                                      NUT
                                                                                                                      from £16.02
                                                                                                                      from £16.02
                                                                                                                      NUT Genuine Ferrari Part - New In stock
                                                                                                                      SMALL-SIZED SELFLOCK.HEX.NUT M12X Genuine Maserati Part - New (to order)
                                                                                                                      # 039
                                                                                                                      MPN: 14496724
                                                                                                                      WASHER
                                                                                                                      from £0.50
                                                                                                                      from £0.50
                                                                                                                      WASHER Genuine Ferrari Part - New In stock
                                                                                                                      WASHER. Genuine Maserati Part - New (to order)
                                                                                                                      # 040
                                                                                                                      MPN: 14499624
                                                                                                                      WASHER
                                                                                                                      from £0.52
                                                                                                                      from £0.52
                                                                                                                      WASHER Genuine Ferrari Part - New (to order)
                                                                                                                      WASHER Genuine Maserati Part - New (to order)
                                                                                                                      # 041
                                                                                                                      MPN: 67089600
                                                                                                                      LOWER CROSS MEMBER
                                                                                                                      from £1,218.43
                                                                                                                      from £1,218.43
                                                                                                                      LOWER CROSS MEMBER. Genuine Ferrari Part - New (to order)
                                                                                                                      TRAVERSA POSTERIORE INFERIOR Genuine Maserati Part - New (to order)
                                                                                                                      # 042
                                                                                                                      MPN: 14306374
                                                                                                                      SCREW
                                                                                                                      from £0.48
                                                                                                                      from £0.48
                                                                                                                      This part replaces part number 14306334
                                                                                                                      SCREW Genuine Ferrari Part - New (to order)
                                                                                                                      SOCKET HEAD SCREW M 8X 20 Genuine Maserati Part - New (to order)
                                                                                                                      # 043
                                                                                                                      MPN: 14499424
                                                                                                                      WASHER
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      This part replaces part number 14499401 which we have in stock
                                                                                                                      Genuine Ferrari Part (no longer available to order)
                                                                                                                      Genuine Maserati Part (no longer available to order)
                                                                                                                      # 044
                                                                                                                      MPN: 127496
                                                                                                                      WASHER
                                                                                                                      from £0.53
                                                                                                                      from £0.53
                                                                                                                      This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                                      WASHER Genuine Ferrari Part - New In stock
                                                                                                                      WASHER Genuine Maserati Part - New In stock
                                                                                                                      # 045
                                                                                                                      MPN: 66586800
                                                                                                                      RH REAR FRAME
                                                                                                                      from £2,262.20
                                                                                                                      from £2,262.20
                                                                                                                      RH REAR FRAME. Genuine Ferrari Part - New (to order)
                                                                                                                      # 046
                                                                                                                      MPN: 66586700
                                                                                                                      LH REAR FRAME
                                                                                                                      from £2,132.03
                                                                                                                      from £2,132.03
                                                                                                                      LH REAR FRAME. Genuine Ferrari Part - New (to order)
                                                                                                                      # 047
                                                                                                                      MPN: 177778
                                                                                                                      NUT
                                                                                                                      from £0.83
                                                                                                                      from £0.83
                                                                                                                      This part replaces part number 133215 which we have in stock - and 1 more. Click to view details
                                                                                                                      NUT Genuine Ferrari Part - New In stock
                                                                                                                      NUT Genuine Maserati Part - New (to order)
                                                                                                                      # 048
                                                                                                                      MPN: 13543324
                                                                                                                      STUD
                                                                                                                      from £0.57
                                                                                                                      from £0.57
                                                                                                                      This part replaces part number 13543321
                                                                                                                      STUD Genuine Ferrari Part - New In stock
                                                                                                                      STUD 8X16 Genuine Maserati Part - New (to order)
                                                                                                                      # 049
                                                                                                                      MPN: 14496524
                                                                                                                      WASHER
                                                                                                                      from £0.53
                                                                                                                      from £0.53
                                                                                                                      This part replaces part number 14496525 - and 1 more. Click to view details
                                                                                                                      WASHER Genuine Ferrari Part - New In stock
                                                                                                                      WASHER Genuine Maserati Part - New (to order)
                                                                                                                      # 050
                                                                                                                      MPN: 16043624
                                                                                                                      SCREW
                                                                                                                      from £0.51
                                                                                                                      from £0.51
                                                                                                                      This part replaces part number 106526 - and 1 more. Click to view details
                                                                                                                      SCREW Genuine Ferrari Part - New In stock
                                                                                                                      SCREW FOR CONV. TOP HINGE Genuine Maserati Part - New (to order)
                                                                                                                      # 051
                                                                                                                      MPN: 14496524
                                                                                                                      WASHER
                                                                                                                      from £0.53
                                                                                                                      from £0.53
                                                                                                                      This part replaces part number 14496525 - and 1 more. Click to view details
                                                                                                                      WASHER Genuine Ferrari Part - New In stock
                                                                                                                      WASHER Genuine Maserati Part - New (to order)
                                                                                                                      # 052
                                                                                                                      MPN: 127496
                                                                                                                      WASHER
                                                                                                                      from £0.53
                                                                                                                      from £0.53
                                                                                                                      This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                                      WASHER Genuine Ferrari Part - New In stock
                                                                                                                      WASHER Genuine Maserati Part - New In stock
                                                                                                                      # 053
                                                                                                                      MPN: 66847400
                                                                                                                      RH LONGITUDINAL SPRAG
                                                                                                                      from £264.25
                                                                                                                      from £264.25
                                                                                                                      RH LONGITUDINAL SPRAG. Genuine Ferrari Part - New (to order)
                                                                                                                      PUNTONE POSTERIORE LONGITUDI Genuine Maserati Part - New (to order)
                                                                                                                      # 053
                                                                                                                      MPN: 66847500
                                                                                                                      LH LONGITUDINAL SPRAG
                                                                                                                      from £301.81
                                                                                                                      from £301.81
                                                                                                                      LH LONGITUDINAL SPRAG Genuine Ferrari Part - New (to order)
                                                                                                                      PUNTONE POSTERIORE LONGITUDI Genuine Maserati Part - New (to order)
                                                                                                                      # 054
                                                                                                                      MPN: 16043424
                                                                                                                      SCREW
                                                                                                                      from £0.48
                                                                                                                      from £0.48
                                                                                                                      This part replaces part number 16043411 - and 1 more. Click to view details
                                                                                                                      SCREW Genuine Ferrari Part - New In stock
                                                                                                                      SCREW Genuine Maserati Part - New In stock
                                                                                                                      # 055
                                                                                                                      MPN: 14496524
                                                                                                                      WASHER
                                                                                                                      from £0.51
                                                                                                                      from £0.51
                                                                                                                      This part replaces part number 14496525 - and 1 more. Click to view details
                                                                                                                      WASHER Genuine Ferrari Part - New In stock
                                                                                                                      WASHER Genuine Maserati Part - New (to order)
                                                                                                                      # 056
                                                                                                                      MPN: 127496
                                                                                                                      WASHER
                                                                                                                      from £0.53
                                                                                                                      from £0.53
                                                                                                                      This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                                      WASHER Genuine Ferrari Part - New In stock
                                                                                                                      WASHER Genuine Maserati Part - New In stock
                                                                                                                      # 057
                                                                                                                      MPN: 191481
                                                                                                                      STUD
                                                                                                                      from £17.73
                                                                                                                      from £17.73
                                                                                                                      STUND Genuine Ferrari Part - New (to order)
                                                                                                                      STUD Genuine Maserati Part - New (to order)
                                                                                                                      # 058
                                                                                                                      MPN: 204065
                                                                                                                      SHIELD
                                                                                                                      from £88.71
                                                                                                                      from £88.71
                                                                                                                      SHIELD Genuine Ferrari Part - New In stock
                                                                                                                      SHIELD Genuine Maserati Part - New (to order)
                                                                                                                      Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
