104 - Rear - Outer Trims and Wheelhouse

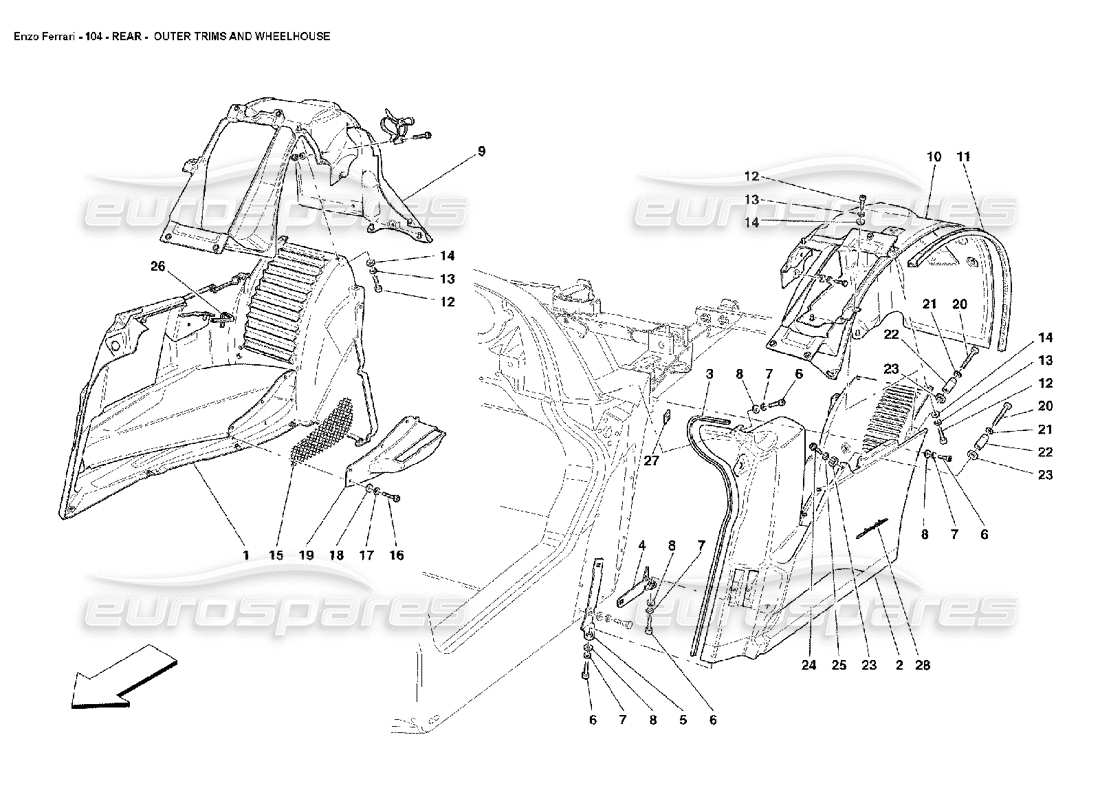

Ferrari Enzo Rear - Outer Trims and Wheelhouse Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 66534600
RH REAR EXTERNAL PANEL
from £9,509.16
from £9,509.16
# 002
MPN: 66531700
LH REAR EXTERNAL PANEL
from £9,509.16
from £9,509.16
# 003
MPN: 66580000
RH GASKET
from £1.52
from £1.52
# 003
MPN: 66644500
LH GASKET
from £0.99
from £0.99
# 004
MPN: 67113900
REAR RH BRACKET
from £61.31
from £61.31
# 004
MPN: 67114000
REAR LH BRACKET
from £44.33
from £44.33
# 005
MPN: 67119500
FRONT RH BRACKET
from £262.59
from £262.59
# 005
MPN: 67119600
FRONT LH BRACKET
from £262.59
from £262.59
# 006
MPN: 14305234
SCREW
from £0.53
from £0.53
This part replaces part number 14305287
# 007
MPN: 12620477
WASHER
from £0.47
from £0.47
This part replaces part number 12648207
# 008
MPN: 12644424
WASHER
from £0.47
from £0.47
This part replaces part number 12644401 - and 1 more. Click to view details
# 009
MPN: 66579600
RH REAR WHEELHOUSE
from £4,172.16
from £4,172.16
# 010
MPN: 66579500
LH REAR WHEELHOUSE
from £3,721.84
from £3,721.84
# 011
MPN: 66579900
GASKET
from £10.50
from £10.50
# 012
MPN: 14305234
SCREW
from £0.50
from £0.50
This part replaces part number 14305287
# 013
MPN: 12620477
WASHER
from £0.47
from £0.47
This part replaces part number 12648207
# 014
MPN: 12644424
WASHER
from £0.47
from £0.47
This part replaces part number 12644401 - and 1 more. Click to view details
# 015
MPN: 66925700
RH GRILL
from £106.25
from £106.25
# 015
MPN: 66925800
LH GRILL
from £106.25
from £106.25
# 016
MPN: 14304187
SCREW
from £0.47
from £0.47
This part replaces part number 87658800
# 017
MPN: 12637878
WASHER
from £0.47
from £0.47
This part replaces part number 12637806
# 018
MPN: 12601177
WASHER
from £0.71
from £0.71
# 019
MPN: 67379900
RH AIR INLET
from £222.97
from £222.97
# 019
MPN: 67380000
LH AIR INLET
from £211.65
from £211.65
# 020
MPN: 14358726
SCREW
from £2.60
from £2.60
# 021
MPN: 166467
WASHER
from £0.53
from £0.53
# 022
MPN: 67365600
CENTERING CONE
from £2.61
from £2.61
# 023
MPN: 67362500
WASHER
from £1.66
from £1.66
# 024
MPN: 65366700
SCREW
from £0.50
from £0.50
# 025
MPN: 166467
WASHER
from £0.53
from £0.53
# 026
MPN: 67287200
PILLAR STRIP GASKET
from £37.00
from £37.00
# 027
MPN: 65887500
SPACER
from £15.13
from £15.13
# 028
MPN: 64780500
PININFARINA ORNAMENT
from £32.57
from £32.57
