113 - Doors - Hinge and Open Control

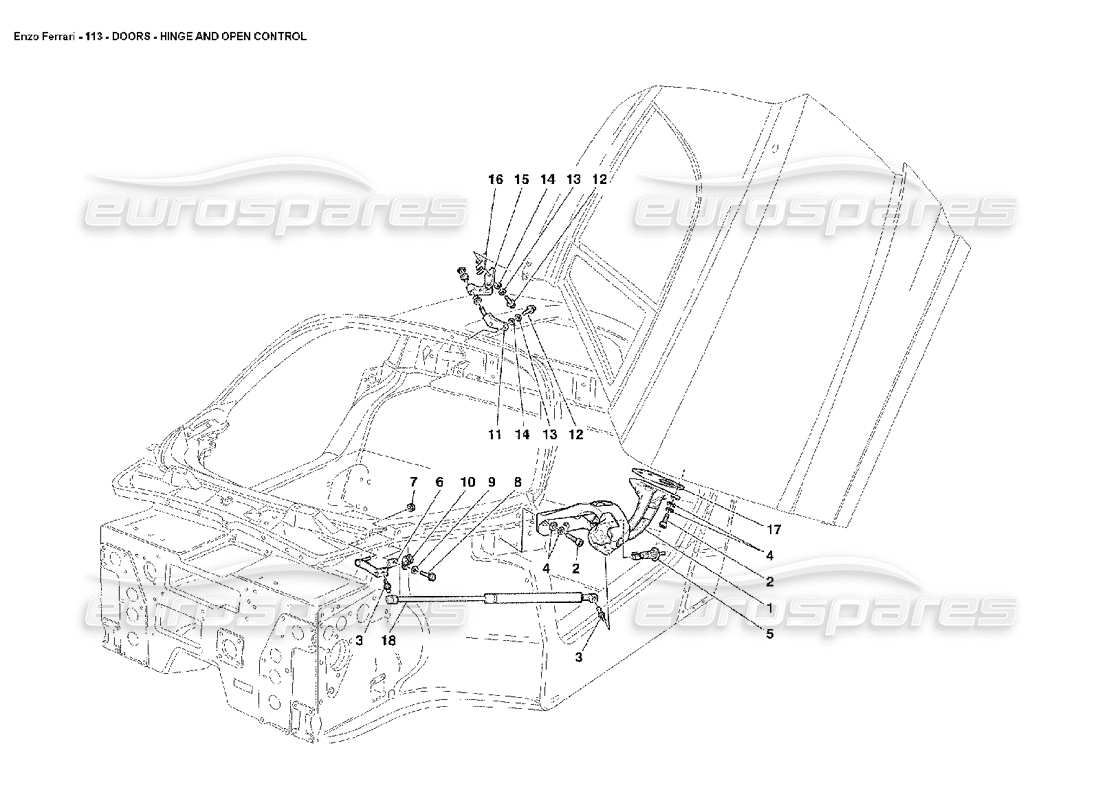

Ferrari Enzo Doors - Hinge and Open Control Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 66926800
RH COMPLETE LOWER HINGE
from £839.18
from £839.18
# 001
MPN: 66926900
LH COMPLETE LOWER HINGE
from £839.18
from £839.18
# 002
MPN: 14307624
SCREW
from £3.15
from £3.15
# 003
MPN: 65939900
PIN
from £1.17
from £1.17
This part replaces part number 63402800 which we have in stock - and 1 more. Click to view details
# 004
MPN: 14496624
WASHER
from £0.50
from £0.50
This part replaces part number 14496601 - and 2 more. Click to view details
# 005
MPN: 179697
ROOF LIGHT SWITCH
from £34.95
from £34.95
# 006
MPN: 66653700
RH BRACKET FOR STABILUS
from £19.77
from £19.77
# 006
MPN: 66653800
LH BRACKET FOR STABILUS
from £32.49
from £32.49
# 007
MPN: 159601
NUT
from £0.54
from £0.54
This part replaces part number 12578121
# 008
MPN: 14305221
SCREW
from £0.53
from £0.53
# 009
MPN: 14498801
WASHER
from £0.53
from £0.53
# 010
MPN: 10441290
BRACKET WITH SHEATH
from £0.28
from £0.28
# 011
MPN: 66537200
LH FIXED HINGE
from £412.80
from £412.80
# 011
MPN: 66539600
RH FIXED HINGE
from £412.80
from £412.80
# 012
MPN: 67254100
SCREW
from £12.02
from £12.02
# 013
MPN: 12620477
WASHER
from £0.51
from £0.51
This part replaces part number 12648207
# 014
MPN: 10519478
WASHER
from £1.13
from £1.13
This part replaces part number 14496478
# 015
MPN: 66537300
LH MOBILE HINGE
- Not as spare part - Replaced by 68133400
Supersession
Supersession
# 015
MPN: 66539700
RH MOBILE HINGE
- Not as spare part - Replaced by 68254200
Supersession
Supersession
# 015
MPN: 68133400
LH MOBILE HINGE
from £137.69
from £137.69
This part replaces part number 66537300
# 015
MPN: 68254200
RH MOBILE HINGE
from £137.69
from £137.69
This part replaces part number 66539700
# 016
MPN: 66560200
THICKNESS
from £29.67
from £29.67
# 017
MPN: 66560100
THICKNESS
from £12.83
from £12.83
# 018
MPN: 67500300

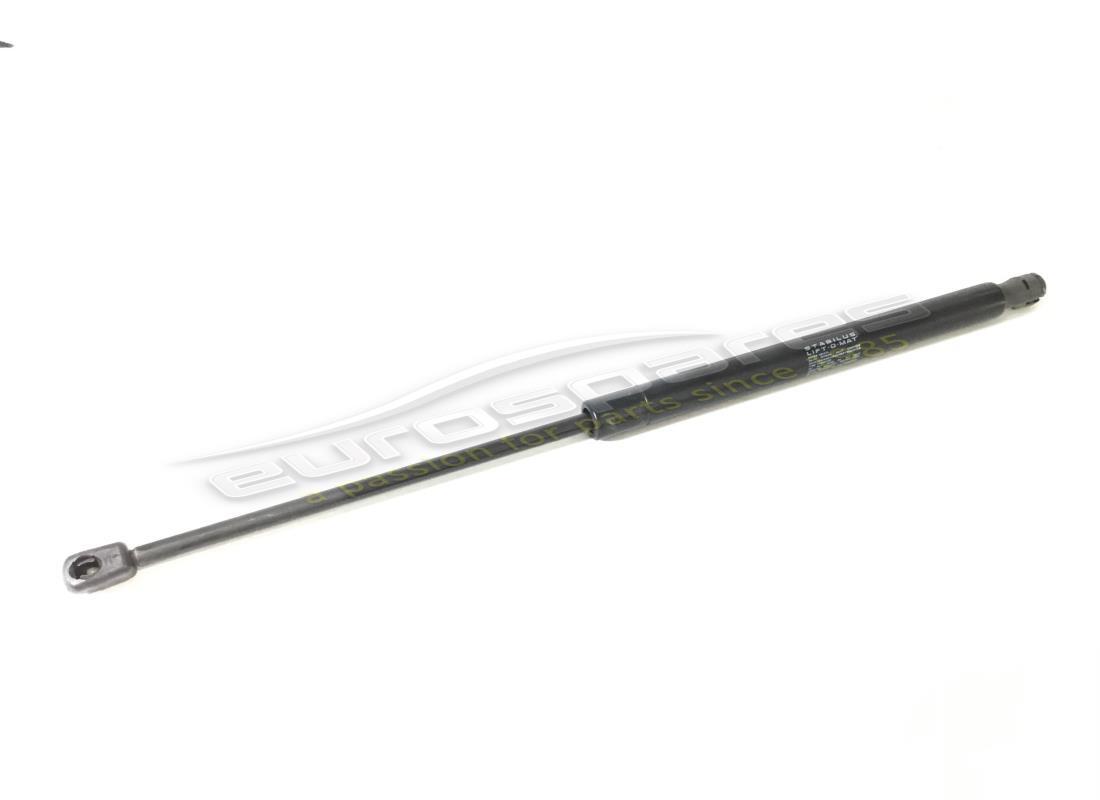

DOOR STRUT
from £121.01
from £121.01
This part replaces part number 66613300
