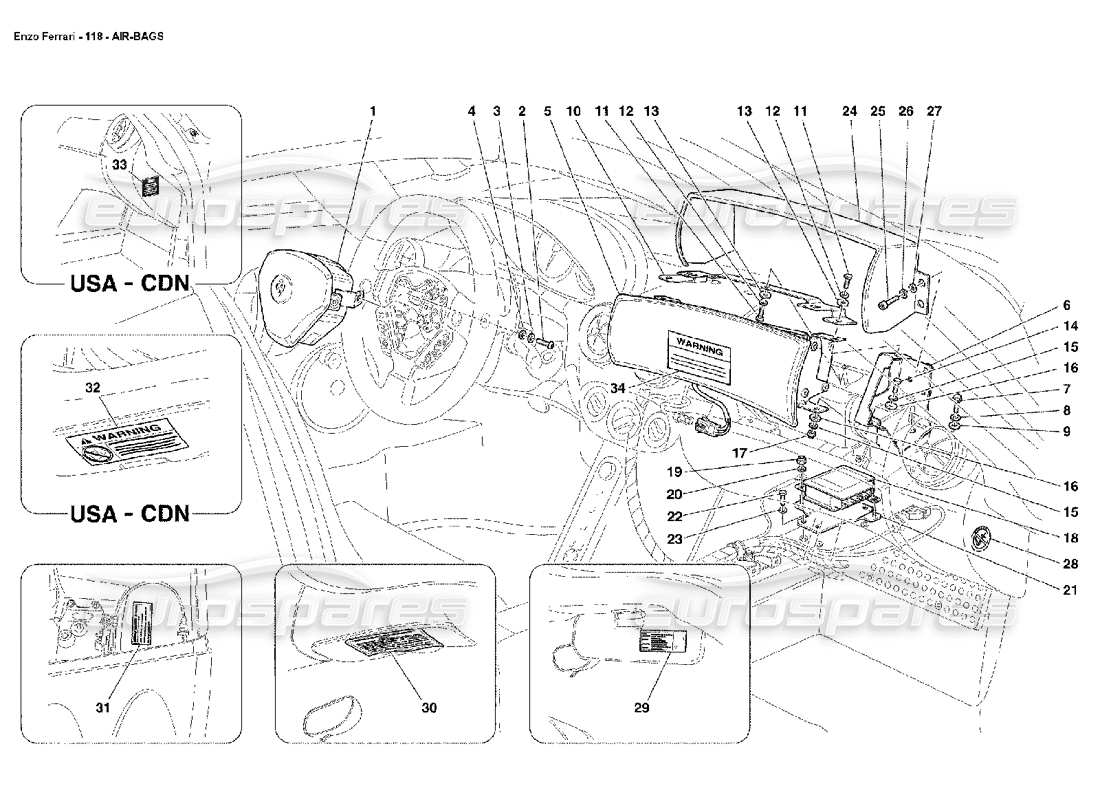

Ferrari Enzo Air Bags Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 175334
DRIVER SIDE AIR BAG
Please note: (Collection or Delivery by road within Europe)
Supersession
Supersession
# 002
MPN: 64882800
SCREW
from £0.61
from £0.61
This part replaces part number 64470000
# 003
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 004
MPN: 14499324
WASHER
from £0.47
from £0.47
This part replaces part number 14499301 which we have in stock
# 005
MPN: 72043800
PASSENGER SIDE AIR BAG
Please note: (Collection or Shipping by Road within Europe)
from £2,690.66
from £2,690.66
This part replaces part number 66586100
# 006
MPN: 67111600
OUTER BRACKET
from £167.98
from £167.98
# 006
MPN: 67111700
INNER BRACKET
from £167.98
from £167.98
# 007
MPN: 16286027
SCREW
from £0.53
from £0.53
# 007
MPN: 16286227
SCREW
- Not as spare part - Replaced by 16286027
# 008
MPN: 12643778
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 12643777 - and 1 more. Click to view details
# 010
MPN: 67112000
CENTRAL BRACKET
from £127.82
from £127.82
# 011
MPN: 16132324
SCREW
from £0.47
from £0.47
# 012
MPN: 12643724
WASHER
from £0.47
from £0.47
This part replaces part number 109684 - and 4 more. Click to view details
# 013
MPN: 12620474
WASHER
from £0.47
from £0.47
This part replaces part number 12620479 - and 1 more. Click to view details
# 014
MPN: 16132324
SCREW
from £0.47
from £0.47
# 015
MPN: 12643724
WASHER
from £0.47
from £0.47
This part replaces part number 109684 - and 4 more. Click to view details
# 016
MPN: 12620474
WASHER
from £0.47
from £0.47
This part replaces part number 12620479 - and 1 more. Click to view details
# 017
MPN: 102741
NUT
from £0.47
from £0.47
This part replaces part number 12575411 - and 1 more. Click to view details
# 018
MPN: 213143
AIR BAG CONTROL UNIT
from £487.07
from £487.07
This part replaces part number 185598
# 018
MPN: 213143
AIR BAG CONTROL UNIT
from £487.07
from £487.07
This part replaces part number 185598
# 019
MPN: 12575421
NUT
Supersession
Supersession
# 020
MPN: 14498804
WASHER
from £0.71
from £0.71
# 021
MPN: 67088900
BRACKET
from £85.06
from £85.06
# 022
MPN: 16296927
SCREW
from £0.47
from £0.47
# 023
MPN: 14499324
WASHER
from £0.47
from £0.47
This part replaces part number 14499301 which we have in stock
# 024
MPN: 67357500
PASSENGER SIDE AIR BAG COVER
from £1,240.12
from £1,240.12
# 025
MPN: 67254900
SCREW
from £2.15
from £2.15
# 026
MPN: 12604274
WASHER
from £0.47
from £0.47
This part replaces part number 12604271 - and 1 more. Click to view details
# 027
MPN: 12639724
WASHER
from £0.47
from £0.47
This part replaces part number 12639725 - and 1 more. Click to view details
# 028
MPN: 65142000
AIR BAG/CHILDREN SEAT INCOMPATIBILITY PLATE
- Not for USA and CDN
from £2.27
from £2.27
# 029
MPN: 65910700
AIR BAG MAINTENANCE PLATE
- Not for USA and CDN
from £2.20
from £2.20
# 030
MPN: 64764500
AIR BAG SYSTEM USE PLATE
- Not for USA and CDN
from £3.07
from £3.07
# 031
MPN: 12856780
AIR BAG PLATE
from £16.68
from £16.68
# 032
MPN: 64541500
AIR BAG SYSTEM USE PLATE
- Valid for CDN
from £5.21
from £5.21
# 032
MPN: 65423800
AIR BAG SYSTEM USE PLATE
- Valid for USA
from £3.99
from £3.99
# 033
MPN: 64499400
AIR BAG MAINTENANCE PLATE
- Valid for USA
from £4.45
from £4.45
# 033
MPN: 64541700
AIR BAG MAINTENANCE PLATE
- Valid for CDN
from £5.83
from £5.83
# 034
MPN: 65424000
AIR BAG SYSTEM PRESENCE PLATE
- Valid for USA and CDN
from £3.39
from £3.39
