ferrari f12 berlinetta (europe) secondary air system parts diagram

0008 - secondary air system

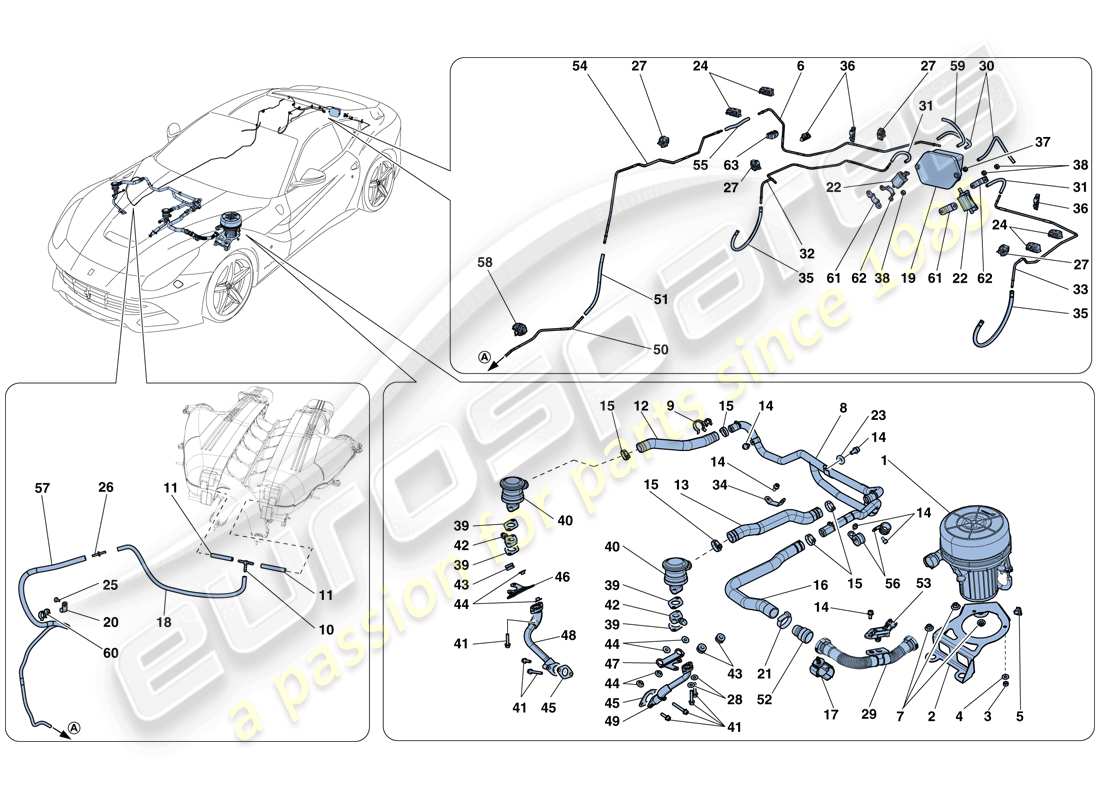

Ferrari F12 Berlinetta (Europe) SECONDARY AIR SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 247795
SECONDARY AIR SYSTEM PUMP
-Applicable up to Ass. No. 108752-
from £229.44
from £229.44
# 002
MPN: 272314
PUMP MOUNTING BRACKET
-Applicable up to Ass. No. 108752-
from £25.50
from £25.50
# 003
MPN: 15896214
NUT
-Applicable up to Ass. No. 108752-
from £0.54
from £0.54
This part replaces part number 15896211
# 004
MPN: 11194674
WASHER
-Applicable up to Ass. No. 108752-
from £0.47
from £0.47

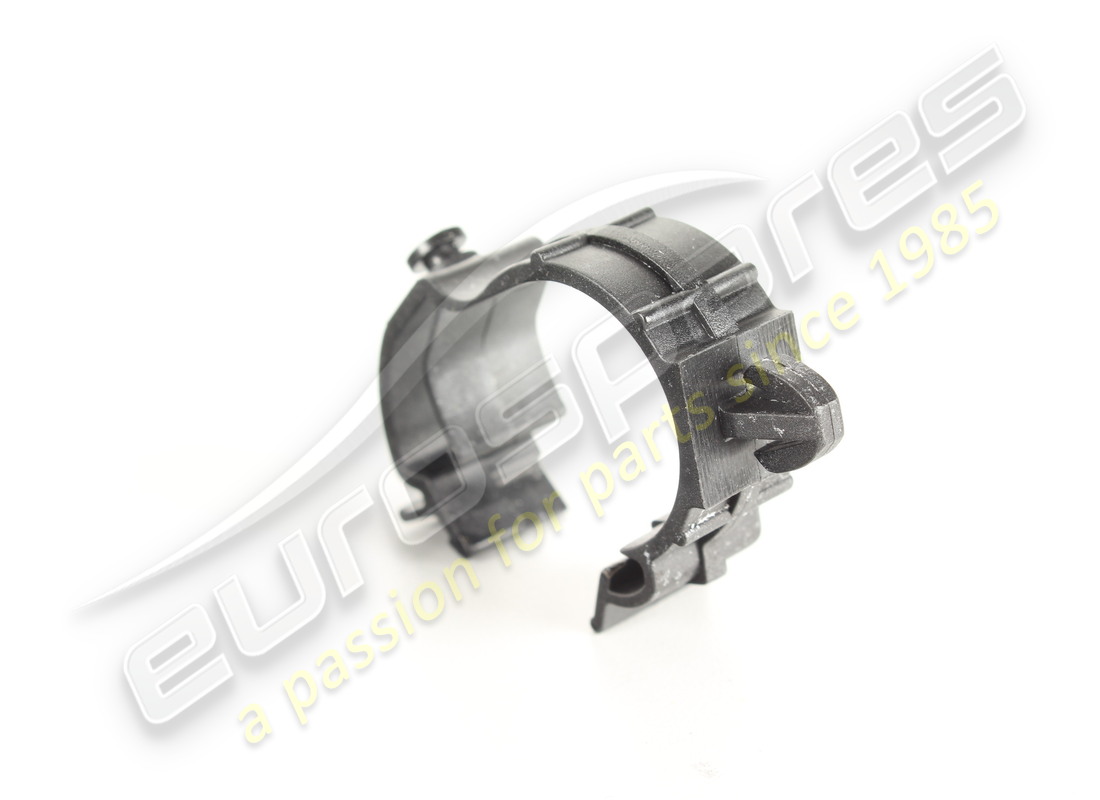

# 005
MPN: 253769
CLIP
-Applicable up to Ass. No. 108752-
from £0.47
from £0.47
# 006
MPN: 284630
RIGID PIPE
-Applicable up to Ass. No. 108752- -No longer supplied- -Replaced by 293314-
Supersession
Supersession
# 006
MPN: 293314
RIGID PIPE
-Applicable up to Ass. No. 108752-
from £19.64
from £19.64
This part replaces part number 284630 - and 2 more. Click to view details
# 007
MPN: 14039614
NUT
-Applicable up to Ass. No. 108752-
from £0.53
from £0.53
# 008
MPN: 289538
ALUMINIUM PIPE
-Applicable up to Ass. No. 108752-
from £97.15
from £97.15
# 009
MPN: 215294
CLIP
-Applicable up to Ass. No. 108752-
Supersession
Supersession
# 010
MPN: 257691
THREE WAY
-Applicable up to Ass. No. 108752-
from £0.81
from £0.81
This part replaces part number 275374
# 011
MPN: 169695
RUBBER PIPE
-D. 3.5-8 X 55- -Applicable up to Ass. No. 108752-
from £2.95
from £2.95
# 012
MPN: 279862
RH CONNECTOR PIPE
-Applicable up to Ass. No. 108752-
from £32.31
from £32.31
# 013
MPN: 274855
LH CONNECTOR PIPE
-Applicable up to Ass. No. 108752-
from £34.49
from £34.49
# 014
MPN: 233600
SCREW
-M6 X 12- -Applicable up to Ass. No. 108752-
from £0.47
from £0.47
# 015
MPN: 13128970
COLLAR
-Applicable up to Ass. No. 108752-
from £0.87
from £0.87
# 016
MPN: 279692
ENGINE SIDE SECONDARY AIR SYSTEM HOSE CONNECTOR
-Applicable up to Ass. No. 108752-
from £173.38
from £173.38
# 017
MPN: 82051100
CLIP
-Applicable up to Ass. No. 108752-
from £0.50
from £0.50
This part replaces part number 245834
# 018
MPN: 124346
RUBBER PIPE
-D. 3.5-8 X 380- -Applicable up to Ass. No. 108752-
from £2.11
from £2.11
This part replaces part number 115411 - and 3 more. Click to view details
# 019
MPN: 198339
VACUUM ACCUMULATOR TANK
-Applicable up to Ass. No. 108752-
from £14.71
from £14.71
# 020
MPN: 10418501
BRACKET
-Applicable up to Ass. No. 108752- -No longer supplied-
from £1.08
from £1.08
# 021
MPN: 10860370
JUBILEE CLAMP
-Applicable up to Ass. No. 108752- -Applicable until depletion-
from £0.83
from £0.83
This part replaces part number 13127770
# 021
MPN: 262111
COLLAR
-Applicable up to Ass. No. 108752- -Applicable after depletion of 10860370-
from £0.83
from £0.83
This part replaces part number 13127770
# 022
MPN: 178309
SOLENOID VALVE
-Applicable up to Ass. No. 108752-
from £30.84
from £30.84
# 023
MPN: 12643724
WASHER
-Applicable up to Ass. No. 108752-
from £0.47
from £0.47
This part replaces part number 109684 - and 4 more. Click to view details
# 024
MPN: 280281
CLIP
-2 compartments- -Applicable up to Ass. No. 108752-
from £0.76
from £0.76
# 025
MPN: 65366700
SCREW
-M5 X 12- -Applicable up to Ass. No. 108752- -No longer supplied-
from £0.50
from £0.50
# 026
MPN: 199696
CONNECTOR
-Applicable up to Ass. No. 108752-
from £5.72
from £5.72
# 027
MPN: 234284
CLIP
-1 compartment- -Applicable up to Ass. No. 108752-
from £0.47
from £0.47
# 027
MPN: 234285
CLIP
-2 compartments- -Applicable up to Ass. No. 108752-
from £0.54
from £0.54
# 028
MPN: 12601274
WASHER
-D. 6.40-12 X 0.5- -Applicable up to Ass. No. 108752-
from £0.47
from £0.47
This part replaces part number 12601221 - and 5 more. Click to view details
# 029
MPN: 288959
SECONDARY AIR SYSTEM PIPE WITH SENSOR CARRIER
-Applicable up to Ass. No. 108752-
from £51.16
from £51.16
# 030
MPN: 168248
RUBBER PIPE
-From reservoir to valves- -Applicable up to Ass. No. 108752-
from £10.53
from £10.53
# 031
MPN: 294216
RUBBER PIPE
-From valves to rigid pipes- -Applicable up to Ass. No. 108752- -No longer supplied- -Replaced by 294268-
Supersession
Supersession
# 031
MPN: 294268
RUBBER PIPE
-From valves to rigid pipes- -Applicable up to Ass. No. 108752-
from £5.95
from £5.95
This part replaces part number 294216 - and 7 more. Click to view details
# 032
MPN: 281020
RH RIGID PIPE
-Applicable up to Ass. No. 108752-
from £17.20
from £17.20
# 033
MPN: 269073
LH RIGID PIPE
-Applicable up to Ass. No. 108752-
from £16.80
from £16.80
# 034
MPN: 289882
PIPE MOUNTING BRACKET
-Applicable up to Ass. No. 108752-
from £5.01
from £5.01
# 035
MPN: 168069
RUBBER PIPE
-D. 3-11.5 X 250- -Applicable up to Ass. No. 108752- -No longer supplied- -Replaced by 339752-
from £14.45
from £14.45
# 035
MPN: 339752
RUBBER PIPE
-D. 3.5-8 X 250- -Applicable up to Ass. No. 108752-
from £7.78
from £7.78
# 036
MPN: 190409
CLIP
-Applicable up to Ass. No. 108752-
from £3.25
from £3.25
# 037
MPN: 14039614
NUT
-Applicable up to Ass. No. 108752-
from £0.53
from £0.53
# 037
MPN: 14059111
NUT
-M5- -Applicable up to Ass. No. 108752- -No longer supplied- -Replaced by 14039614-
from £0.47
from £0.47
# 038
MPN: 11566227
SCREW
-M5 X 14- -Applicable up to Ass. No. 108752- -No longer supplied- -Replaced by 14059111-
from £0.66
from £0.66
# 038
MPN: 14059111
NUT
-M5- -Applicable up to Ass. No. 108752-
from £0.47
from £0.47
# 039
MPN: 186781
GASKET
-Applicable up to Ass. No. 108752-
from £2.92
from £2.92
# 040
MPN: 284235
SECONDARY AIR SYSTEM VALVE
-Applicable up to Ass. No. 108752-
from £76.32
from £76.32
# 041
MPN: 10902824
SCREW
-Applicable up to Ass. No. 108752-
from £0.47
from £0.47
This part replaces part number 10902821
# 041
MPN: 231618
SCREW
-M6 X 20- -Applicable up to Ass. No. 108752-
from £0.47
from £0.47
# 041
MPN: 231623
SCREW
-M6 X 40- -Applicable up to Ass. No. 108752-
from £0.53
from £0.53
# 042
MPN: 264020
SPACER ASSEMBLY
-RH side- -Applicable up to Ass. No. 108752-
from £20.33
from £20.33
This part replaces part number 252813 - and 2 more. Click to view details
# 042
MPN: 286011
SPACER ASSEMBLY
-LH side- -Applicable up to Ass. No. 108752-
from £14.23
from £14.23
# 043
MPN: 177576
GROMMET
-Applicable up to Ass. No. 108752-
from £1.11
from £1.11
# 044
MPN: 183898
FLANGED BUSHING
-Applicable up to Ass. No. 108752-
from £1.51
from £1.51
# 045
MPN: 202980
GASKET
-Applicable up to Ass. No. 108752-
from £1.67
from £1.67
# 046
MPN: 258254
RH VALVE FASTENER BRACKET
-Applicable up to Ass. No. 108752-
from £3.84
from £3.84
# 047
MPN: 258252
LH VALVE FASTENER BRACKET
-Applicable up to Ass. No. 108752-
from £3.84
from £3.84
# 048
MPN: 256598
PIPE FROM AIR VALVE TO RH HEAD
-Applicable up to Ass. No. 108752-
from £91.08
from £91.08
# 049
MPN: 256596
PIPE FROM AIR VALVE TO LH HEAD
-Applicable up to Ass. No. 108752-
from £89.67
from £89.67
# 050
MPN: 284631
EMISSIONS CONTROL PIPE
-Applicable up to Ass. No. 108752-
from £41.58
from £41.58
# 051
MPN: 264088
RUBBER PIPE
-D. 3.5-8 X 185- -Applicable up to Ass. No. 108752-
from £2.79
from £2.79
# 052
MPN: 267093
COUPLING
-Applicable up to Ass. No. 108752-
from £8.10
from £8.10
# 053
MPN: 282849
PRESSURE SENSOR
-Applicable up to Ass. No. 108752-
from £10.68
from £10.68
# 054
MPN: 284629
RIGID PIPE
-Applicable up to Ass. No. 108752-
from £23.28
from £23.28
# 055
MPN: 168248
RUBBER PIPE
-Applicable up to Ass. No. 108752-
from £10.53
from £10.53
# 056
MPN: 10450690
BRACKET WITH SHEATH
-Applicable up to Ass. No. 108752-
from £0.47
from £0.47
# 057
MPN: 280051
RUBBER PIPE
-Applicable up to Ass. No. 108752- -Applicable until depletion-
Supersession
Supersession
# 057
MPN: 289048
RUBBER PIPE
-Applicable up to Ass. No. 108752- -Applicable after depletion of 280051-
from £39.66
from £39.66
This part replaces part number 280051
# 058
MPN: 284622
CLIP
-3 compartments- -Applicable up to Ass. No. 108752-
from £0.99
from £0.99
# 059
MPN: 255096
RUBBER PIPE
-D. 3.5 X 140- -Applicable up to Ass. No. 108752-
from £5.53
from £5.53
# 060
MPN: 150738
CLIP
-Applicable up to Ass. No. 108752-
from £0.47
from £0.47
# 061
MPN: 294259
SOLENOID VALVE MOUNTING BRACKET
-Applicable up to Ass. No. 108752-
from £10.31
from £10.31
# 062
MPN: 294260
SOLENOID VALVE MOUNTING BRACKET
-Applicable up to Ass. No. 108752-
from £13.24
from £13.24
# 063
MPN: 294206
CLIP
-2 compartments- -Applicable up to Ass. No. 108752-
from £2.96
from £2.96
