ferrari f12 berlinetta (europe) cooling - oil pump parts diagram

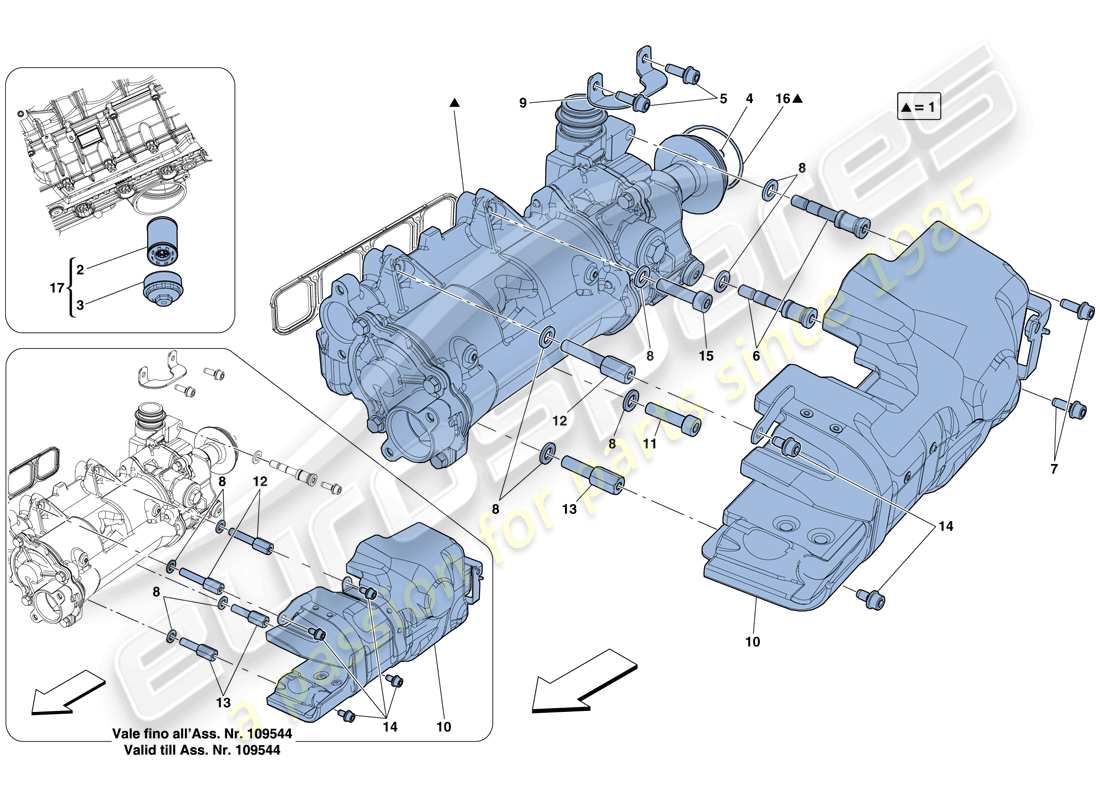

0019 - COOLING - OIL PUMP

Ferrari F12 Berlinetta (Europe) COOLING - OIL PUMP Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Price
              # 001
              MPN: 252029
              COMPL. OIL PUMP
              -No longer supplied- -Replaced by 289956-
              from £1,621.55
              from £1,621.55
              # 001
              MPN: 289956
              COMPL. OIL PUMP
              -No longer supplied- -Replaced by 300049-
              Supersession
              Supersession
              # 001
              MPN: 300049
              COMPL. OIL PUMP
              -Applicable until depletion-
              Supersession
              Supersession
              This part replaces part number 289956
              # 001
              MPN: 781584
              COMPL. OIL PUMP
              -Applicable after depletion of 300049-
              from £2,087.24
              from £2,087.24
              This part replaces part number 300049
              # 002
              MPN: 280900
              OIL FILTER
              from £66.20
              from £66.20
              # 003
              MPN: 286244
              OIL FILTER CAP
              -After depletion, order compl. filter 289950- -Applicable until depletion-
              from £56.92
              from £56.92
              This part replaces part number 235444
              # 004
              MPN: 288975
              HEXAGONAL OIL PUMP DRIVE ROD
              -No longer supplied- -Replaced by 295134-
              Supersession
              Supersession
              # 004
              MPN: 295134
              HEXAGONAL OIL PUMP DRIVE ROD
              from £15.59
              from £15.59
              This part replaces part number 288975
              # 005
              MPN: 248334
              SCREW
              -M6 X 16-
              from £0.53
              from £0.53
              # 006
              MPN: 292495
              CALIBRATED STUD BOLT
              from £15.10
              from £15.10
              # 007
              MPN: 231617
              SCREW
              -M6 X 18-
              from £0.47
              from £0.47
              This part replaces part number 14433124
              # 008
              MPN: 11198074
              WASHER
              from £0.47
              from £0.47
              This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
              # 009
              MPN: 263347
              BRACKET
              from £5.99
              from £5.99
              # 010
              MPN: 293387
              SOUNDPROOFING SHIELD
              -No longer supplied- -Replaced by 294337-
              from £103.95
              from £103.95
              # 010
              MPN: 294337
              SOUNDPROOFING SHIELD
              -For vehicles up to engine No. 193955, also order ref. 11 and 15-
              from £244.72
              from £244.72
              This part replaces part number 293387 which we have in stock
              # 011
              MPN: 14306421
              SCREW
              -Applicable from engine No. 193956-
              Supersession
              Supersession
              # 012
              MPN: 293410
              STUD BOLT
              -M8 X 35- -Q.ty 1 from engine No. 193956-
              from £14.38
              from £14.38
              # 013
              MPN: 293409
              STUD BOLT
              -M8 X 25- -Q.ty 1 from engine No. 193956-
              from £9.07
              from £9.07
              # 014
              MPN: 233600
              SCREW
              -M6 X 12- -Q.ty 2 from engine No. 193956-
              from £0.47
              from £0.47
              # 015
              MPN: 14306621
              SCREW
              -Applicable from engine No. 193956-
              from £0.84
              from £0.84
              # 016
              MPN: 123353
              O-RING
              from £1.15
              from £1.15
              # 017
              MPN: 289950
              COMPL. OIL FILTER
              from £72.88
              from £72.88
              Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
