ferrari f12 berlinetta (europe) cooling - radiators and air ducts parts diagram

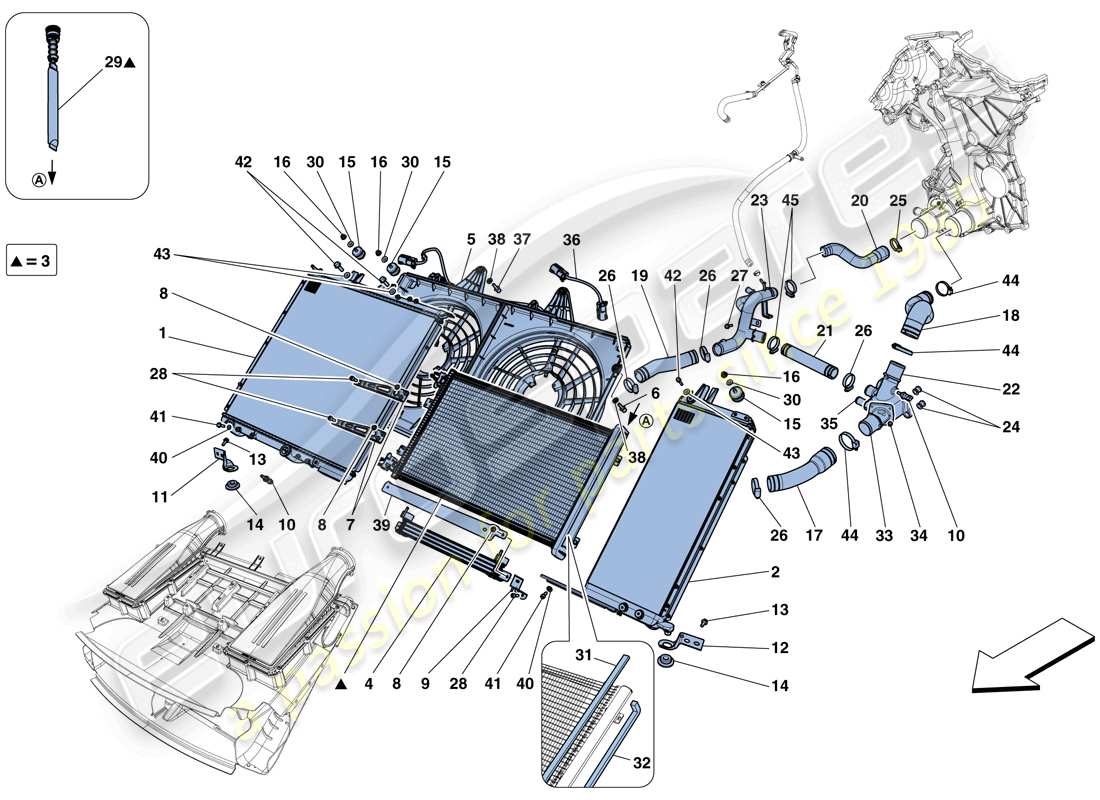

0021 - COOLING - RADIATORS AND AIR DUCTS

Ferrari F12 Berlinetta (Europe) COOLING - RADIATORS AND AIR DUCTS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Key
                                                                    Price
                                                                    # 001
                                                                    MPN: 303057
                                                                    ENGINE WATER RADIATOR
                                                                    Supersession
                                                                    Supersession
                                                                    Genuine Ferrari Part (no longer available to order)
                                                                    # 002
                                                                    MPN: 277227
                                                                    ENGINE OIL RADIATOR
                                                                    from £382.68
                                                                    from £382.68
                                                                    This part replaces part number 263428 - and 1 more. Click to view details
                                                                    ENGINE OIL RADIATOR Genuine Ferrari Part - New (to order)
                                                                    ENGINE OIL RADIATOR Genuine Ferrari Part - Damaged In stock
                                                                    SIDE FRAME BENT & BOTTOM BRACKET DAMAGED
                                                                    # 003
                                                                    MPN: 265489
                                                                    AC FILTER CONDENSER
                                                                    from £110.84
                                                                    from £110.84
                                                                    AC FILTER CONDENSER Genuine Ferrari Part - New In stock
                                                                    AC FILTER CONDENSER Genuine Ferrari Part - Damaged In stock
                                                                    SIDE EDGE DAMAGED ( STILL HOLDS PRESSURE )
                                                                    # 004
                                                                    MPN: 261216
                                                                    POWER STEERING FLUID RADIATOR
                                                                    -Applicable until depletion-
                                                                    Supersession
                                                                    Supersession
                                                                    This part replaces part number 240007
                                                                    Genuine Ferrari Part (no longer available to order)
                                                                    # 004
                                                                    MPN: 310424
                                                                    POWER STEERING FLUID RADIATOR
                                                                    -Applicable after depletion of 261216-
                                                                    from £204.50
                                                                    from £204.50
                                                                    This part replaces part number 261216
                                                                    OIL RADIATOR Genuine Ferrari Part - New (to order)
                                                                    # 005
                                                                    MPN: 286394
                                                                    COWL WITH ELECTRIC FANS
                                                                    -Plastic- -Applicable up to Ass. No. 109420- -Applicable until depletion-
                                                                    Supersession
                                                                    Supersession
                                                                    Genuine Ferrari Part (no longer available to order)
                                                                    # 005
                                                                    MPN: 295049
                                                                    COWL WITH ELECTRIC FANS
                                                                    -Plastic- -Applicable from Ass. No. 110817- -Applicable after depletion of 295914-
                                                                    from £1,050.90
                                                                    from £1,050.90
                                                                    This part replaces part number 295914
                                                                    COWL WITH ELECTRIC FANS Genuine Ferrari Part - New (to order)
                                                                    # 005
                                                                    MPN: 295914
                                                                    COWL WITH ELECTRIC FANS
                                                                    -In metal- -Applicable from Ass. No. 109421 up to Ass. No. 110816- -Applicable after depletion of 286394- -Applicable until depletion-
                                                                    Supersession
                                                                    Supersession
                                                                    This part replaces part number 286394
                                                                    Genuine Ferrari Part (no longer available to order)
                                                                    # 006
                                                                    MPN: 16285227
                                                                    SCREW
                                                                    -Applicable for cowl Part No. 295049 ref. 5- -Applicable from Ass. No. 110817-
                                                                    from £0.52
                                                                    from £0.52
                                                                    SCREW Genuine Ferrari Part - New In stock
                                                                    # 007
                                                                    MPN: 268656
                                                                    CONDENSER MOUNTING BRACKET
                                                                    from £21.17
                                                                    from £21.17
                                                                    CONDENSER MOUNTING BRACKET Genuine Ferrari Part - New (to order)
                                                                    # 008
                                                                    MPN: 13046012
                                                                    NUT
                                                                    from £1.51
                                                                    from £1.51
                                                                    NUT Genuine Ferrari Part - New In stock
                                                                    # 009
                                                                    MPN: 276881
                                                                    RH POWER STEERING FLUID RADIATOR MOUNTING BRACKET
                                                                    -Applicable up to Ass. No. 111571-
                                                                    from £36.59
                                                                    from £36.59
                                                                    RH POWER STEERING FLUID RADI Genuine Ferrari Part - New (to order)
                                                                    # 009
                                                                    MPN: 276882
                                                                    LH POWER STEERING FLUID RADIATOR MOUNTING BRACKET
                                                                    -Applicable up to Ass. No. 111571-
                                                                    from £36.59
                                                                    from £36.59
                                                                    LH POWER STEERING FLUID RADI Genuine Ferrari Part - New In stock
                                                                    # 009
                                                                    MPN: 297845
                                                                    RH POWER STEERING FLUID RADIATOR MOUNTING BRACKET
                                                                    -Applicable from Ass. No. 111572-
                                                                    from £146.14
                                                                    from £146.14
                                                                    RH POWER STEERING FLUID RADI Genuine Ferrari Part - New (to order)
                                                                    # 009
                                                                    MPN: 297846
                                                                    LH POWER STEERING FLUID RADIATOR MOUNTING BRACKET
                                                                    -Applicable from Ass. No. 111572-
                                                                    from £146.14
                                                                    from £146.14
                                                                    This part replaces part number 287493
                                                                    LH POWER STEERING FLUID RADI Genuine Ferrari Part - New (to order)
                                                                    # 011
                                                                    MPN: 284549
                                                                    LOWER RH BRACKET
                                                                    from £34.84
                                                                    from £34.84
                                                                    LOWER RH BRACKET Genuine Ferrari Part - New (to order)
                                                                    # 012
                                                                    MPN: 284548
                                                                    LOWER LH BRACKET
                                                                    from £34.84
                                                                    from £34.84
                                                                    LOWER LH BRACKET Genuine Ferrari Part - New (to order)
                                                                    # 013
                                                                    MPN: 16287127
                                                                    SCREW
                                                                    -M8 X 20-
                                                                    from £0.47
                                                                    from £0.47
                                                                    SCREW Genuine Ferrari Part - New (to order)
                                                                    SCREW. Genuine Maserati Part - New (to order)
                                                                    # 014
                                                                    MPN: 138926
                                                                    RUBBER PAD FOR PIN
                                                                    from £2.83
                                                                    from £2.83
                                                                    PAD Genuine Ferrari Part - New (to order)
                                                                    # 015
                                                                    MPN: 271472
                                                                    PLUG
                                                                    from £7.66
                                                                    from £7.66
                                                                    PLUG Genuine Ferrari Part - New In stock
                                                                    # 016
                                                                    MPN: 14040711
                                                                    NUT
                                                                    from £0.53
                                                                    from £0.53
                                                                    This part replaces part number 14040715
                                                                    NUT Genuine Ferrari Part - New In stock
                                                                    NUT FOR GLASS GUIDE ASSEM Genuine Maserati Part - New In stock
                                                                    # 017
                                                                    MPN: 260080
                                                                    WATER HOSE FROM VALVE TO RADIATOR
                                                                    from £103.77
                                                                    from £103.77
                                                                    WATER HOSE FROM VALVE TO RAD Genuine Ferrari Part - New (to order)
                                                                    # 018
                                                                    MPN: 290951
                                                                    WATER HOSE FROM ENGINE TO VALVE
                                                                    from £108.37
                                                                    from £108.37
                                                                    WATER HOSE FROM ENGINE TO VA Genuine Ferrari Part - New (to order)
                                                                    WATER HOSE FROM ENGINE TO VA Genuine Ferrari Part - Used In stock
                                                                    # 019
                                                                    MPN: 258630
                                                                    RETURN HOSE FROM RADIATOR
                                                                    from £21.16
                                                                    from £21.16
                                                                    MANICOTTO RIT.DA RADIAT.A TU Genuine Ferrari Part - New In stock
                                                                    # 020
                                                                    MPN: 290949
                                                                    RETURN HOSE TO PUMP
                                                                    from £17.86
                                                                    from £17.86
                                                                    RETURN HOSE TO PUMP Genuine Ferrari Part - New (to order)
                                                                    RETURN HOSE TO PUMP Genuine Ferrari Part - Used In stock
                                                                    # 021
                                                                    MPN: 270452
                                                                    WATER HOSE FROM VALVE
                                                                    from £36.49
                                                                    from £36.49
                                                                    WATER HOSE FROM VALVE Genuine Ferrari Part - New (to order)
                                                                    # 022
                                                                    MPN: 267849
                                                                    THERMOSTAT HOUSING
                                                                    from £96.34
                                                                    from £96.34
                                                                    THERMOSTAT COMPARTMENT Genuine Ferrari Part - New In stock
                                                                    THERMOSTAT COMPARTMENT Genuine Ferrari Part - Used In stock
                                                                    # 023
                                                                    MPN: 290950
                                                                    METAL WATER RECIRCULATION CONNECTOR PIPE
                                                                    from £110.58
                                                                    from £110.58
                                                                    METAL WATER RECIRCULATION CO Genuine Ferrari Part - New (to order)
                                                                    METAL WATER RECIRCULATION CO Genuine Ferrari Part - Used In stock
                                                                    # 024
                                                                    MPN: 267300
                                                                    MOUNTING
                                                                    from £6.02
                                                                    from £6.02
                                                                    This part replaces part number 294902 - and 1 more. Click to view details
                                                                    MOUNTING Genuine Ferrari Part - New (to order)
                                                                    MOUNTING Genuine Ferrari Part - New (other) In stock
                                                                    SMALL IMPERFECTION
                                                                    # 025
                                                                    MPN: 13000790
                                                                    SCREW COLLAR
                                                                    from £0.54
                                                                    from £0.54
                                                                    This part replaces part number 12173190 - and 1 more. Click to view details
                                                                    SCREW COLLAR Genuine Ferrari Part - New In stock
                                                                    SCREW COLLAR Genuine Maserati Part - New In stock
                                                                    # 026
                                                                    MPN: 13000690
                                                                    SCREW COLLAR
                                                                    from £0.48
                                                                    from £0.48
                                                                    This part replaces part number 12174090 - and 2 more. Click to view details
                                                                    SCREW COLLAR Genuine Ferrari Part - New In stock
                                                                    SCREW COLLAR D. 32- 50X9 Genuine Maserati Part - New In stock
                                                                    # 027
                                                                    MPN: 16286024
                                                                    SCREW
                                                                    -M6 X 16-
                                                                    from £0.53
                                                                    from £0.53
                                                                    VITE TE FLANGIATA M 6X16 Genuine Ferrari Part - New In stock
                                                                    SCREW. Genuine Maserati Part - New (to order)
                                                                    # 028
                                                                    MPN: 16284927
                                                                    SCREW
                                                                    -M5 X 10-
                                                                    Supersession
                                                                    Supersession
                                                                    Genuine Ferrari Part (no longer available to order)
                                                                    # 029
                                                                    MPN: 280880
                                                                    DESICCATING FILTER
                                                                    from £328.42
                                                                    from £328.42
                                                                    DESICCATING FILTER Genuine Ferrari Part - New (to order)
                                                                    # 030
                                                                    MPN: 12647024
                                                                    WASHER
                                                                    Supersession
                                                                    Supersession
                                                                    Genuine Ferrari Part (no longer available to order)
                                                                    Genuine Maserati Part (no longer available to order)
                                                                    # 031
                                                                    MPN: 282469
                                                                    RUBBER SHIM
                                                                    from £1.40
                                                                    from £1.40
                                                                    RUBBER SHIM Genuine Ferrari Part - New In stock
                                                                    # 032
                                                                    MPN: 282580
                                                                    RUBBER SHIM
                                                                    from £2.81
                                                                    from £2.81
                                                                    RUBBER SHIM Genuine Ferrari Part - New (to order)
                                                                    # 033
                                                                    MPN: 262913
                                                                    THERMOSTAT/PRESSURE SWITCH
                                                                    from £77.79
                                                                    from £77.79
                                                                    This part replaces part number 257544 - and 3 more. Click to view details
                                                                    THERMOSTAT/PRESSURE SWITCH Genuine Ferrari Part - New In stock
                                                                    Maserati PART 262913 Genuine Maserati Part - New (to order)
                                                                    THERMOSTAT/PRESSURE SWITCH Genuine Ferrari Part - Used In stock
                                                                    # 034
                                                                    MPN: 231617
                                                                    SCREW
                                                                    -M6 X 18-
                                                                    from £0.53
                                                                    from £0.53
                                                                    This part replaces part number 14433124 which we have in stock
                                                                    SCREW Genuine Ferrari Part - New In stock
                                                                    SOCKET HEAD SCREW WITH WASHER M6X Genuine Maserati Part - New In stock
                                                                    # 035
                                                                    MPN: 228438
                                                                    CONNECTOR
                                                                    from £3.81
                                                                    from £3.81
                                                                    CONNECTOR Genuine Ferrari Part - New (to order)
                                                                    THREADED UNION M20X1,5 Genuine Maserati Part - New (to order)
                                                                    # 036
                                                                    MPN: 295734
                                                                    WIRING HARNESS FOR LH FAN
                                                                    -Applicable for cowl Part No. 295914 ref. 5- -Applicable from Ass. No. 109421 up to Ass. No. 110816-
                                                                    from £497.72
                                                                    from £497.72
                                                                    WIRING HARNESS FOR LH FAN Genuine Ferrari Part - New (to order)
                                                                    # 037
                                                                    MPN: 16281827
                                                                    SCREW
                                                                    -Applicable for cowls Part No 286394 and 295914 ref. 5- -Applicable up to Ass. No. 110816-
                                                                    from £0.53
                                                                    from £0.53
                                                                    SCREW Genuine Ferrari Part - New In stock
                                                                    # 037
                                                                    MPN: 16285227
                                                                    SCREW
                                                                    from £0.52
                                                                    from £0.52
                                                                    SCREW Genuine Ferrari Part - New In stock
                                                                    # 038
                                                                    MPN: 12643778
                                                                    WASHER
                                                                    from £0.50
                                                                    from £0.50
                                                                    This part replaces part number 12643777 - and 1 more. Click to view details
                                                                    WASHER Genuine Ferrari Part - New In stock
                                                                    WASHER Genuine Maserati Part - New (to order)
                                                                    # 039
                                                                    MPN: 289445
                                                                    POWER STEERING RADIATOR SHIELD
                                                                    -Applicable from Ass. No. 111572-
                                                                    from £76.86
                                                                    from £76.86
                                                                    POWER STEERING RADIATOR SHIE Genuine Ferrari Part - New (to order)
                                                                    # 040
                                                                    MPN: 12638178
                                                                    WASHER
                                                                    from £0.47
                                                                    from £0.47
                                                                    This part replaces part number 10519578 which we have in stock - and 3 more. Click to view details
                                                                    WASHER Genuine Ferrari Part - New In stock
                                                                    WASHER Genuine Maserati Part - New In stock
                                                                    # 041
                                                                    MPN: 16285127
                                                                    SCREW
                                                                    -M5 X 16-
                                                                    from £0.52
                                                                    from £0.52
                                                                    SCREW Genuine Ferrari Part - New In stock
                                                                    # 042
                                                                    MPN: 16281827
                                                                    SCREW
                                                                    from £0.53
                                                                    from £0.53
                                                                    SCREW Genuine Ferrari Part - New In stock
                                                                    # 043
                                                                    MPN: 166467
                                                                    WASHER
                                                                    from £0.53
                                                                    from £0.53
                                                                    WASHER Genuine Ferrari Part - New In stock
                                                                    WASHER Genuine Maserati Part - New (to order)
                                                                    # 044
                                                                    MPN: 296345
                                                                    COLLAR
                                                                    from £1.34
                                                                    from £1.34
                                                                    COLLAR Genuine Ferrari Part - New In stock
                                                                    # 045
                                                                    MPN: 262113
                                                                    COLLAR
                                                                    from £0.93
                                                                    from £0.93
                                                                    COLLAR Genuine Ferrari Part - New (to order)
