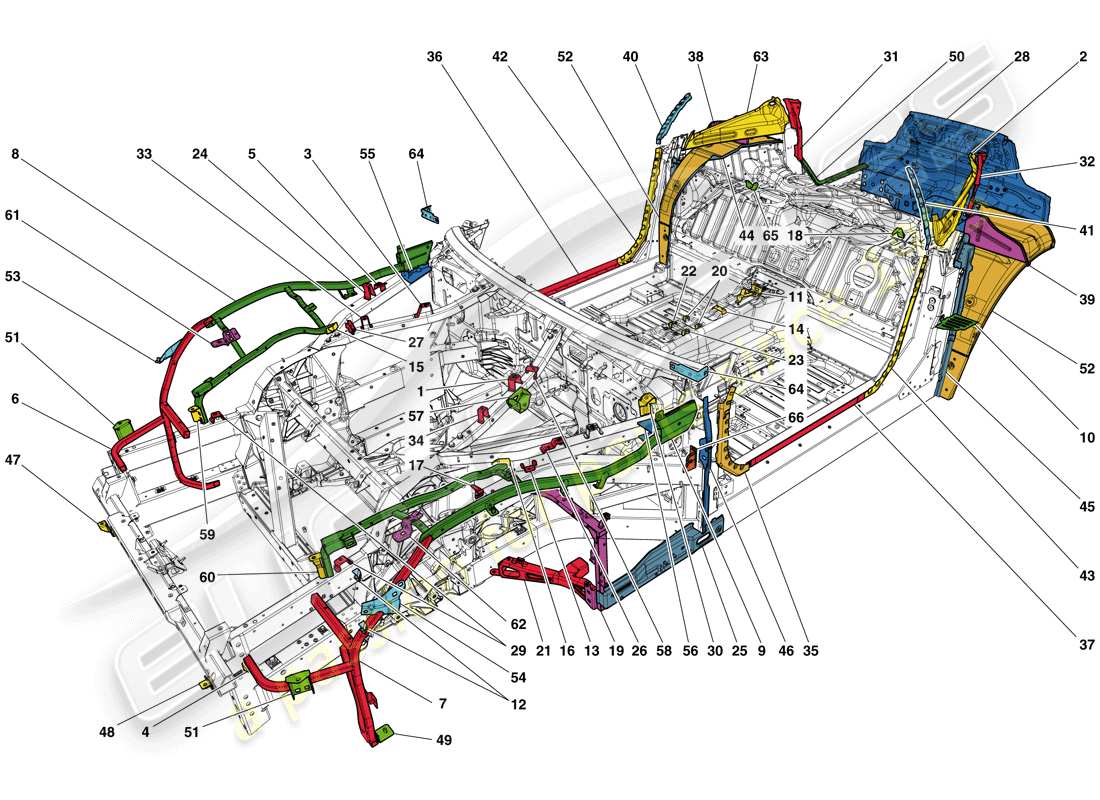

0105 - CHASSIS COMPLETION

Ferrari F12 Berlinetta (Europe) CHASSIS COMPLETION Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                              #
                                                                                                              Part number
                                                                                                              Description
                                                                                                              Price
                                                                                                              # 001
                                                                                                              MPN: 278365
                                                                                                              INTERNAL LH UNDERWINDSCREEN TRAY BRACKET
                                                                                                              -After depletion, order compl. tab. 102 ref. 278040- -Applicable up to Ass. No. 108239- -Applicable until depletion-
                                                                                                              from £173.31
                                                                                                              from £173.31
                                                                                                              # 002
                                                                                                              MPN: 84643700
                                                                                                              LH LATERAL SUBSTRUCTURE
                                                                                                              from £114.56
                                                                                                              from £114.56
                                                                                                              # 003
                                                                                                              MPN: 278395
                                                                                                              INTERNAL RH UNDERWINDSCREEN TRAY BRACKET
                                                                                                              -After depletion, order compl. tab. 102 ref. 278041- -Applicable up to Ass. No. 108239- -Applicable until depletion-
                                                                                                              from £227.48
                                                                                                              from £227.48
                                                                                                              # 004
                                                                                                              MPN: 83342500
                                                                                                              INTERNAL FRONT CONNECTOR ELEMENT
                                                                                                              from £6.27
                                                                                                              from £6.27
                                                                                                              # 005
                                                                                                              MPN: 278396
                                                                                                              EXTERNAL RH UNDERWINDSCREEN TRAY BRACKET
                                                                                                              from £147.83
                                                                                                              from £147.83
                                                                                                              # 006
                                                                                                              MPN: 84232600
                                                                                                              FRONT TRELLIS FOR RH HEADLIGHT
                                                                                                              from £651.69
                                                                                                              from £651.69
                                                                                                              # 007
                                                                                                              MPN: 84232700
                                                                                                              FRONT TRELLIS FOR LH HEADLIGHT
                                                                                                              from £651.69
                                                                                                              from £651.69
                                                                                                              # 008
                                                                                                              MPN: 84233000
                                                                                                              FRONT RH FENDER TRELLIS
                                                                                                              from £1,157.37
                                                                                                              from £1,157.37
                                                                                                              # 009
                                                                                                              MPN: 84233100
                                                                                                              FRONT LH FENDER TRELLIS
                                                                                                              from £1,157.37
                                                                                                              from £1,157.37
                                                                                                              # 010
                                                                                                              MPN: 84573000
                                                                                                              PARTITION ON WHEELHOUSE
                                                                                                              from £41.15
                                                                                                              from £41.15
                                                                                                              # 011
                                                                                                              MPN: 286416
                                                                                                              REAR BRACKET FOR REAR FASTENER
                                                                                                              from £11.09
                                                                                                              from £11.09
                                                                                                              # 012
                                                                                                              MPN: 271344
                                                                                                              FRONT WHEEL BAY SHIELD FASTENER BRACKET
                                                                                                              from £6.52
                                                                                                              from £6.52
                                                                                                              # 013
                                                                                                              MPN: 279847
                                                                                                              SECONDARY AIR SYSTEM PIPE FASTENER BRACKET
                                                                                                              from £73.91
                                                                                                              from £73.91
                                                                                                              # 014
                                                                                                              MPN: 286417
                                                                                                              FRONT BRACKET FOR FRONT FASTENER
                                                                                                              from £7.39
                                                                                                              from £7.39
                                                                                                              # 015
                                                                                                              MPN: 83557100
                                                                                                              MOUNTING FOR INTERNAL RH FRONT FENDER TUBE
                                                                                                              from £44.42
                                                                                                              from £44.42
                                                                                                              # 016
                                                                                                              MPN: 83557200
                                                                                                              MOUNTING FOR INTERNAL LH FRONT FENDER TUBE
                                                                                                              from £44.42
                                                                                                              from £44.42
                                                                                                              # 017
                                                                                                              MPN: 271346
                                                                                                              LH REAR WHEEL BAY SHIELD FASTENER BRACKET
                                                                                                              from £8.21
                                                                                                              from £8.21
                                                                                                              # 017
                                                                                                              MPN: 271348
                                                                                                              RH REAR WHEEL BAY SHIELD FASTENER BRACKET
                                                                                                              from £8.21
                                                                                                              from £8.21

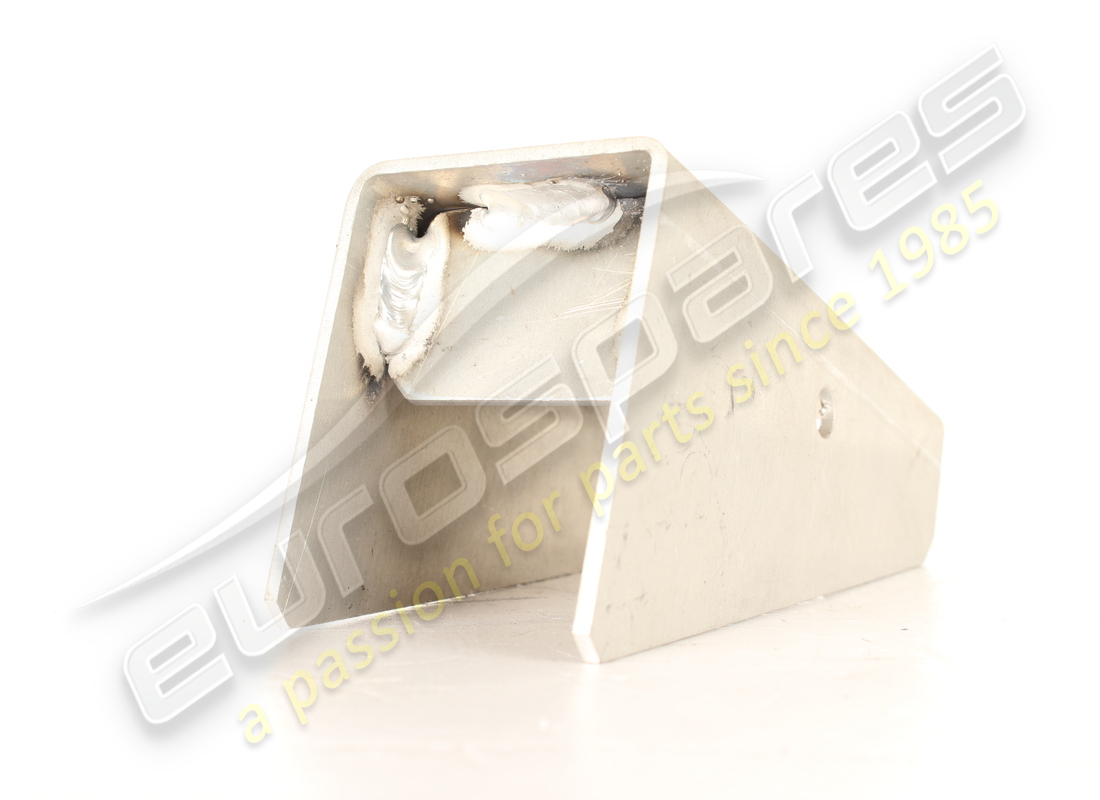

                                                                                                              # 018
                                                                                                              MPN: 287670
                                                                                                              LH HOOK FASTENER BRACKET
                                                                                                              from £73.91
                                                                                                              from £73.91

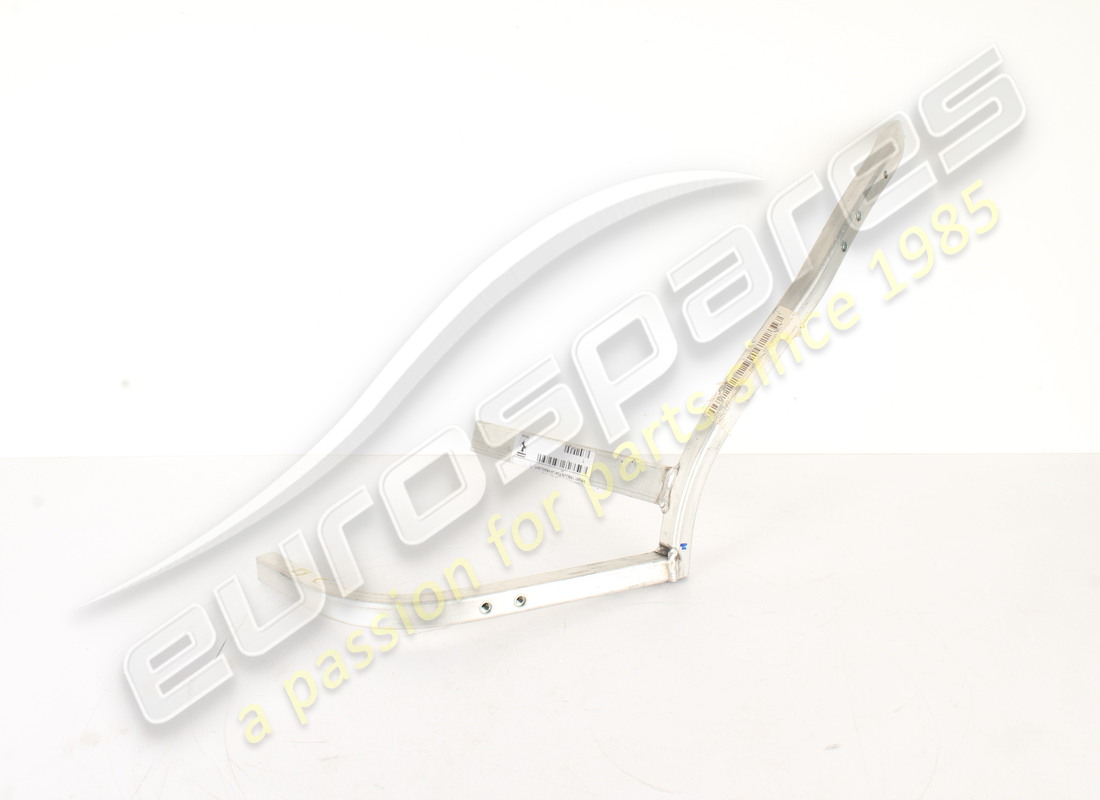

                                                                                                              # 019
                                                                                                              MPN: 83450100
                                                                                                              LH TRELLIS PILLAR
                                                                                                              -Not for GD- -No longer supplied- -Replaced by 85097800-
                                                                                                              from £411.59
                                                                                                              from £411.59
                                                                                                              # 019
                                                                                                              MPN: 84137000
                                                                                                              RH TRELLIS PILLAR
                                                                                                              -Not for GD-
                                                                                                              from £608.99
                                                                                                              from £608.99
                                                                                                              # 019
                                                                                                              MPN: 85097800
                                                                                                              LH TRELLIS PILLAR
                                                                                                              -Not for GD-
                                                                                                              from £608.99
                                                                                                              from £608.99
                                                                                                              # 019
                                                                                                              MPN: 85147900
                                                                                                              RH TRELLIS PILLAR
                                                                                                              -Applicable for GD-
                                                                                                              from £608.99
                                                                                                              from £608.99
                                                                                                              # 019
                                                                                                              MPN: 85148200
                                                                                                              LH TRELLIS PILLAR
                                                                                                              -Applicable for GD-
                                                                                                              from £608.99
                                                                                                              from £608.99
                                                                                                              # 020
                                                                                                              MPN: 286418
                                                                                                              REAR BRACKET FOR FRONT FASTENER
                                                                                                              from £2.96
                                                                                                              from £2.96
                                                                                                              # 021
                                                                                                              MPN: 83783200
                                                                                                              RH REAR TRELLIS CROSS-MEMBER
                                                                                                              -Request ASM authorisation-
                                                                                                              Supersession
                                                                                                              Supersession
                                                                                                              # 021
                                                                                                              MPN: 83783400
                                                                                                              LH REAR TRELLIS CROSS-MEMBER
                                                                                                              -Request ASM authorisation-
                                                                                                              from £46.40
                                                                                                              from £46.40
                                                                                                              # 022
                                                                                                              MPN: 286420
                                                                                                              RH BRACKET FOR FRONT FASTENER
                                                                                                              from £2.23
                                                                                                              from £2.23
                                                                                                              # 023
                                                                                                              MPN: 286419
                                                                                                              LH BRACKET FOR FRONT FASTENER
                                                                                                              from £2.96
                                                                                                              from £2.96
                                                                                                              # 024
                                                                                                              MPN: 288328
                                                                                                              REAR FASTENER BRACKET FOR RH ENGINE COVER
                                                                                                              from £73.91
                                                                                                              from £73.91
                                                                                                              # 025
                                                                                                              MPN: 83033900
                                                                                                              LOWER FASTENER BEAM FOR RH FENDER
                                                                                                              -Request ASM authorisation-
                                                                                                              Supersession
                                                                                                              Supersession
                                                                                                              # 025
                                                                                                              MPN: 83034000
                                                                                                              LOWER FASTENER BEAM FOR LH FENDER
                                                                                                              -Request ASM authorisation-
                                                                                                              Supersession
                                                                                                              Supersession
                                                                                                              # 026
                                                                                                              MPN: 288606
                                                                                                              LH ENGINE COVER BRACKET
                                                                                                              from £73.91
                                                                                                              from £73.91
                                                                                                              # 027
                                                                                                              MPN: 270772
                                                                                                              BLOW-BY PIPE FASTENER BRACKET
                                                                                                              from £110.88
                                                                                                              from £110.88

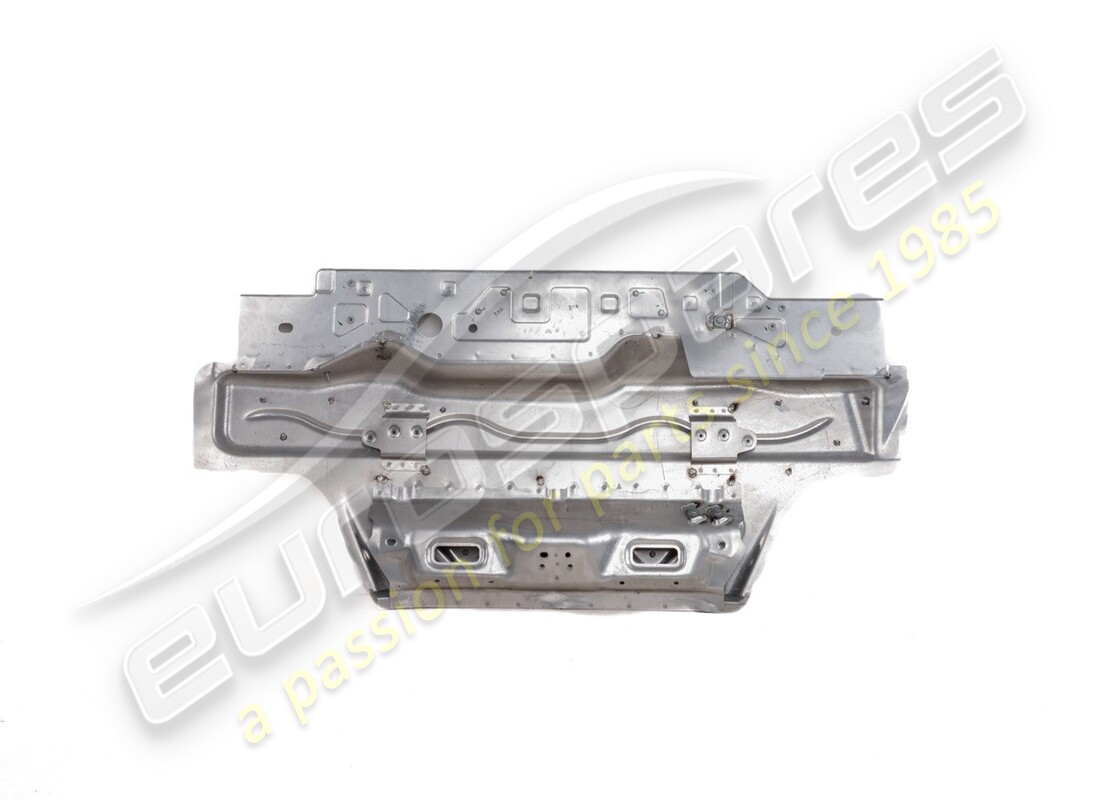

                                                                                                              # 028
                                                                                                              MPN: 84185600
                                                                                                              COMPL. BACK PANEL
                                                                                                              -Not for CINA, USA, CDN, GOLFO, USA LIGHT-
                                                                                                              from £453.10
                                                                                                              from £453.10
                                                                                                              # 028
                                                                                                              MPN: 84977200
                                                                                                              COMPL. BACK PANEL
                                                                                                              -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT-
                                                                                                              from £453.10
                                                                                                              from £453.10
                                                                                                              # 029
                                                                                                              MPN: 284573
                                                                                                              INJECTION CABLE FASTENER BRACKET
                                                                                                              from £110.88
                                                                                                              from £110.88

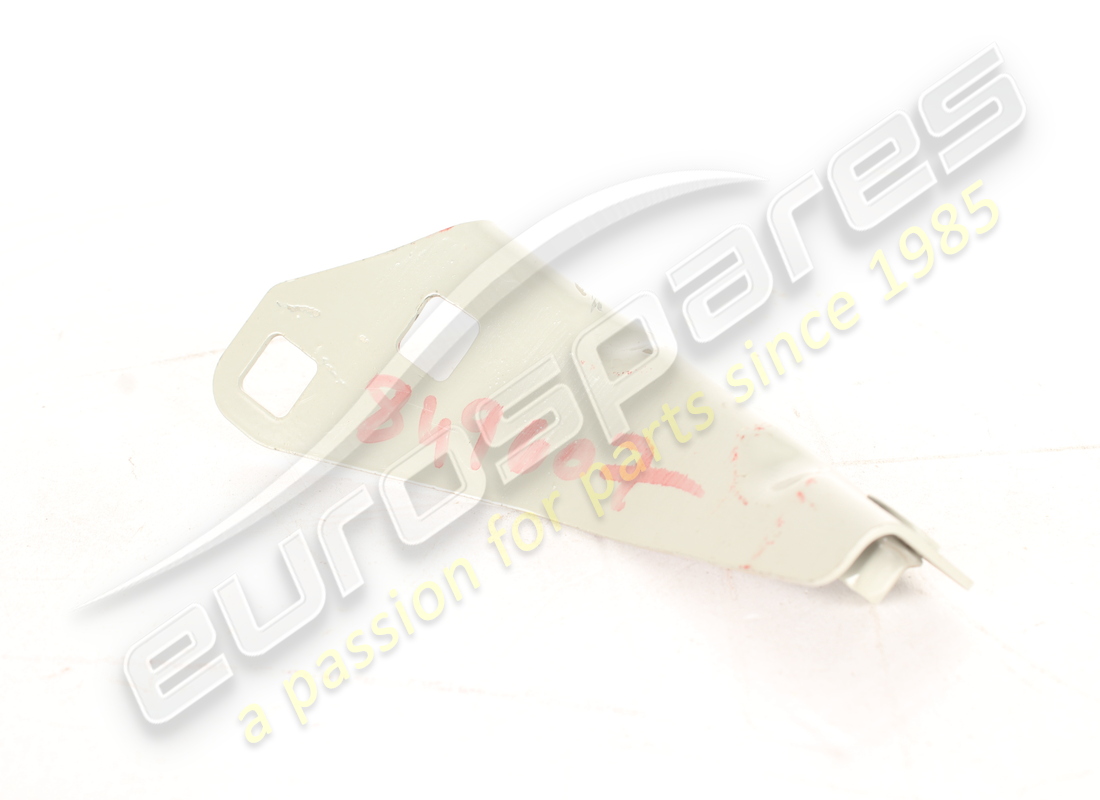

                                                                                                              # 030
                                                                                                              MPN: 84859500
                                                                                                              RH WINDSCREEN WIPER FASTENER BRACKET
                                                                                                              -Applicable for GD-
                                                                                                              from £30.30
                                                                                                              from £30.30

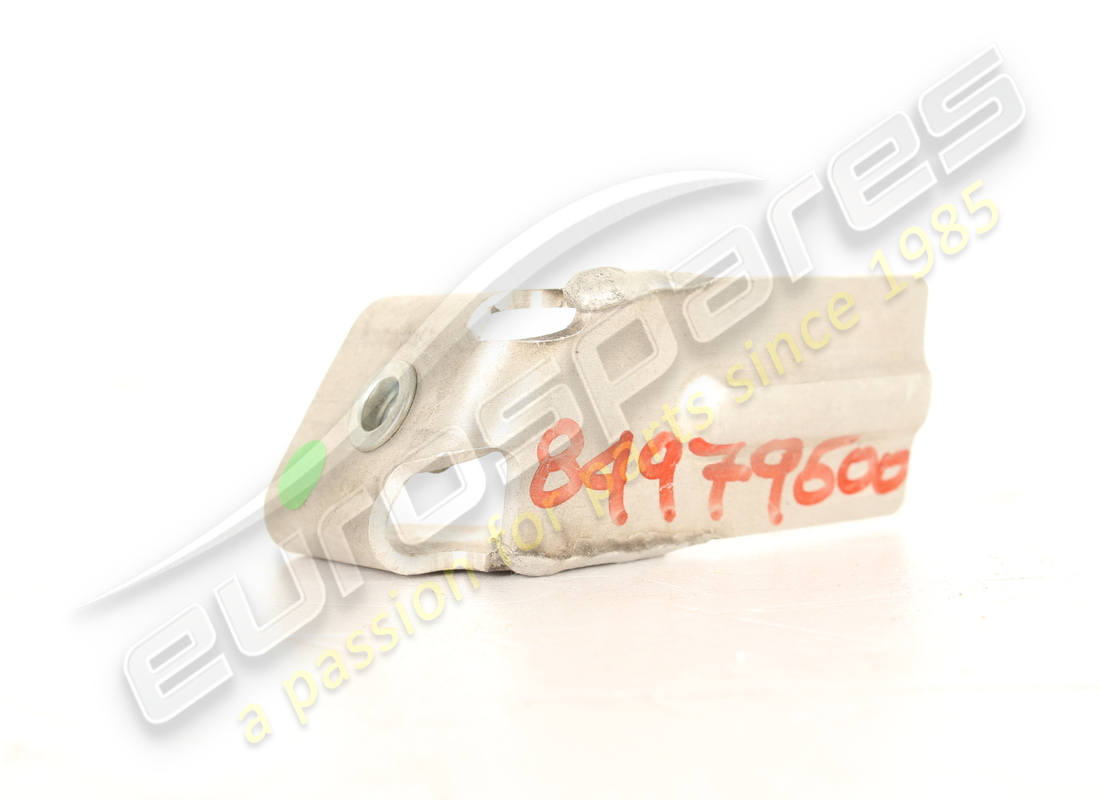

                                                                                                              # 030
                                                                                                              MPN: 84979600
                                                                                                              LH WINDSCREEN WIPER FASTENER BRACKET
                                                                                                              -Not for GD-
                                                                                                              from £185.54
                                                                                                              from £185.54
                                                                                                              # 031
                                                                                                              MPN: 84220300
                                                                                                              REAR ELEMENT OF RH LATERAL SUBSTRUCTURE
                                                                                                              from £21.49
                                                                                                              from £21.49
                                                                                                              # 032
                                                                                                              MPN: 85077600
                                                                                                              REAR ELEMENT OF LH LATERAL SUBSTRUCTURE
                                                                                                              from £23.40
                                                                                                              from £23.40
                                                                                                              # 033
                                                                                                              MPN: 288334
                                                                                                              FASTENER BRACKET FOR RH ENGINE COVER
                                                                                                              -After depletion, order compl. tab. 102 ref. 278041- -Applicable until depletion-
                                                                                                              from £113.75
                                                                                                              from £113.75
                                                                                                              # 034
                                                                                                              MPN: 288652
                                                                                                              FASTENER BRACKET FOR LH ENGINE COVER
                                                                                                              -After depletion, order compl. tab. 102 ref. 278040- -Applicable until depletion-
                                                                                                              from £43.34
                                                                                                              from £43.34
                                                                                                              # 035
                                                                                                              MPN: 84280900
                                                                                                              PROFILE LINKING RH PILLAR WITH FLANK
                                                                                                              from £22.84
                                                                                                              from £22.84
                                                                                                              # 035
                                                                                                              MPN: 84281000
                                                                                                              PROFILE LINKING LH PILLAR WITH FLANK
                                                                                                              from £22.84
                                                                                                              from £22.84

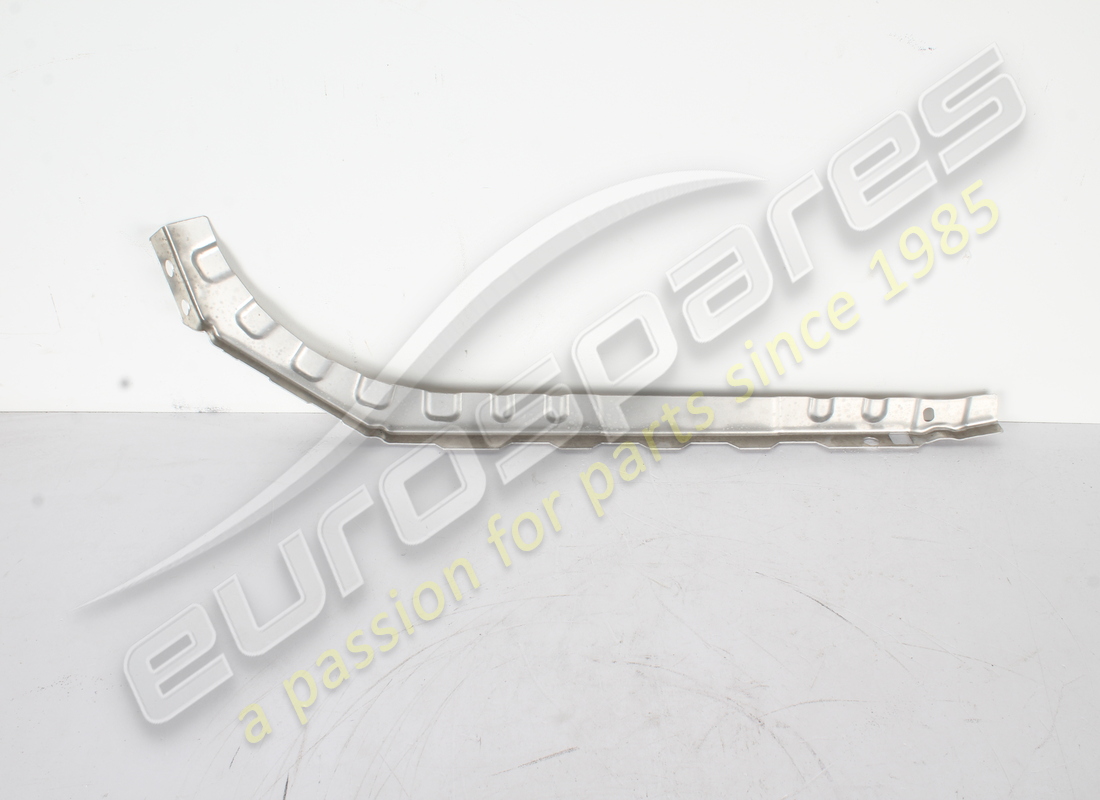

                                                                                                              # 036
                                                                                                              MPN: 83861400
                                                                                                              LOWER RH DOOR SEAL PROFILE
                                                                                                              Supersession
                                                                                                              Supersession
                                                                                                              # 037
                                                                                                              MPN: 83861500
                                                                                                              LOWER LH DOOR SEAL PROFILE
                                                                                                              Supersession
                                                                                                              Supersession
                                                                                                              # 038
                                                                                                              MPN: 84221100
                                                                                                              RH EXTERNAL LATERAL SHIELD
                                                                                                              from £28.10
                                                                                                              from £28.10
                                                                                                              # 039
                                                                                                              MPN: 84221200
                                                                                                              LH EXTERNAL LATERAL SHIELD
                                                                                                              from £28.10
                                                                                                              from £28.10
                                                                                                              # 040
                                                                                                              MPN: 84221900
                                                                                                              UPPER RH PILLAR CONNECTOR PROFILE
                                                                                                              from £18.10
                                                                                                              from £18.10
                                                                                                              # 041
                                                                                                              MPN: 84222000
                                                                                                              UPPER LH PILLAR CONNECTOR PROFILE
                                                                                                              from £18.10
                                                                                                              from £18.10
                                                                                                              # 042
                                                                                                              MPN: 84221700
                                                                                                              PROFILE LINKING RH PILLAR WITH FLANK
                                                                                                              from £26.11
                                                                                                              from £26.11
                                                                                                              # 043
                                                                                                              MPN: 84221800
                                                                                                              PROFILE LINKING LH PILLAR WITH FLANK
                                                                                                              from £26.11
                                                                                                              from £26.11
                                                                                                              # 044
                                                                                                              MPN: 84279800
                                                                                                              RH FRONT FLANK SUBSTRUCTURE
                                                                                                              from £87.96
                                                                                                              from £87.96
                                                                                                              # 045
                                                                                                              MPN: 84279900
                                                                                                              LH FRONT FLANK SUBSTRUCTURE
                                                                                                              from £87.96
                                                                                                              from £87.96
                                                                                                              # 046
                                                                                                              MPN: 84280700
                                                                                                              RH OUTER PILLAR CONNECTOR PROFILE
                                                                                                              -Applicable until depletion-
                                                                                                              Supersession
                                                                                                              Supersession
                                                                                                              # 046
                                                                                                              MPN: 84280800
                                                                                                              LH OUTER PILLAR CONNECTOR PROFILE
                                                                                                              -Applicable until depletion-
                                                                                                              Supersession
                                                                                                              Supersession
                                                                                                              # 046
                                                                                                              MPN: 88504300
                                                                                                              LH OUTER PILLAR CONNECTOR PROFILE
                                                                                                              -Applicable after depletion of 84280800-
                                                                                                              from £30.99
                                                                                                              from £30.99
                                                                                                              This part replaces part number 84280800 - and 1 more. Click to view details
                                                                                                              # 046
                                                                                                              MPN: 88504400
                                                                                                              RH OUTER PILLAR CONNECTOR PROFILE
                                                                                                              -Applicable after depletion of 84280700-
                                                                                                              from £30.99
                                                                                                              from £30.99
                                                                                                              This part replaces part number 84280700 - and 1 more. Click to view details

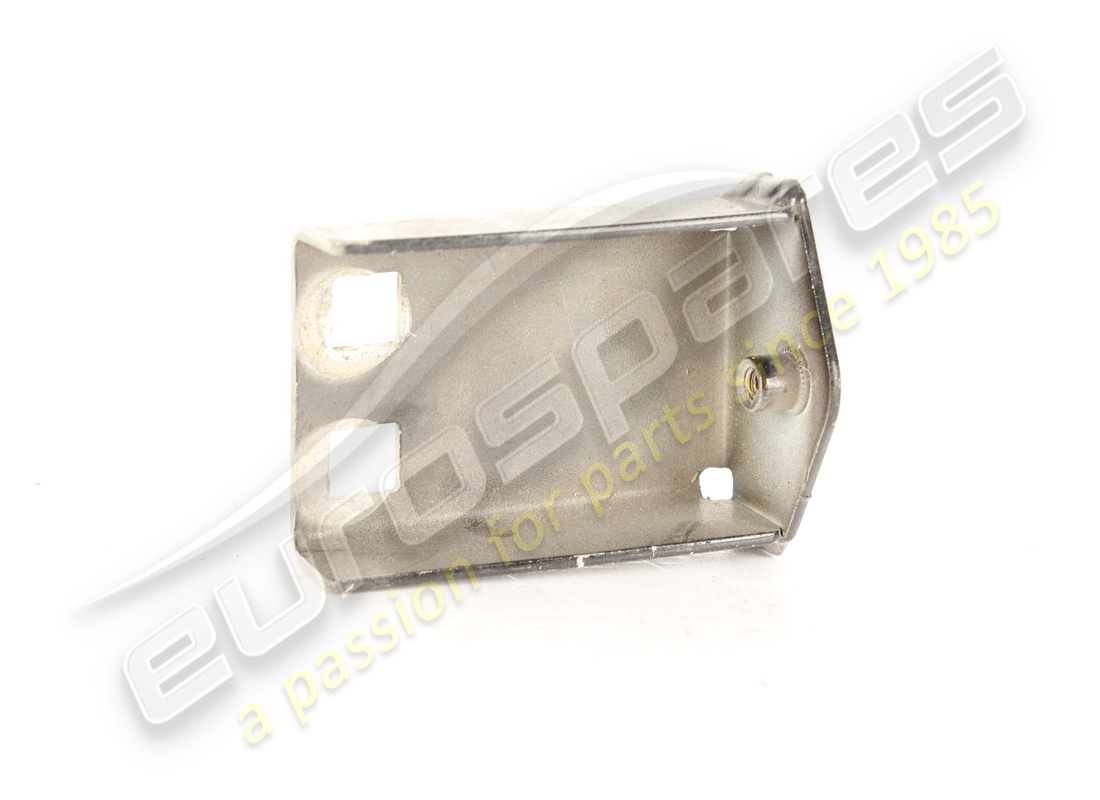

                                                                                                              # 047
                                                                                                              MPN: 84948700
                                                                                                              FRONT FASTENER BRACKET FOR RH HEADLIGHT
                                                                                                              from £147.83
                                                                                                              from £147.83
                                                                                                              # 048
                                                                                                              MPN: 84948800
                                                                                                              FRONT FASTENER BRACKET FOR LH HEADLIGHT
                                                                                                              from £147.83
                                                                                                              from £147.83
                                                                                                              # 049
                                                                                                              MPN: 84952500
                                                                                                              LOWER MOUNTING BRACKET FOR FRONT BUMPER
                                                                                                              from £58.11
                                                                                                              from £58.11
                                                                                                              # 050
                                                                                                              MPN: 84634800
                                                                                                              RH LOWER LATERAL PROFILE
                                                                                                              from £48.79
                                                                                                              from £48.79
                                                                                                              # 050
                                                                                                              MPN: 84634900
                                                                                                              LH LOWER LATERAL PROFILE
                                                                                                              from £48.79
                                                                                                              from £48.79

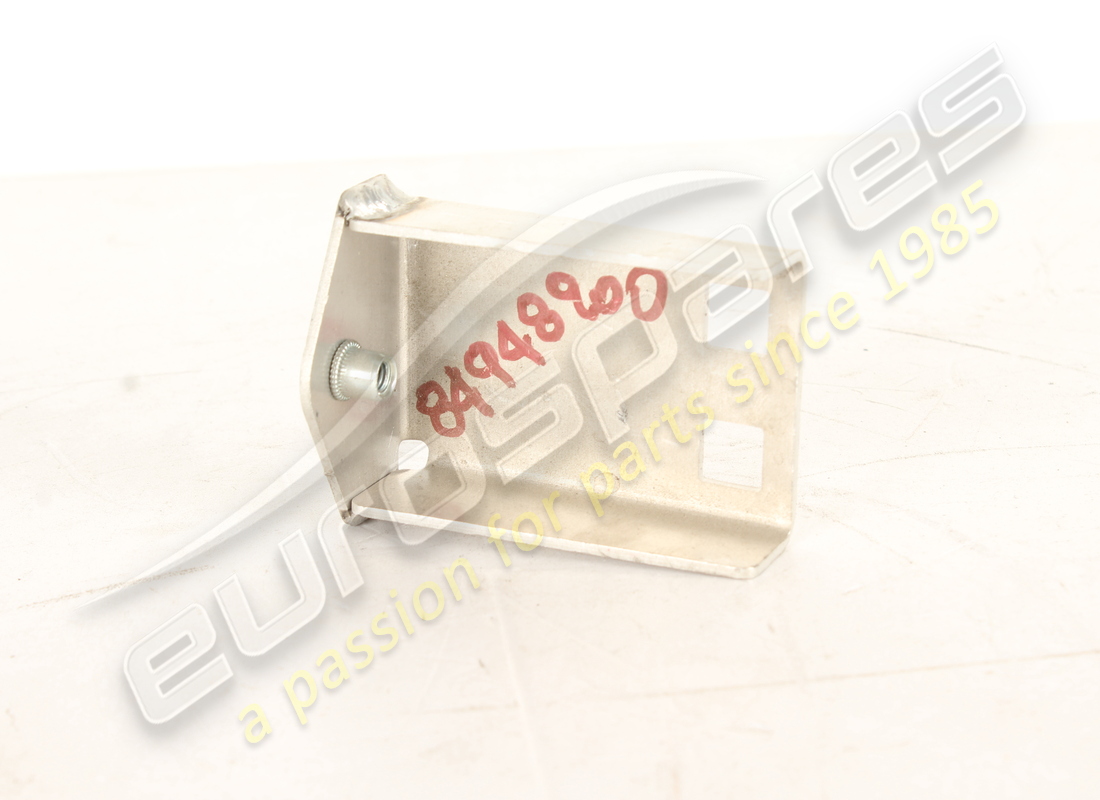

                                                                                                              # 051
                                                                                                              MPN: 84948900
                                                                                                              OUTER LATERAL FASTENER BRACKET FOR HEADLIGHT
                                                                                                              from £147.95
                                                                                                              from £147.95
                                                                                                              # 052
                                                                                                              MPN: 84220500
                                                                                                              RH REAR WHEELHOUSE
                                                                                                              from £204.45
                                                                                                              from £204.45
                                                                                                              # 052
                                                                                                              MPN: 84220600
                                                                                                              LH REAR WHEELHOUSE
                                                                                                              from £204.45
                                                                                                              from £204.45
                                                                                                              # 053
                                                                                                              MPN: 84960700
                                                                                                              FENDER MOUNTING BRACKET ON RH FRONT TRELLIS
                                                                                                              from £185.34
                                                                                                              from £185.34
                                                                                                              # 054
                                                                                                              MPN: 84960800
                                                                                                              FENDER MOUNTING BRACKET ON LH FRONT TRELLIS
                                                                                                              from £185.34
                                                                                                              from £185.34
                                                                                                              # 055
                                                                                                              MPN: 84352300
                                                                                                              RH LID BRACKET MOUNTING BRACKET
                                                                                                              from £122.97
                                                                                                              from £122.97
                                                                                                              # 056
                                                                                                              MPN: 84352400
                                                                                                              LH LID BRACKET MOUNTING BRACKET
                                                                                                              from £122.97
                                                                                                              from £122.97
                                                                                                              # 057
                                                                                                              MPN: 275640
                                                                                                              WINDSCREEN WIPER AND BRAKE FLUID RESERVOIR BRACKET
                                                                                                              -Not for GD-
                                                                                                              from £38.45
                                                                                                              from £38.45
                                                                                                              # 057
                                                                                                              MPN: 84859400
                                                                                                              WINDSCREEN WIPER AND BRAKE FLUID RESERVOIR BRACKET
                                                                                                              -Applicable for GD- -Applicable until depletion-
                                                                                                              Supersession
                                                                                                              Supersession
                                                                                                              # 057
                                                                                                              MPN: 85538000
                                                                                                              WINDSCREEN WIPER AND BRAKE FLUID RESERVOIR BRACKET
                                                                                                              -Applicable for GD- -Applicable after depletion of 84859400-
                                                                                                              from £17.72
                                                                                                              from £17.72
                                                                                                              This part replaces part number 84859400
                                                                                                              # 058
                                                                                                              MPN: 277276
                                                                                                              REAR WINDSCREEN WIPER MOUNTING BRACKET
                                                                                                              -Not for GD-
                                                                                                              from £18.48
                                                                                                              from £18.48
                                                                                                              # 058
                                                                                                              MPN: 84859600
                                                                                                              REAR WINDSCREEN WIPER MOUNTING BRACKET
                                                                                                              -Applicable for GD-
                                                                                                              from £18.48
                                                                                                              from £18.48

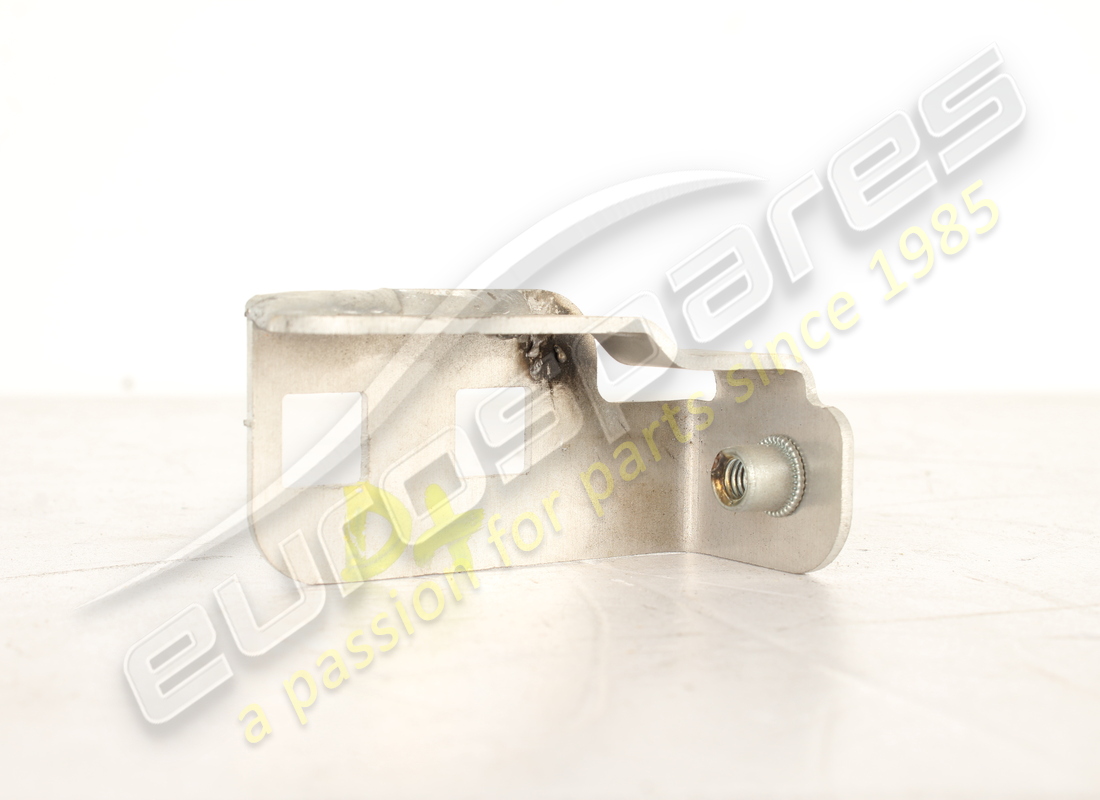

                                                                                                              # 059
                                                                                                              MPN: 84949700
                                                                                                              INNER LATERAL FASTENER BRACKET FOR RH HEADLIGHT
                                                                                                              from £147.95
                                                                                                              from £147.95

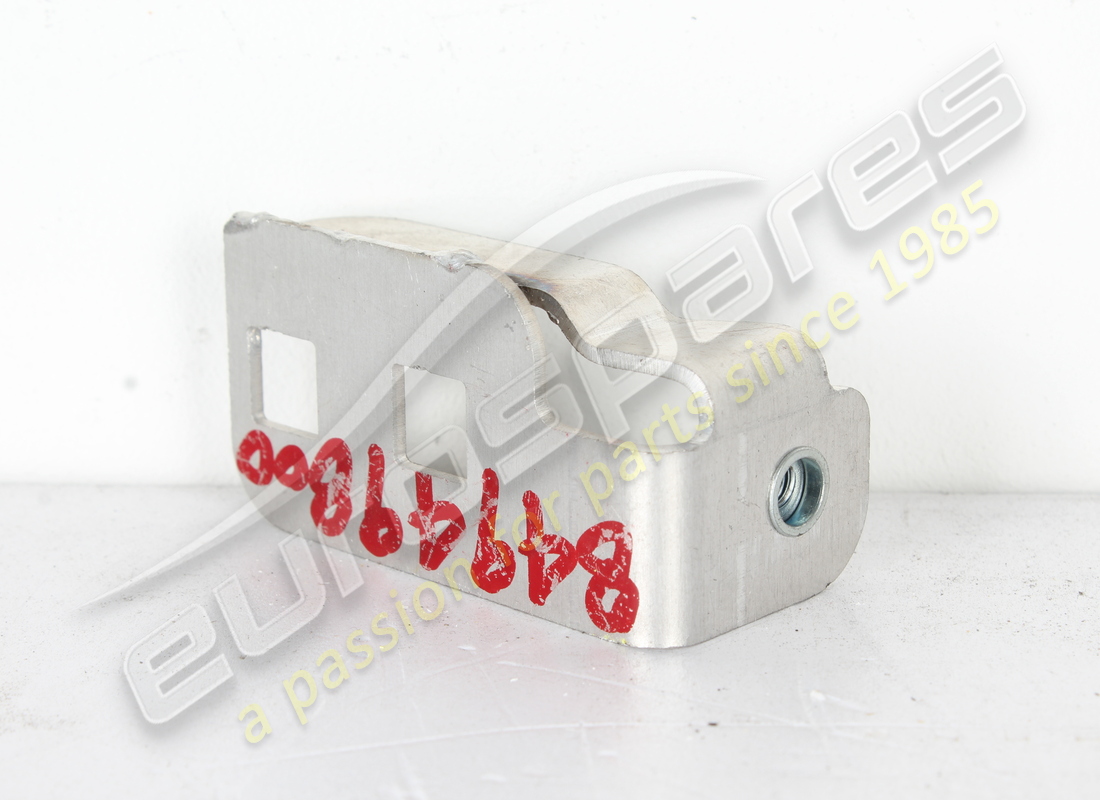

                                                                                                              # 060
                                                                                                              MPN: 84949800
                                                                                                              INNER LATERAL FASTENER BRACKET FOR LH HEADLIGHT
                                                                                                              from £147.95
                                                                                                              from £147.95

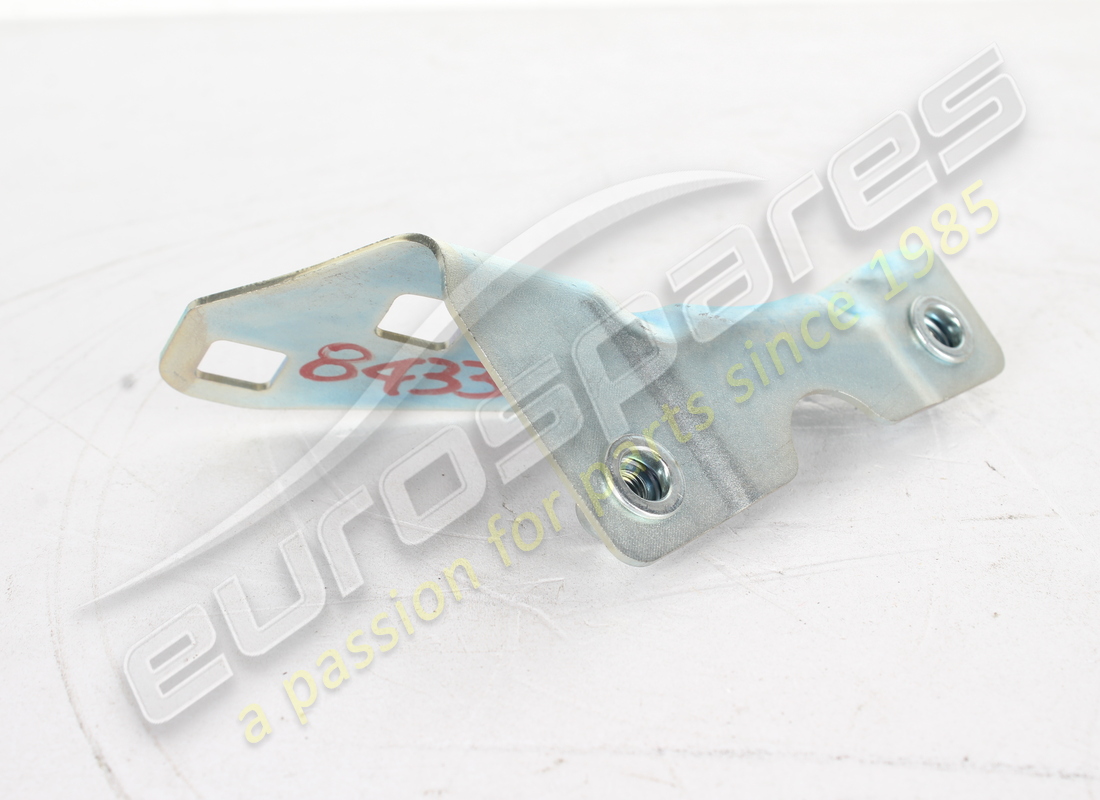

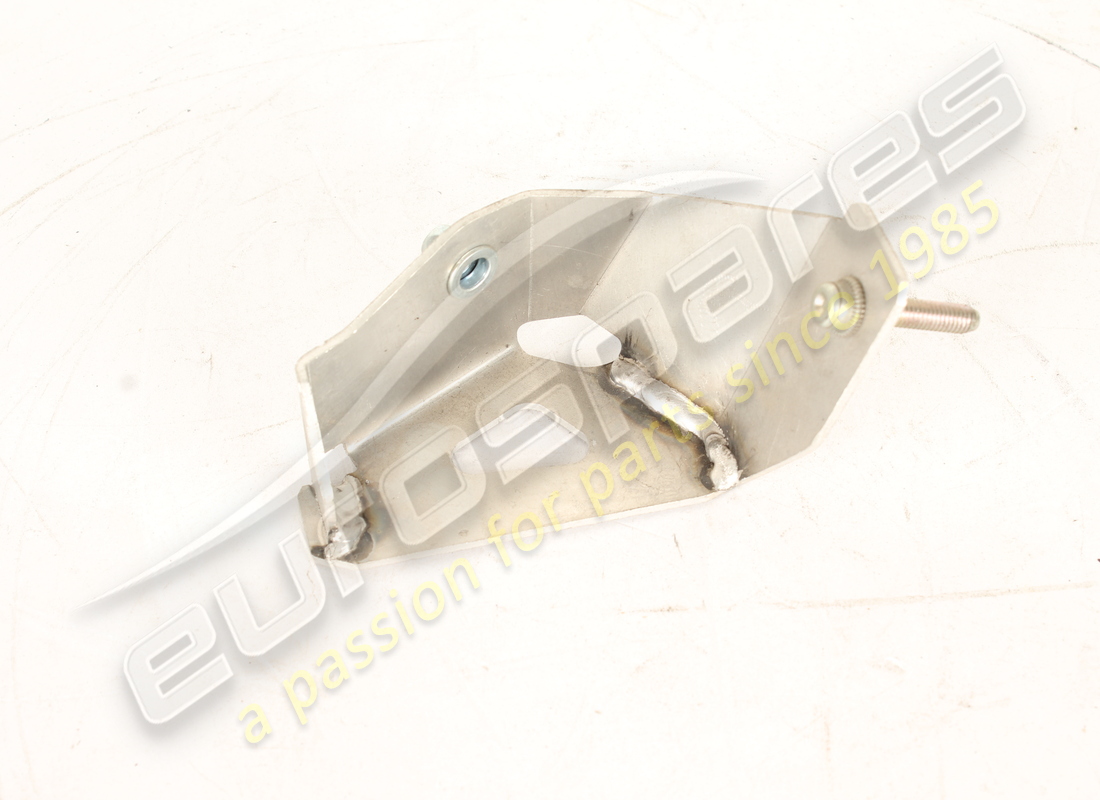

                                                                                                              # 061
                                                                                                              MPN: 84398800
                                                                                                              UPPER FASTENER BRACKET FOR RH HEADLIGHT
                                                                                                              from £137.32
                                                                                                              from £137.32
                                                                                                              # 062
                                                                                                              MPN: 84398900
                                                                                                              UPPER FASTENER BRACKET FOR LH HEADLIGHT
                                                                                                              from £137.32
                                                                                                              from £137.32
                                                                                                              # 063
                                                                                                              MPN: 84642700
                                                                                                              RH LATERAL SUBSTRUCTURE
                                                                                                              from £114.56
                                                                                                              from £114.56
                                                                                                              # 064
                                                                                                              MPN: 85091400
                                                                                                              BRACKET
                                                                                                              from £147.95
                                                                                                              from £147.95

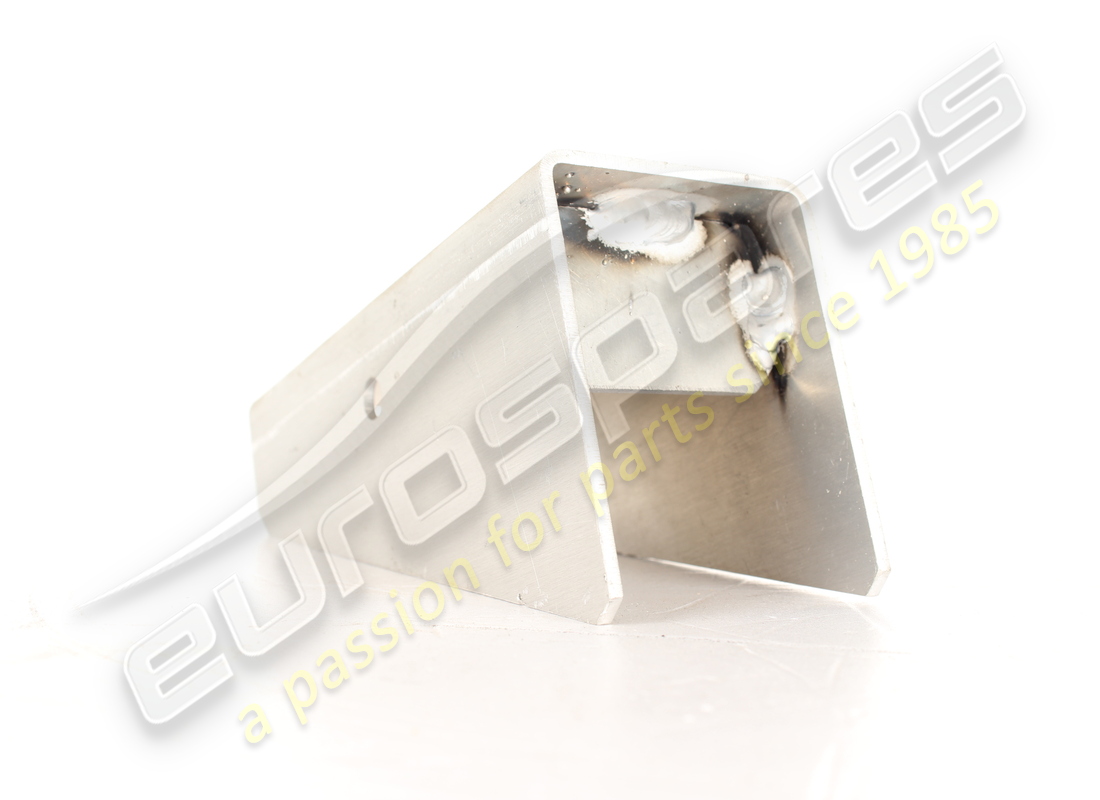

                                                                                                              # 065
                                                                                                              MPN: 287660
                                                                                                              RH HOOK FASTENER BRACKET
                                                                                                              from £73.91
                                                                                                              from £73.91
                                                                                                              # 066
                                                                                                              MPN: 84508800
                                                                                                              RH FENDER FASTENER BRACKET
                                                                                                              from £11.60
                                                                                                              from £11.60
                                                                                                              # 066
                                                                                                              MPN: 84508900
                                                                                                              LH FENDER FASTENER BRACKET
                                                                                                              from £11.83
                                                                                                              from £11.83
