0115 - DOORS - OPENING MECHANISM AND HINGES

Ferrari F12 Berlinetta (Europe) DOORS - OPENING MECHANISM AND HINGES Parts Diagram

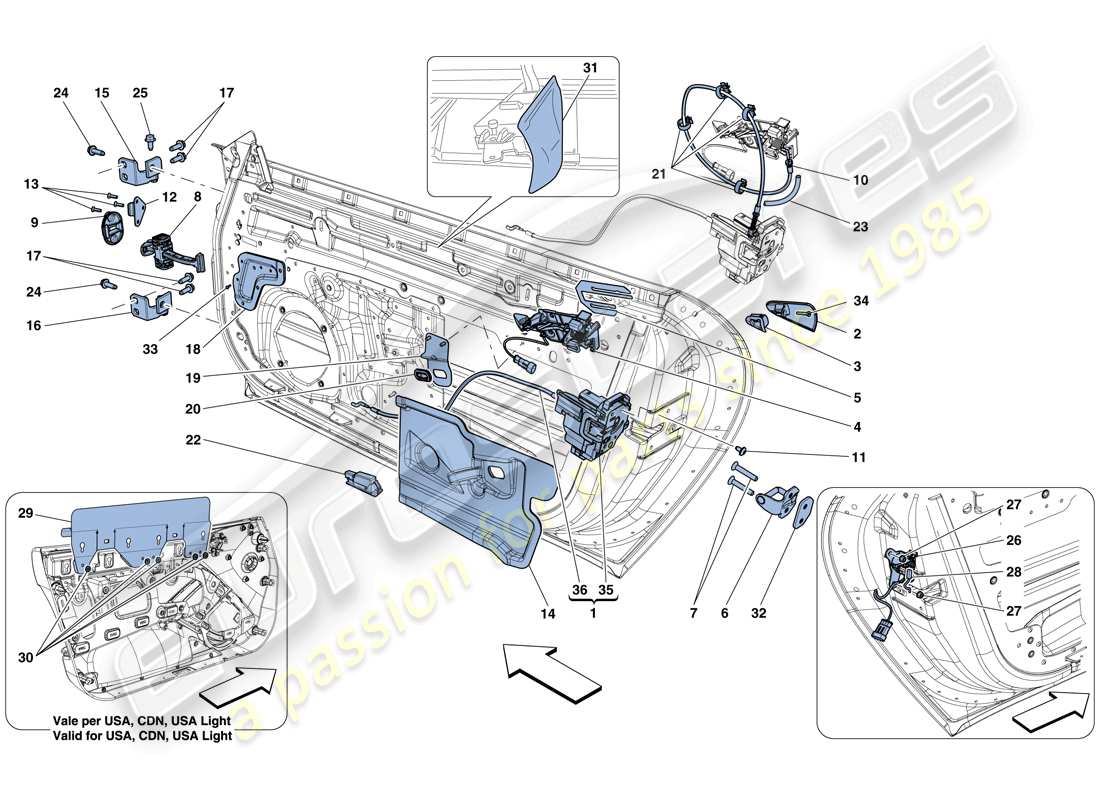

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Price
                                              # 001
                                              MPN: 82447800
                                              RH DOOR LOCK
                                              -After depletion, order loose components- -Not for GD- -Applicable until depletion-
                                              from £113.49
                                              from £113.49
                                              # 001
                                              MPN: 82447900
                                              LH DOOR LOCK
                                              -After depletion, order loose components- -Not for GD- -Applicable until depletion-
                                              from £210.75
                                              from £210.75
                                              # 001
                                              MPN: 83679700
                                              RH DOOR LOCK
                                              -After depletion, order loose components- -Applicable for GD- -Applicable until depletion-
                                              from £70.09
                                              from £70.09
                                              # 001
                                              MPN: 83679800
                                              LH DOOR LOCK
                                              -After depletion, order loose components- -Applicable for GD- -Applicable until depletion-
                                              from £187.58
                                              from £187.58
                                              # 002
                                              MPN: 81956810
                                              RH OUTER DOOR HANDLE
                                              from £72.99
                                              from £72.99
                                              # 002
                                              MPN: 81956910
                                              LH OUTER DOOR HANDLE
                                              from £72.99
                                              from £72.99
                                              # 003
                                              MPN: 81958700
                                              RH DOOR HANDLE SEAL
                                              from £4.06
                                              from £4.06
                                              # 003
                                              MPN: 81959100
                                              LH DOOR HANDLE SEAL
                                              from £7.38
                                              from £7.38
                                              # 004
                                              MPN: 80821600
                                              RH OUTER DOOR HANDLE MODULE
                                              from £132.71
                                              from £132.71
                                              # 004
                                              MPN: 80821800
                                              LH OUTER DOOR HANDLE MODULE
                                              from £132.71
                                              from £132.71
                                              # 005
                                              MPN: 80821900
                                              DOOR HANDLE SPACER
                                              from £3.46
                                              from £3.46
                                              # 005
                                              MPN: 88007300
                                              DOOR HANDLE SPACER
                                              from £1.02
                                              from £1.02
                                              # 006
                                              MPN: 69756900
                                              DOOR LOCK STRIKER PLATE
                                              -Applicable up to Ass. No. 114686-
                                              from £4.86
                                              from £4.86
                                              # 006
                                              MPN: 85052500
                                              DOOR LOCK STRIKER PLATE
                                              -Grey- -Applicable from Ass. No. 114687-
                                              from £5.43
                                              from £5.43
                                              # 007
                                              MPN: 84919600
                                              SCREW
                                              -Applicable up to Ass. No. 114686-
                                              from £0.83
                                              from £0.83
                                              # 007
                                              MPN: 85052700
                                              SCREW
                                              -Grey- -Applicable from Ass. No. 114687-
                                              from £0.74
                                              from £0.74
                                              # 008
                                              MPN: 83965500
                                              DOOR ARRESTER TIE-ROD
                                              from £35.35
                                              from £35.35
                                              # 009
                                              MPN: 83897000
                                              DOOR ARRESTER TIE-ROD SEAL
                                              from £4.57
                                              from £4.57
                                              # 010
                                              MPN: 69877100

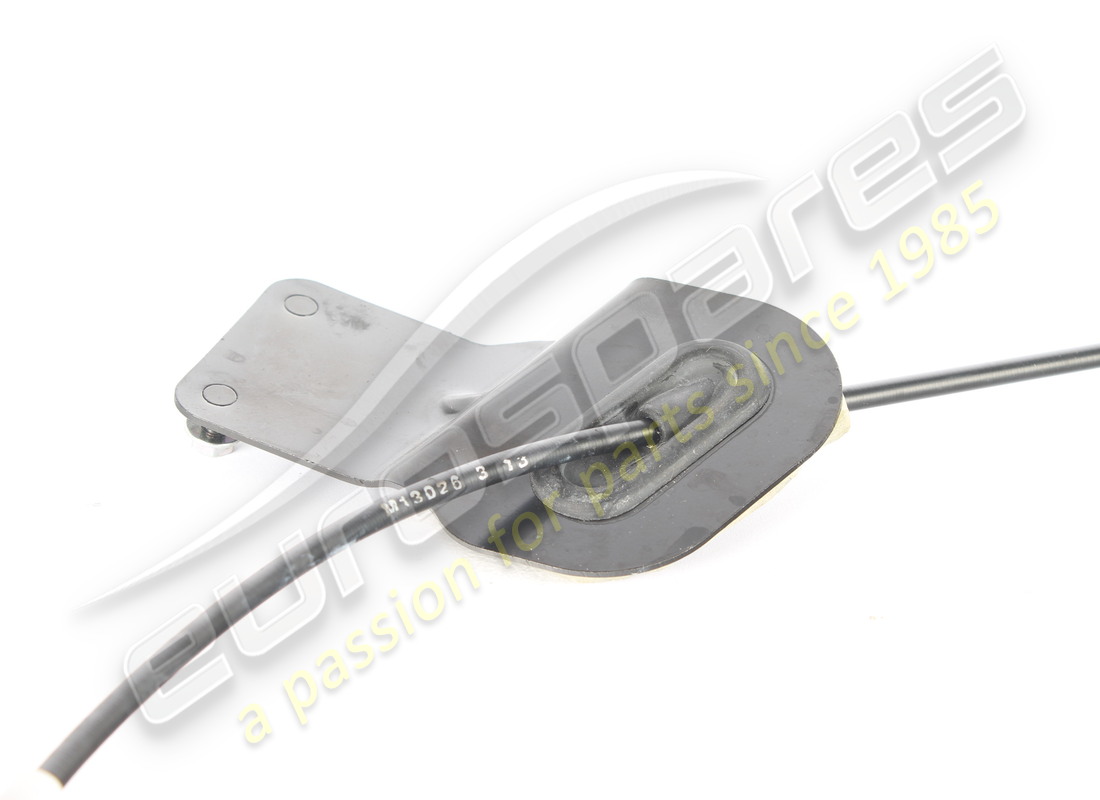

                                              BOWDEN CABLE
                                              from £13.34
                                              from £13.34
                                              # 011
                                              MPN: 46401657
                                              SCREW
                                              from £0.52
                                              from £0.52
                                              # 011
                                              MPN: 84873500
                                              SCREW
                                              -No longer supplied- -Replaced by 46401657-
                                              from £0.71
                                              from £0.71
                                              # 012
                                              MPN: 81916400
                                              DOOR SAFETY HOOK
                                              from £16.93
                                              from £16.93
                                              # 013
                                              MPN: 14441234
                                              SCREW
                                              -M6 X 12-
                                              from £0.52
                                              from £0.52
                                              This part replaces part number 307346
                                              # 014
                                              MPN: 83368100
                                              RH MEMBRANE
                                              from £133.87
                                              from £133.87
                                              # 014
                                              MPN: 83369100
                                              LH MEMBRANE
                                              from £133.87
                                              from £133.87
                                              # 015
                                              MPN: 83856100
                                              UPPER RH DOOR HINGE
                                              from £27.82
                                              from £27.82
                                              # 015
                                              MPN: 83865100
                                              UPPER LH DOOR HINGE
                                              from £15.30
                                              from £15.30
                                              # 016
                                              MPN: 83856000
                                              LOWER RH DOOR HINGE
                                              from £27.82
                                              from £27.82
                                              # 016
                                              MPN: 83864900
                                              LOWER LH DOOR HINGE
                                              from £15.30
                                              from £15.30
                                              # 017
                                              MPN: 18754324
                                              SCREW
                                              -M10 X 1,25 X 32-
                                              from £0.85
                                              from £0.85
                                              This part replaces part number 18754424
                                              # 018
                                              MPN: 84418800
                                              RH DOOR SUBSTRUCTURE COVER PANEL
                                              from £24.29
                                              from £24.29
                                              # 018
                                              MPN: 84418900
                                              LH DOOR SUBSTRUCTURE COVER PANEL
                                              from £24.29
                                              from £24.29
                                              # 019
                                              MPN: 83368600
                                              RH INNER HANDLE BOWDEN CABLE SEAL MOUNTING
                                              from £6.07
                                              from £6.07
                                              # 019
                                              MPN: 83369200
                                              LH INNER HANDLE BOWDEN CABLE SEAL MOUNTING
                                              from £6.07
                                              from £6.07
                                              # 020
                                              MPN: 82629100
                                              CABLE GROMMET
                                              -No longer supplied- -Replaced by 898656-
                                              Supersession
                                              Supersession
                                              # 020
                                              MPN: 898656
                                              CABLE GROMMET
                                              from £1.57
                                              from £1.57
                                              This part replaces part number 82629100
                                              # 021
                                              MPN: 14570180

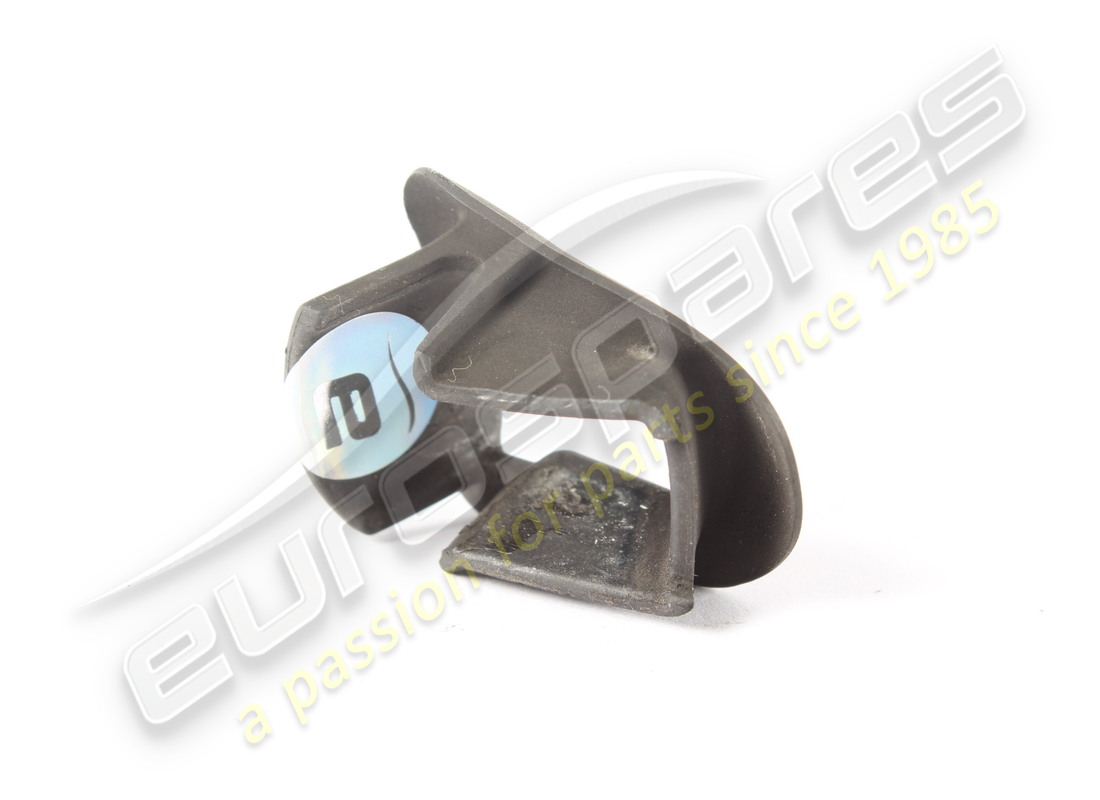

                                              CLIP
                                              from £0.83
                                              from £0.83
                                              # 023
                                              MPN: 82936400
                                              SHEATH
                                              from £3.09
                                              from £3.09
                                              # 024
                                              MPN: 81267100
                                              SCREW
                                              from £2.87
                                              from £2.87
                                              This part replaces part number 82505100
                                              # 025
                                              MPN: 85133600
                                              SCREW
                                              from £0.74
                                              from £0.74
                                              # 026
                                              MPN: 84456400
                                              LATCH HOLDER
                                              -Not for GD-
                                              from £80.97
                                              from £80.97
                                              # 026
                                              MPN: 85027000
                                              LATCH HOLDER
                                              -Applicable for GD-
                                              from £44.53
                                              from £44.53
                                              # 027
                                              MPN: 14059121
                                              NUT
                                              from £0.54
                                              from £0.54
                                              # 028
                                              MPN: 84696600
                                              KNOB LEVER
                                              -Not for GD-
                                              from £11.04
                                              from £11.04
                                              # 028
                                              MPN: 85027100
                                              KNOB LEVER
                                              -Applicable for GD-
                                              from £3.40
                                              from £3.40
                                              # 029
                                              MPN: 85480000
                                              FOIL FLAP
                                              -Applicable for USA, CDN, USA LIGHT-
                                              from £52.63
                                              from £52.63
                                              This part replaces part number 85561700 - and 1 more. Click to view details
                                              # 029
                                              MPN: 85561700
                                              LH FOIL FLAP
                                              -Applicable for USA, CDN, USA LIGHT- -No longer supplied- -Replaced by 85480000-
                                              Supersession
                                              Supersession
                                              # 030
                                              MPN: 13577701
                                              WASHER
                                              -Applicable for USA, CDN, USA LIGHT- -No longer supplied- -Replaced by 14039511-
                                              from £0.47
                                              from £0.47
                                              # 030
                                              MPN: 14039511
                                              NUT
                                              -Applicable for USA, CDN, USA LIGHT-
                                              from £0.51
                                              from £0.51
                                              # 031
                                              MPN: 83595900
                                              WATERPROOF MEMBRANE
                                              from £152.55
                                              from £152.55
                                              # 032
                                              MPN: 80763800
                                              DOOR STRIKER PLATE SHIM
                                              -Applicable up to Ass. No. 114686-
                                              from £1.86
                                              from £1.86
                                              # 032
                                              MPN: 85052600
                                              DOOR STRIKER PLATE SHIM
                                              -Grey- -Applicable from Ass. No. 114687-
                                              from £3.24
                                              from £3.24
                                              # 033
                                              MPN: 85692200
                                              SCREW
                                              -M5 X 12-
                                              from £0.47
                                              from £0.47
                                              # 034
                                              MPN: 80365900
                                              SCREW
                                              from £0.47
                                              from £0.47
                                              # 035
                                              MPN: 80182700

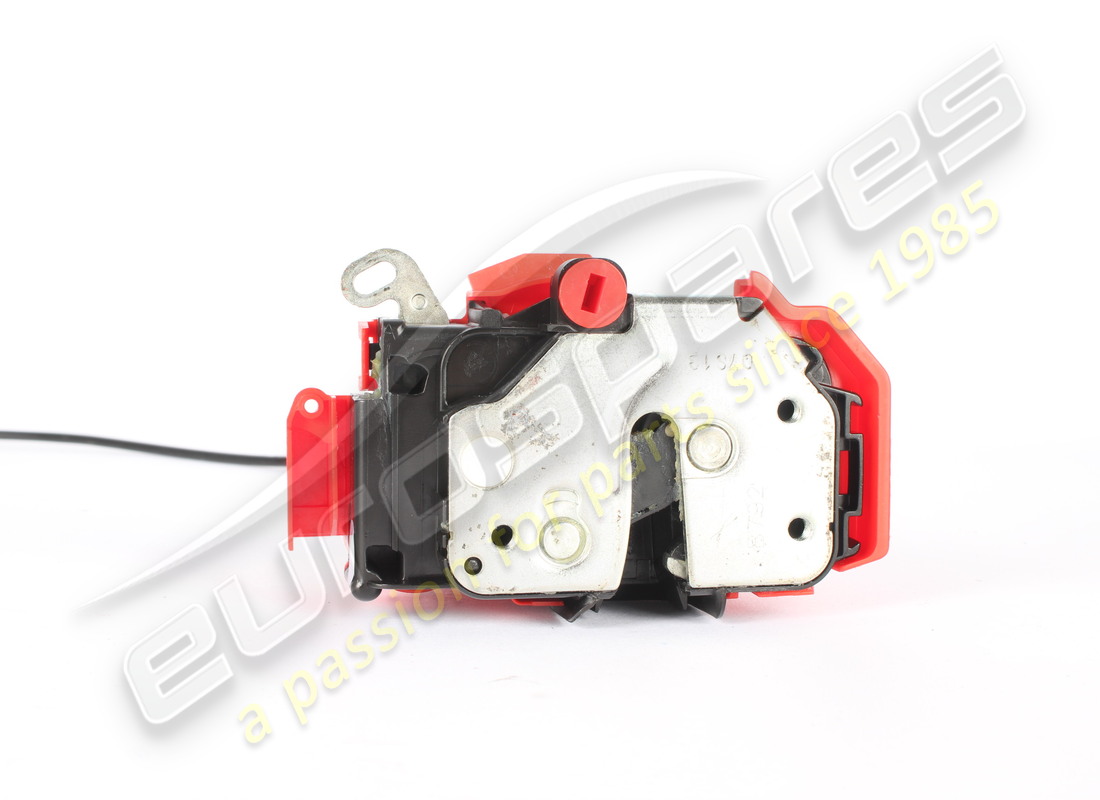

                                              RH DOOR LOCK
                                              -Not for GD-
                                              from £49.43
                                              from £49.43
                                              # 035
                                              MPN: 80182800
                                              LH DOOR LOCK
                                              -Not for GD-
                                              from £49.43
                                              from £49.43
                                              # 035
                                              MPN: 81015300
                                              LH DOOR LOCK
                                              -Applicable for GD-
                                              from £97.89
                                              from £97.89
                                              # 035
                                              MPN: 81015400
                                              RH DOOR LOCK
                                              -Applicable for GD-
                                              from £97.89
                                              from £97.89
                                              # 036
                                              MPN: 83088200
                                              INNER DOOR HANDLE BOWDEN CABLE
                                              from £24.32
                                              from £24.32
                                              Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
