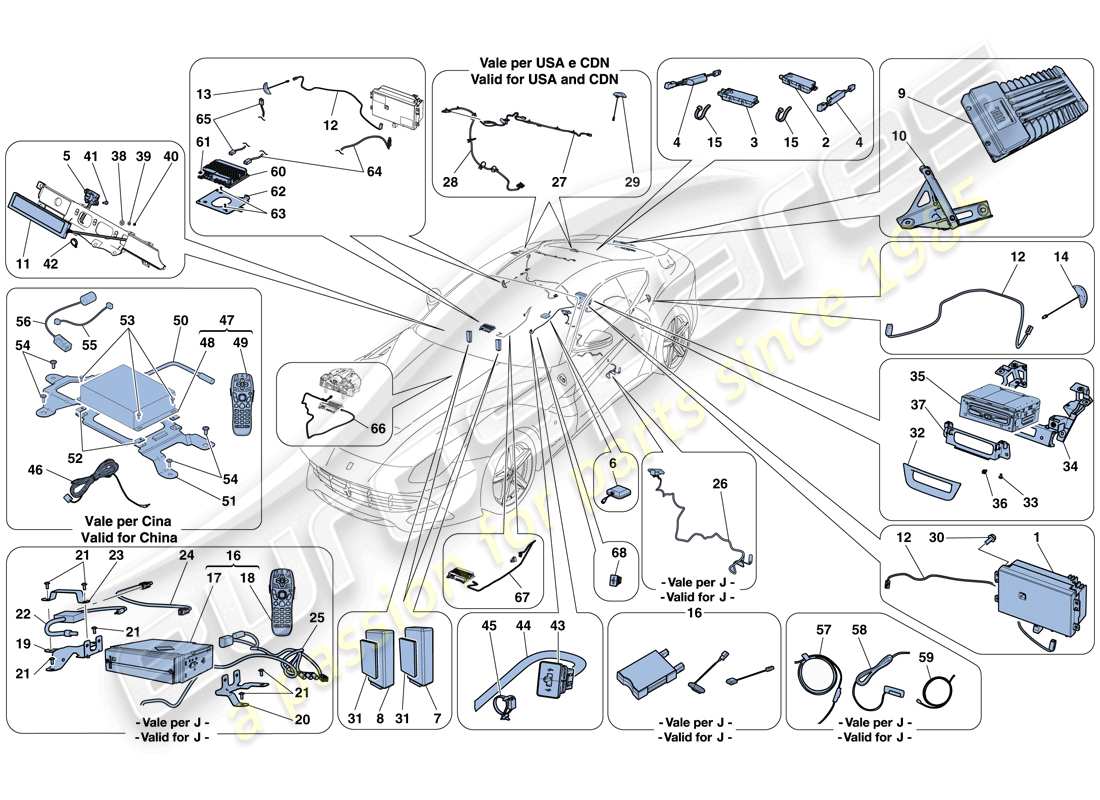

0137 - INFOTAINMENT SYSTEM

Ferrari F12 Berlinetta (Europe) INFOTAINMENT SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Price
                      # 001
                      MPN: 281878
                      BECKER NIT
                      -Applicable for EU GS, UK- -Applicable up to Ass. No. 131872- -Applicable until depletion-
                      Supersession
                      Supersession
                      # 001
                      MPN: 286938
                      BECKER NIT
                      -Vehicles without map type satellite navigation- -Applicable up to Ass. No. 131872- -Applicable until depletion-
                      Supersession
                      Supersession
                      # 001
                      MPN: 286987
                      BECKER NIT
                      -Applicable for USA, CDN- -Applicable up to Ass. No. 131872- -Applicable until depletion-
                      Supersession
                      Supersession
                      # 001
                      MPN: 286988
                      BECKER ROW NIT
                      -Applicable for South Africa and Egypt- -Applicable for AUS, GOLFO, J, USA LIGHT- -Applicable up to Ass. No. 131872- -Applicable after depletion of 316899-
                      from £2,833.74
                      from £2,833.74
                      # 001
                      MPN: 286989
                      BECKER NIT
                      -Applicable for J- -Applicable up to Ass. No. 130491- -Applicable until depletion-
                      Supersession
                      Supersession
                      # 001
                      MPN: 286990
                      BECKER NIT
                      -Applicable for CINA- -Applicable up to Ass. No. 130491- -Applicable until depletion-
                      Supersession
                      Supersession
                      # 001
                      MPN: 303161
                      BECKER NIT
                      -With integrated maps- -Applicable for CINA- -Applicable from Ass. No. 130492- -Applicable after depletion of 286990- -No longer supplied- -Replaced by 316900-
                      from £8,080.62
                      from £8,080.62
                      This part replaces part number 286990
                      # 001
                      MPN: 303162
                      BECKER NIT
                      -With integrated maps- -Applicable for J- -Applicable from Ass. No. 130492- -Applicable after depletion of 286989-
                      from £5,492.79
                      from £5,492.79
                      This part replaces part number 286989
                      # 001
                      MPN: 310727
                      BECKER NIT
                      -Applicable for EU GS, UK- -Applicable from Ass. No. 131873-
                      from £4,381.14
                      from £4,381.14
                      # 001
                      MPN: 310728
                      BECKER NIT
                      -Vehicles without map type satellite navigation- -Applicable for Turkey, Lebanon, Israel, Philippines, Morocco and Hong Kong- -Applicable from Ass. No. 131873-
                      from £4,142.88
                      from £4,142.88
                      # 001
                      MPN: 310729
                      BECKER ROW NIT
                      -Applicable for South Africa and Egypt- -Applicable for AUS, GOLFO, J, USA LIGHT- -Applicable from Ass. No. 131873-
                      from £4,745.83
                      from £4,745.83
                      # 001
                      MPN: 316113
                      BECKER NIT
                      -With integrated maps- -Applicable for CINA- -Applicable from Ass. No. 131873-
                      from £4,914.27
                      from £4,914.27
                      # 001
                      MPN: 316114
                      BECKER NIT
                      -With integrated maps- -Applicable for J- -Applicable from Ass. No. 131873-
                      from £5,189.29
                      from £5,189.29
                      # 001
                      MPN: 316115
                      BECKER NIT
                      -Applicable for USA, CDN- -Applicable from Ass. No. 131873-
                      from £4,448.26
                      from £4,448.26
                      # 001
                      MPN: 316896
                      BECKER NIT
                      -Applicable for EU GS, UK- -Applicable up to Ass. No. 131872- -Applicable after depletion of 281878-
                      from £4,158.87
                      from £4,158.87
                      This part replaces part number 281878
                      # 001
                      MPN: 316897
                      BECKER NIT
                      -Vehicles without map type satellite navigation- -Applicable up to Ass. No. 131872- -Applicable after depletion of 286938-
                      from £2,090.76
                      from £2,090.76
                      This part replaces part number 286938 - and 1 more. Click to view details
                      # 001
                      MPN: 316898
                      BECKER NIT
                      -Applicable for USA, CDN- -Applicable up to Ass. No. 131872- -Applicable after depletion of 286987-
                      from £4,366.56
                      from £4,366.56
                      This part replaces part number 286987
                      # 001
                      MPN: 316899
                      BECKER ROW NIT
                      -Applicable for South Africa and Egypt- -Applicable for AUS, GOLFO, J, USA LIGHT- -Applicable up to Ass. No. 131872- -Applicable until depletion-
                      from £5,154.28
                      from £5,154.28
                      # 001
                      MPN: 316900
                      BECKER NIT
                      -With integrated maps- -Applicable for CINA- -Applicable from Ass. No. 130492-
                      from £4,904.86
                      from £4,904.86
                      # 002
                      MPN: 277243
                      AM/FM AMPLIFIER
                      from £45.14
                      from £45.14
                      # 003
                      MPN: 284486
                      FM2/DAB AMPLIFIER
                      from £87.03
                      from £87.03
                      # 004
                      MPN: 263421
                      POSITIVE FILTER
                      from £21.66
                      from £21.66
                      This part replaces part number 263423 - and 2 more. Click to view details
                      # 005
                      MPN: 272114
                      DISPLAY BUTTON
                      -Version with passenger display-
                      from £28.34
                      from £28.34
                      This part replaces part number 276974 which we have in stock - and 1 more. Click to view details
                      # 005
                      MPN: 276974
                      DISPLAY BUTTON
                      -No longer supplied- -Replaced by 272114-
                      from £26.15
                      from £26.15
                      # 006
                      MPN: 242694
                      GPS ANTENNA
                      -Applicable until depletion-
                      from £21.58
                      from £21.58
                      # 006
                      MPN: 331961
                      GPS ANTENNA
                      -Applicable after depletion of 242694- -Applicable until depletion-
                      Supersession
                      Supersession
                      This part replaces part number 242694 which we have in stock
                      # 006
                      MPN: 789209
                      GPS ANTENNA
                      -Applicable after depletion of 331961-
                      from £26.40
                      from £26.40
                      This part replaces part number 331961 - and 5 more. Click to view details
                      # 007
                      MPN: 276750
                      CAN BOX
                      -Applicable up to Ass. No. 131872-
                      from £341.43
                      from £341.43
                      # 007
                      MPN: 316116
                      CAN BOX
                      -Not for Apple Car Play- -Applicable from Ass. No. 131873-
                      from £283.49
                      from £283.49
                      # 007
                      MPN: 321663
                      CAN BOX
                      -Applicable for Apple Car Play-
                      from £515.44
                      from £515.44
                      # 008
                      MPN: 286879
                      CAN BOX FOR PASSENGER DISPLAY
                      -Version with passenger display-
                      from £331.19
                      from £331.19
                      # 009
                      MPN: 272751
                      16-CHANNEL AMPLIFIER
                      -Applicable up to Ass. No. 131872-
                      from £3,385.74
                      from £3,385.74
                      # 009
                      MPN: 310726
                      16-CHANNEL AMPLIFIER
                      -Applicable from Ass. No. 131873-
                      from £3,284.17
                      from £3,284.17
                      # 010
                      MPN: 271674
                      RH AUDIO AMPLIFIER BRACKET
                      from £18.71
                      from £18.71
                      # 010
                      MPN: 271675
                      LH AUDIO AMPLIFIER BRACKET
                      from £18.70
                      from £18.70
                      # 011
                      MPN: 286844
                      PASSENGER DISPLAY
                      -Version with passenger display-
                      from £1,533.68
                      from £1,533.68
                      # 012
                      MPN: 292721
                      ANTENNA CONNECTOR CABLE
                      from £25.26
                      from £25.26
                      # 013
                      MPN: 286161
                      WI-FI ANTENNA
                      -Applicable for Apple Car Play-
                      from £73.17
                      from £73.17
                      # 014
                      MPN: 286160
                      BLUETOOTH ANTENNA
                      from £161.72
                      from £161.72
                      # 015
                      MPN: 145854
                      RING CLAMP
                      from £0.47
                      from £0.47
                      # 016
                      MPN: 246389
                      NAVIGATOR KIT
                      -Applicable for J- -Applicable up to Ass. No. 132679-
                      from £4,984.10
                      from £4,984.10
                      # 016
                      MPN: 306860
                      NAVIGATOR KIT
                      -Applicable for J- -Applicable from Ass. No. 132680-
                      from £4,568.45
                      from £4,568.45
                      # 017
                      MPN: 246390
                      NAVIGATOR HEAD UNIT
                      -Applicable for J- -Applicable up to Ass. No. 132679-
                      from £5,087.42
                      from £5,087.42
                      # 018
                      MPN: 246391
                      NAVIGATOR REMOTE CONTROL
                      -Applicable for J- -Applicable up to Ass. No. 132679-
                      from £360.37
                      from £360.37
                      # 019
                      MPN: 293523
                      RH HEAD UNIT FASTENER BRACKET
                      -Applicable for J- -Applicable up to Ass. No. 132679-
                      from £29.45
                      from £29.45
                      # 020
                      MPN: 293524
                      LH HEAD UNIT FASTENER BRACKET
                      -Applicable for J- -Applicable up to Ass. No. 132679-
                      from £29.45
                      from £29.45
                      # 021
                      MPN: 65366700
                      SCREW
                      -M5 X 12- -Applicable for J-
                      from £0.50
                      from £0.50
                      # 022
                      MPN: 294975
                      FM ANTENNA SPLITTER
                      -Applicable for J- -Applicable up to Ass. No. 132679-
                      from £132.46
                      from £132.46
                      # 023
                      MPN: 293527
                      FM ANTENNA SPLITTER MOUNTING BRACKET
                      -Applicable for J- -Applicable up to Ass. No. 132679-
                      from £22.09
                      from £22.09
                      # 024
                      MPN: 293528
                      SPLITTER/NIT CONNECTOR CABLE
                      -Applicable for J- -Applicable up to Ass. No. 132679-
                      from £55.93
                      from £55.93
                      # 025
                      MPN: 280093
                      NAVIGATOR CABLE FOR VICS ANTENNA
                      -Applicable for J- -Applicable up to Ass. No. 132679-
                      from £154.58
                      from £154.58
                      # 025
                      MPN: 296174
                      NAVIGATOR CABLE FOR VICS ANTENNA
                      -Applicable for CINA- -Applicable up to Ass. No. 130491-
                      from £154.58
                      from £154.58
                      # 026
                      MPN: 280923
                      NAVIGATOR CABLE ON DASHBOARD
                      -Applicable for J- -Applicable up to Ass. No. 132679-
                      from £1,420.55
                      from £1,420.55
                      # 027
                      MPN: 291699
                      SDARS TAILGATE RADIO ANTENNA CABLE
                      -Applicable for USA, CDN-
                      from £217.13
                      from £217.13
                      # 028
                      MPN: 292722
                      SDARS PASSENGER COMPARTMENT AM/FM RADIO ANTENNA CABLE
                      -Applicable for USA, CDN-
                      from £143.53
                      from £143.53
                      # 029
                      MPN: 291695
                      SDARS ANTENNA
                      -Applicable for USA, CDN- -No longer supplied- -Replaced by 856914..-
                      # 029
                      MPN: 856914..
                      SDARS ANTENNA
                      -Applicable for USA, CDN-
                      Supersession
                      Supersession
                      # 030
                      MPN: 16285127
                      SCREW
                      -M5 X 16-
                      from £0.47
                      from £0.47
                      # 031
                      MPN: 179309
                      ADHESIVE FOAM
                      from £2.20
                      from £2.20
                      # 032
                      MPN: 852753..
                      CD READER SURROUND
                      -Plastic in interior leather trim colour- -Version with CD reader-
                      Supersession
                      Supersession
                      # 033
                      MPN: 16285127
                      SCREW
                      -M5 X 16- -Version with CD reader-
                      from £0.47
                      from £0.47
                      # 033
                      MPN: 64460500
                      SCREW
                      -M5 X 10- -Version with CD reader- -No longer supplied- -Replaced by 16285127-
                      from £0.61
                      from £0.61
                      # 034
                      MPN: 288746
                      BRACKET
                      -Not for version with CD reader-
                      from £32.55
                      from £32.55
                      # 034
                      MPN: 295176
                      BRACKET
                      -Version with CD reader-
                      from £250.27
                      from £250.27
                      # 035
                      MPN: 287511
                      CD READER
                      -Version with CD reader-
                      from £423.95
                      from £423.95
                      # 036
                      MPN: 11566224
                      SCREW
                      -M5 X 14- -Version with CD reader- -No longer supplied- -Replaced by 16285127-
                      from £0.53
                      from £0.53
                      # 036
                      MPN: 16285127
                      SCREW
                      -M5 X 16- -Version with CD reader-
                      from £0.47
                      from £0.47
                      # 037
                      MPN: 295186
                      CD READER MOUNTING BRACKET
                      -Version with CD reader-
                      from £95.69
                      from £95.69
                      # 038
                      MPN: 12642821
                      WASHER
                      -Version with passenger display-
                      from £0.47
                      from £0.47
                      # 039
                      MPN: 12600474
                      WASHER
                      -Version with passenger display-
                      from £0.54
                      from £0.54
                      This part replaces part number 12600479
                      # 040
                      MPN: 16101777
                      NUT
                      -Version with passenger display-
                      from £0.54
                      from £0.54
                      # 041
                      MPN: 85109800
                      SCREW
                      -M3 X 8- -Version with passenger display-
                      from £23.43
                      from £23.43
                      # 042
                      MPN: 12486580
                      FASTENER BUTTON
                      -Version with passenger display-
                      from £6.73
                      from £6.73
                      # 043
                      MPN: 288974
                      USB SOCKET
                      -No longer supplied- -Replaced by 303226-
                      from £32.64
                      from £32.64
                      # 043
                      MPN: 303226
                      USB SOCKET
                      from £18.82
                      from £18.82
                      # 044
                      MPN: 281971
                      USB / NIT / RHR CABLE
                      from £29.14
                      from £29.14
                      This part replaces part number 275284 - and 1 more. Click to view details
                      # 045
                      MPN: 177553
                      RING CLAMP
                      from £0.47
                      from £0.47
                      # 046
                      MPN: 269874
                      IR/TV CABLE
                      -Applicable for CINA-
                      from £139.85
                      from £139.85
                      # 047
                      MPN: 276527
                      NAVIGATOR KIT
                      -Applicable for CINA- -Applicable up to Ass. No. 130492-
                      from £4,959.79
                      from £4,959.79
                      This part replaces part number 257931
                      # 048
                      MPN: 276528
                      NAVIGATOR HEAD UNIT
                      -Applicable for CINA-
                      from £4,917.88
                      from £4,917.88
                      This part replaces part number 257932
                      # 049
                      MPN: 276529
                      NAVIGATOR REMOTE CONTROL
                      -Applicable for CINA-
                      from £275.77
                      from £275.77
                      This part replaces part number 257938
                      # 050
                      MPN: 296175
                      ADAPTER IR-TV WIRING HARNESS
                      -Applicable for CINA-
                      from £44.16
                      from £44.16
                      # 051
                      MPN: 296176
                      HEAD UNIT FASTENER BRACKET
                      -Applicable for CINA- -Applicable up to Ass. No. 130491-
                      from £117.76
                      from £117.76
                      # 052
                      MPN: 14371971
                      BRACKET
                      -Applicable for CINA- -Applicable up to Ass. No. 130491-
                      from £0.47
                      from £0.47
                      # 053
                      MPN: 15902601
                      SCREW
                      -Applicable for CINA- -Applicable up to Ass. No. 130491-
                      from £0.47
                      from £0.47
                      This part replaces part number 15642501
                      # 054
                      MPN: 85692200
                      SCREW
                      -M5 X 12- -Applicable for CINA- -Applicable up to Ass. No. 130491-
                      from £0.47
                      from £0.47
                      # 055
                      MPN: 276530
                      NAVIGATOR POWER WIRING HARNESS
                      -Applicable for CINA- -Applicable up to Ass. No. 130491-
                      from £29.45
                      from £29.45
                      # 056
                      MPN: 276532
                      WIRING HARNESS FROM GPS CABLE TO HEAD UNIT
                      -Applicable for CINA- -Applicable up to Ass. No. 130491-
                      from £58.89
                      from £58.89
                      # 057
                      MPN: 311095
                      RF ANTENNA CABLE
                      -Applicable for J- -Applicable from Ass. No. 132680-
                      from £33.57
                      from £33.57
                      This part replaces part number 308738
                      # 058
                      MPN: 307279
                      VICS ANTENNA CABLE
                      -Applicable for J- -Applicable from Ass. No. 132680-
                      from £29.45
                      from £29.45
                      # 059
                      MPN: 314511
                      VICS CARD READER
                      - NIT CABLE -Applicable for J- -Applicable from Ass. No. 132680-
                      from £77.80
                      from £77.80
                      This part replaces part number 311093
                      # 060
                      MPN: 326126
                      INODE ECU
                      -Applicable for Apple Car Play- -Applicable until depletion-
                      Supersession
                      Supersession
                      # 060
                      MPN: 329927
                      INODE ECU
                      -Applicable for Apple Car Play- -Applicable after depletion of 326126-
                      from £5,321.50
                      from £5,321.50
                      This part replaces part number 326126
                      # 061
                      MPN: 14059114
                      NUT
                      -Applicable for Apple Car Play-
                      from £0.53
                      from £0.53
                      # 062
                      MPN: 323510
                      INODE ECU BRACKET
                      -Applicable for Apple Car Play-
                      from £51.55
                      from £51.55
                      # 063
                      MPN: 65752800
                      SCREW
                      -M4 X 10- -Applicable for Apple Car Play-
                      from £1.14
                      from £1.14
                      This part replaces part number 294485 - and 1 more. Click to view details
                      # 064
                      MPN: 292881
                      LVDS NIT CABLE
                      -Applicable for Apple Car Play-
                      from £343.28
                      from £343.28

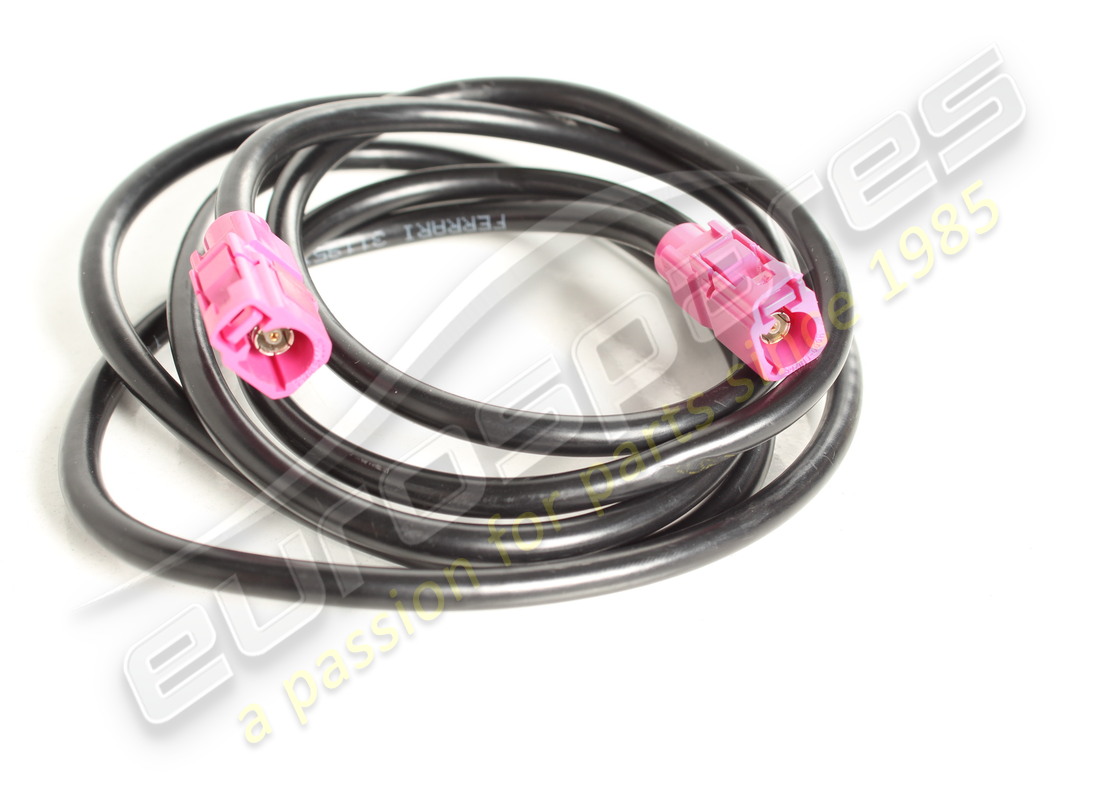

                      # 065
                      MPN: 311951
                      REMOTE WIFI ANTENNA EXTENSION CABLE
                      -Applicable for Apple Car Play-
                      from £103.43
                      from £103.43
                      # 066
                      MPN: 305233
                      NQS-NTM LVDS CABLE
                      -Applicable for Apple Car Play, not for telemetry-
                      from £271.22
                      from £271.22
                      # 067
                      MPN: 311948
                      CABLE FROM USB TO NDM
                      -Applicable for Apple Car Play-
                      from £91.29
                      from £91.29
                      This part replaces part number 309771 - and 2 more. Click to view details
                      # 068
                      MPN: 309772
                      NDM USB PORT
                      -Applicable for Apple Car Play-
                      from £74.03
                      from £74.03
                      Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
