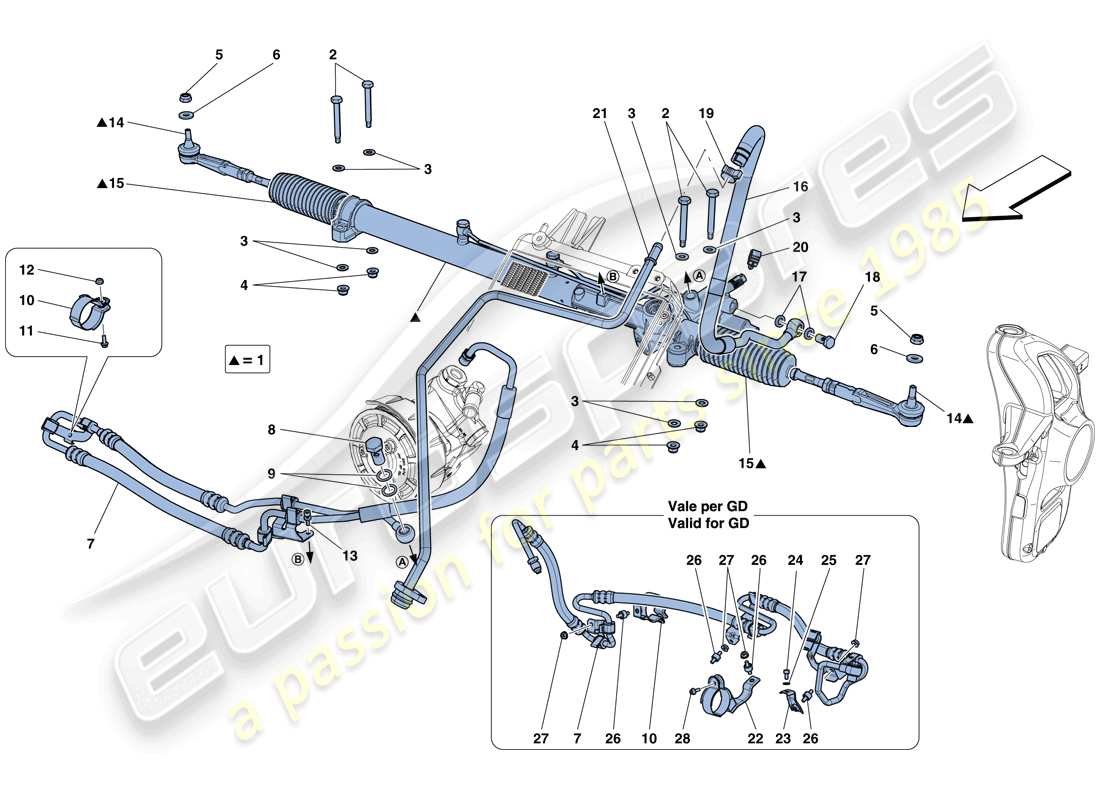

0032 - HYDRAULIC POWER STEERING BOX
Ferrari F12 Berlinetta (RHD) HYDRAULIC POWER STEERING BOX Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 271009
Steering box
-Not for GD-
from £2,435.89
from £2,435.89
# 001
MPN: 273044
Steering box
-Applicable for GD-
from £2,126.55
from £2,126.55
# 002
MPN: 277720
SCREW
-M10 X 1.25 X 80-
from £2.25
from £2.25
# 003
MPN: 14496624
WASHER
from £0.51
from £0.51
This part replaces part number 14496601 - and 2 more. Click to view details
# 004
MPN: 14058621
NUT
from £0.53
from £0.53
# 005
MPN: 102742
NUT
from £0.53
from £0.53
This part replaces part number 12557621 - and 2 more. Click to view details
# 006
MPN: 12626224
WASHER
from £0.54
from £0.54
This part replaces part number 12626221
# 007
MPN: 288792
PIPE FROM PUMP TO STEERING BOX
-Not for GD-
from £156.54
from £156.54
# 007
MPN: 291260
PIPE FROM PUMP TO STEERING BOX
-Applicable for GD- -Applicable up to Ass. No. 110572- -Applicable until depletion-
Supersession
Supersession
# 007
MPN: 299294
PIPE FROM PUMP TO STEERING BOX
-Applicable for GD- -Applicable from Ass. No. 110573- -Applicable after depletion of 291260-
from £270.86
from £270.86
This part replaces part number 291260 - and 1 more. Click to view details
# 008
MPN: 184727
CONNECTOR PIPE FOR UNION
-Not for GD-
from £1.90
from £1.90
This part replaces part number 153419 which we have in stock - and 3 more. Click to view details
# 008
MPN: 276087
CONNECTOR PIPE FOR UNION
-Applicable for GD-
from £9.06
from £9.06
# 009
MPN: 10257060
GASKET
from £0.47
from £0.47
This part replaces part number 10253060 - and 2 more. Click to view details
# 010
MPN: 288884
COMPL. BRACKET
from £25.55
from £25.55
# 011
MPN: 16285127
SCREW
-M5 X 16-
from £0.53
from £0.53
# 012
MPN: 14040614
NUT
from £0.54
from £0.54
# 013
MPN: 233600
SCREW
-M6 X 12-
from £0.54
from £0.54
# 014
MPN: 250196
ROD END FOR STEERING BOX
from £127.11
from £127.11
# 015
MPN: 229521
STEERING BOX GAITER REPLACEMENT KIT
from £160.72
from £160.72
# 016
MPN: 268011
PIPE FROM STEERING BOX TO RADIATOR
-Not for GD-
from £44.67
from £44.67
# 016
MPN: 291261
PIPE FROM STEERING BOX TO RADIATOR
-Applicable for GD-
from £63.83
from £63.83
# 017
MPN: 10280060
GASKET
from £0.53
from £0.53
This part replaces part number 100501 - and 3 more. Click to view details
# 018
MPN: 277407
CONNECTOR PIPE FOR UNION
from £6.19
from £6.19
# 019
MPN: 13126070
COLLAR
from £0.64
from £0.64
# 020
MPN: 259508
CLIP
from £0.54
from £0.54
# 021
MPN: 278086
PIPE FROM DISCONNECTOR UNION TO RADIATOR
-Applicable up to Ass. No. 111369-
from £156.39
from £156.39
# 021
MPN: 296314
PIPE FROM DISCONNECTER UNION TO RADIATOR
-Applicable from Ass. No. 111370-
from £25.09
from £25.09
# 022
MPN: 292839
BRACKET
-Applicable for GD- -Applicable up to Ass. No. 110572-
from £54.73
from £54.73
# 022
MPN: 299160
BRACKET
-Applicable for GD- -Applicable from Ass. No. 110573-
from £62.05
from £62.05
# 023
MPN: 292771
HIGH PRESSURE PIPE BRACKET
-Applicable for GD-
from £18.24
from £18.24
# 024
MPN: 14304024
SCREW
-Applicable for GD-
from £0.54
from £0.54
# 025
MPN: 11181574
WASHER
-Applicable for GD-
from £0.54
from £0.54
# 026
MPN: 252018
PLUG
-Applicable for GD-
from £4.66
from £4.66
# 027
MPN: 14040614
NUT
-Applicable for GD-
from £0.53
from £0.53
# 028
MPN: 256323
SCREW
-M5 X 16- -Applicable for GD-
from £0.54
from £0.54
