0042 - Battery

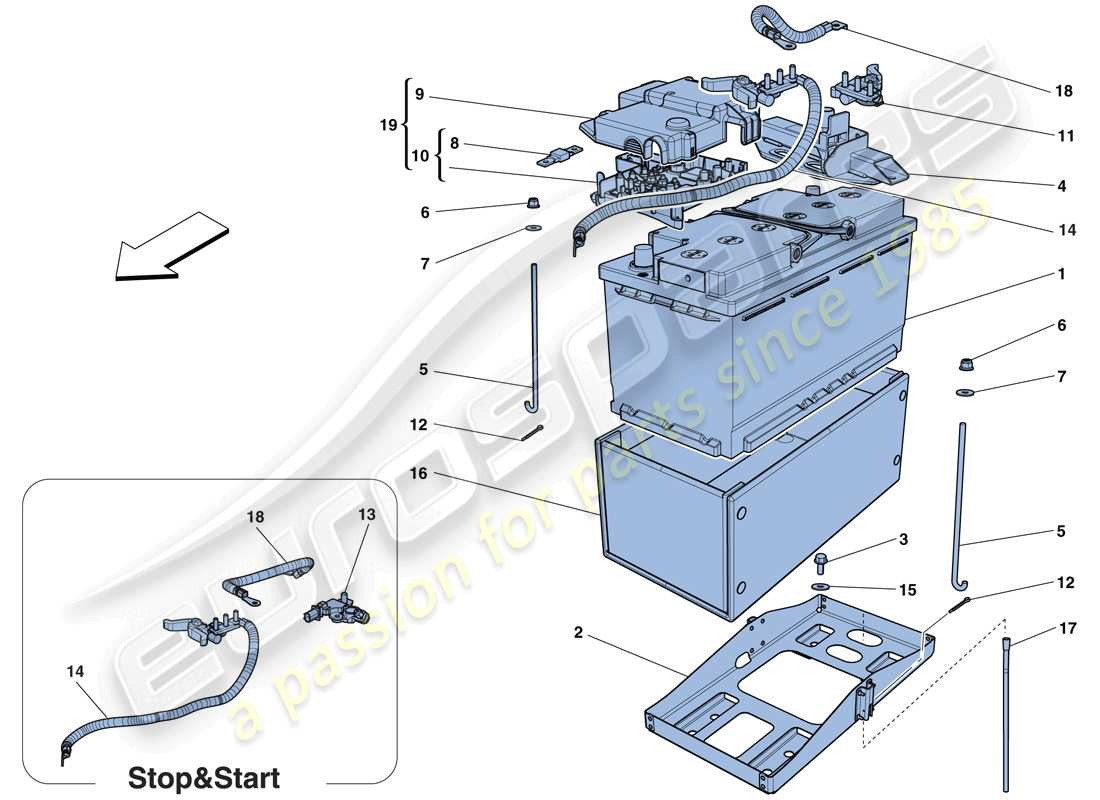

Ferrari F12 Berlinetta (RHD) BATTERY Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Price
                # 001
                MPN: 256381
                Battery
                -95 Ah- -Not for Brazil- -Applicable until depletion-
                Supersession
                Supersession
                # 001
                MPN: 312187
                Battery
                -95 Ah- -Applicable from start of production for Brazil- -Applicable after depletion of 256381-
                Supersession
                Supersession
                This part replaces part number 256381
                # 002
                MPN: 272263
                BATTERY MOUNTING
                from £100.93
                from £100.93
                # 003
                MPN: 16044321
                SCREW
                -M8 X 55-
                from £0.30
                from £0.30
                # 003
                MPN: 16287024
                SCREW
                -M8 X 16-
                from £0.47
                from £0.47
                # 004
                MPN: 272464
                BATTERY RETAINER COMPL. WITH NEGATIVE TERMINAL
                from £60.73
                from £60.73
                # 005
                MPN: 245743
                TIE-ROD
                -No longer supplied- -Replaced by 292882-
                from £7.77
                from £7.77
                # 005
                MPN: 292882
                TIE-ROD
                from £4.86
                from £4.86
                # 006
                MPN: 228265
                NUT
                from £0.47
                from £0.47
                # 007
                MPN: 12643724
                WASHER
                from £0.47
                from £0.47
                This part replaces part number 109684 - and 4 more. Click to view details
                # 008
                MPN: 278366
                FUSE VALVE
                from £6.83
                from £6.83
                # 008
                MPN: 278368
                FUSE VALVE
                -150 A-
                from £6.99
                from £6.99
                # 008
                MPN: 325487
                FUSE VALVE
                -70 A-
                from £8.10
                from £8.10
                # 008
                MPN: 325488
                FUSE VALVE
                -50 A-
                from £8.10
                from £8.10
                # 008
                MPN: 325489
                FUSE VALVE
                -40 A-
                from £8.10
                from £8.10
                # 009
                MPN: 251161
                COVER
                -After depletion order compl. ref. 19- -Not for GD- -Applicable until depletion-
                from £29.19
                from £29.19
                # 009
                MPN: 294977
                COVER
                -After depletion order compl. ref. 19- -Applicable for GD- -Applicable until depletion-
                from £36.79
                from £36.79
                # 010
                MPN: 291682
                BATTERY ECU
                -After depletion order compl. ref. 19- -Applicable until depletion-
                from £31.95
                from £31.95
                This part replaces part number 277359 which we have in stock - and 1 more. Click to view details
                # 011
                MPN: 11163594
                BATTERY DISCONNECTOR TERMINAL CLAMP WITH LEVER
                -Not for Stop&Start-
                from £22.09
                from £22.09
                # 012
                MPN: 10795206
                SPLIT PIN
                from £0.47
                from £0.47
                # 013
                MPN: 274661
                BATTERY SENSOR
                -Applicable for Stop&Start-
                from £74.96
                from £74.96
                # 014
                MPN: 292866
                BATTERY GROUND CABLE/TERMINAL CLAMP ASSEMBLY
                -Not for GD-
                from £28.26
                from £28.26
                # 014
                MPN: 298621
                BATTERY GROUND CABLE/TERMINAL CLAMP ASSEMBLY
                -Applicable for GD-
                from £28.26
                from £28.26
                # 015
                MPN: 12646778
                WASHER
                from £0.53
                from £0.53
                This part replaces part number 156093
                # 016
                MPN: 251793
                HEAT SHIELD
                from £152.73
                from £152.73
                # 017
                MPN: 257167
                VAPOUR BREATHER PIPE
                -L. 400 mm-
                from £5.15
                from £5.15
                # 018
                MPN: 273388
                BATTERY GROUND CABLE
                -Not for Stop&Start-
                Supersession
                Supersession
                # 018
                MPN: 278419
                GROUND CABLE FROM SENSOR TO FALSE POLE
                -Applicable for Stop&Start-
                from £11.98
                from £11.98
                # 019
                MPN: 291683
                COMPL. BATTERY ECU
                -Not for GD-
                from £69.92
                from £69.92
                This part replaces part number 291682 which we have in stock
                # 019
                MPN: 294976
                COMPL. BATTERY ECU
                -Applicable for GD-
                from £142.76
                from £142.76
