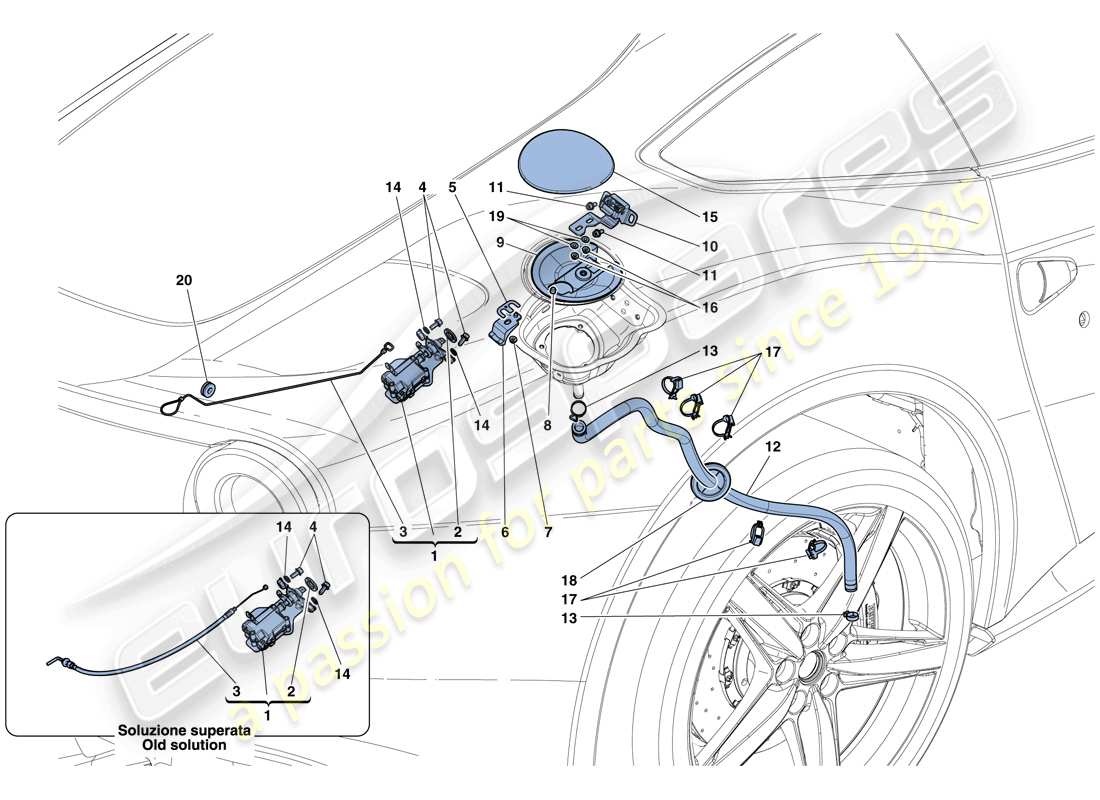

0113 - FUEL FILLER FLAP AND CONTROLS

Ferrari F12 Berlinetta (RHD) FUEL FILLER FLAP AND CONTROLS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Price
                              # 001
                              MPN: 84483700
                              COMPL. FUEL FILLER FLAP ACTUATOR
                              -Applicable up to Ass. No. 114557- -Applicable until depletion-
                              from £47.69
                              from £47.69
                              # 001
                              MPN: 85803900
                              COMPL. FUEL FILLER FLAP ACTUATOR
                              -Applicable from Ass. No. 114558 up to Ass. No. 117353- -Applicable after depletion of 84483700-
                              Supersession
                              Supersession
                              This part replaces part number 84483700 which we have in stock
                              # 001
                              MPN: 86009000
                              COMPL. FUEL FILLER FLAP ACTUATOR
                              -Applicable from Ass. No. 117354- -Applicable after depletion of 85803900-
                              from £37.73
                              from £37.73
                              This part replaces part number 85111000 - and 3 more. Click to view details
                              # 002
                              MPN: 67067600
                              SEAL RING FOR BASE
                              from £1.86
                              from £1.86
                              # 003
                              MPN: 84506200
                              ACTUATOR BOWDEN CABLE
                              -Applicable up to Ass. No. 114557-
                              from £147.19
                              from £147.19
                              # 003
                              MPN: 85618500
                              ACTUATOR CHORD
                              -Applicable from Ass. No. 114558-
                              from £8.67
                              from £8.67
                              # 004
                              MPN: 11566227
                              SCREW
                              -M5 X 14-
                              from £0.68
                              from £0.68
                              # 005
                              MPN: 84046900
                              SPACER PLATE
                              from £2.76
                              from £2.76
                              # 006
                              MPN: 83993500
                              STRIKER FOR ACTUATOR
                              from £18.55
                              from £18.55
                              # 007
                              MPN: 14059111
                              NUT
                              -M5- -No longer supplied- -Replaced by 14059114-
                              from £0.47
                              from £0.47
                              # 007
                              MPN: 14059114
                              NUT
                              from £0.54
                              from £0.54
                              # 008
                              MPN: 84933800
                              RUBBER PAD
                              from £1.98
                              from £1.98
                              # 009
                              MPN: 84307600
                              INTERNAL COVER
                              from £4.13
                              from £4.13
                              # 010
                              MPN: 83993700
                              COMPL. HINGE
                              from £29.55
                              from £29.55
                              # 011
                              MPN: 11566227
                              SCREW
                              -M5 X 14-
                              from £0.68
                              from £0.68
                              # 012
                              MPN: 84716500
                              DRAIN PIPE
                              from £48.58
                              from £48.58
                              # 013
                              MPN: 13433570
                              COLLAR
                              from £0.47
                              from £0.47
                              # 014
                              MPN: 12601174
                              WASHER
                              from £0.47
                              from £0.47
                              This part replaces part number 12601173 - and 5 more. Click to view details
                              # 015
                              MPN: 84307211
                              COMPL. FUEL FILLER FLAP
                              from £60.73
                              from £60.73
                              # 016
                              MPN: 14059111
                              NUT
                              -M5- -No longer supplied- -Replaced by 14059114-
                              from £0.47
                              from £0.47
                              # 016
                              MPN: 14059114
                              NUT
                              from £0.54
                              from £0.54
                              # 017
                              MPN: 177553
                              RING CLAMP
                              from £0.47
                              from £0.47
                              # 018
                              MPN: 81535200
                              GROMMET WITH MEMBRANE
                              from £15.49
                              from £15.49
                              # 019
                              MPN: 12638124
                              WASHER
                              from £0.47
                              from £0.47
                              This part replaces part number 12638101 - and 1 more. Click to view details
                              # 020
                              MPN: 10396180
                              CABLE GROMMET
                              from £1.08
                              from £1.08
                              This part replaces part number 10459687
