Ferrari F12 Berlinetta (RHD) VEHICLE ECUs Parts Diagram

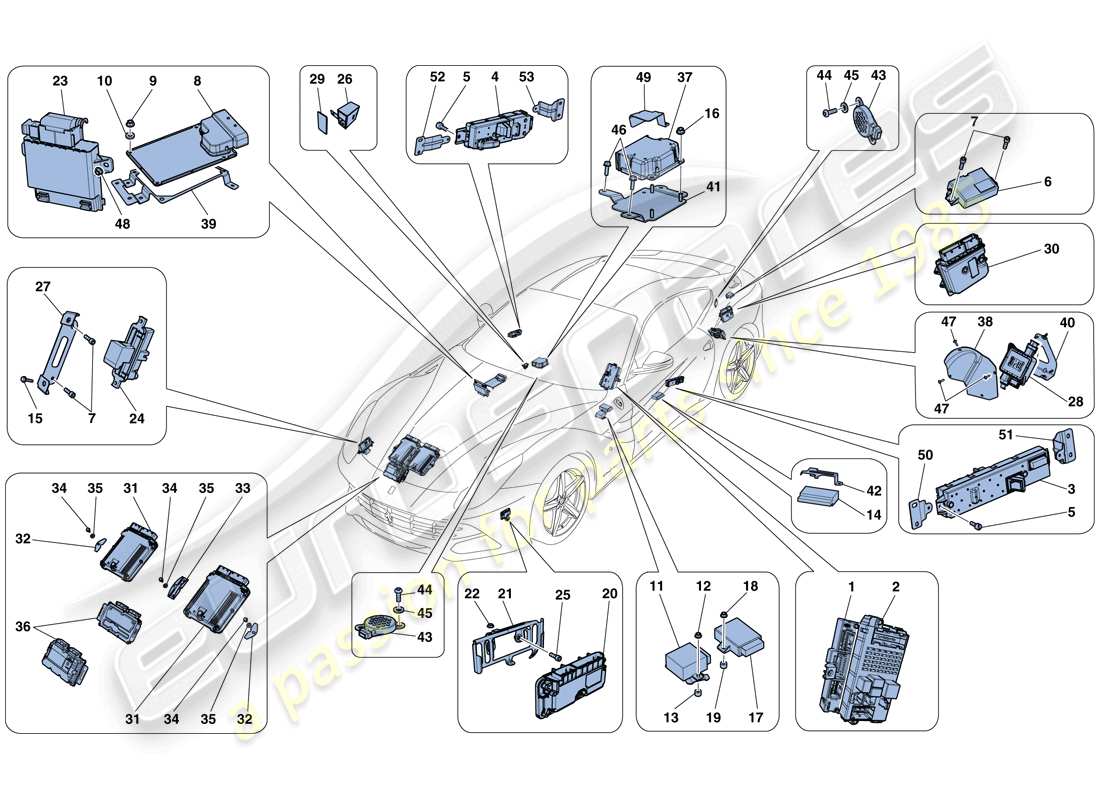

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Price
                                                        # 001
                                                        MPN: 267785
                                                        BODY COMPUTER NODE
                                                        -Applicable up to Ass. No. 116119- -Applicable until depletion-
                                                        Supersession
                                                        Supersession
                                                        # 001
                                                        MPN: 302228
                                                        BODY COMPUTER NODE
                                                        -Applicable from Ass. No. 116120- -Applicable after depletion of 267785-
                                                        from £929.01
                                                        from £929.01
                                                        This part replaces part number 267785
                                                        # 002
                                                        MPN: 245788
                                                        DASHBOARD ECU
                                                        from £161.25
                                                        from £161.25
                                                        This part replaces part number 229378 - and 1 more. Click to view details
                                                        # 003
                                                        MPN: 273412
                                                        DRIVER SIDE DOOR NODE ECU
                                                        from £570.77
                                                        from £570.77
                                                        This part replaces part number 232149
                                                        # 004
                                                        MPN: 273413
                                                        PASSENGER SIDE DOOR NODE ECU
                                                        from £561.37
                                                        from £561.37
                                                        This part replaces part number 232150 which we have in stock
                                                        # 005
                                                        MPN: 16285127
                                                        SCREW
                                                        -M5 X 16-
                                                        from £0.47
                                                        from £0.47
                                                        # 006
                                                        MPN: 270560
                                                        PARKING SENSOR NODE ECU
                                                        -Applicable up to Ass. No. 117693- -No longer supplied- -Replaced by 302489-
                                                        Supersession
                                                        Supersession
                                                        This part replaces part number 257068 - and 1 more. Click to view details
                                                        # 006
                                                        MPN: 302489
                                                        PARKING SENSOR NODE ECU
                                                        -Applicable up to Ass. No. 117693-
                                                        from £137.35
                                                        from £137.35
                                                        This part replaces part number 270560 - and 1 more. Click to view details
                                                        # 006
                                                        MPN: 303896
                                                        PARKING SENSOR NODE ECU
                                                        -Applicable from Ass. No. 117694- -Applicable until depletion-
                                                        Supersession
                                                        Supersession
                                                        # 006
                                                        MPN: 315675
                                                        PARKING SENSOR NODE ECU
                                                        -Applicable from Ass. No. 117694- -Applicable after depletion of 303896-
                                                        from £137.72
                                                        from £137.72
                                                        This part replaces part number 294555 - and 1 more. Click to view details
                                                        # 007
                                                        MPN: 231617
                                                        SCREW
                                                        -M6 X 18-
                                                        from £0.47
                                                        from £0.47
                                                        This part replaces part number 14433124
                                                        # 008
                                                        MPN: 267786
                                                        MAGNERIDE SUSPENSION ECU
                                                        from £1,338.31
                                                        from £1,338.31
                                                        # 009
                                                        MPN: 168698
                                                        NUT
                                                        from £0.93
                                                        from £0.93
                                                        This part replaces part number 14054048
                                                        # 009
                                                        MPN: 62790300
                                                        NUT
                                                        -No longer supplied- -Replaced by 168698-
                                                        from £0.47
                                                        from £0.47
                                                        This part replaces part number 12574011 - and 1 more. Click to view details
                                                        # 010
                                                        MPN: 12601074
                                                        WASHER
                                                        -No longer supplied-
                                                        from £0.53
                                                        from £0.53
                                                        This part replaces part number 12601070 which we have in stock
                                                        # 011
                                                        MPN: 267787
                                                        POWER STEERING CONTROL ECU
                                                        from £60.98
                                                        from £60.98
                                                        # 012
                                                        MPN: 14059111
                                                        NUT
                                                        -M5-
                                                        from £0.47
                                                        from £0.47
                                                        # 013
                                                        MPN: 65708600
                                                        SHIM
                                                        from £3.99
                                                        from £3.99
                                                        # 014
                                                        MPN: 267996
                                                        PARKING CAMERA ECU
                                                        from £1,370.19
                                                        from £1,370.19
                                                        # 015
                                                        MPN: 11625824
                                                        SCREW
                                                        from £0.47
                                                        from £0.47
                                                        # 015
                                                        MPN: 11628524
                                                        SCREW
                                                        -No longer supplied- -Replaced by 11625824-
                                                        from £0.74
                                                        from £0.74
                                                        # 016
                                                        MPN: 14059211
                                                        NUT
                                                        from £0.47
                                                        from £0.47
                                                        # 017
                                                        MPN: 237967
                                                        TPMS ECU
                                                        -Applicable up to Ass. No. 124320- -Applicable until depletion-
                                                        Supersession
                                                        Supersession
                                                        # 017
                                                        MPN: 299017
                                                        TPMS ECU
                                                        -Applicable from Ass. No. 124321- -Applicable after depletion of 237967-
                                                        from £253.90
                                                        from £253.90
                                                        This part replaces part number 237967
                                                        # 018
                                                        MPN: 14059211
                                                        NUT
                                                        from £0.47
                                                        from £0.47
                                                        # 019
                                                        MPN: 65708600
                                                        SHIM
                                                        from £3.99
                                                        from £3.99
                                                        # 020
                                                        MPN: 284013
                                                        VEHICLE LIFT ECU
                                                        -Applicable until depletion-
                                                        Supersession
                                                        Supersession
                                                        # 020
                                                        MPN: 341961
                                                        VEHICLE LIFT ECU
                                                        -Applicable after depletion of 284013-
                                                        from £397.69
                                                        from £397.69
                                                        This part replaces part number 284013
                                                        # 021
                                                        MPN: 290965
                                                        BRACKET
                                                        from £36.96
                                                        from £36.96
                                                        # 022
                                                        MPN: 14059111
                                                        NUT
                                                        -M5-
                                                        from £0.47
                                                        from £0.47
                                                        # 023
                                                        MPN: 264097
                                                        VOLTAGE STABILIZER
                                                        -Applicable for Stop&Start-
                                                        from £188.02
                                                        from £188.02
                                                        # 024
                                                        MPN: 254413
                                                        ADAPTIVE HEADLIGHT NODE ECU
                                                        -No longer supplied- -Replaced by 277281-
                                                        Supersession
                                                        Supersession
                                                        This part replaces part number 256995
                                                        # 024
                                                        MPN: 277281
                                                        ADAPTIVE HEADLIGHT NODE ECU
                                                        from £162.61
                                                        from £162.61
                                                        This part replaces part number 254413
                                                        # 025
                                                        MPN: 231617
                                                        SCREW
                                                        -M6 X 18-
                                                        from £0.47
                                                        from £0.47
                                                        This part replaces part number 14433124
                                                        # 026
                                                        MPN: 291167
                                                        VENT CONTROL ECU
                                                        -Not for GD-
                                                        from £68.87
                                                        from £68.87
                                                        # 026
                                                        MPN: 296258
                                                        VENT CONTROL ECU
                                                        -Applicable for GD-
                                                        from £68.87
                                                        from £68.87
                                                        # 027
                                                        MPN: 287268
                                                        NODE MOUNTING BRACKET
                                                        from £12.20
                                                        from £12.20
                                                        # 028
                                                        MPN: 264935
                                                        PWM COMMAND SIGNAL FOR FUEL PUMPS
                                                        from £132.13
                                                        from £132.13
                                                        # 029
                                                        MPN: 179309
                                                        ADHESIVE FOAM
                                                        from £2.20
                                                        from £2.20
                                                        # 030
                                                        MPN: 279430
                                                        DCT GEARBOX ECU
                                                        -Unprogrammed- -Applicable up to Ass. No. 117407- -Applicable until depletion-
                                                        Supersession
                                                        Supersession
                                                        # 030
                                                        MPN: 304001
                                                        DCT GEARBOX ECU
                                                        -Unprogrammed- -Applicable from Ass. No. 117408- -Applicable after depletion of 279430-
                                                        from £1,077.74
                                                        from £1,077.74
                                                        This part replaces part number 279430
                                                        # 031
                                                        MPN: 238263
                                                        IGNITION ECU
                                                        -Unprogrammed-
                                                        from £1,636.43
                                                        from £1,636.43
                                                        This part replaces part number 239971 - and 18 more. Click to view details
                                                        # 032
                                                        MPN: 289448
                                                        RH MOTRONIC FASTENER BRACKET
                                                        from £23.65
                                                        from £23.65
                                                        # 032
                                                        MPN: 289449
                                                        LH MOTRONIC FASTENER BRACKET
                                                        from £23.65
                                                        from £23.65
                                                        # 033
                                                        MPN: 257695
                                                        CENTRE BRACKET
                                                        from £12.20
                                                        from £12.20
                                                        # 034
                                                        MPN: 16296924
                                                        SCREW
                                                        -M6 X 14-
                                                        from £0.47
                                                        from £0.47
                                                        This part replaces part number 289834
                                                        # 035
                                                        MPN: 12647624
                                                        WASHER
                                                        from £0.51
                                                        from £0.51
                                                        This part replaces part number 12647611
                                                        # 036
                                                        MPN: 289064
                                                        IONISING KNOCK SENSOR CONTROL UNIT
                                                        -Unprogrammed-
                                                        from £916.60
                                                        from £916.60
                                                        # 037
                                                        MPN: 270561
                                                        ROLL-OVER ECU
                                                        -Applicable up to Ass. No. 110073- -Applicable until depletion-
                                                        from £226.32
                                                        from £226.32
                                                        # 037
                                                        MPN: 295799
                                                        AIRBAG ECU
                                                        -Applicable from Ass. No. 110074- -Applicable after depletion of 270561-
                                                        from £273.61
                                                        from £273.61
                                                        This part replaces part number 270561 which we have in stock - and 1 more. Click to view details
                                                        # 038
                                                        MPN: 292634
                                                        PROTECTIVE COVER
                                                        -Applicable up to Ass. No. 111638- -Applicable until depletion-
                                                        Supersession
                                                        Supersession
                                                        # 038
                                                        MPN: 295945
                                                        PROTECTIVE COVER
                                                        -Applicable from Ass. No. 111639- -Applicable after depletion of 292634-
                                                        from £22.76
                                                        from £22.76
                                                        This part replaces part number 292634 - and 2 more. Click to view details
                                                        # 039
                                                        MPN: 291303
                                                        BRACKET
                                                        from £21.05
                                                        from £21.05
                                                        # 040
                                                        MPN: 292632
                                                        BRACKET
                                                        from £12.36
                                                        from £12.36
                                                        # 041
                                                        MPN: 285180
                                                        BRACKET
                                                        -No longer supplied- -Replaced by 295913-
                                                        from £28.91
                                                        from £28.91
                                                        This part replaces part number 250693
                                                        # 041
                                                        MPN: 295913
                                                        BRACKET
                                                        from £16.46
                                                        from £16.46
                                                        # 042
                                                        MPN: 267992
                                                        BRACKET
                                                        from £11.63
                                                        from £11.63
                                                        # 044
                                                        MPN: 64460500
                                                        SCREW
                                                        -M5 X 10- -No longer supplied- -Replaced by 85692000-
                                                        from £0.61
                                                        from £0.61
                                                        # 044
                                                        MPN: 85692000
                                                        SCREW
                                                        -M5 X 10-
                                                        from £0.53
                                                        from £0.53
                                                        # 045
                                                        MPN: 12637801
                                                        WASHER
                                                        from £0.47
                                                        from £0.47
                                                        # 046
                                                        MPN: 16286124
                                                        SCREW
                                                        -M6 X 20-
                                                        from £0.51
                                                        from £0.51
                                                        # 047
                                                        MPN: 169815
                                                        SCREW
                                                        -No longer supplied- -Replaced by 85692300-
                                                        from £1.03
                                                        from £1.03
                                                        This part replaces part number 270024
                                                        # 047
                                                        MPN: 85692300
                                                        SCREW
                                                        from £0.47
                                                        from £0.47
                                                        This part replaces part number 83914200
                                                        # 048
                                                        MPN: 12578111
                                                        NUT
                                                        from £0.47
                                                        from £0.47
                                                        # 049
                                                        MPN: 298044
                                                        BRACKET
                                                        -Applicable up to Ass. No. 108014-
                                                        from £17.01
                                                        from £17.01
                                                        # 050
                                                        MPN: 284284
                                                        FRONT FASTENER BRACKET
                                                        from £5.09
                                                        from £5.09
                                                        # 051
                                                        MPN: 284285
                                                        REAR FASTENER BRACKET
                                                        from £5.09
                                                        from £5.09
                                                        # 052
                                                        MPN: 284286
                                                        FRONT FASTENER BRACKET
                                                        from £5.99
                                                        from £5.99
                                                        # 053
                                                        MPN: 284287
                                                        REAR FASTENER BRACKET
                                                        from £5.99
                                                        from £5.99
