0136 - ANTITHEFT SYSTEM

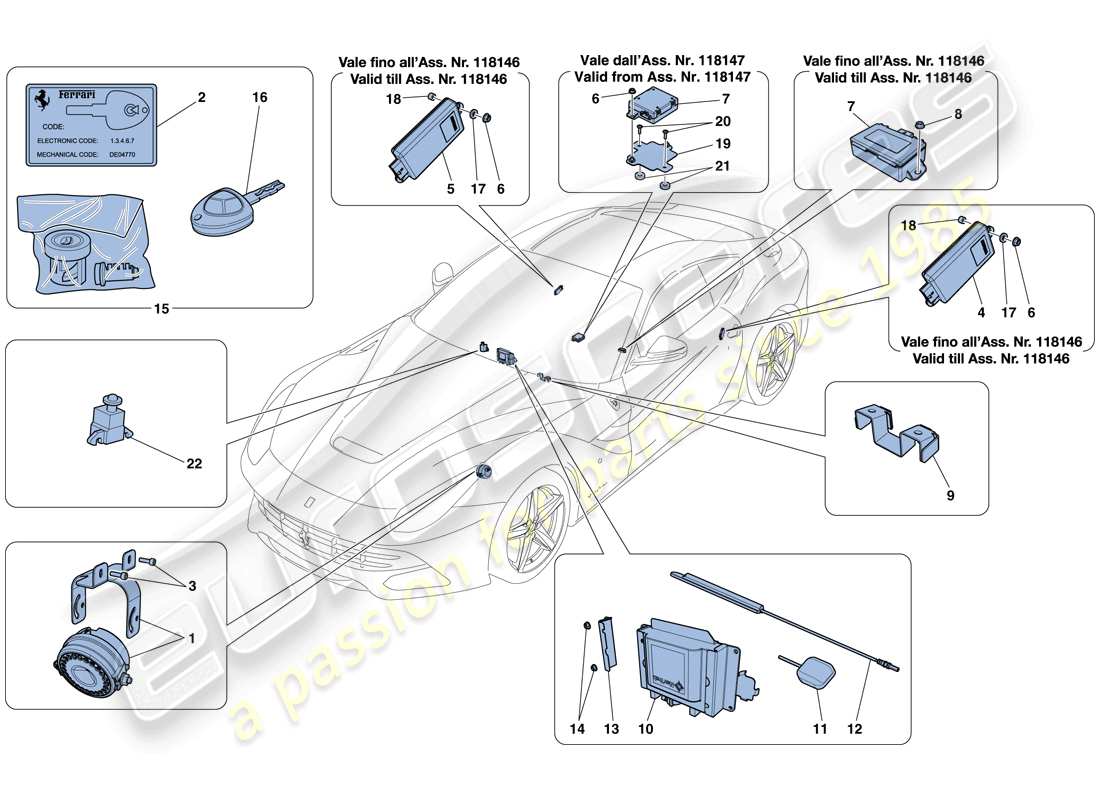

Ferrari F12 Berlinetta (RHD) ANTITHEFT SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Price
              # 001
              MPN: 282235
              COMPL. ANTI-THEFT SYSTEM SIREN
              -Applicable until depletion-
              Supersession
              Supersession
              This part replaces part number 272825
              # 001
              MPN: 295278
              COMPL. ANTI-THEFT SYSTEM SIREN
              -Not for Israel- -Applicable after depletion of 282235-
              from £43.57
              from £43.57
              This part replaces part number 282235 - and 1 more. Click to view details
              # 001
              MPN: 315744
              COMPL. ANTI-THEFT SYSTEM SIREN
              -Applicable for Israel-
              from £81.11
              from £81.11
              # 002
              MPN: 153603
              Ferrari CODE CARD
              from £33.89
              from £33.89
              This part replaces part number 194003
              # 003
              MPN: 14304220
              SCREW
              -M5 X 16-
              from £0.47
              from £0.47
              # 004
              MPN: 267744
              MASTER HYPERFREQUENCY VOLUMETRIC SENSOR
              -No longer supplied- -Replaced by 292374-
              from £65.27
              from £65.27
              # 004
              MPN: 292374
              MASTER HYPER-FREQUENCY VOLUMETRIC SENSOR
              -Applicable up to Ass. No. 118146-
              from £65.27
              from £65.27
              # 005
              MPN: 217727
              SLAVE HYPERFREQUENCY VOLUMETRIC SENSOR
              -No longer supplied- -Replaced by 292373-
              from £73.52
              from £73.52
              # 005
              MPN: 292373
              SLAVE HYPER-FREQUENCY VOLUMETRIC SENSOR
              -Applicable up to Ass. No. 118146-
              from £62.99
              from £62.99
              # 006
              MPN: 113647
              NUT
              -Applicable up to Ass. No. 118146-
              from £0.53
              from £0.53
              # 006
              MPN: 113647
              NUT
              -Applicable from Ass. No. 118147-
              from £0.53
              from £0.53
              # 007
              MPN: 238935

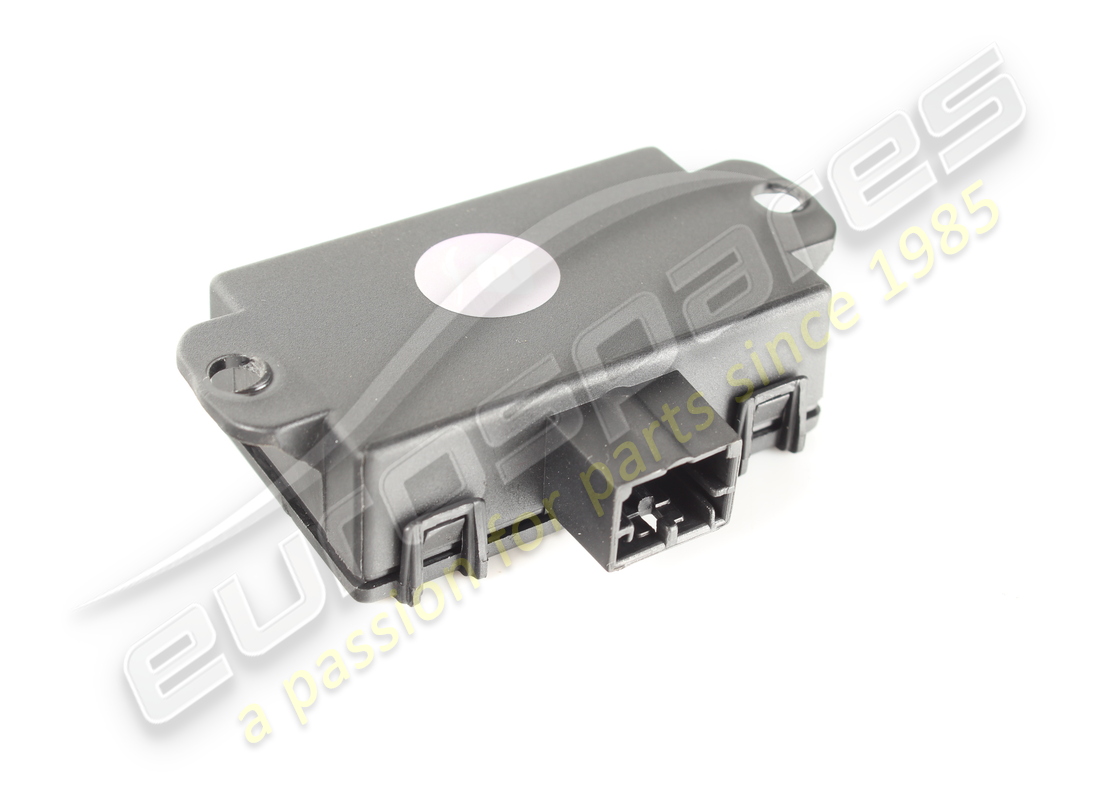

              ANTI-LIFT SENSOR
              -Applicable up to Ass. No. 118146-
              from £99.39
              from £99.39
              # 007
              MPN: 293416
              MASTER DIPOLE ANTI-LIFT SENSOR
              -Applicable from Ass. No. 118147-
              from £128.29
              from £128.29
              # 008
              MPN: 113647
              NUT
              -Applicable from Ass. No. 118147-
              from £0.53
              from £0.53
              # 008
              MPN: 62790300
              NUT
              -Applicable up to Ass. No. 118146-
              from £0.47
              from £0.47
              This part replaces part number 12574011 - and 1 more. Click to view details
              # 009
              MPN: 261366
              THEFT DETERRENT LAMP FASTENER BRACKET
              -No longer supplied-
              from £15.39
              from £15.39
              # 010
              MPN: 235627
              ADR5 SATELLITE ALARM SYSTEM ECU
              -Applicable up to Ass. No. 123711- -Applicable until depletion-
              Supersession
              Supersession
              # 010
              MPN: 307603
              ADR10 SATELLITE ALARM SYSTEM ECU
              -Request ASM authorisation- -Applicable from Ass. No. 123712- -Applicable after depletion of 235627- -No longer supplied- -Replaced by 316923-
              from £1,358.13
              from £1,358.13
              This part replaces part number 235627 - and 5 more. Click to view details
              # 010
              MPN: 316923
              ADR10 SATELLITE ALARM SYSTEM ECU
              -Applicable from Ass. No. 123712- -Applicable after depletion of 235627-
              from £1,786.65
              from £1,786.65
              This part replaces part number 277442
              # 011
              MPN: 274464
              GPS ANTENNA
              from £32.34
              from £32.34
              # 012
              MPN: 274465
              GSM ANTENNA
              from £13.57
              from £13.57
              # 013
              MPN: 249839
              NAVTRACK FASTENER BRACKET
              -Not for GD- -Applicable until depletion-
              Supersession
              Supersession
              # 013
              MPN: 282642
              NAVTRACK FASTENER BRACKET
              -Not for GD- -Applicable after depletion of 249839-
              from £5.84
              from £5.84
              This part replaces part number 249839
              # 013
              MPN: 282642
              NAVTRACK FASTENER BRACKET
              -Applicable for GD-
              from £5.84
              from £5.84
              This part replaces part number 249839
              # 014
              MPN: 14059121
              NUT
              from £0.54
              from £0.54
              # 015
              MPN: 241458
              COMPL. KEY AND BLOCK KIT
              -Contains 2 keys, 2 ignition switch blocks and 1 code card- -No longer supplied- -Replaced by 254409-
              Supersession
              Supersession
              # 015
              MPN: 254409
              COMPL. KEY AND BLOCK KIT
              -Contains 2 keys, 2 ignition switch blocks and 1 code card-
              from £915.11
              from £915.11
              This part replaces part number 241458 - and 1 more. Click to view details
              LOCKS SET COMPLETED WITH STE Genuine Ferrari Part - Used In stock
              IGNITION BARREL AND DOOR LOCK WITH KEYS AND CARD
              # 016
              MPN: 254332
              UNCODED KEY
              from £347.65
              from £347.65
              # 017
              MPN: 12637824
              WASHER
              -Applicable up to Ass. No. 118146-
              from £0.47
              from £0.47
              This part replaces part number 12637801 which we have in stock - and 1 more. Click to view details
              # 018
              MPN: 65708600
              SHIM
              -Applicable up to Ass. No. 118146-
              from £3.99
              from £3.99
              # 019
              MPN: 302020
              BRACKET
              -Applicable from Ass. No. 118147-
              from £6.59
              from £6.59
              # 020
              MPN: 63343400
              SCREW
              -M4 X 15- -Applicable from Ass. No. 118147-
              from £1.36
              from £1.36
              # 021
              MPN: 84737900
              FLAT WASHER
              -Applicable from Ass. No. 118147-
              from £2.63
              from £2.63
              # 022
              MPN: 239744
              TWO-TONE INFOLED
              from £36.28
              from £36.28
              This part replaces part number 188253 which we have in stock - and 1 more. Click to view details
