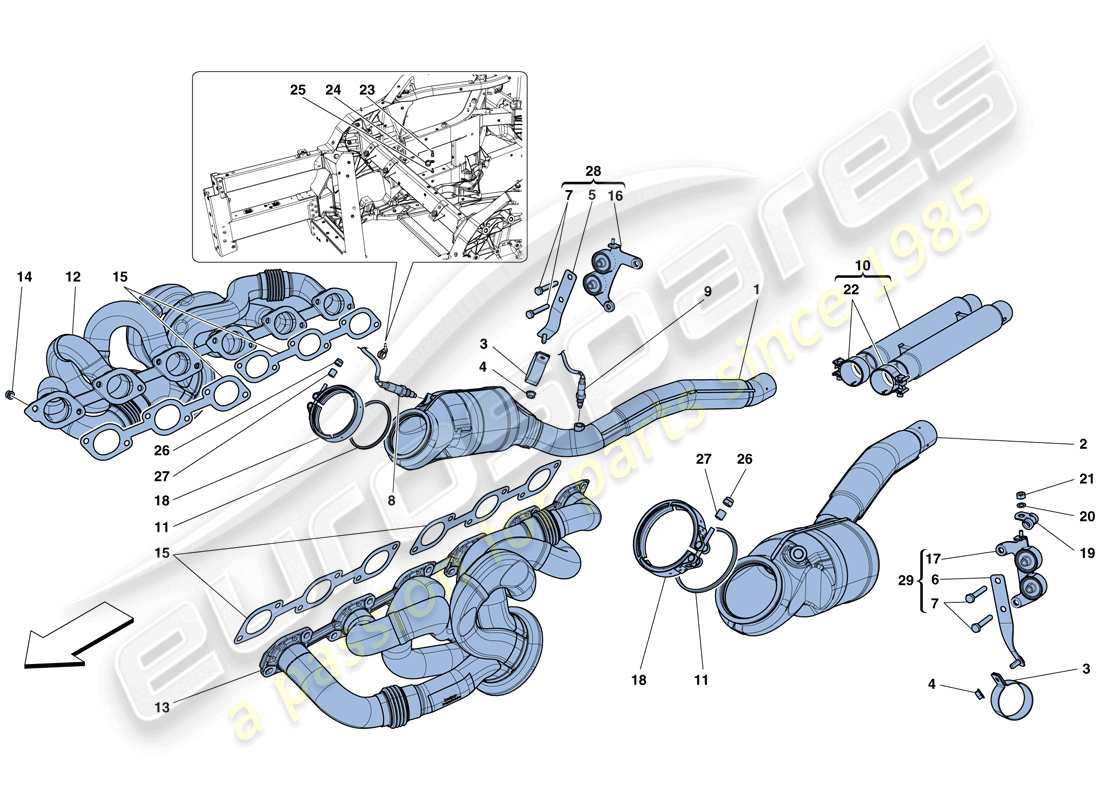

Ferrari F12 Berlinetta (USA) PRE-CATALYTIC CONVERTERS AND CATALYTIC CONVERTERS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Price
                                      # 002
                                      MPN: 275463
                                      COMPL. LH CATALYTIC CONVERTER
                                      from £2,636.24
                                      from £2,636.24
                                      # 003
                                      MPN: 270406
                                      RING CLAMP
                                      from £10.10
                                      from £10.10
                                      # 004
                                      MPN: 14059311
                                      NUT
                                      from £0.30
                                      from £0.30
                                      # 005
                                      MPN: 281237
                                      RH CATALYTIC CONVERTER MOUNTING BRACKET
                                      -After depletion order compl. ref. 28- -Applicable until depletion-
                                      Supersession
                                      Supersession
                                      # 006
                                      MPN: 281238
                                      LH CATALYTIC CONVERTER MOUNTING BRACKET
                                      -After depletion order compl. ref. 29- -Applicable until depletion-
                                      Supersession
                                      Supersession
                                      # 007
                                      MPN: 16044224
                                      SCREW
                                      -M8 X 50- -After depletion order compl. ref. 28-29- -Applicable until depletion-
                                      from £0.47
                                      from £0.47
                                      This part replaces part number 16044221 which we have in stock
                                      # 008
                                      MPN: 286650
                                      FRONT OXYGEN SENSOR
                                      -L. 500 mm-
                                      Supersession
                                      Supersession
                                      # 009
                                      MPN: 180915
                                      REAR OXYGEN SENSOR
                                      -L. 1200 mm-
                                      from £26.25
                                      from £26.25
                                      This part replaces part number 177674 - and 2 more. Click to view details
                                      # 010
                                      MPN: 290883
                                      CENTRAL EXTENSION
                                      from £353.01
                                      from £353.01
                                      # 011
                                      MPN: 275465
                                      GASKET
                                      from £36.51
                                      from £36.51
                                      # 012
                                      MPN: 290514
                                      COMPL. RH EXHAUST MANIFOLD
                                      -No longer supplied- -Replaced by 295005-
                                      Supersession
                                      Supersession
                                      # 012
                                      MPN: 295005
                                      COMPL. RH EXHAUST MANIFOLD
                                      from £1,014.07
                                      from £1,014.07
                                      This part replaces part number 290514 - and 1 more. Click to view details
                                      # 013
                                      MPN: 290515
                                      COMPL. LH EXHAUST MANIFOLD
                                      -No longer supplied- -Replaced by 295006-
                                      Supersession
                                      Supersession
                                      # 013
                                      MPN: 295006
                                      COMPL. LH EXHAUST MANIFOLD
                                      from £1,014.07
                                      from £1,014.07
                                      This part replaces part number 290515 - and 1 more. Click to view details
                                      # 014
                                      MPN: 210971
                                      NUT
                                      from £0.92
                                      from £0.92
                                      # 015
                                      MPN: 212702
                                      GASKET
                                      from £6.85
                                      from £6.85
                                      # 016
                                      MPN: 286793
                                      RH CATALYTIC CONVERTER MOUNTING BRACKET
                                      -After depletion order compl. ref. 28- -Applicable until depletion-
                                      from £53.80
                                      from £53.80
                                      # 017
                                      MPN: 286794
                                      LH CATALYTIC CONVERTER MOUNTING BRACKET
                                      -After depletion order compl. ref. 29- -Applicable until depletion-
                                      from £53.80
                                      from £53.80
                                      # 018
                                      MPN: 272264
                                      CLAMP
                                      from £13.72
                                      from £13.72
                                      # 019
                                      MPN: 10441190
                                      BRACKET WITH SHEATH
                                      -No longer supplied- -Replaced by 10441490-
                                      from £0.47
                                      from £0.47
                                      # 019
                                      MPN: 10441490
                                      BRACKET WITH SHEATH
                                      from £0.47
                                      from £0.47
                                      # 020
                                      MPN: 12604279
                                      WASHER
                                      from £0.47
                                      from £0.47
                                      # 021
                                      MPN: 15896211
                                      NUT
                                      Supersession
                                      Supersession
                                      This part replaces part number 15896210
                                      # 022
                                      MPN: 282998
                                      RING CLAMP
                                      from £17.17
                                      from £17.17
                                      # 023
                                      MPN: 232777
                                      STUD BOLT
                                      from £5.11
                                      from £5.11
                                      # 024
                                      MPN: 10419501
                                      BRACKET
                                      from £1.56
                                      from £1.56
                                      # 025
                                      MPN: 231616
                                      SCREW
                                      -M6 X 14-
                                      from £0.47
                                      from £0.47
                                      This part replaces part number 14305724 which we have in stock
                                      # 026
                                      MPN: 292945
                                      NUT
                                      from £7.49
                                      from £7.49
                                      # 027
                                      MPN: 292946
                                      SPACER
                                      from £4.40
                                      from £4.40
                                      # 028
                                      MPN: 296303
                                      COMPLETE RH CATALYTIC CONVERTER MOUNTING BRACKET
                                      from £64.77
                                      from £64.77
                                      This part replaces part number 281237 which we have in stock - and 5 more. Click to view details
                                      # 029
                                      MPN: 296304
                                      COMPLETE LH CATALYTIC CONVERTER MOUNTING BRACKET
                                      from £64.77
                                      from £64.77
                                      This part replaces part number 281238 which we have in stock - and 5 more. Click to view details
